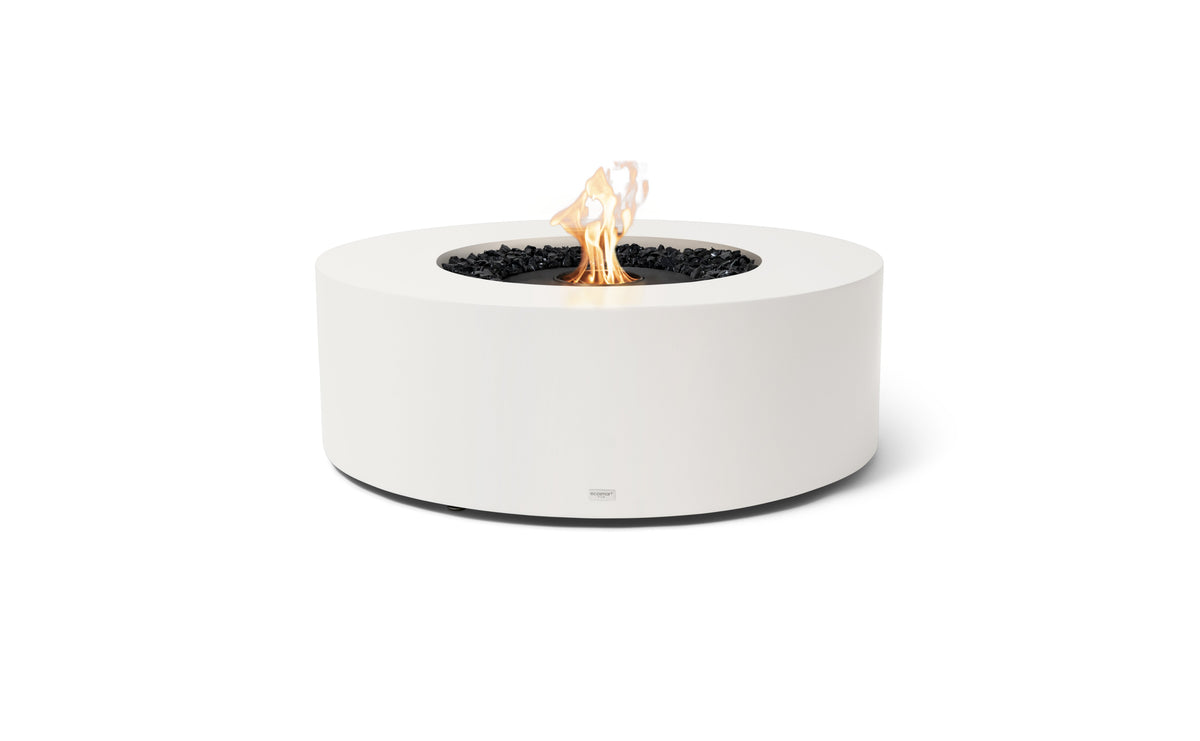

Ark 40 EcoSmart Fire Table with 8L Bioethanol Burner

Description

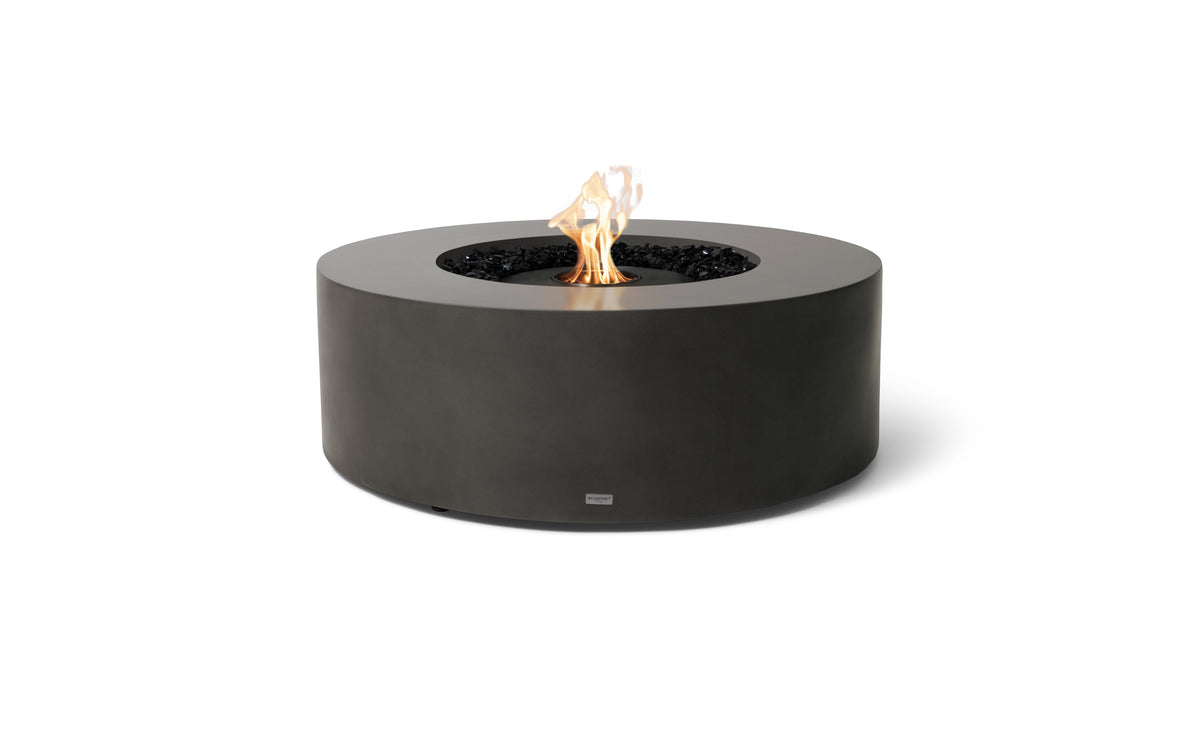

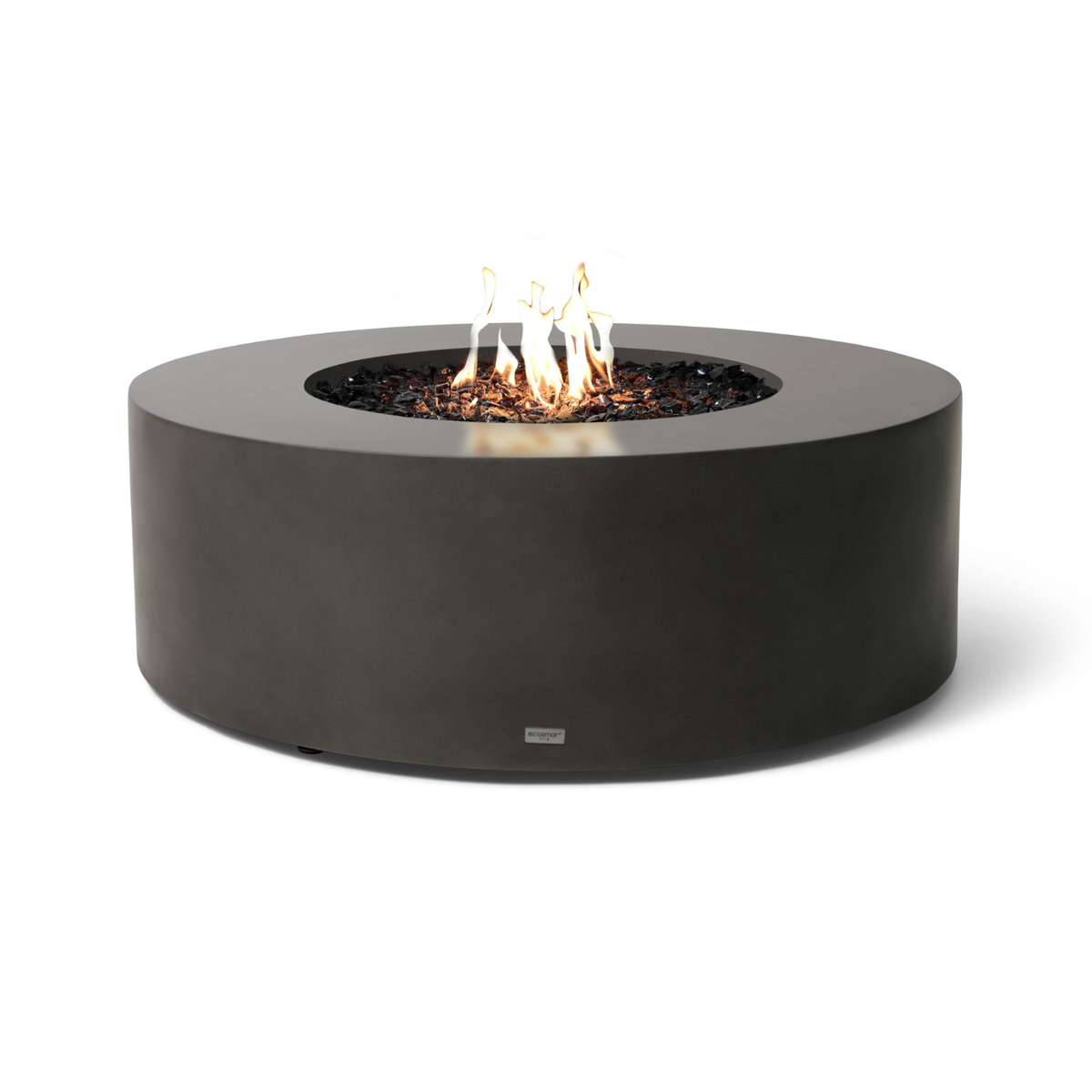

Ark 40 by EcoSmart Fire

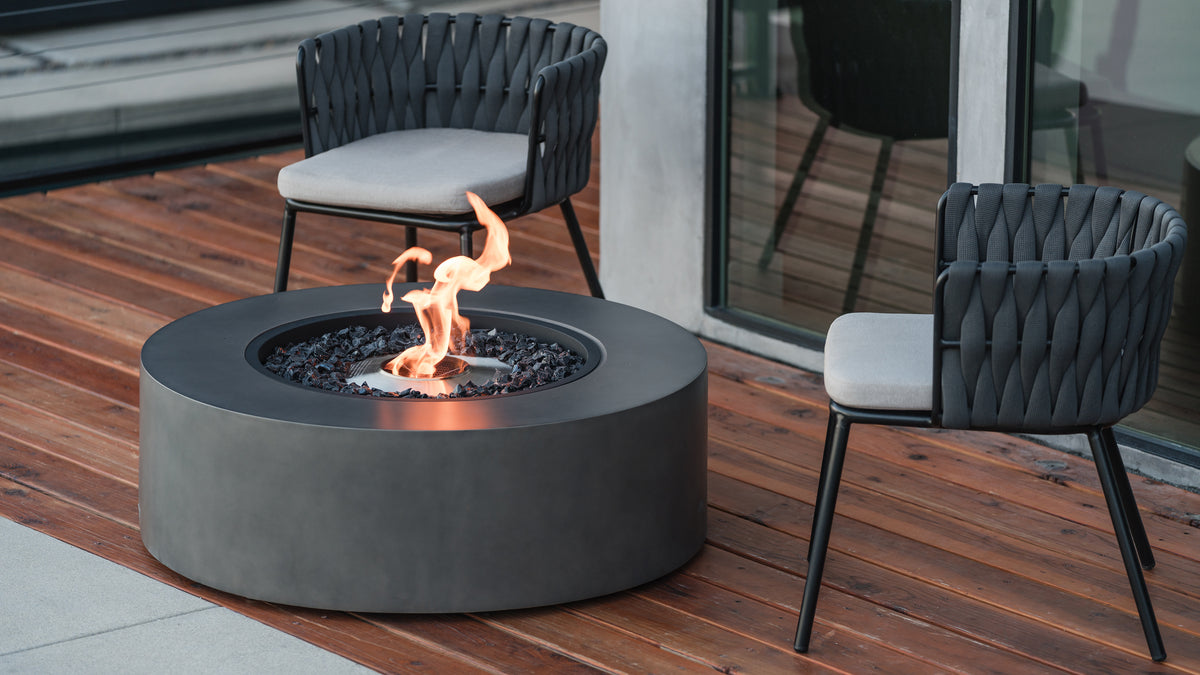

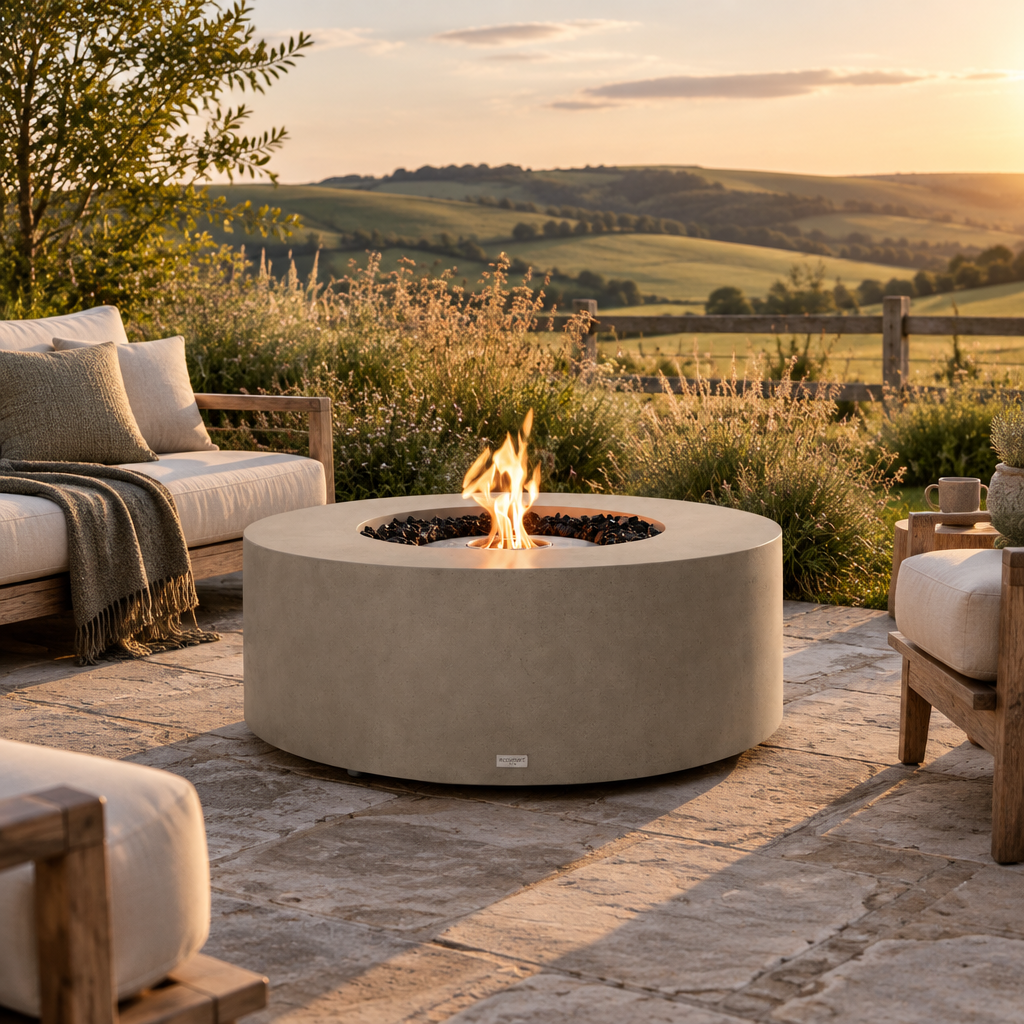

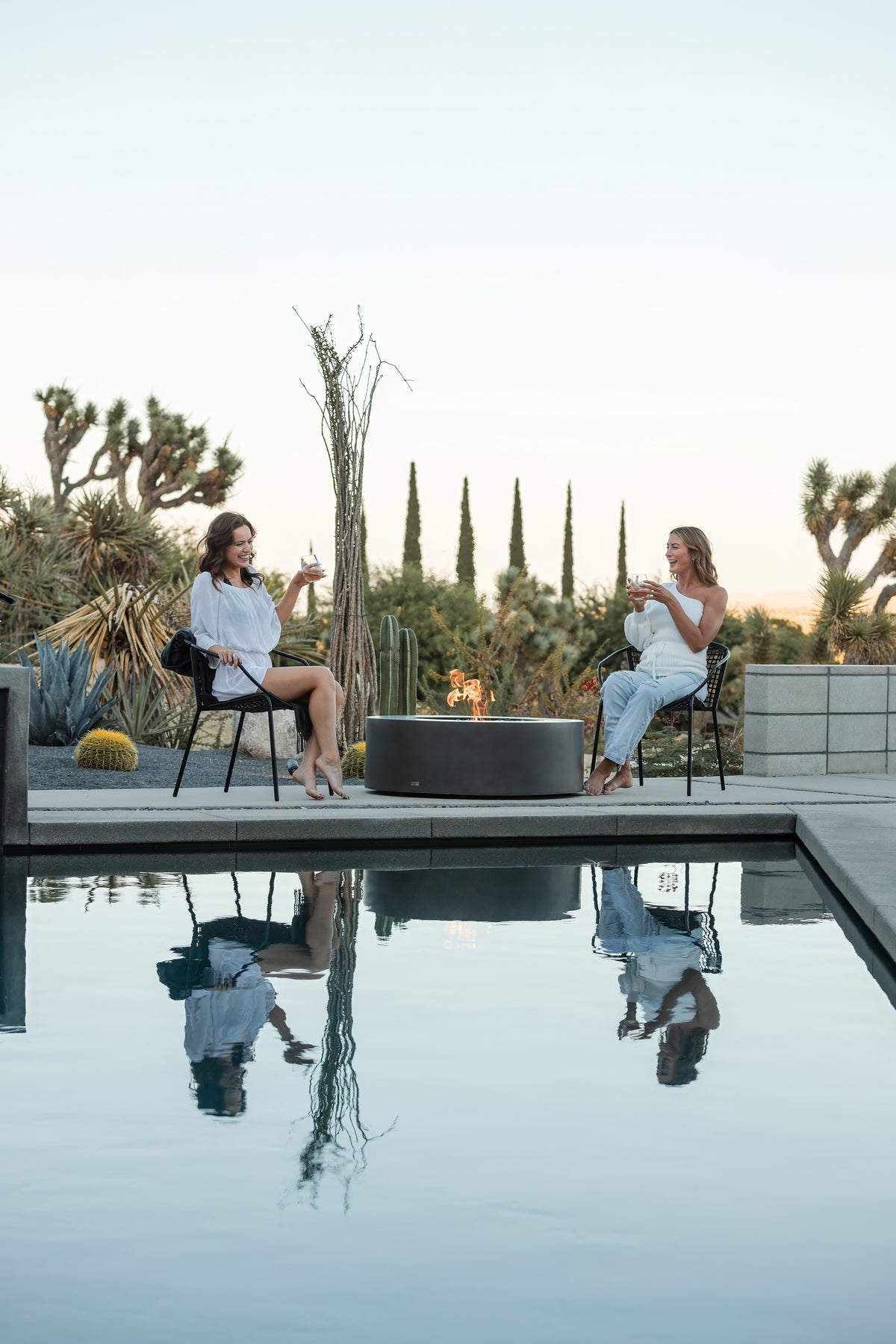

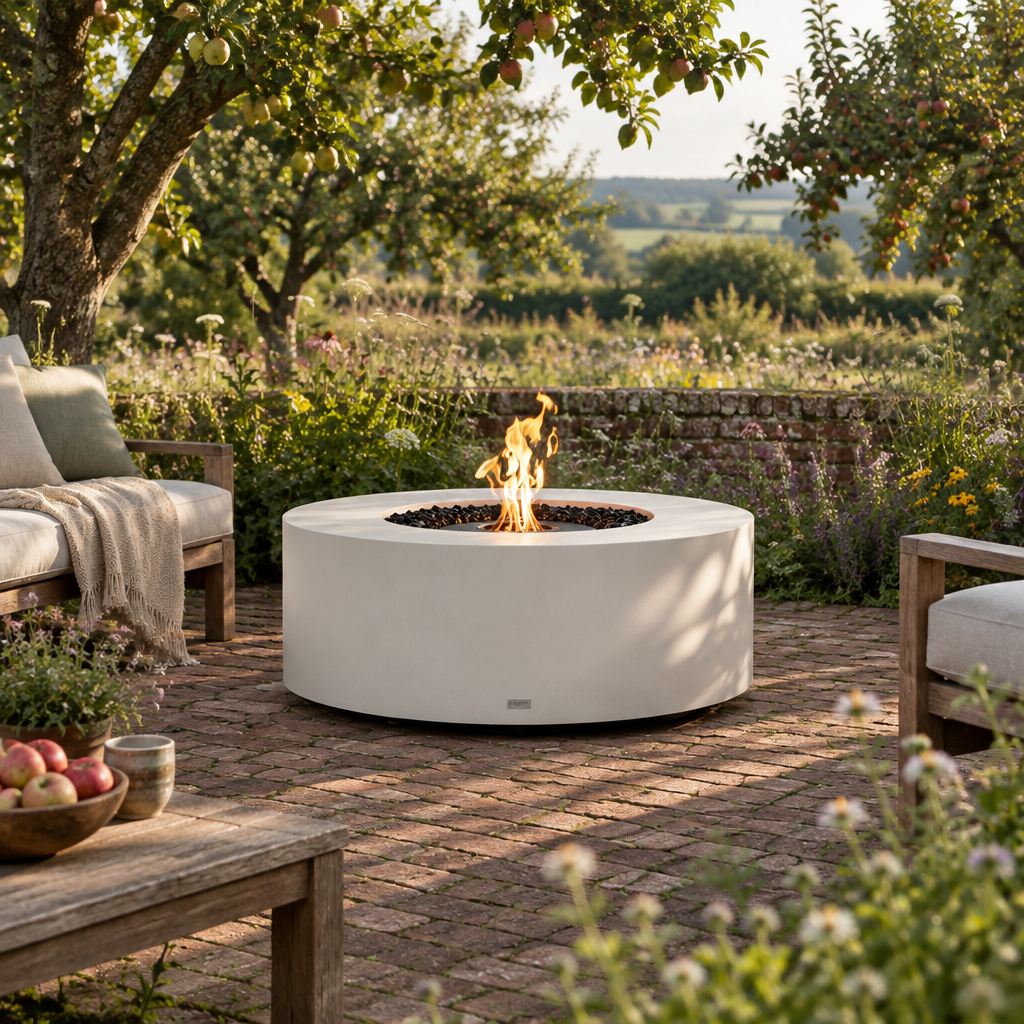

Natural hues, weather resistant materials and industrial inspired design come together in the Ark 40 by EcoSmart Fire. Designed to create a striking focal point for your garden, patio or outdoor entertaining area, this contemporary fire table combines a generous table surface with the warmth and ambience of a real flame. Its clean, unobtrusive shape works beautifully across a variety of settings, while durable materials make it well suited to outdoor living.

Features

🔥 Design & Materials

The Ark 40 combines a durable Fluid™ Concrete or Grade A Teak Wood surround with a Grade 304 stainless steel burner. Its simple lines and natural colour options allow it to complement both modern and traditional outdoor spaces.

The Fluid™ Concrete finish is made using a blend of green cement, recycled materials and Fluid™ Concrete Technology. It is designed to resist scratches, stains, mould and mildew, helping the table maintain its appearance through everyday outdoor use.

For a warmer natural look, the Ark 40 is also available with a Grade A Teak Wood surround. Teak is naturally durable and designed to withstand outdoor conditions while retaining its strength and appearance.

The fire table also features 360 degree height adjustable articulating feet, helping you achieve a stable and level position on your flooring.

🔥 Three Fuel Choices

The Ark 40 can be configured with bioethanol, Liquid Propane or Natural Gas, giving you flexibility when choosing how you want to enjoy your fire.

Bioethanol provides a clean burning flame and can be used indoors or outdoors when the required indoor safety components are installed. The AB8 burner has an 8 litre capacity and produces up to 6 kW of heat.

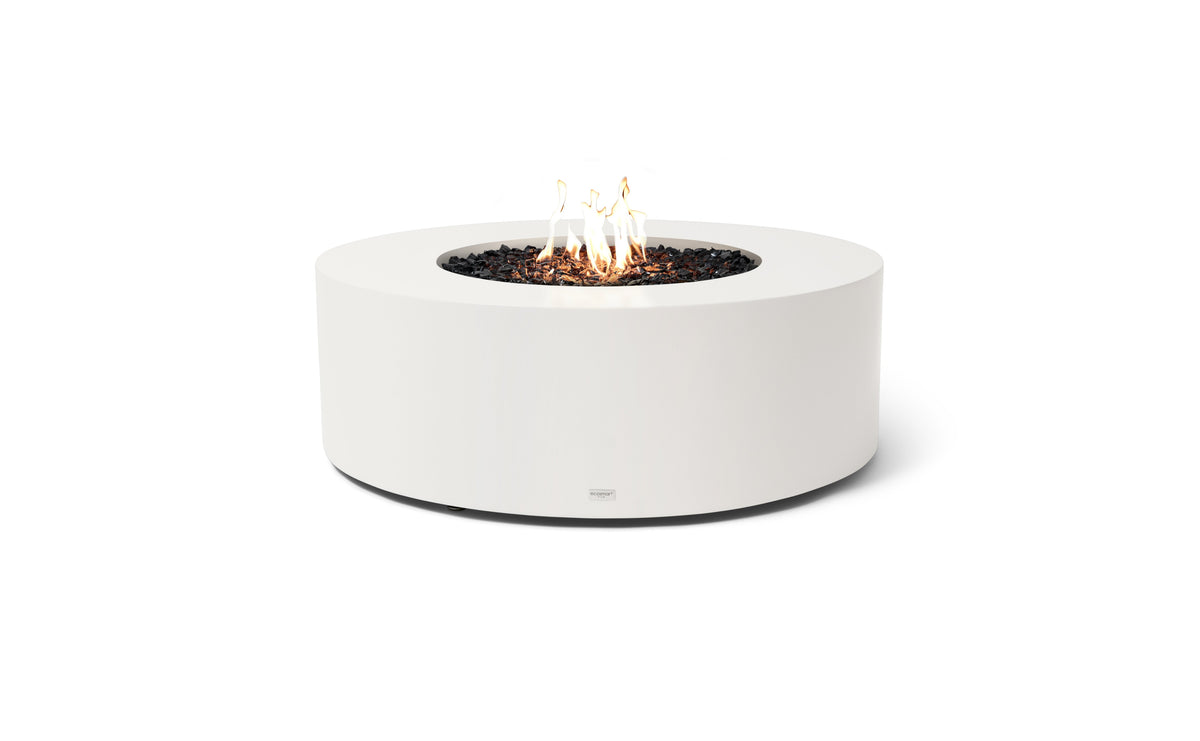

Liquid Propane and Natural Gas configurations are designed for outdoor use only. The G16T gas burner produces up to 19 kW of heat, while Natural Gas provides a continuous fuel supply without the need for refuelling.

🍷 Generous Table Space

The Ark 40 is designed to combine the comfort of a fire pit with the practicality of a spacious outdoor table. Its 1000 mm square surface provides plenty of room for drinks, plates and appetisers, making it ideal for entertaining family and friends.

When the fire is not in use, the optional R20 Cover Plate can transform the burner section into a flat and usable coffee table surface.

🔥 Smokeless Flame

Enjoy the warmth and atmosphere of a real flame without the smoke, soot and ash associated with a traditional wood burning fire.

The bioethanol configuration creates a clean burning flame that can add a cosy atmosphere to outdoor gatherings, garden evenings and entertaining spaces.

🌿 All Weather Materials

The Ark 40 is designed using materials selected for durability and outdoor living.

The Fluid™ Concrete surround combines green cement and recycled materials with Fluid™ Concrete Technology. Its durable finish is designed to resist scratches, stains, mould and mildew.

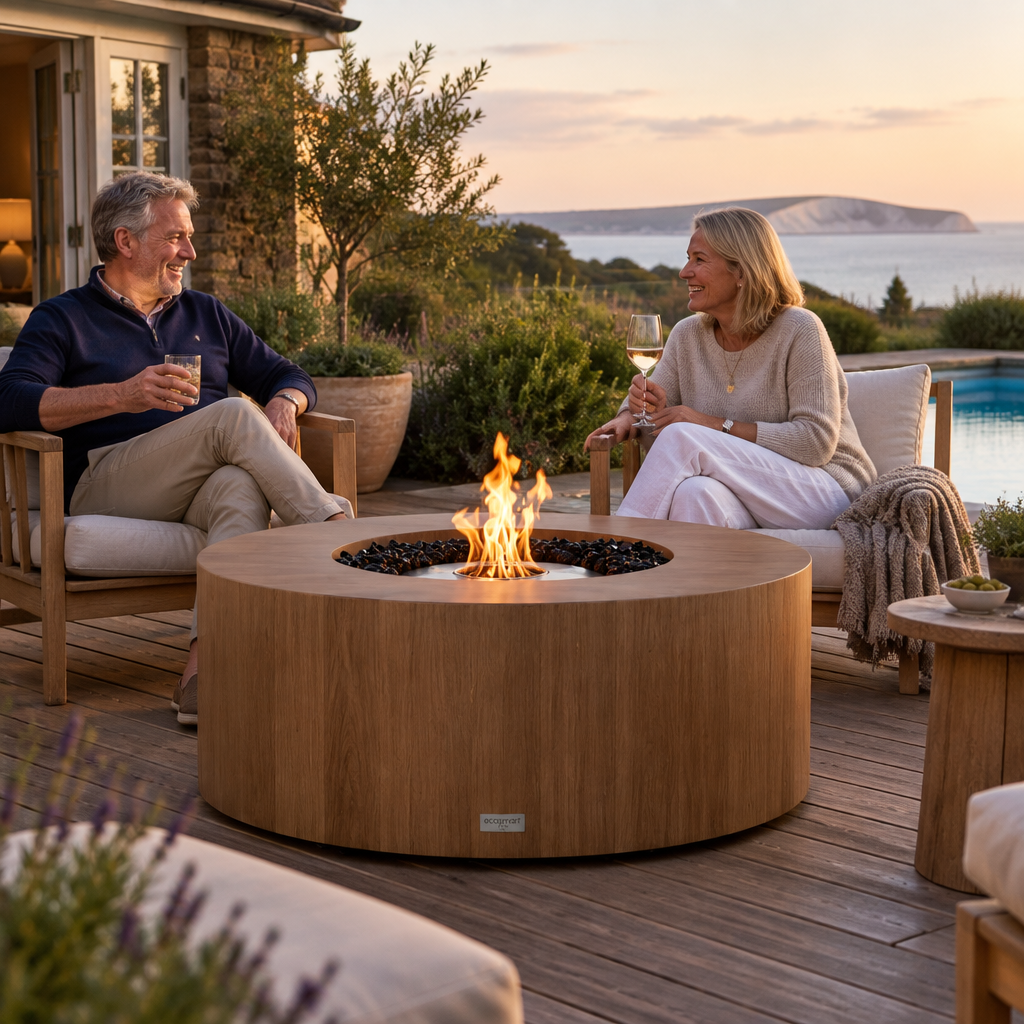

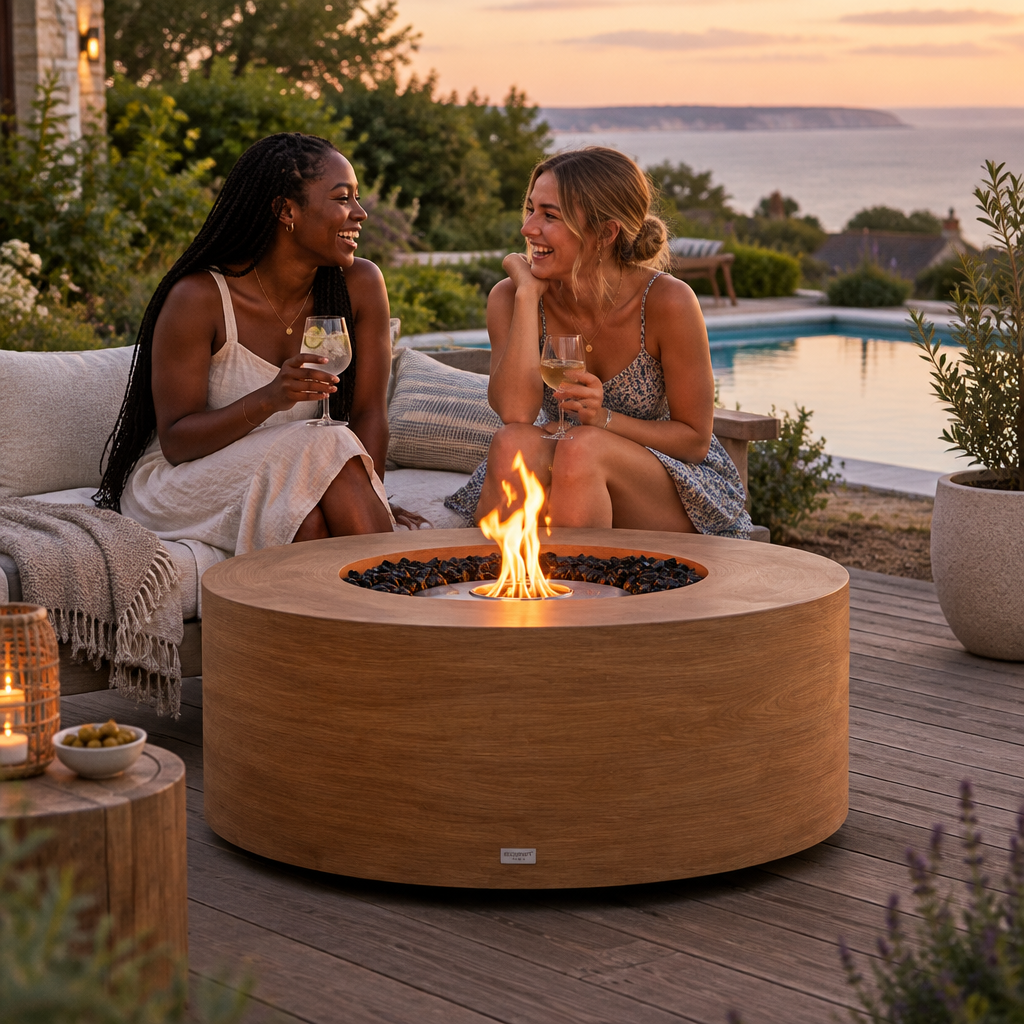

The Grade A Teak option provides a naturally durable alternative with a warm, organic appearance that works beautifully in garden and patio settings.

Optional protective covers are also available to help protect the fire table from dust, water and other debris when it is not in use.

Specifications

⚙️ Technical Specifications

Product: Ark 40 by EcoSmart Fire

Dimensions:
• Length: 1,000 mm [39.4 in]
• Width: 1,000 mm [39.4 in]
• Height: 339 mm [13.3 in]

Weight:
• Construction weight: 58.30 kg [129 lb]
• Concrete version: 57.04 kg [125.8 lb]
• Teak version: 54.81 kg [120.8 lb]

Materials:
• Fluid™ Concrete or Grade A Teak Wood surround
• Grade 304 Stainless Steel burner
• Optional Black Ceramic burner coating

Surround Colours:

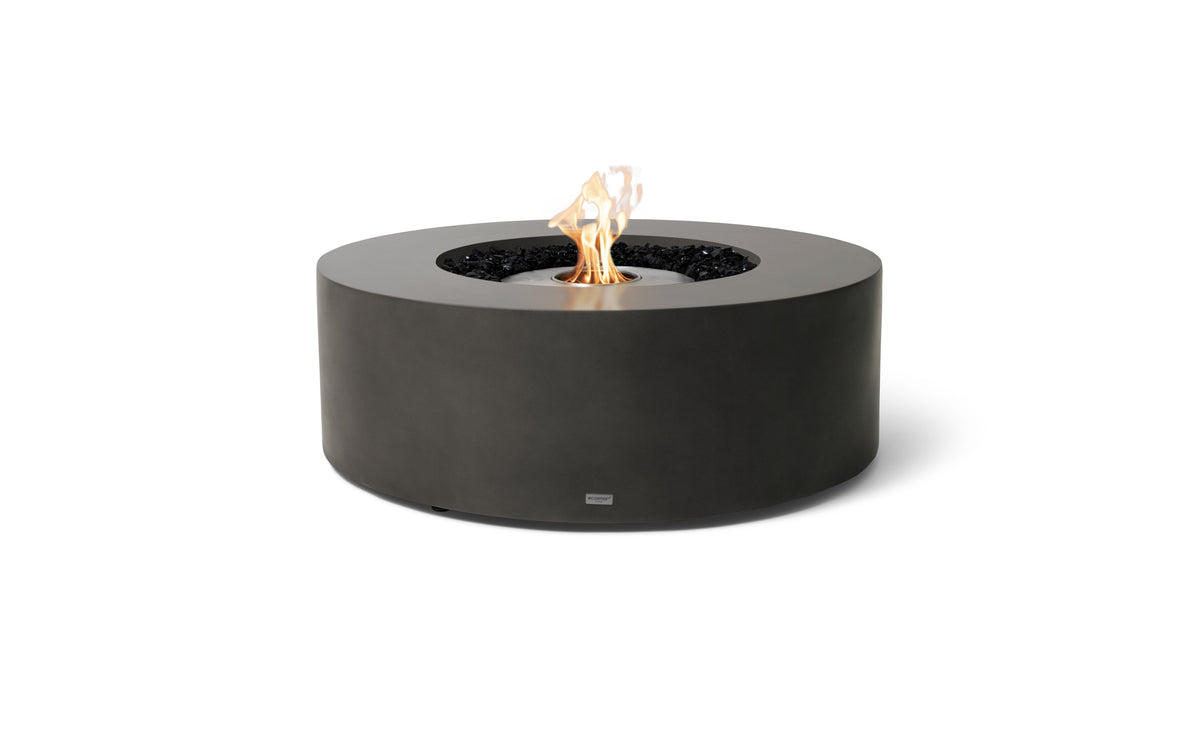

• Natural

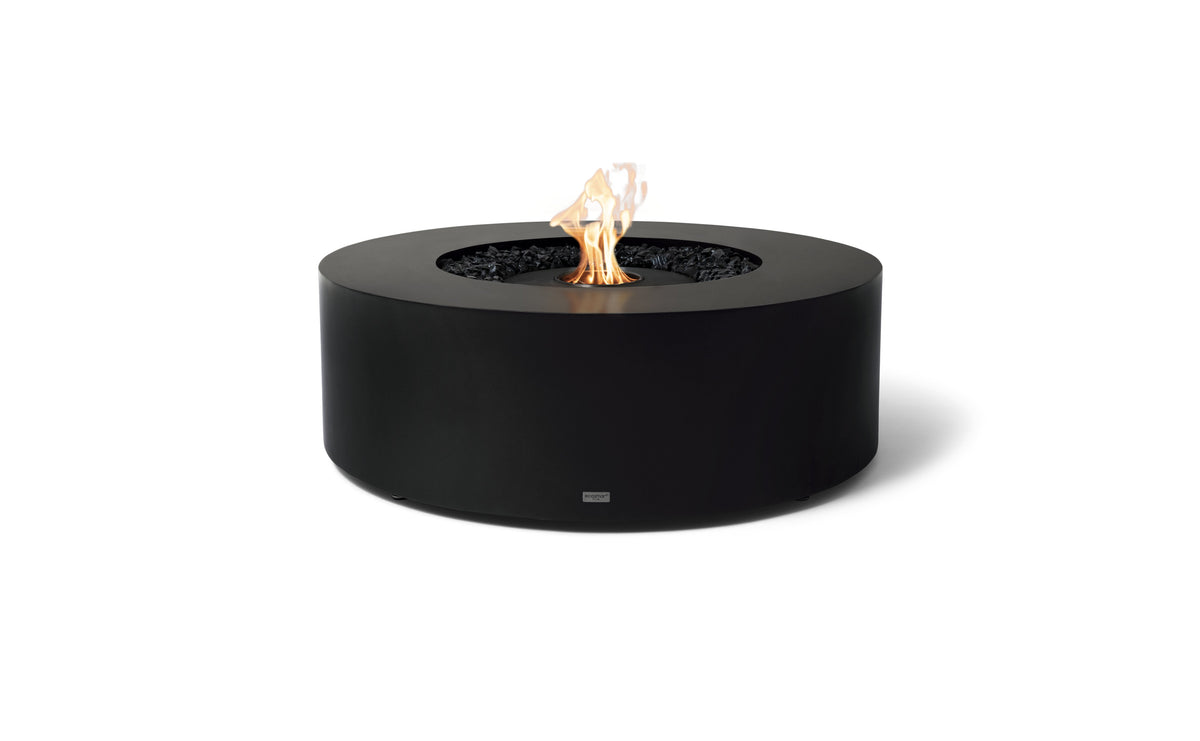

• Graphite
• Bone
• Natural Teak

Burner Colours:
• Stainless Steel
• Black

Application:
• Bioethanol: Indoor or Outdoor
• Liquid Propane: Outdoor only
• Natural Gas: Outdoor only

Bioethanol Burner:
• Burner configuration: AB8
• Fuel capacity: 8 litres [2.1 gallons]
• Thermal output: 6 kW
• Thermal output: 21.56 MJ/h
• Thermal output: 20,433 BTU/h
• Burn time: approximately 7 to 9 hours
• Maximum fuel consumption: 1.1 L/h
• Average heating area: 60 m² [646 ft²]
• Minimum room size: 116 m³ [4,097 ft³]

Gas Burner:
• Burner configuration: G16T
• Liquid Propane output: 19 kW
• Natural Gas output: 19 kW
• Liquid Propane burn time: approximately 8 to 20 hours depending on tank
• Natural Gas: unlimited fuel supply
• Outdoor use only

Packaging:
• Shipping weight: 70.80 kg [156 lb]
• Packaging dimensions: 1,134 x 1,134 x 444 mm [44.6 x 44.6 x 17.5 in]
• CBM: 0.57 m³
• Packaging type: Carton

Included

📦 What’s Included

• R530 Fire Screen Studio
• R530 Fire Screen
• Jerry Can 2.5 Gallon Studio
• Jerry Can 5L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal

The R530 Fire Screen helps minimise the impact of wind on the flame and can help reduce fuel consumption.

The Jerry Can provides a safe and practical way to store and decant e-NRG bioethanol. The Fire Lighter supports safe ignition, while the Lighting Rod allows you to safely adjust the burner slider and assists with ignition and extinguishing.

The Black Glass Charcoal is made from high quality tempered glass and is designed to withstand temperatures of up to 700°C.

🛠️ Optional Accessories

• Tank in Natural
• Tank in Teak and Natural
• R530 Fire Screen
• R400 Fire Screen
• R20 Cover Plate
• Ark 40 Winter Bag
• RT40 All Season Cover
• AB8 Silicone Burner Cover

The optional Ark 40 Winter Bag and RT40 All Season Cover are made from UV coated Oxford fabric and help protect the fire table from dust, water and other debris.

The AB8 Silicone Burner Cover helps protect the ethanol burner from the elements when the fire is not in use.

Safety

🛡️ Safety & Certification

The Ark 40 is designed to meet recognised safety standards across the USA, Europe, UK and Australia.

The bioethanol AB8 burner is O TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.

For indoor bioethanol use, the Indoor Safety Tray and included AB8 Burner Efficiency Ring must be installed before operation to comply with EN 16647.

Liquid Propane and Natural Gas configurations are suitable for outdoor use only. Gas burners are UL and ULC listed to ANSI Z21.97 2017 and CSA 2.41 2017, with compliance under the Gas Appliance Regulation 2016/426 for the EU and UK.

Always follow the manufacturer's installation and operating instructions for the selected fuel configuration.

Delivery

🚚 Shipping Information

We only work with selected freight companies to ensure a fast and reliable delivery.

Standard Delivery

Standard delivery provides ground delivery to the easiest access point on your property and does not include inside delivery, packaging removal, or assembly.

Bioethanol Fuel

e-NRG Bioethanol may ship separately from EcoSmart Fire orders and may arrive on a different day. An individual tracking number for your e-NRG Bioethanol order will be emailed to you.

FAQs

❓ Frequently Asked Questions

Is the Ark 40 suitable for indoor use?

The Ark 40 can be used indoors when configured with the AB8 bioethanol burner and the required indoor safety components. The Indoor Safety Tray and AB8 Burner Efficiency Ring must be installed before indoor operation. Gas configurations are for outdoor use only.

How long does the AB8 burner burn for?

The AB8 burner has an 8 litre capacity and provides an approximate burn time of 7 to 9 hours at maximum fuel consumption.

How much heat does the Ark 40 produce?

The AB8 bioethanol burner produces up to 6 kW of heat and can heat an area of approximately 60 m² under indicative conditions.

Can I use Natural Gas with the Ark 40?

Yes. The Ark 40 is compatible with the G16T Natural Gas burner. Natural Gas is suitable for outdoor use only and provides a thermal output of 19 kW.

Can the Ark 40 be used with Liquid Propane?

Yes. The G16T Liquid Propane burner provides a thermal output of 19 kW and is designed for outdoor use only.

Does the Ark 40 produce smoke?

The bioethanol configuration creates a clean burning flame without the smoke, soot and ash associated with traditional wood burning fires.

Can the Ark 40 be used as a coffee table?

Yes. The optional R20 Cover Plate can cover the burner section and create a flat surface when the fire is not in use.

What colours are available?

The Ark 40 is available with a Natural, Graphite, Bone or Natural Teak surround. Burner options are available in Stainless Steel or Black.

What is the Ark 40 made from?

The surround is available in Fluid™ Concrete or Grade A Teak Wood. The burner is made from Grade 304 Stainless Steel, with an optional Black Ceramic coating.

Is a fire screen included?

Yes. The Ark 40 includes the R530 Fire Screen. The screen helps minimise the impact of wind on the flame and can help reduce fuel consumption.

Downloads

Model Specifications

Clearance & Installation - Fire Tables (Ethanol)

Clearance & Installation - Fire Tables (Gas)

Assembly - Glass Cover Plates

Installation & Operation - Ethanol Burners

Installation & Operation - Gas Burners
