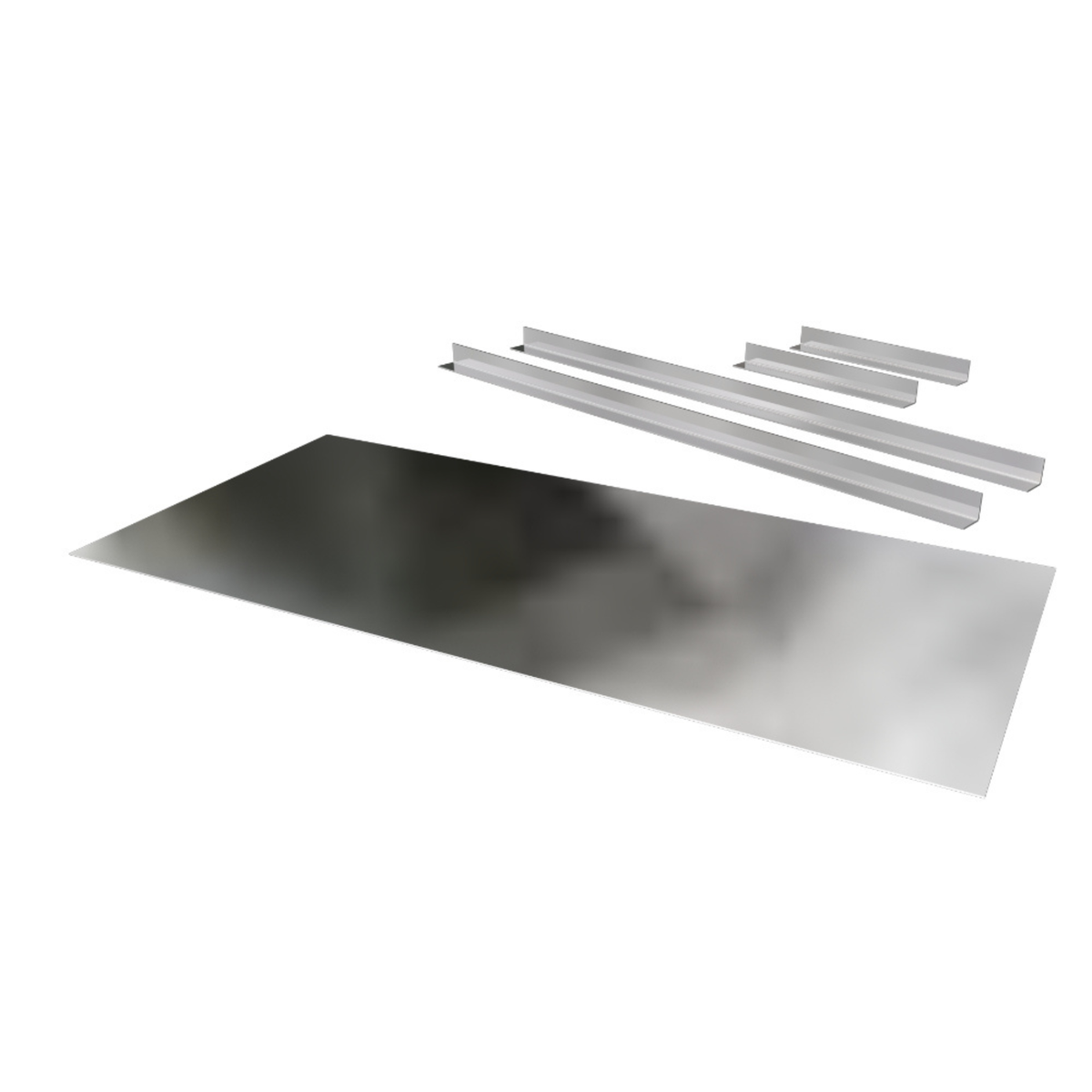

Closure Plate 1000 x 400mm with Brackets in Galvanised Steel

Description

Closure Plate 1000 x 400 with Brackets

Create a neat, finished look around your stove installation while helping to reduce heat loss through the chimney. This 1000 x 400mm Closure Plate with Brackets is made from durable 1.2mm galvanised steel and is designed to seal the opening around a chimney liner. It provides a practical solution for keeping unwanted soot and draughts from entering the room, whilst helping to prevent warm air from escaping unnecessarily into the chimney.

Design & Materials 🏠

Made from 1.2mm galvanised steel, this closure plate provides a strong and durable barrier within the chimney opening. The plain finish keeps the design simple and unobtrusive, making it suitable for a range of stove and chimney installations.

The included brackets help with positioning and installation, providing a secure fit when closing the chimney opening around a fitted liner.

A closure plate is used where a chimney liner containing flue gases is already present. Unlike a register plate, the closure plate is not intended to contain the stove flue gases. Instead, it seals the chimney opening around the liner for a cleaner and more finished installation.

Benefits

Key Benefits ✨

• Helps prevent heat from escaping unnecessarily into the chimney
• Reduces the chance of old soot smells entering the room as the chimney warms
• Helps prevent loose soot and debris from falling around the stove
• Durable galvanised steel construction provides a practical long term solution
• Supplied with brackets for easier installation and positioning

Features

Performance & Features

The Closure Plate 1000 x 400 with Brackets is designed to provide a simple and effective way to close the chimney opening when a chimney liner has been installed.

By sealing the space around the liner, the plate helps reduce unnecessary heat loss into the unused chimney space. It can also help minimise draughts and prevent old soot smells from travelling into the room.

The plain galvanised steel finish provides a straightforward appearance that works well as part of a professional stove and chimney installation.

It is important to understand that a closure plate is different from a register plate. When a suitable chimney liner containing the flue gases is installed, the closure plate provides a seal around the liner rather than acting as the primary barrier for flue gases.

Safety

Safety & Installation Information 🔥

A closure plate should be installed as part of a suitable chimney and stove installation. Always ensure that the chimney liner and associated components are correctly installed and suitable for the appliance being used.

A closure plate is intended for use where a chimney liner is already present. It should not be used as a substitute for a suitable chimney liner or other components required for a safe stove installation.

Because the flue gases are contained within the chimney liner, a fault such as a hole developing in the closure plate would not allow smoke from the liner to enter the room, provided the chimney liner and complete flue system are correctly installed and functioning properly.

Professional installation is recommended where appropriate.

Specifications

Technical Specifications 📋

• Product Type: Closure Plate with Brackets
• Dimensions: 1000 x 400mm
• Material: Galvanised Steel
• Material Thickness: 1.2mm
• Finish: Plain
• Flue Parts Category: Register and Closure Plates
• Application: Chimney liner installations
• Includes Brackets: Yes
• Fuel Type: Suitable for stove installations with a chimney liner
• Guarantee: 1 Year
• More Colours Available: No

Included

What’s Included

• 1 x 1000 x 400mm Closure Plate
• Brackets for installation

Warranty

Warranty & Support

This Closure Plate 1000 x 400 with Brackets is supplied with a 1 year guarantee, giving you added reassurance when completing your stove and chimney installation.

For installation guidance or questions about suitability, we recommend checking with a qualified stove or chimney professional before purchasing.

FAQs

Frequently Asked Questions

What is a closure plate used for?

A closure plate is used to seal the chimney opening when a chimney liner containing flue gases has been installed. It helps prevent heat from escaping into the chimney and reduces the chance of old soot smells or loose soot entering the room.

Is a closure plate the same as a register plate?

No. A closure plate is used when a chimney liner is present and primarily seals the chimney opening around the liner. A register plate has a different role within a stove installation.

Does this closure plate include brackets?

Yes. This product is supplied with brackets to assist with positioning and installation.

What is the closure plate made from?

The plate is made from 1.2mm galvanised steel, providing a durable and practical material for chimney closure applications.

Will a hole in the closure plate allow smoke into the room?

Where a correctly installed chimney liner is containing the flue gases, a fault in the closure plate would not itself allow smoke from the liner to enter the room. The closure plate is not the component containing the flue gases.

Can a closure plate be made from other materials?

Yes. A closure plate can be manufactured from a suitable non combustible material. This product uses 1.2mm galvanised steel for a durable and practical solution.

Is this closure plate suitable for every stove installation?

Suitability depends on the specific chimney, liner and stove installation. Always check the dimensions and requirements of your installation and seek professional advice if you are unsure.
