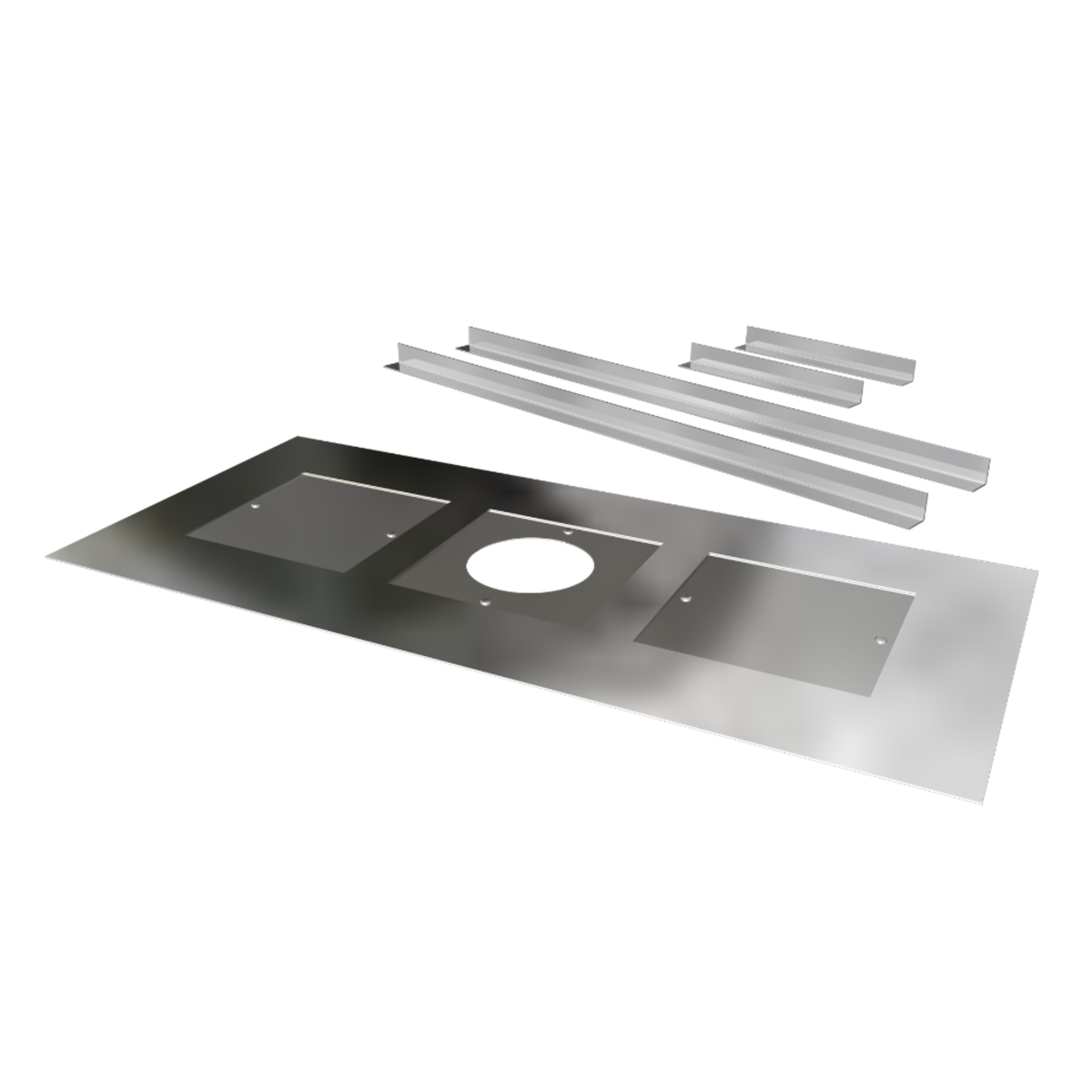

Closure Plate 1000 x 400mm with Centre Hole and Brackets

Description

Closure Plate 1000 x 400 with Centre Hole and Brackets 🔥

Complete your chimney installation with a practical 1000 x 400mm Closure Plate with Centre Hole and Brackets. Made from durable 1.2mm galvanised steel, this closure plate is designed to seal the chimney opening around a fitted chimney liner while providing a neat and practical finish. The centre hole allows the flue liner to pass through the plate, making it suitable for installations where the liner position needs to be accommodated.

Design & Materials 🏠

Made from 1.2mm galvanised steel, this closure plate offers a strong and durable solution for sealing the open area around a chimney liner. Its plain finish provides a simple appearance that works well with a variety of stove and chimney installations.

The centre hole is designed to accommodate the chimney liner, while the supplied brackets help with positioning and securing the plate during installation.

A closure plate is used when a chimney liner containing flue gases has been installed. It seals the chimney opening around the liner, helping to prevent unnecessary heat loss and reduce the movement of old soot smells and loose soot into the room.

Benefits

Key Benefits ✨

• Helps reduce heat loss through the unused chimney space
• Centre hole allows the chimney liner to pass through neatly
• Helps prevent old soot smells entering the room
• Helps stop loose soot and debris falling around the stove
• Durable 1.2mm galvanised steel construction
• Supplied with brackets to assist with installation

Features

Performance & Features

The Closure Plate 1000 x 400 with Centre Hole and Brackets is designed to provide a straightforward way to close a chimney opening where a chimney liner has been installed.

The centre hole provides an opening for the chimney liner to pass through the plate, helping create a more practical and tidy installation. The plate then seals the surrounding chimney opening, helping prevent warm air from escaping unnecessarily into the chimney.

As the flue gases are contained within the chimney liner, the closure plate is not designed to contain the flue gases itself. Its purpose is to close the surrounding chimney opening and provide a cleaner, more finished installation.

The galvanised steel construction offers durability, whilst the plain finish keeps the product discreet once installed.

Safety

Safety & Certification 🔥

A closure plate should only be used as part of a suitable stove and chimney installation where a chimney liner containing the flue gases is present.

It is not a replacement for a chimney liner, suitable flue system or other components required for safe stove installation.

If the closure plate develops a fault, such as a hole, this would not itself allow smoke into the room where the chimney liner is correctly installed and containing the flue gases. The liner remains responsible for containing the flue gases.

Always ensure that the chimney liner, stove and associated components are correctly specified and installed. Professional installation is recommended where appropriate.

For wood burning and gas products, appliances and flue systems are designed for use outdoors or, where applicable, in a properly ventilated installation environment. Always follow the manufacturer's installation and ventilation requirements.

Specifications

Dimensions & Technical Specifications 📋

• Product Type: Closure Plate with Centre Hole and Brackets
• Dimensions: 1000 x 400mm
• Material: Galvanised Steel
• Material Thickness: 1.2mm
• Finish: Plain
• Centre Hole: Yes
• Flue Parts Category: Register and Closure Plates
• Application: Chimney liner installations
• Includes Brackets: Yes
• Guarantee: 1 Year
• More Colours Available: No

Included

What’s Included

• 1 x 1000 x 400mm Closure Plate with Centre Hole
• Brackets for installation

Warranty

Warranty & Support

The Closure Plate 1000 x 400 with Centre Hole and Brackets comes with a 1 year guarantee for added reassurance.

If you are unsure whether this closure plate is suitable for your chimney liner or stove installation, we recommend checking the dimensions and installation requirements with a qualified stove or chimney professional before purchasing.

FAQs

Frequently Asked Questions

What is a closure plate used for?

A closure plate is used to seal the open area of a chimney when a chimney liner containing flue gases has been installed. It helps reduce heat loss and can help prevent old soot smells and loose soot from entering the room.

What is the purpose of the centre hole?

The centre hole provides an opening for the chimney liner to pass through the closure plate, helping create a neat and practical installation around the liner.

Is this the same as a register plate?

No. A closure plate and register plate have different purposes. When a suitable chimney liner is fitted, a closure plate is used to seal the surrounding chimney opening.

What material is this closure plate made from?

This closure plate is manufactured from 1.2mm galvanised steel, providing a durable solution for chimney closure applications.

Are brackets included?

Yes. Brackets are included with the closure plate to assist with positioning and installation.

Will a damaged closure plate allow smoke into the room?

Where the chimney liner is correctly installed and contains the flue gases, a fault in the closure plate would not itself allow smoke from the liner into the room. The flue gases are contained within the chimney liner.

Is the centre hole suitable for every chimney liner?

The suitability of the centre hole depends on the specific liner and installation. Always check the dimensions and requirements of your chimney system before purchasing.

Does this product come with a guarantee?

Yes. This closure plate comes with a 1 year guarantee.
