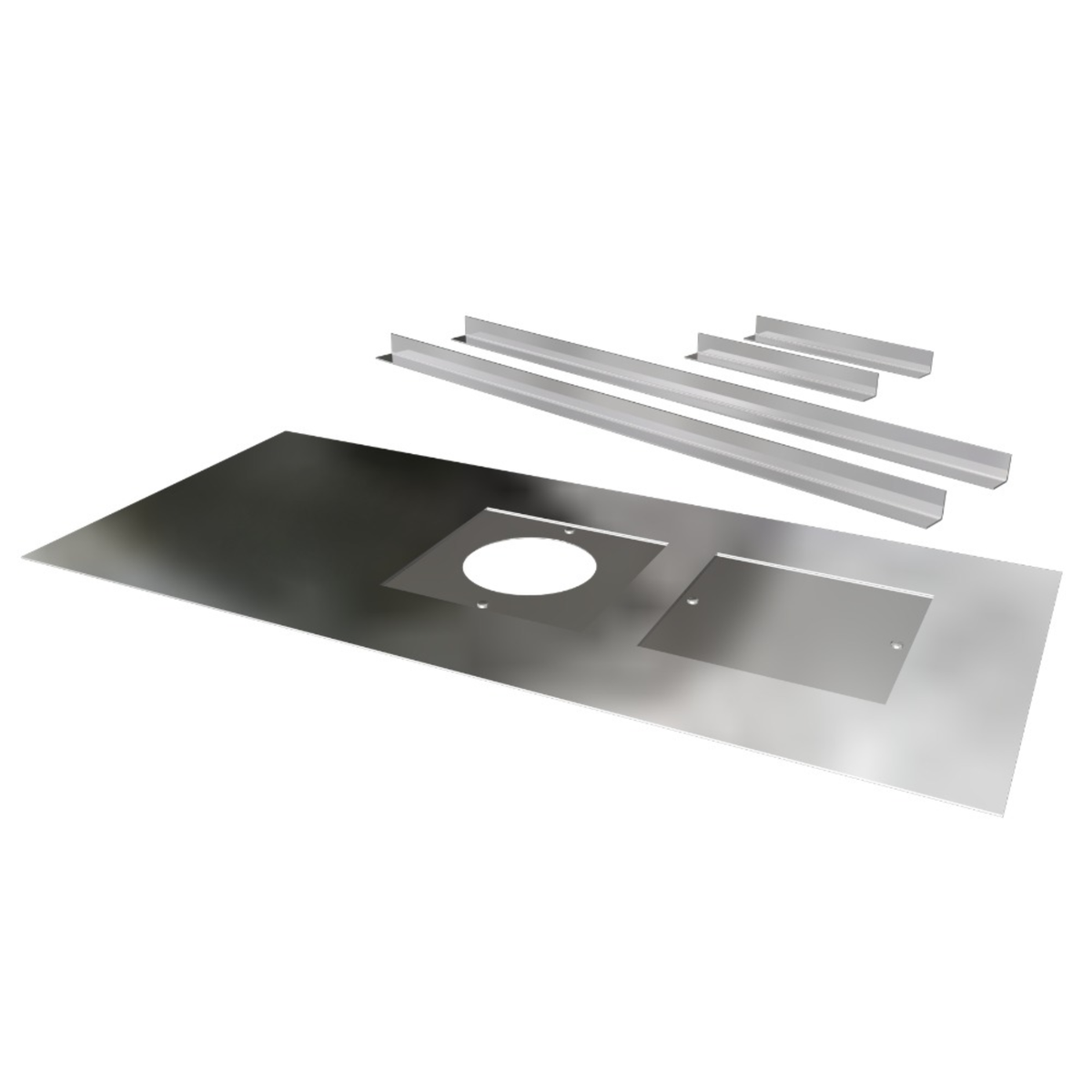

Closure Plate 800 x 400mm with Centre Hole and Brackets

Description

Closure Plate 800 x 400 with Centre Hole and Brackets 🔥

Complete your chimney liner installation with the Closure Plate 800 x 400 with Centre Hole and Brackets. Made from durable 1.2mm galvanised steel, this closure plate provides a practical way to seal the open area around a fitted chimney liner. The centre hole allows the liner to pass through the plate, helping create a tidy and finished installation whilst reducing unnecessary heat loss into the chimney. Supplied with brackets, it is a useful addition for suitable stove and chimney installations.

Design & Materials 🏠

Manufactured from 1.2mm galvanised steel, this closure plate offers a durable and practical solution for sealing the surrounding chimney opening. The plain finish provides a simple appearance that can suit a variety of stove and chimney installations.

With dimensions of 800 x 400mm, this closure plate is designed for installations requiring a more compact size. The centre hole provides an opening for the chimney liner, while the supplied brackets help with positioning and securing the plate.

A closure plate is used where a chimney liner containing flue gases is already present. Rather than containing the flue gases itself, the closure plate seals the surrounding chimney opening to provide a cleaner installation and help prevent heat from escaping unnecessarily.

Benefits

Key Benefits ✨

• Helps reduce heat escaping into the unused chimney space
• Centre hole allows the chimney liner to pass through neatly
• Helps reduce old soot smells entering the room
• Helps prevent loose soot and debris falling around the stove
• Durable 1.2mm galvanised steel construction
• Compact 800 x 400mm size for suitable installations
• Supplied with brackets for easier positioning

Features

Performance & Features

The Closure Plate 800 x 400 with Centre Hole and Brackets is designed to seal the surrounding area of a chimney opening when a suitable chimney liner has been installed.

The centre hole allows the chimney liner to pass through the plate, helping provide a neat finish around the liner. Once fitted, the closure plate helps close the unused chimney space and can reduce the amount of warm air escaping unnecessarily into the chimney.

It can also help minimise old soot smells as the chimney and liner warm up, whilst helping prevent loose soot and debris from falling towards the stove.

The 1.2mm galvanised steel construction provides a strong and practical solution for suitable chimney installations. Its plain finish keeps the appearance simple and unobtrusive.

Safety

Safety & Installation Information 🔥

This closure plate is intended for use where a suitable chimney liner containing the flue gases is already installed. It should not be used as a replacement for a chimney liner or other components required for a safe stove and chimney system.

The closure plate itself is not designed to contain flue gases. The correctly installed chimney liner is responsible for containing the flue gases.

If the closure plate develops a fault, such as a hole, this would not itself allow smoke into the room where the chimney liner is correctly installed and containing the flue gases.

Before installation, check that the 800 x 400mm dimensions and centre hole are suitable for your particular chimney and liner. Professional installation is recommended where appropriate.

For wood burning and gas products, appliances and flue systems are designed for use outdoors or, where applicable, in a properly ventilated installation environment. Always follow the manufacturer's installation, clearance and ventilation requirements.

Specifications

Dimensions & Technical Specifications 📋

• Product Type: Closure Plate with Centre Hole and Brackets
• Dimensions: 800 x 400mm
• Material: Galvanised Steel
• Material Thickness: 1.2mm
• Finish: Plain
• Centre Hole: Yes
• Flue Parts Category: Register and Closure Plates
• Application: Chimney liner installations
• Includes Brackets: Yes
• Guarantee: 1 Year
• More Colours Available: No

Included

What’s Included

• 1 x 800 x 400mm Closure Plate with Centre Hole
• Brackets for installation

Warranty

Warranty & Support

The Closure Plate 800 x 400 with Centre Hole and Brackets comes with a 1 year guarantee for added reassurance.

Before purchasing, check the dimensions and centre hole requirements against your chimney liner and installation. If you are unsure about compatibility or installation, we recommend consulting a qualified stove or chimney professional.

FAQs

Frequently Asked Questions

What is a closure plate used for?

A closure plate is used to seal the open area of a chimney where a chimney liner containing flue gases has been installed. It helps reduce heat loss and can help prevent old soot smells and loose soot from entering the room.

What does the centre hole do?

The centre hole provides space for the chimney liner to pass through the closure plate. This allows the surrounding chimney opening to be sealed neatly around the liner.

What is this closure plate made from?

The plate is manufactured from 1.2mm galvanised steel, providing a durable and practical solution for suitable chimney installations.

Does it come with brackets?

Yes. Brackets are included to assist with positioning and securing the closure plate during installation.

Is a closure plate the same as a register plate?

No. A closure plate is used when a suitable chimney liner is already present and seals the surrounding chimney opening. The chimney liner is responsible for containing the flue gases.

Why is a closure plate required when a liner is fitted?

The closure plate helps seal the unused chimney space around the liner. This can help reduce unnecessary heat loss and minimise old soot smells and loose soot entering the room.

Will a hole in the closure plate allow smoke into the room?

Where the chimney liner is correctly installed and containing the flue gases, a fault in the closure plate would not itself allow smoke from the liner into the room.

Is the 800 x 400mm size suitable for my chimney?

Suitability depends on the dimensions of your chimney opening and the requirements of your liner installation. Check the measurements carefully before purchasing and seek professional advice if you are unsure.

Does this closure plate have a guarantee?

Yes. The product comes with a 1 year guarantee.
