Description

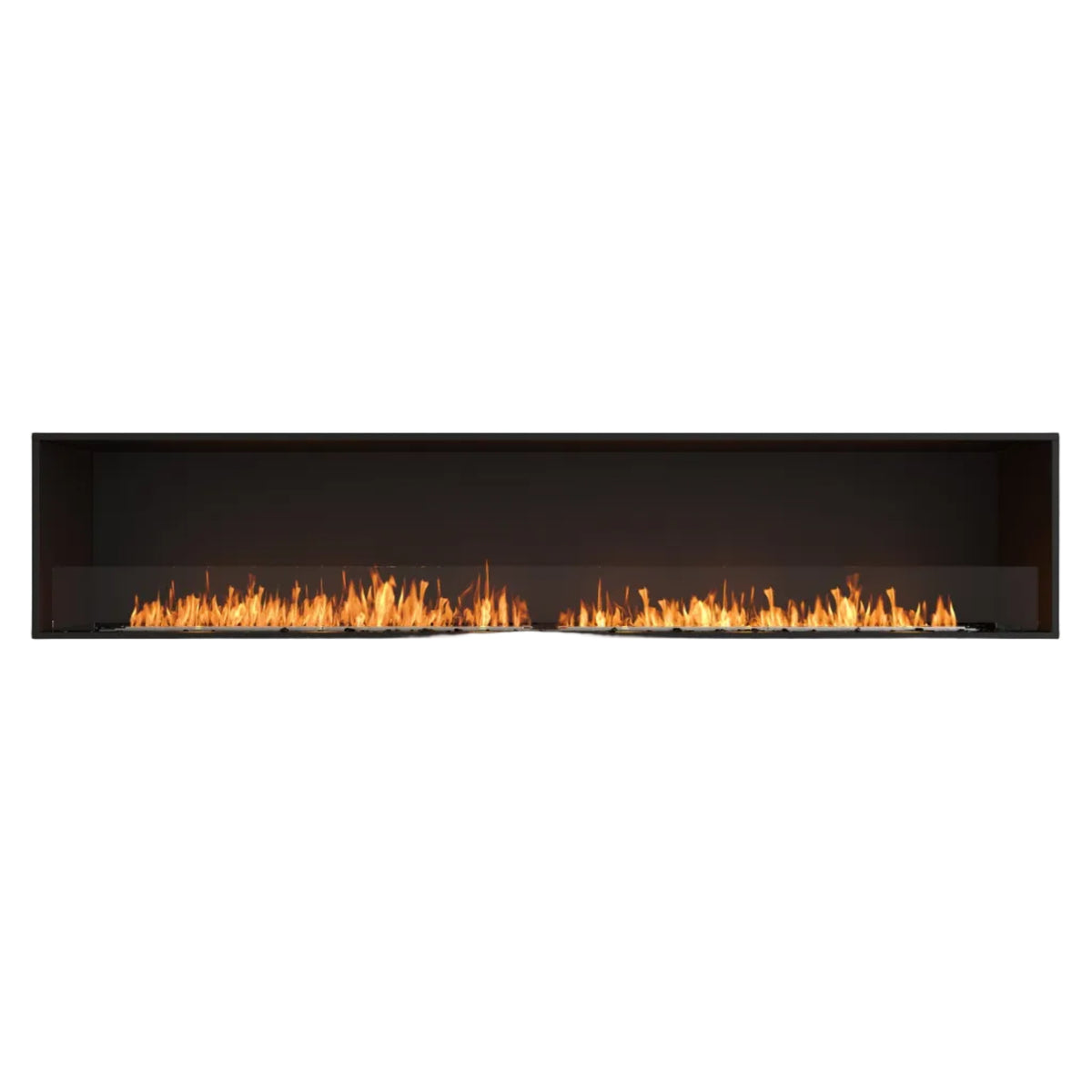

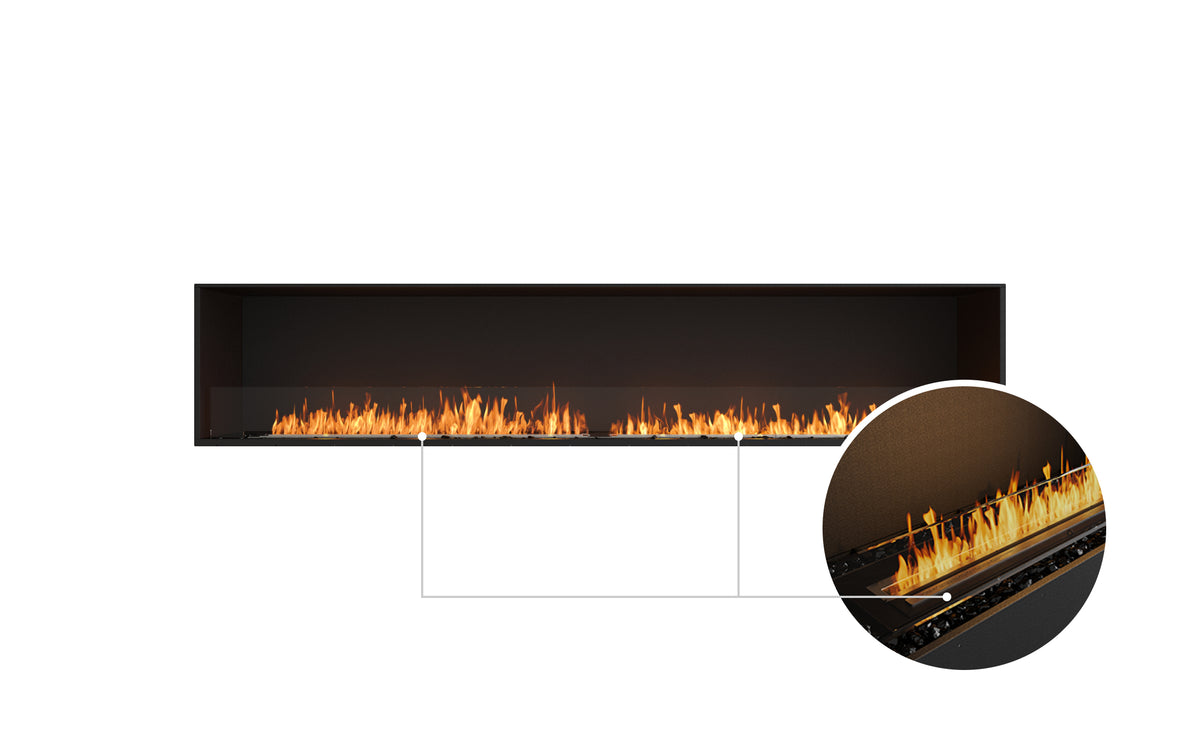

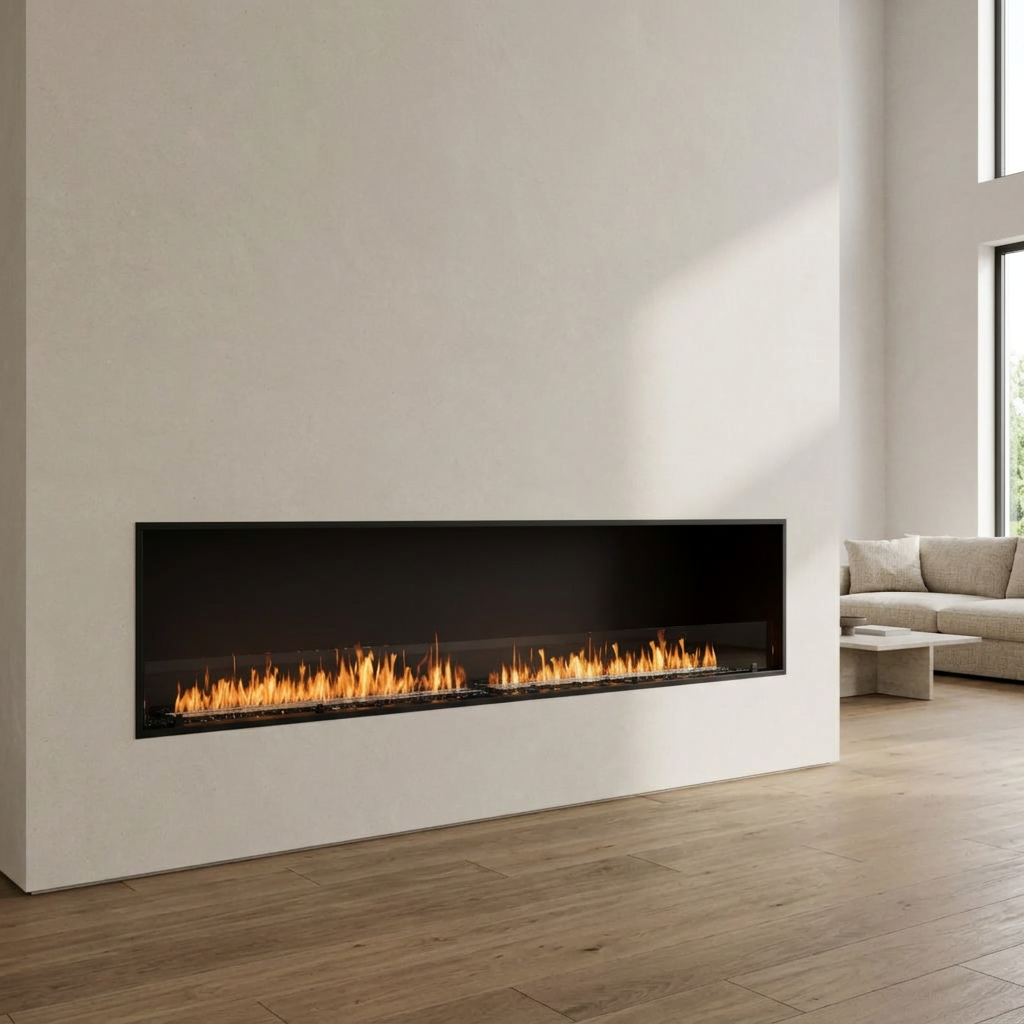

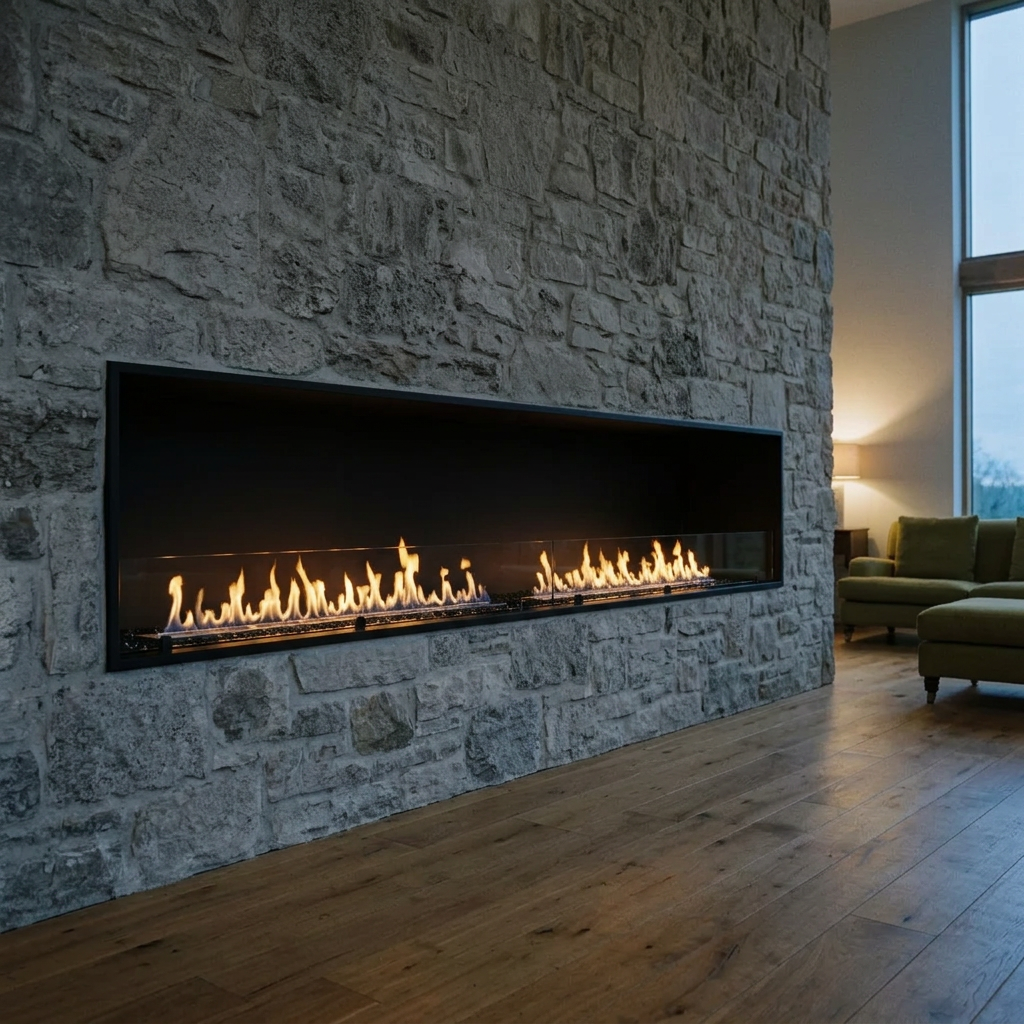

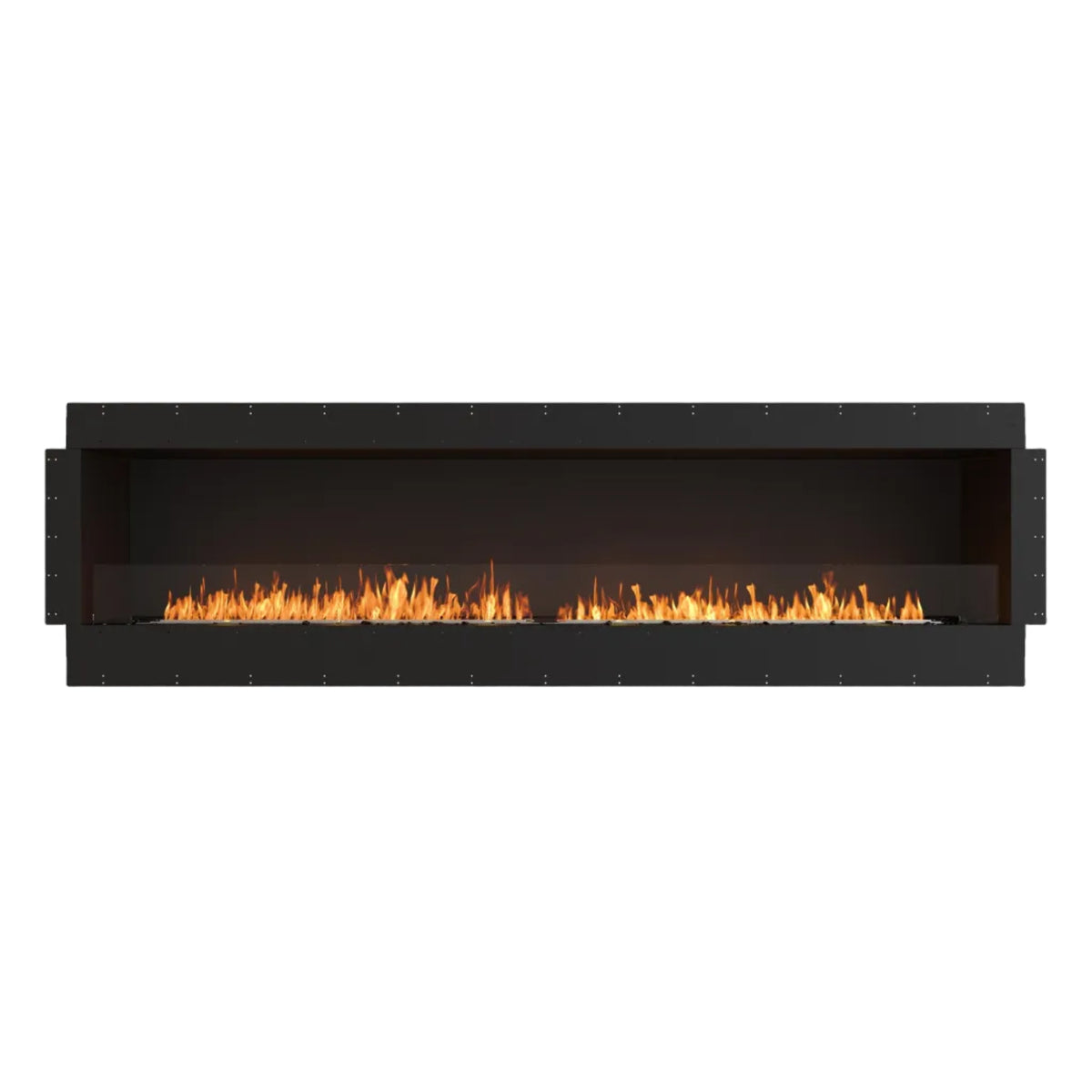

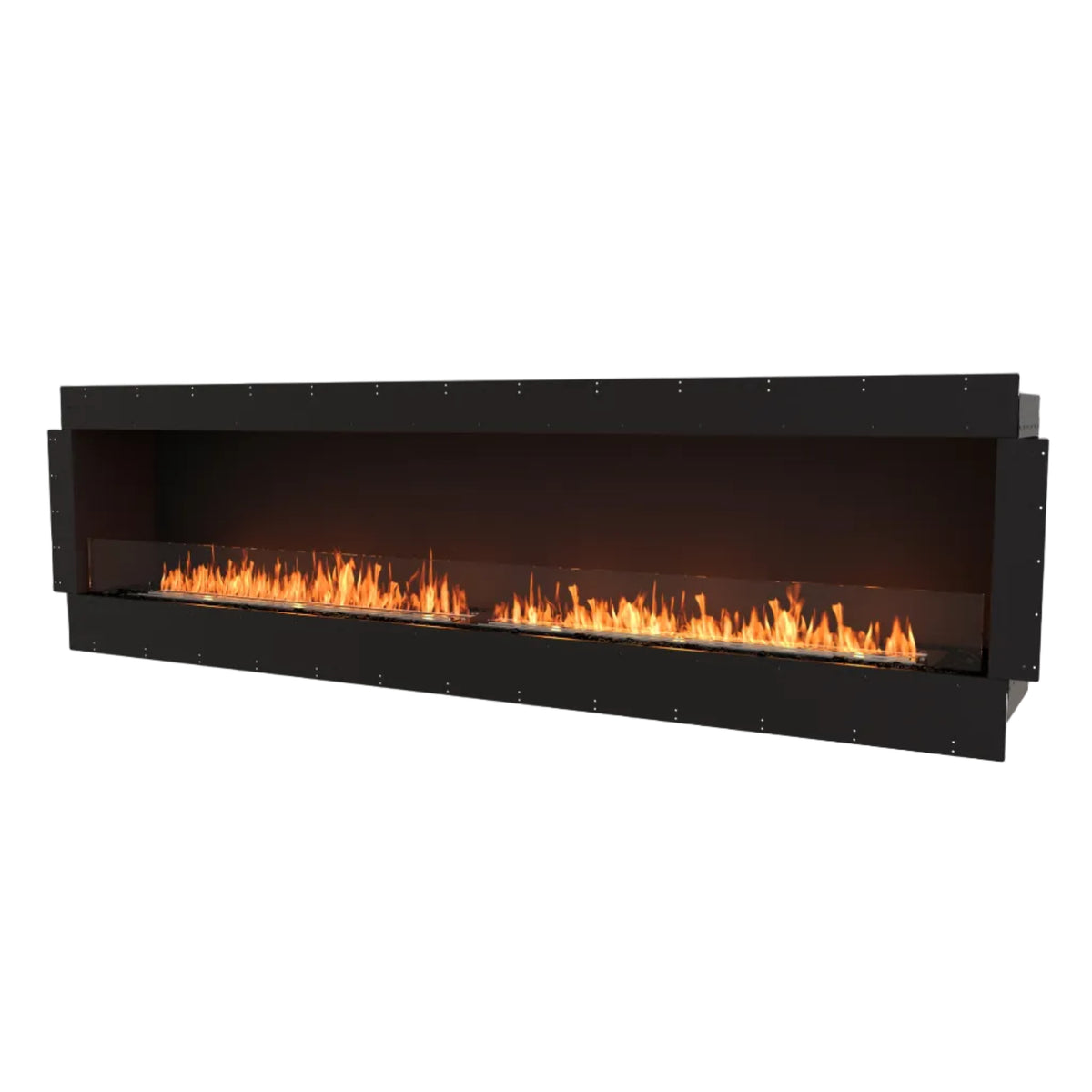

🔥 EcoSmart Fire Flex 104SS Wide Bioethanol Fireplace Insert

Make a dramatic statement with the EcoSmart Fire Flex 104SS, an extra wide single sided bioethanol fireplace insert designed for feature walls, cabinetry and custom fireplace settings. With an impressive 2,650 mm viewing area and dual XL1200 burners, this fireplace creates an expansive flame display while delivering substantial heat for larger living and entertaining spaces.

Features

✨ Extra Wide Single Sided Design

The Flex 104SS is specifically designed for a single room application with one open side, allowing the flame to be viewed from the front. Its generous 2,650 mm viewing area creates a commanding focal point, while the clean lines and black finish blend effortlessly with contemporary architectural designs.

The All Flame configuration means the entire viewing area is dedicated to the flame, creating a seamless and sophisticated fireplace feature for residential and commercial environments.

🔥 Dual XL1200 Bioethanol Burners

The Flex 104SS features two XL1200 bioethanol burners with a combined fuel capacity of 20 litres. The dual burner configuration delivers up to 30,580 BTU/h, 32.26 MJ/h or 9 kW of thermal output.

With an approximate burn time of 9 to 14 hours, the fireplace provides long lasting flame and warmth for larger spaces. XL Baffles are included to help regulate and stabilise the flames while supporting efficient fuel use.

🏡 Indoor or Outdoor Application

The Flex 104SS is suitable for indoor or outdoor applications when installed according to the manufacturer's requirements and applicable local regulations.

Its expansive design makes it well suited to large residential dining rooms, open plan living areas, outdoor entertaining spaces and suitable commercial environments.

Powered by clean burning e NRG bioethanol, the fireplace does not require a gas connection or traditional chimney, providing greater flexibility for architectural installations.

🧱 True Zero Clearance Construction

The Flex 104SS features self contained true zero clearance construction, giving architects, builders, interior designers and homeowners greater freedom when creating a custom fireplace feature.

The fireplace can be integrated into suitable feature walls, cabinetry and fireplace settings, subject to the manufacturer's installation requirements.

The surround is constructed from mild steel with a zinc sealed high temperature powder coat finish, while the burners are made from Grade 304 stainless steel.

Always verify the physical fireplace dimensions against the required cut out dimensions before installation begins to ensure suitable tolerances.

🌟 High Heat Output for Larger Spaces

The dual XL1200 configuration is designed to provide substantial warmth across larger areas.

The Flex 104SS can heat an average area of approximately 130 m² and requires a minimum room size of 230 m³ for the All Flame configuration.

Key performance figures include:

• 20 litre combined fuel capacity
• 9 to 14 hour burn time
• 30,580 BTU/h thermal output
• 32.26 MJ/h thermal output
• 9 kW thermal output
• Fuel consumption of approximately 1.74 L/h
• Heating coverage of approximately 130 m²
• Minimum room size of 230 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol used.

🎨 Decorative Finishing Options

The Flex 104SS comes with Black Glass Charcoal, providing a sleek contemporary finish around the flame. The tempered glass decorative media is designed to withstand temperatures of up to 700°C.

For a warmer and more traditional fireplace appearance, the optional Copper Log Set adds an elegant decorative finishing touch.

🛡️ Safety and Certification

The Flex 104SS features a manufacturer approved surround for the BS EN16647 compliant XL1200 burner.

EcoSmart Fire manufactures its fireboxes to high standards in accordance with ISO 9001:2008. The bioethanol burners also comply with recognised standards and safety requirements across key markets.

Certifications and compliance include:

• UL 1370 listed
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant
• ISO 9001:2008 manufacturing standards

The integrated fire screen and included XL Baffles provide additional support for controlled operation.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 104SS
• Application: Indoor or Outdoor
• Configuration: All Flame
• Burner: XL1200 x2
• Fuel Type: e NRG Bioethanol
• Combined Burner Capacity: 20 L
• Burn Time: 9 to 14 hours
• Thermal Output: 30,580 BTU/h / 32.26 MJ/h / 9 kW
• Fuel Consumption: 1.74 L/h
• Heating Coverage: 130 m²
• Minimum Room Size: 230 m³
• Model Width: 2,850 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 2,650 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 146.2 kg
• Model Material: Mild Steel with zinc sealed high temperature powder coating
• Burner Material: Grade 304 Stainless Steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC Safety Mandate
• Manufacturing Standard: ISO 9001:2008

📦 Packaging Specifications

• Shipping Weight: 200 kg
• Packaging Length: 2,937 mm
• Packaging Width: 536 mm
• Packaging Height: 1,068 mm
• Packaging Volume: 1.68 m³
• Packaging Type: Crate with skid

Included

📦 What’s Included

The EcoSmart Fire Flex 104SS includes:

• XL Baffles
• Jerry Can 5 L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen

These accessories provide the essentials for fuelling, ignition, flame adjustment and decorative finishing.

🌿 Optional Accessories

• Copper Log Set

The stainless steel Copper Log Set adds an elegant decorative element and can create a more traditional fireplace appearance.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly as the Flex 104SS has a shipping weight of approximately 200 kg and is supplied in a large crate with skid.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are designed and manufactured with quality, durability and safety in mind. For installation, fuel and operating guidance, always follow the manufacturer's instructions and applicable local requirements.

For custom installations, professional advice should be obtained to ensure the fireplace, surrounding materials and installation environment are suitable for the intended application.

Safety

⚠️ Safety Information

Bioethanol fireplaces must always be installed and operated in accordance with the manufacturer's instructions and applicable local regulations.

The Flex 104SS is a bioethanol fireplace with separate indoor and outdoor operating requirements. Ensure suitable clearances, appropriate surrounding materials and the required installation conditions are provided for the intended application.

Never refuel a burner while it is operating or still hot. Allow the burners to cool completely before refuelling and use only the recommended e NRG bioethanol fuel.

Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

FAQs

❓ Frequently Asked Questions

Can the Flex 104SS be installed indoors?

Yes. The Flex 104SS is suitable for indoor or outdoor applications when installed according to the manufacturer's requirements and applicable local regulations.

How many burners does the Flex 104SS have?

The All Flame configuration uses two XL1200 bioethanol burners with a combined fuel capacity of 20 litres.

How long does the Flex 104SS burn?

The dual XL1200 configuration provides an approximate burn time of 9 to 14 hours. Actual burn time can vary depending on installation conditions and fuel composition.

How much space can the Flex 104SS heat?

The All Flame configuration is rated to heat an average area of approximately 130 m² and requires a minimum room size of 230 m³.

Does the Flex 104SS require a chimney?

No traditional chimney is required. The self contained bioethanol design provides greater flexibility for suitable architectural fireplace installations.

What fuel does the Flex 104SS use?

The fireplace is designed for use with e NRG bioethanol fuel. Always use the recommended fuel and follow the manufacturer's fuelling instructions.

What is included with the Flex 104SS?

The fireplace includes XL Baffles, a 5 litre Jerry Can, Fire Lighter, Lighting Rod, Bottle Adaptor, Black Glass Charcoal and an integrated fire screen.

Can the Flex 104SS be integrated into cabinetry?

Yes. The true zero clearance construction provides flexibility for integrating the fireplace into suitable cabinetry, feature walls and fireplace settings, subject to the manufacturer's installation requirements.
