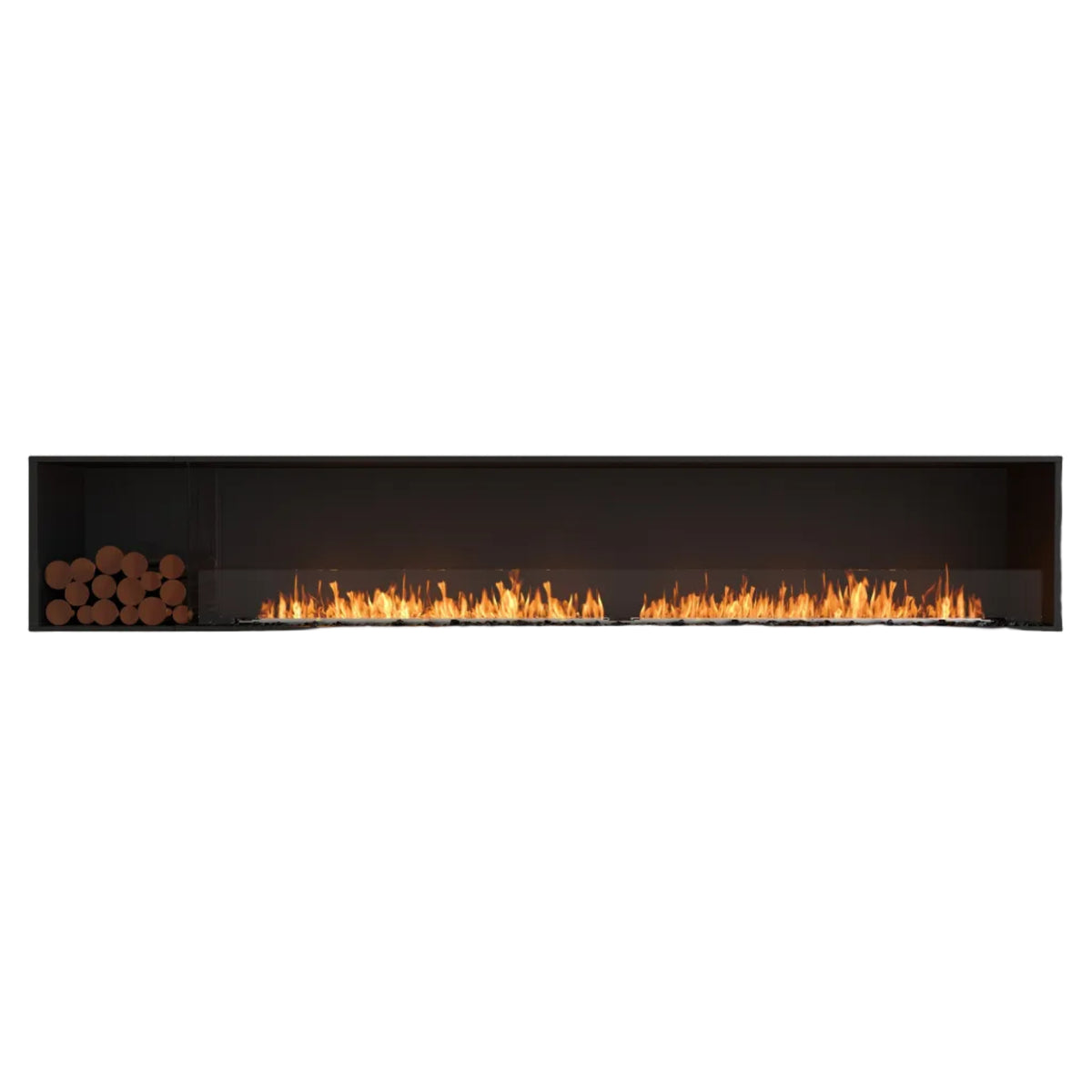

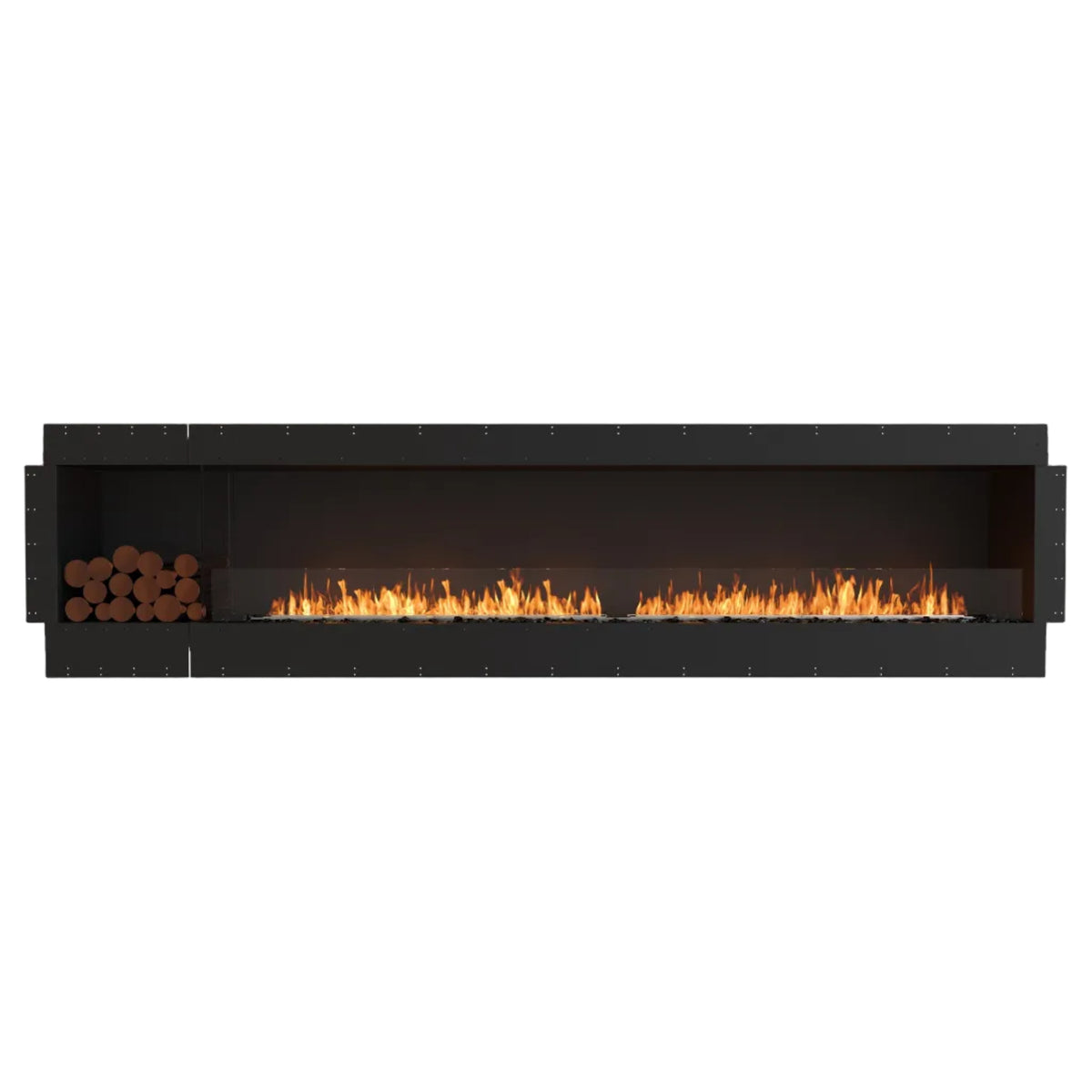

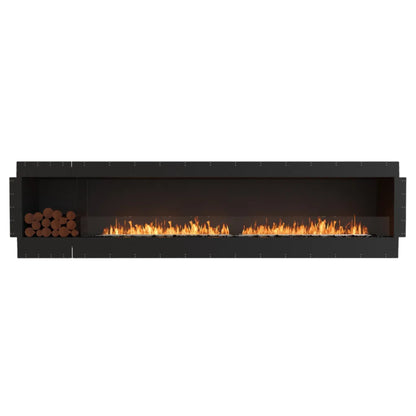

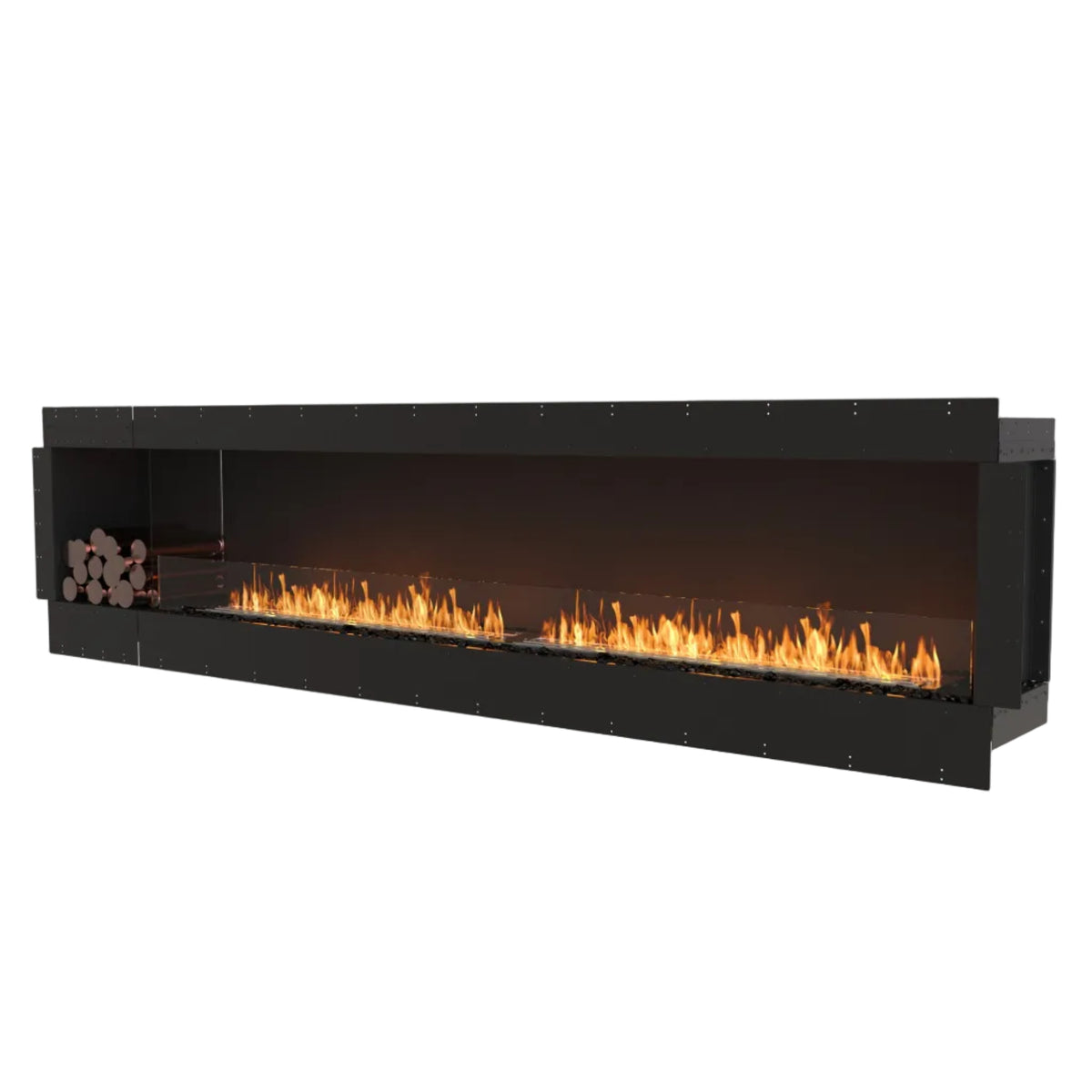

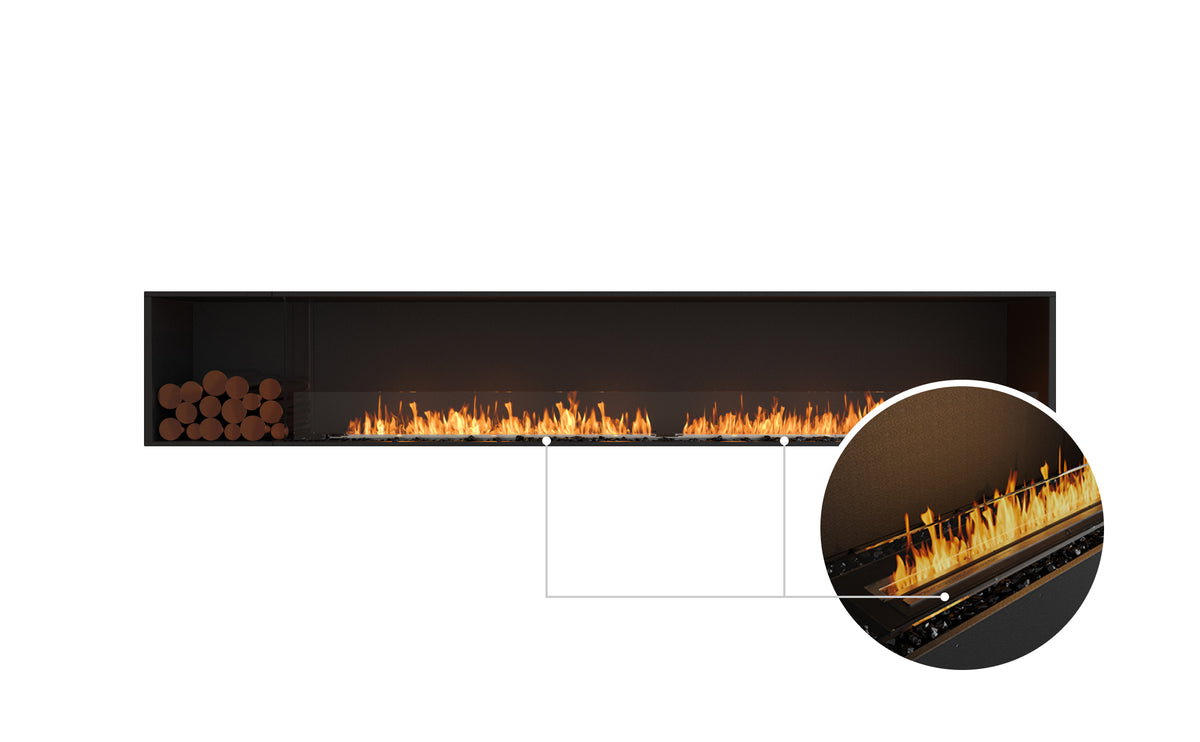

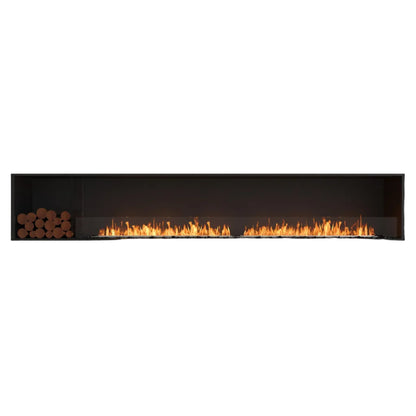

EcoSmart Fire Flex 122SS.BXL 3.3m Wide Bioethanol Fireplace Insert

Description

🔥 EcoSmart Fire Flex 122SS.BXL Single Sided Bioethanol Fireplace Insert

Create a stunning centrepiece for your home with the EcoSmart Fire Flex 122SS.BXL Single Sided Fireplace Insert. With its impressive 3.3 metre width and expansive front facing flame display, this contemporary bioethanol fireplace brings warmth, atmosphere and architectural appeal to living rooms, dining areas, garden entertaining spaces and commercial interiors. Its sleek black surround integrates beautifully into bespoke cabinetry, feature walls and modern fireplace settings, offering a refined alternative to traditional fireplaces without the need for a conventional chimney or flue.

✨ Contemporary Design and Quality Materials

The Flex 122SS.BXL combines minimalist styling with durable construction. Its single sided design presents the flames from the front, creating a striking focal point while maintaining a clean, streamlined appearance.

The surround is manufactured from zinc sealed mild steel with a high temperature powder coated black finish. The compatible ethanol burners are made from Grade 304 stainless steel, with an optional black ceramic coating for a coordinated finish. Toughened glass and an integrated fire screen complement the overall design.

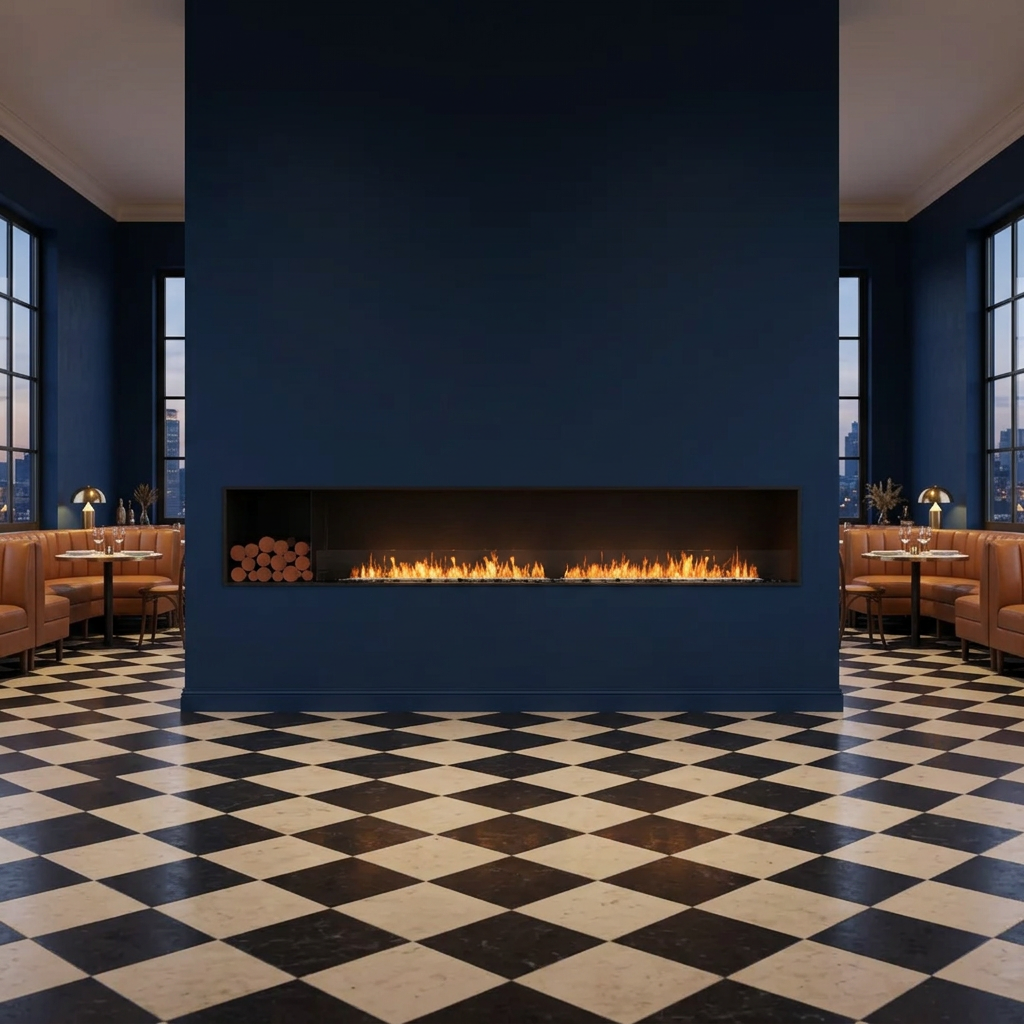

With a generous viewing area measuring 3,110 mm wide, this fireplace allows the flame display to take centre stage. Its versatile design suits contemporary homes, luxury renovations, hospitality settings and carefully planned outdoor living areas.

Features

🔥 Heating Performance and Features

The Flex 122SS.BXL uses two XL1200 bioethanol burners in its specified configuration, delivering real flames and radiant warmth without a conventional wood burning fire or gas connection.

Key benefits include:

• Expansive flame display that creates an inviting atmosphere for relaxing evenings and entertaining guests.

• Flexible integrated design that helps you achieve a seamless, built in fireplace appearance.

• No traditional chimney or flue required, providing greater freedom when planning your interior design.

• Indoor or outdoor application, giving you more options for creating a stylish focal point.

• Adjustable flame control using the supplied lighting rod, allowing the burner to be operated according to the manufacturer's instructions.

• Decorative black glass charcoal included for a sophisticated finishing touch.

The two XL1200 burners have a combined fuel capacity of 20 litres and an indicative thermal output of approximately 9 kW. The stated burn time is 9 to 14 hours, depending on flame settings, installation conditions and fuel composition.

🛡️ Safety and Certification

The Flex 122SS.BXL features a manufacturer approved surround designed for use with compatible XL1200 burners compliant with EN 16647 requirements. EcoSmart Fire also provides certification and compliance information for its bioethanol burner systems, including UL 1370 listing and applicable UK, European, US and Australian requirements.

Always verify the exact certification applicable to the supplied burner configuration before installation. Follow the manufacturer's instructions for room volume, ventilation, clearances, fuel handling and operation.

Bioethanol is highly flammable. Never refill a lit or hot burner. Allow the burner to cool completely before refuelling, keep fuel away from ignition sources and store it securely away from children and pets.

Wood burning and gas products require use outdoors in a well ventilated space. This model is a bioethanol fireplace and must instead be installed and operated according to its specific indoor or outdoor requirements.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Model: Flex 122SS.BXL
• Product type: Single sided bioethanol fireplace insert
• Configuration: Box Left or Right
• Burner configuration: 2 x XL1200
• Fuel type: e NRG bioethanol
• Application: Indoor or outdoor
• Surround colour: Black
• Burner colours: Stainless steel or black
• Surround material: Zinc sealed mild steel with high temperature powder coating
• Burner material: Grade 304 stainless steel
• Additional material: Toughened glass
• Overall width: 3,310 mm
• Overall height: 807 mm
• Overall depth: 365 mm
• Viewing area width: 3,110 mm
• Viewing area height: 502 mm
• Viewing area depth: 340 mm
• Product weight: Approximately 170 kg
• Total burner capacity: 20 litres
• Indicative thermal output: 9 kW
• Indicative heat coverage: Up to 130 m²
• Minimum room volume: 230 m³
• Indicative burn time: 9 to 14 hours
• Fuel consumption: Approximately 1.74 litres per hour
• Burner certification: Refer to the current manufacturer documentation
• Installation: Integrated fireplace, cabinetry or suitable feature wall
• Warranty: Subject to EcoSmart Fire's current warranty terms

All heating figures are indicative and may vary according to fuel composition, burner settings and the installation environment. Confirm the actual supplied configuration and installation requirements before purchase.

Included

📦 What's Included

The Flex 122SS.BXL package includes:

• EcoSmart Fire Flex 122SS.BXL fireplace surround
• Two compatible XL1200 burners
• Black Glass Charcoal decorative media
• XL Baffles to help stabilise the flame and improve fuel efficiency
• Jerry Can 5L for fuel storage and decanting
• Refillable butane Fire Lighter
• Lighting Rod for burner adjustment, ignition and extinguishing
• Bottle Adaptor for easier fuel transfer from compatible e NRG bottles

The copper stainless steel Log Set is available as an optional accessory and is not included as standard.

Delivery

🚚 Delivery Information

The Flex 122SS.BXL is supplied in a protective shipping crate for transport. The approximate shipping weight is 203 kg, with packaging dimensions of 3,397 mm long, 536 mm wide and 1,068 mm high.

Standard delivery is to the most accessible suitable point on the property. Inside delivery, assembly and packaging removal are not included as standard. Bioethanol fuel may be dispatched separately and can arrive on a different day.

Please check access routes, doorway widths, unloading arrangements and the intended installation area before placing your order.

Warranty

🧰 Installation, Warranty and Support

Designed for integrated fireplace projects, the Flex 122SS.BXL offers flexibility for homeowners, architects, builders and interior designers. Its true zero clearance construction can simplify design planning, but it does not remove the need to comply with manufacturer specified installation requirements.

Verify the physical dimensions against the required cut out dimensions before construction begins. Ensure the installation meets the specified room volume, ventilation and clearance requirements, and arrange suitable professional installation for this substantial unit.

For warranty details, installation advice, compatible accessories and after sales support, consult the current EcoSmart Fire documentation or contact an authorised retailer.

Safety

Important Safety Information

Bioethanol fireplaces produce real flames and consume oxygen during operation. Operate only in an appropriate, well ventilated space that meets the manufacturer's requirements. Keep combustible materials away from the fire and never leave an operating fireplace unattended. Never refill the burner while it is lit or hot. Allow it to cool completely before handling fuel, and keep children and pets at a safe distance.

FAQs

❓ Frequently Asked Questions

Does the EcoSmart Fire Flex 122SS.BXL need a chimney?

No conventional chimney or flue is required. However, the fireplace must meet the manufacturer's requirements for ventilation, room volume, clearances and installation.

What is the difference between the Flex 122SS and Flex 122SS.BXL?

The Flex 122SS All Flame configuration uses three XL900 burners, while the Flex 122SS.BXL configuration uses two XL1200 burners. Their fuel capacities, heat outputs, burn times and room requirements differ.

How much heat does the Flex 122SS.BXL produce?

The specified two burner configuration has an indicative thermal output of approximately 9 kW, with average heating coverage of up to 130 m². Actual performance depends on the installation and operating conditions.

How long does the fireplace burn?

The indicative burn time is 9 to 14 hours. Actual duration depends on burner settings, fuel composition and usage.

Can this fireplace be installed outdoors?

Yes. The model is specified for indoor or outdoor use, provided the installation complies with EcoSmart Fire's requirements for ventilation, clearances and environmental exposure.

What fuel does this fireplace use?

It uses e NRG bioethanol fuel. Follow the manufacturer's instructions for compatible fuel, filling, storage and operation.

Is the copper Log Set included?

No. The copper stainless steel Log Set is an optional accessory. Black Glass Charcoal decorative media is included.

What is the minimum room size required?

The specified minimum room volume for the two XL1200 burner configuration is 230 m³. Confirm the current installation documentation before choosing a location.

Does zero clearance mean it can be installed anywhere?

No. Zero clearance construction provides installation flexibility, but the unit must still comply with all manufacturer instructions, building requirements, ventilation provisions and specified clearances.

Downloads

Model Specifications

Clearance & Installation - Flex Series

Installation & Operation - Ethanol Burners
