EcoSmart Fire Flex 18 Single Sided Bioethanol Fireplace Insert

Description

🔥 EcoSmart Fire Flex 18 Single Sided Bioethanol Fireplace Insert

Create a sophisticated focal point with the EcoSmart Fire Flex 18, a single sided bioethanol fireplace insert designed to put the flame at centre stage. Its clean lines and all flame viewing area combine traditional fireplace character with contemporary design, making it an elegant addition to feature walls, cabinetry, fireplace settings and open living spaces. With indoor and outdoor applications, the Flex 18 offers design flexibility without the need for a traditional chimney or utility connection.

Features

✨ All Flame Design

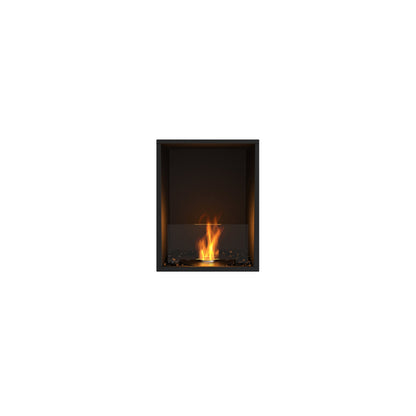

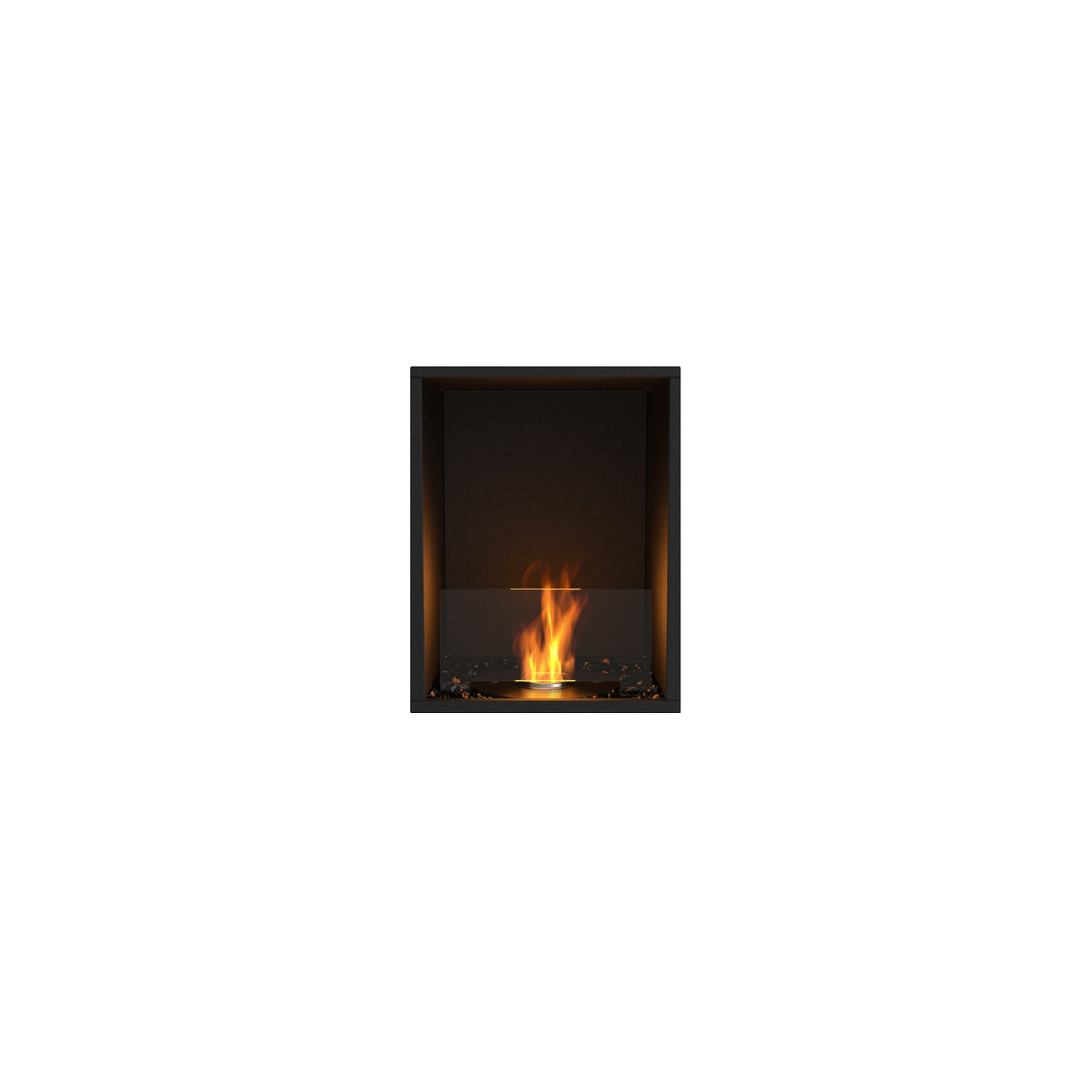

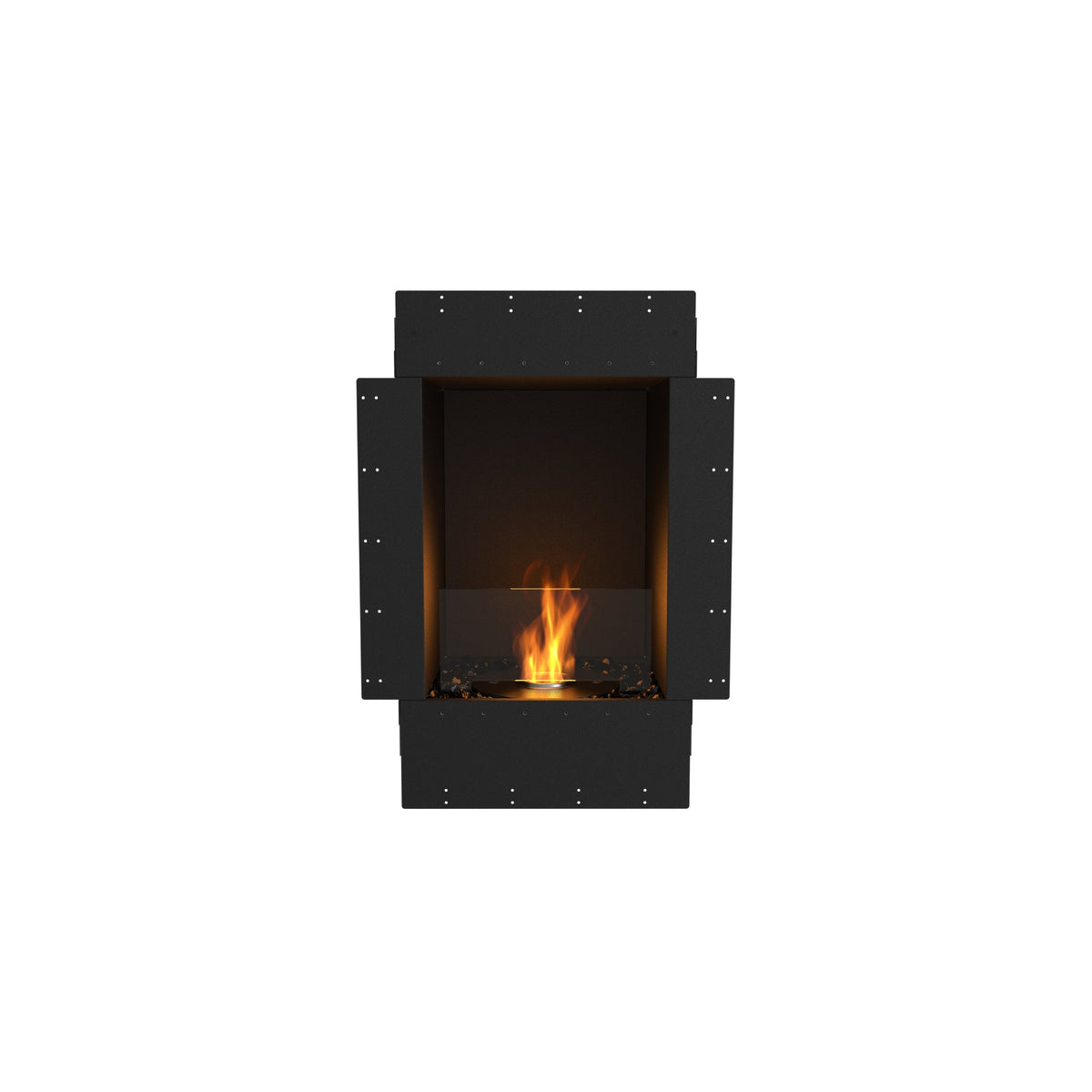

The Flex 18 is designed specifically for front facing flame visibility, with a single open side that gives you a clear view of the fire.

Its generous viewing area is dedicated to the flame, creating a visually striking feature that can become the centrepiece of a living room, dining area, outdoor room or commercial space.

The sleek black surround complements contemporary interiors while allowing the natural movement of the flame to take visual priority.

🔥 Clean Burning Bioethanol Flame

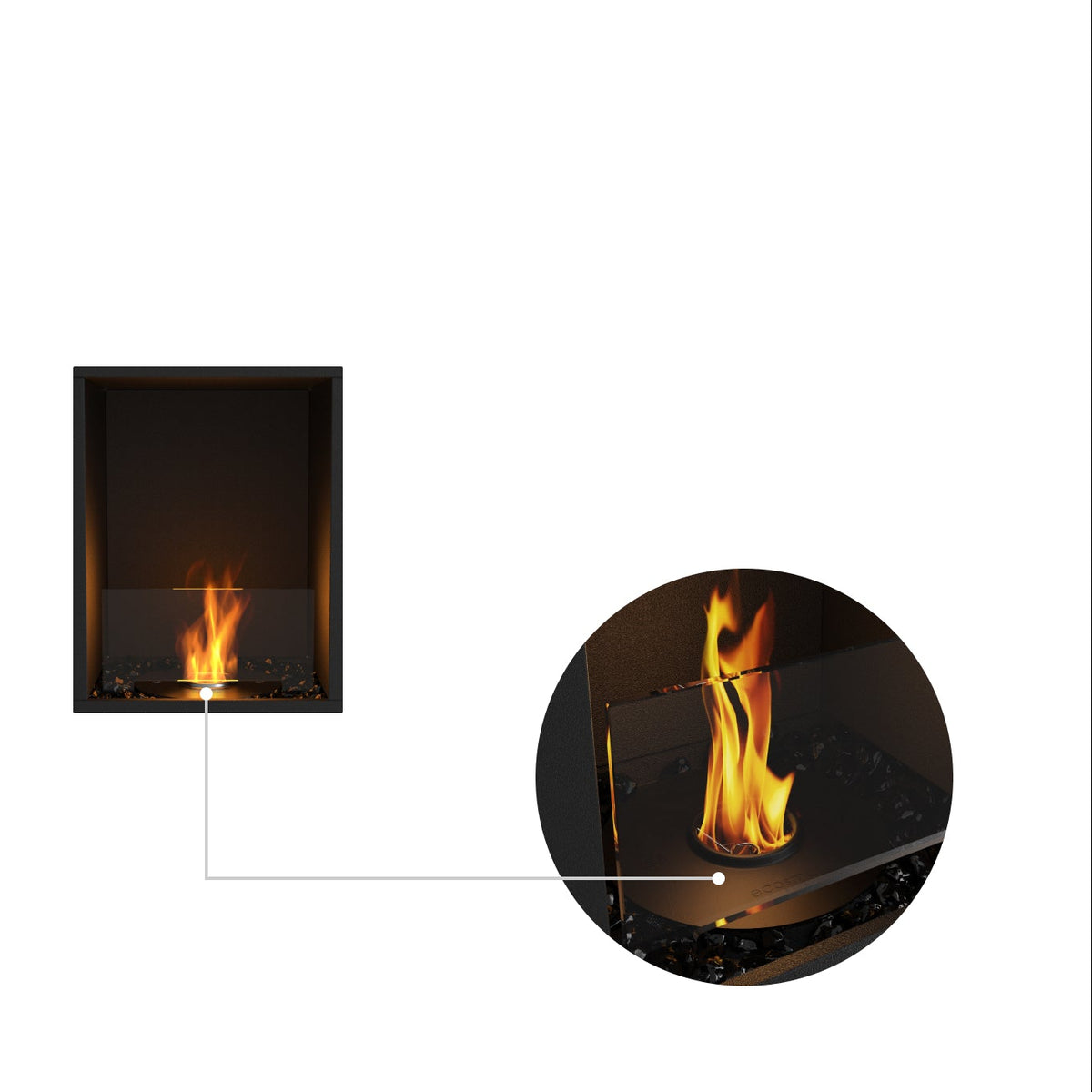

The Flex 18 features EcoSmart Fire's AB3 burner with a 2.5 litre capacity and an approximate burn time of 8 to 11 hours.

The burner produces approximately 5,800 BTU/h of thermal output and can heat an average area of up to 20 m², depending on the installation environment and operating conditions.

Powered by e NR G bioethanol, the Flex 18 provides a real flame without the need for wood, gas connections or a traditional chimney.

🏡 Indoor and Outdoor Applications

The Flex 18 is suitable for indoor or outdoor installation, giving architects, designers, builders and homeowners greater flexibility when planning a fire feature.

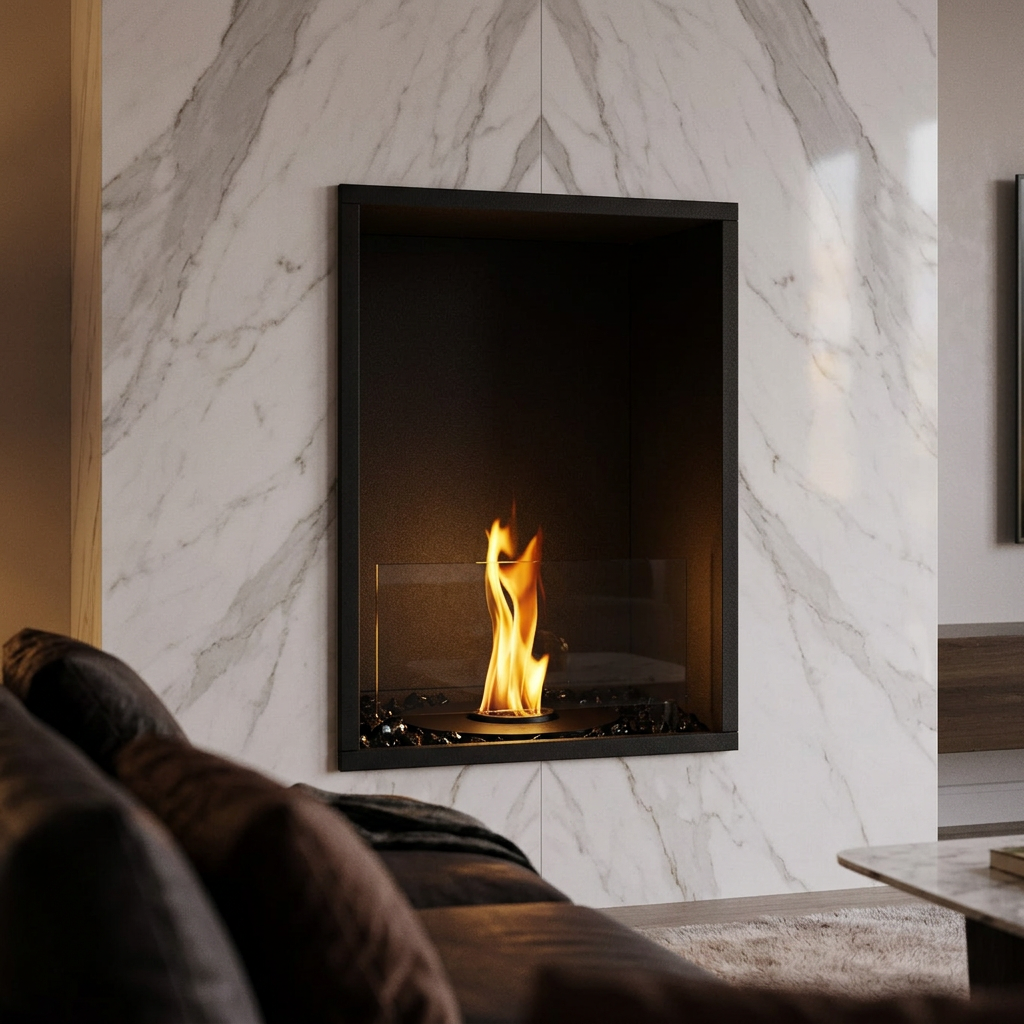

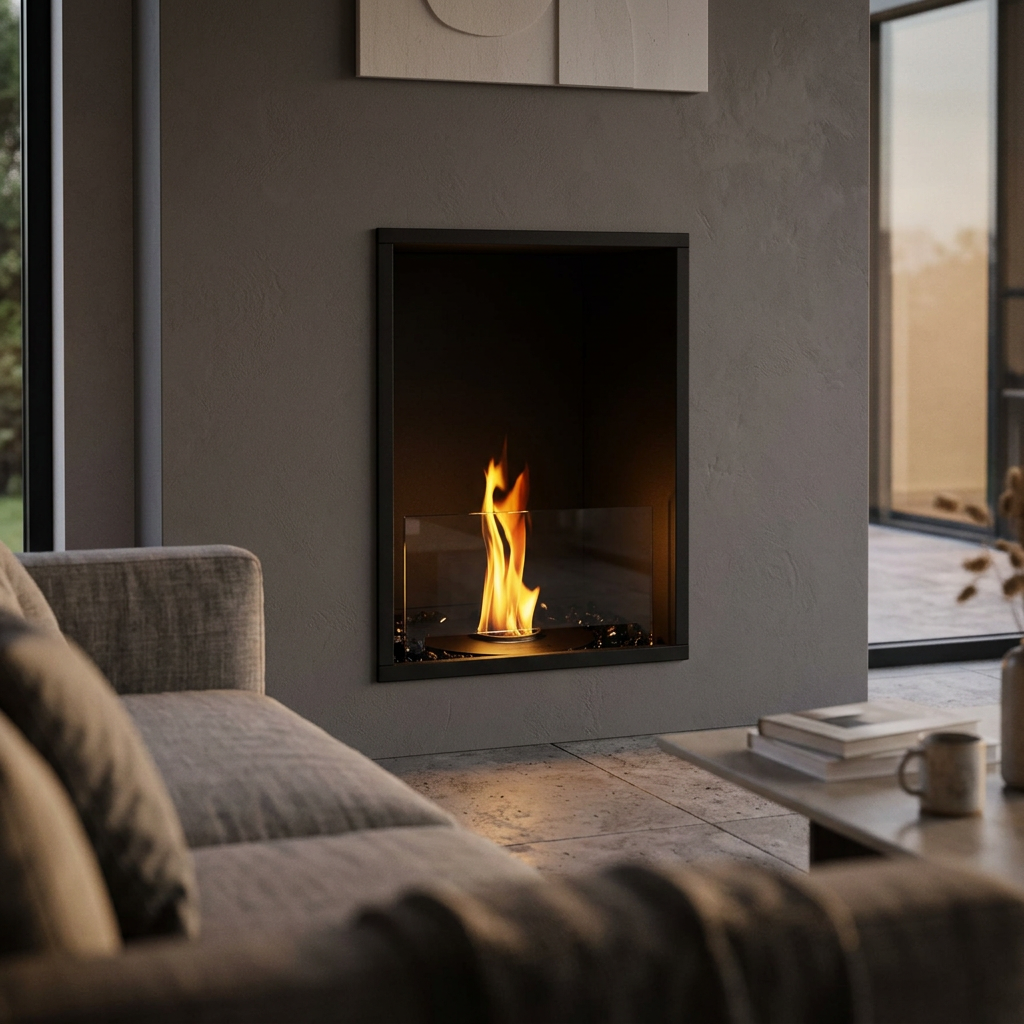

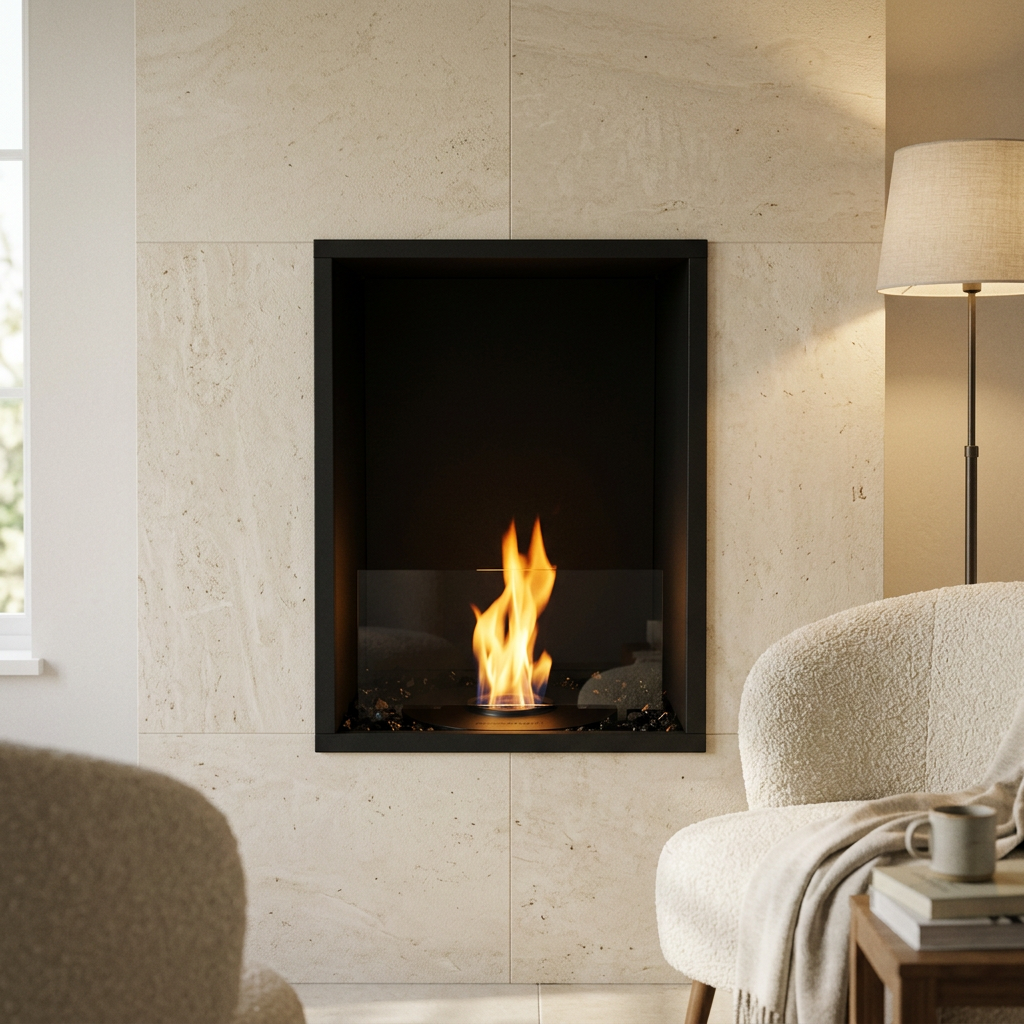

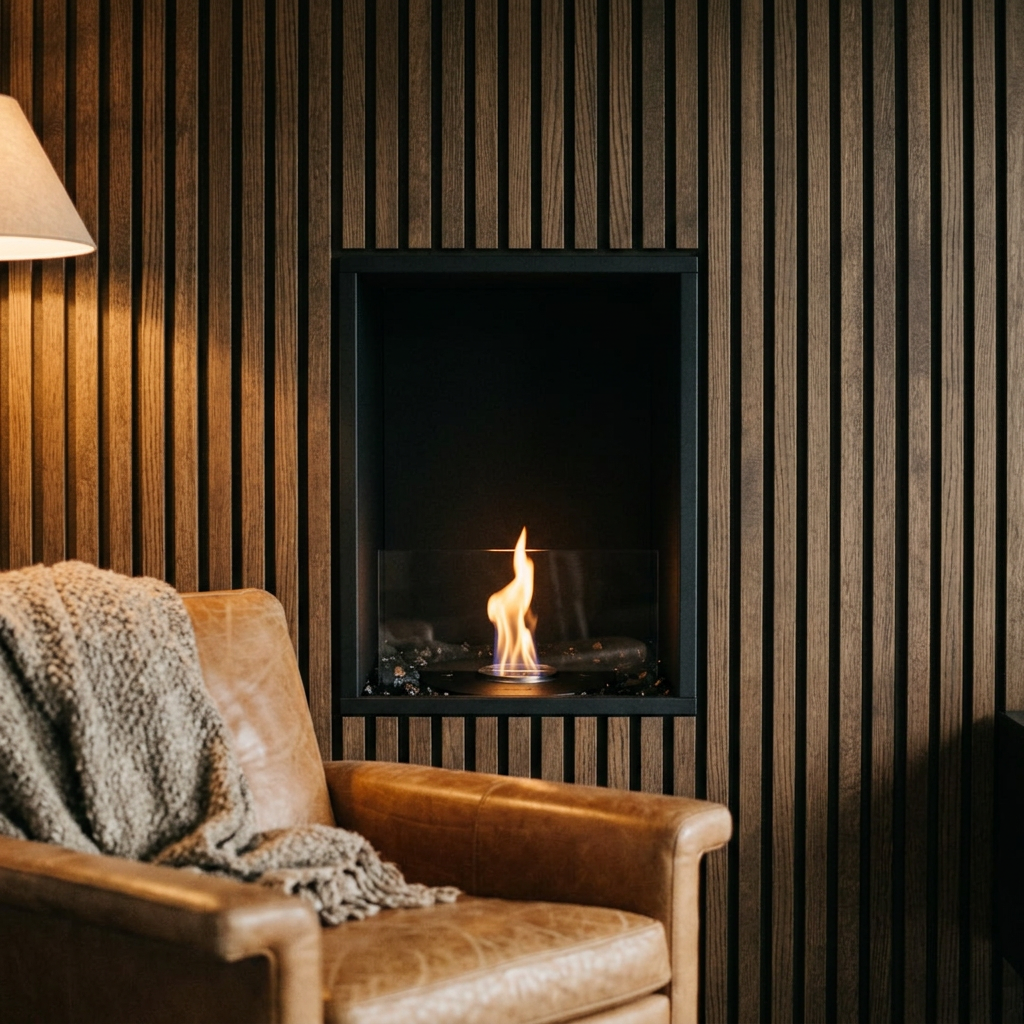

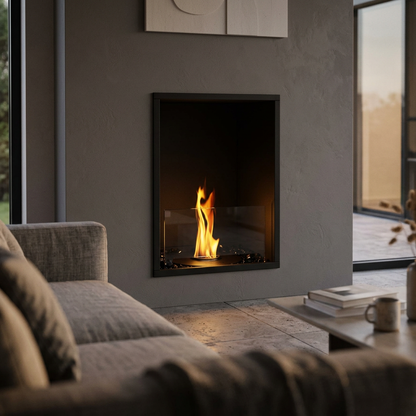

It can be incorporated into a feature wall, cabinetry or fireplace setting, helping create a seamless architectural focal point in residential or commercial environments.

Always ensure the installation meets the manufacturer's requirements and that the physical model dimensions are checked against the required cut out dimensions before installation.

🛠️ True Zero Clearance Design

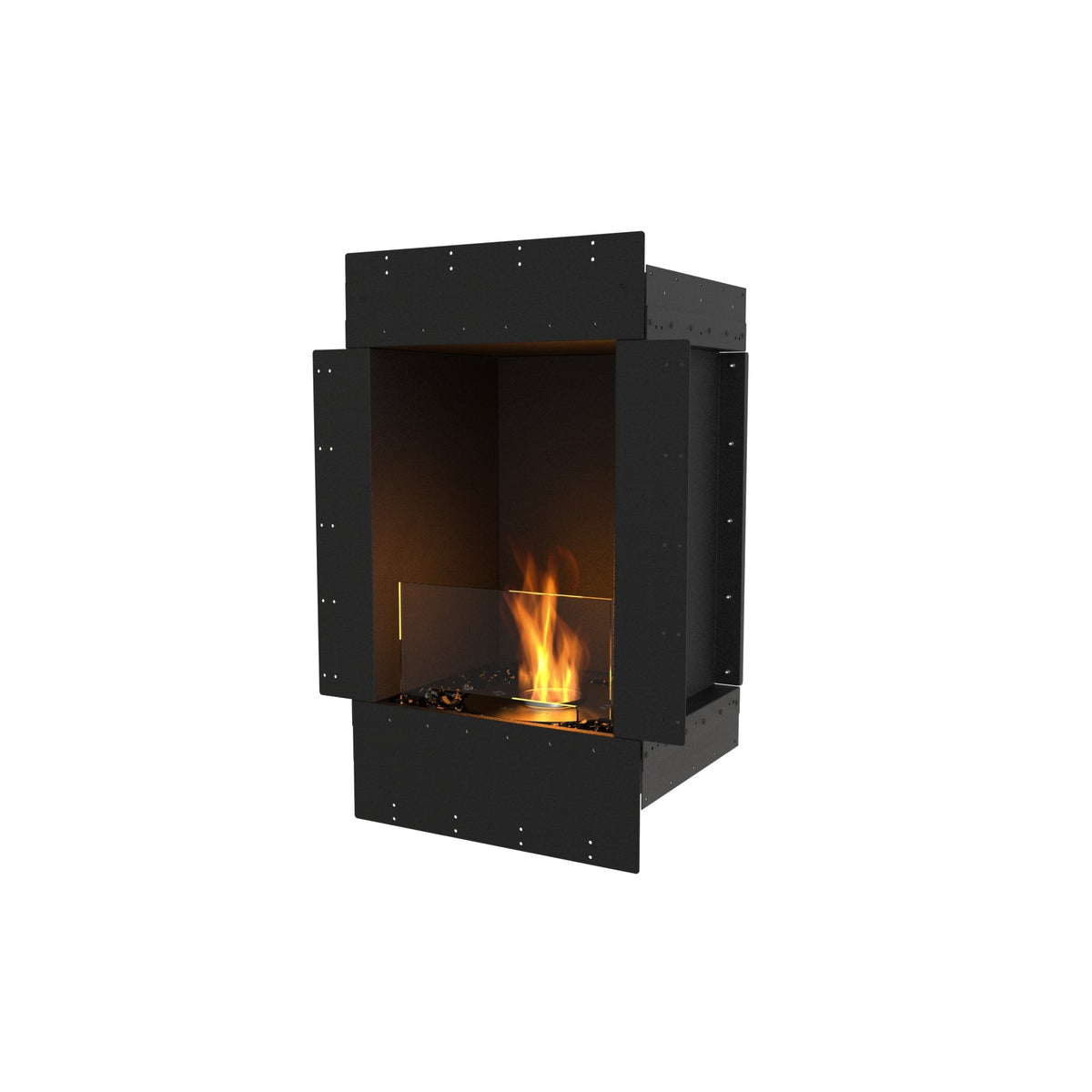

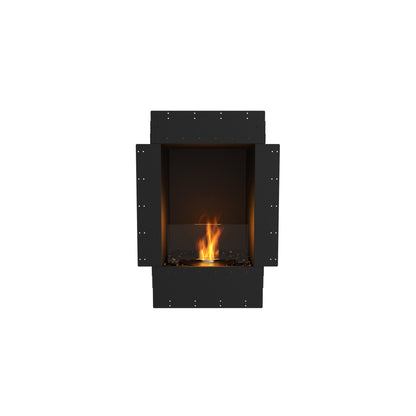

The self contained zero clearance construction provides greater flexibility when integrating the fireplace into a suitable design.

With no traditional chimney, flue or utility connection required, the Flex 18 can be incorporated into a range of architectural applications while maintaining a clean and streamlined appearance.

Professional installation and compliance with all applicable installation requirements are essential.

🌱 Efficient Heating Without a Traditional Chimney

The Flex fireplace uses a closed combustion system designed to keep heat within the room rather than losing it through a traditional venting system.

The bioethanol burner also eliminates the need for a gas connection or chimney, helping simplify the overall fireplace installation.

🖤 Sleek Black Finish

The Flex 18 features a black mild steel surround with a high temperature powder coated finish. The burner is available in stainless steel or an optional black ceramic coating.

Its understated colour allows the flame to remain the main visual feature while complementing a wide range of contemporary interiors.

🛡️ Safety and Certification

The Flex 18 features a manufacturer approved surround for the BS EN16647 compliant AB3 burner.

The burner is O T L listed to UL 1370, BSI certified to EN16647 and compliant with the ACCC Safety Mandate for bioethanol burners.

The firebox is manufactured to high standards in accordance with ISO 9001:2008.

Always use approved e NR G bioethanol and follow the manufacturer's instructions for installation, filling, lighting, operation and extinguishing.

Specifications

📏 Dimensions & Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 18
• Application: Indoor and outdoor
• Fuel Type: e NR G bioethanol
• Burner: AB3
• Burner Capacity: 2.5 L
• Burn Time: 8 to 11 hours
• Thermal Output: 5,800 BTU/h / 6.12 MJ/h / approximately 2 kW
• Fuel Consumption: 0.31 L/h on maximum setting
• Heating Capacity: Up to 20 m²
• Minimum Room Size: 40 m³
• Model Width: 578 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 378 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 25.7 kg
• Surround Material: Mild steel with zinc sealed high temperature powder coating
• Burner Material: Grade 304 stainless steel
• Model Colour: Black
• Burner Colours: Stainless Steel and Black
• Certification: UL 1370, EN16647 BSI Certified and ACCC Safety Mandate compliant
• Packaging Weight: 31 kg
• Packaging Dimensions: 666 mm L x 540 mm W x 940 mm H
• Packaging Type: Carton
• Packaging Volume: 0.34 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NR G bioethanol used.

Physical model dimensions should always be checked against the required cut out dimensions before installation begins.

Included

📦 What’s Included

Your EcoSmart Fire Flex 18 includes:

• Jerry Can 5 L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen

The Black Glass Charcoal is made from tempered glass and is designed to withstand temperatures of up to 700°C.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order.

Bioethanol Fuel Delivery

e NR G Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NR G Bioethanol order.

Warranty

🤝 Warranty & Support

EcoSmart Fire products are designed using quality materials and components for reliable performance and long lasting enjoyment. The Flex 18 is supported by the manufacturer's applicable warranty terms.

Before installation, ensure the fireplace dimensions and required cut out dimensions have been carefully checked. Always follow the manufacturer's installation and operating instructions.

Safety

⚠️ Safety Information

Always read and follow the manufacturer's installation, safety and operating instructions before using the Flex 18.

Professional installation is recommended for built in applications. Always verify the physical model dimensions against the required cut out dimensions before installation.

Only use approved e NR G bioethanol. Never refill the burner while it is burning or hot. Allow the burner to cool completely before refuelling.

Keep combustible materials away from the fireplace and maintain all required clearances. Never move or modify the fireplace while the burner is lit or hot.

Wood burning and gas products are designed for use outdoors in a well ventilated space. The Flex 18 is a bioethanol fireplace and has separate indoor and outdoor operating requirements. Always ensure the installation and ventilation requirements specified by the manufacturer are followed.

FAQs

❓ Frequently Asked Questions

Is the Flex 18 a single sided fireplace?

Yes. The Flex 18 is designed with one open side, allowing the flame to be viewed from the front.

Can the Flex 18 be built into a wall?

Yes. Its self contained zero clearance design allows it to be incorporated into suitable feature walls, cabinetry and fireplace settings when installed according to the manufacturer's requirements.

Can the Flex 18 be used outdoors?

Yes. The Flex 18 is suitable for indoor and outdoor applications, subject to the manufacturer's installation and operating requirements.

How long does the AB3 burner burn?

The 2.5 litre AB3 burner provides an approximate burn time of 8 to 11 hours, depending on operating conditions.

How much space can the Flex 18 heat?

The AB3 burner can heat an average area of up to 20 m², depending on the environment and installation conditions.

Does the Flex 18 require a chimney?

No. The bioethanol fireplace does not require a traditional chimney or utility connection.

What fuel does the Flex 18 use?

The Flex 18 is designed to use e NR G bioethanol. Only the manufacturer's recommended fuel should be used.
