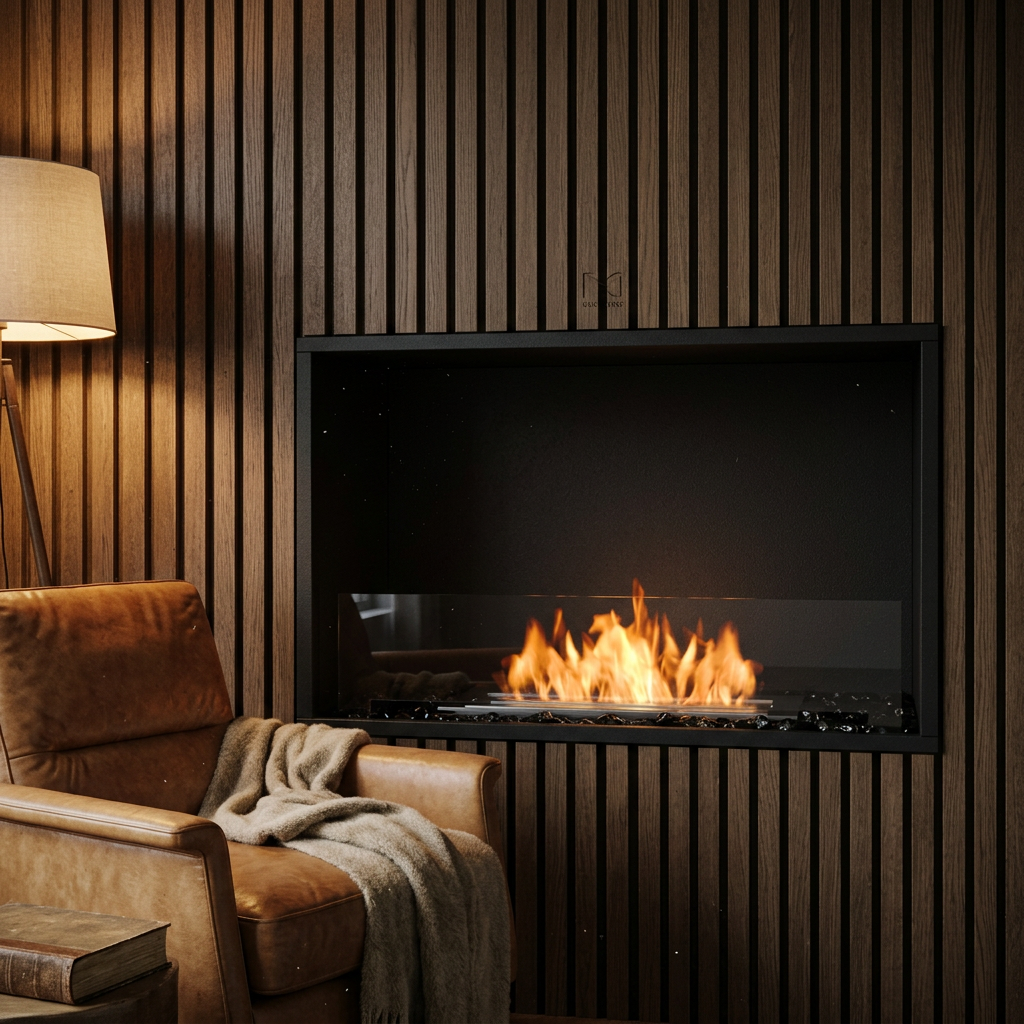

EcoSmart Fire Flex 32SS Wide Single Sided Bioethanol Fireplace Insert

Description

🔥 EcoSmart Fire Flex 32SS Single Sided Bioethanol Fireplace Insert

Create a striking architectural feature with the EcoSmart Fire Flex 32SS, a wide single sided bioethanol fireplace insert designed to put the flame at the heart of your space. With its generous viewing area, clean lines and contemporary styling, the Flex 32SS combines the character of a traditional fireplace with the flexibility of modern bioethanol technology. It can be integrated into suitable feature walls, cabinetry or fireplace settings in residential and commercial spaces.

Features

✨ Wide All Flame Viewing Area

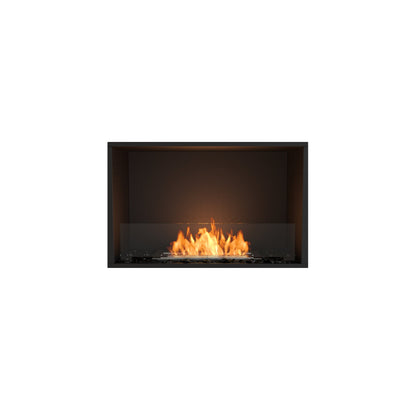

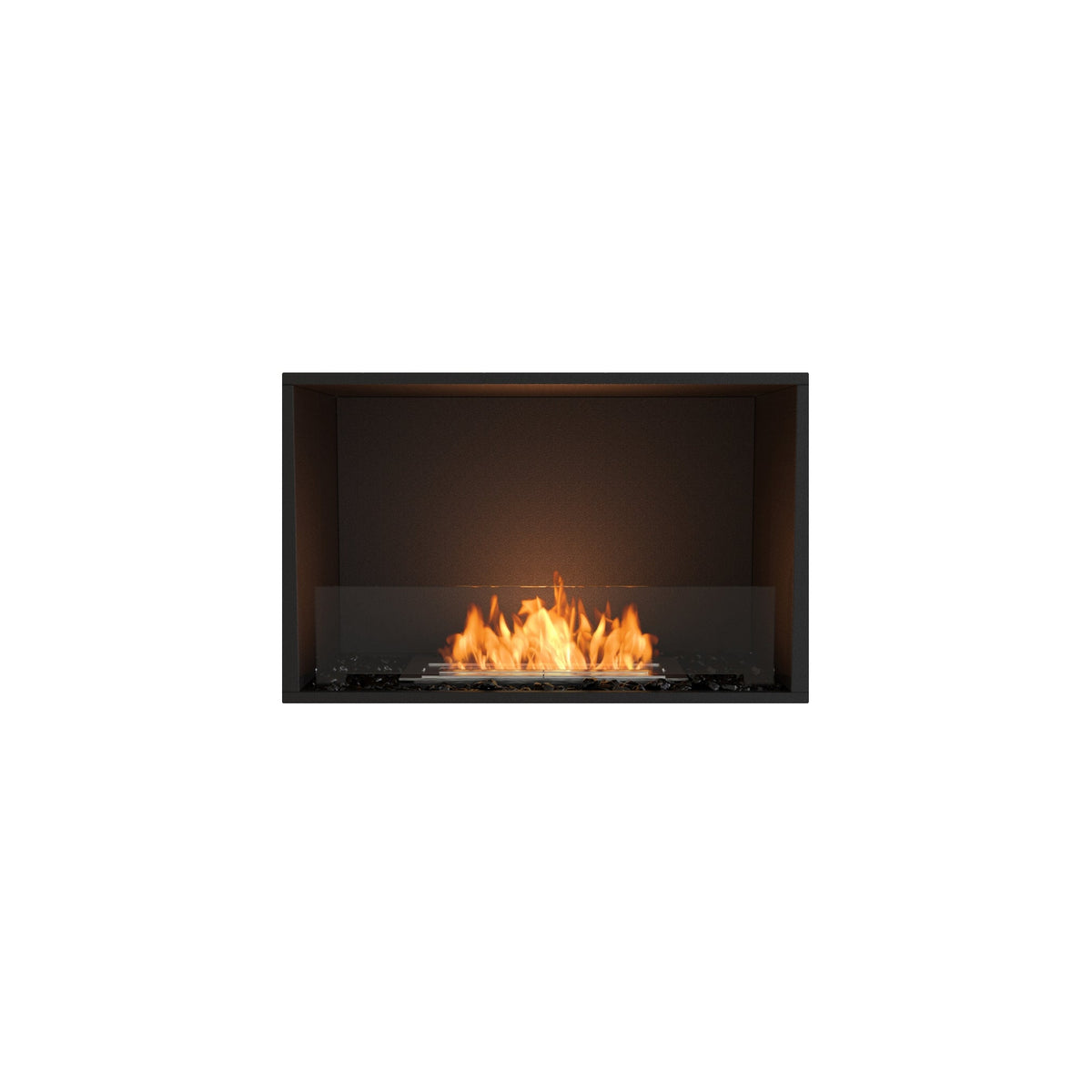

Designed for front facing flame visibility, the Flex 32SS features one open side with a generous 810 mm wide viewing area.

The all flame configuration dedicates the entire opening to the fire, creating a dramatic visual feature without unnecessary distractions. The wide format works particularly well as a centrepiece in living rooms, dining areas, outdoor rooms and commercial spaces.

🔥 XL500 Bioethanol Burner

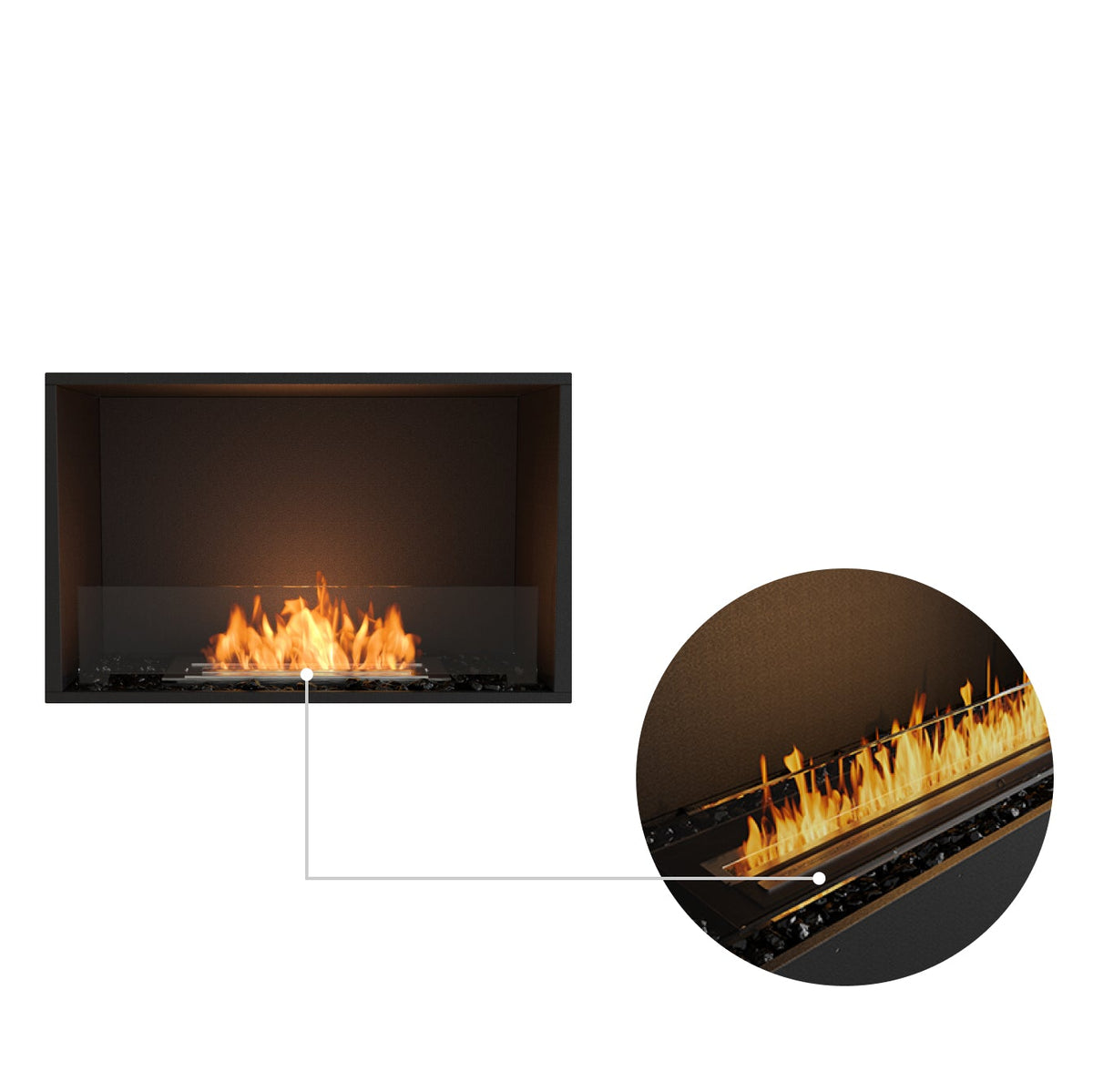

The Flex 32SS is fitted with the EcoSmart Fire XL500 burner, offering a 5 litre fuel capacity and an approximate burn time of 10 to 13 hours.

With a thermal output of up to 11,430 BTU/h and a heating capacity of approximately 40 m², the XL500 provides a generous flame and extended warmth for suitable spaces.

XL Baffles are included to help regulate and stabilise the flame while supporting efficient fuel use.

🏡 Indoor and Outdoor Applications

The Flex 32SS is designed for indoor and outdoor applications, giving you flexibility when creating a built in fire feature.

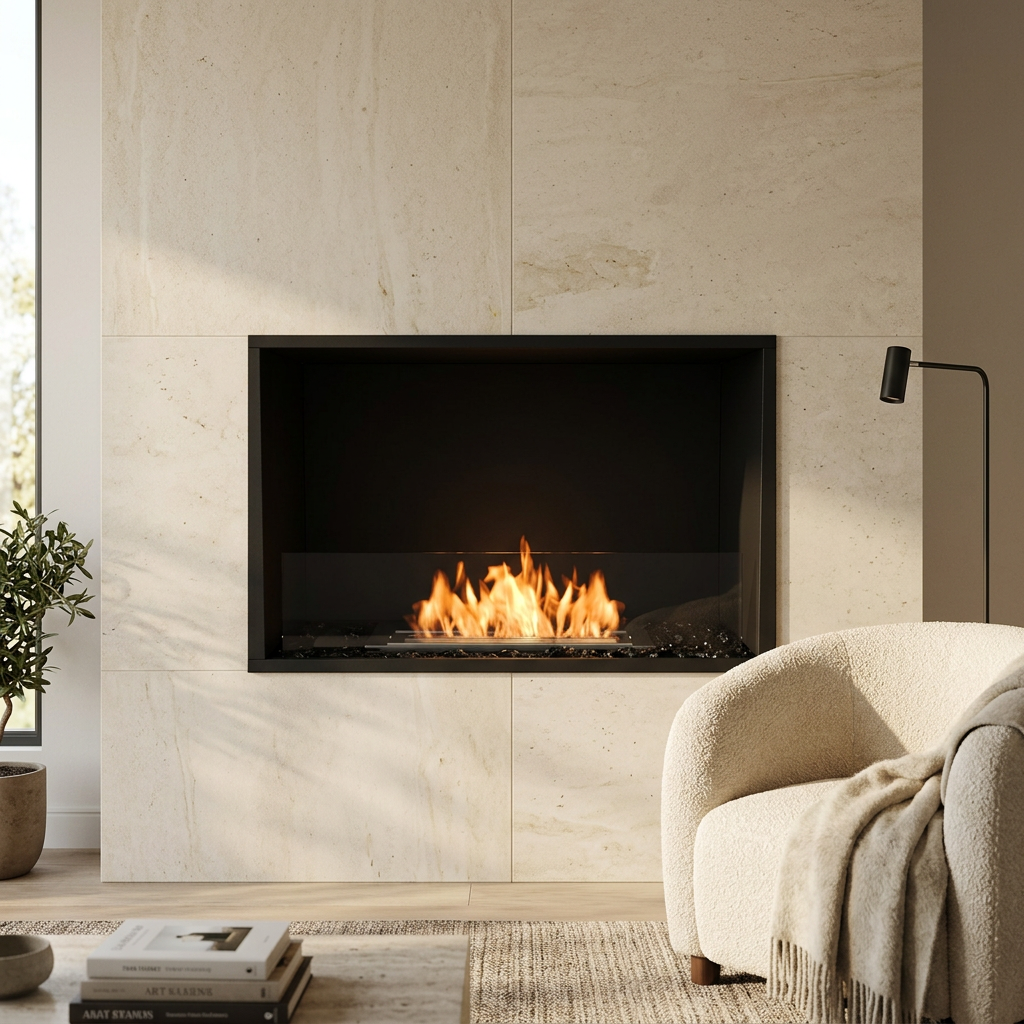

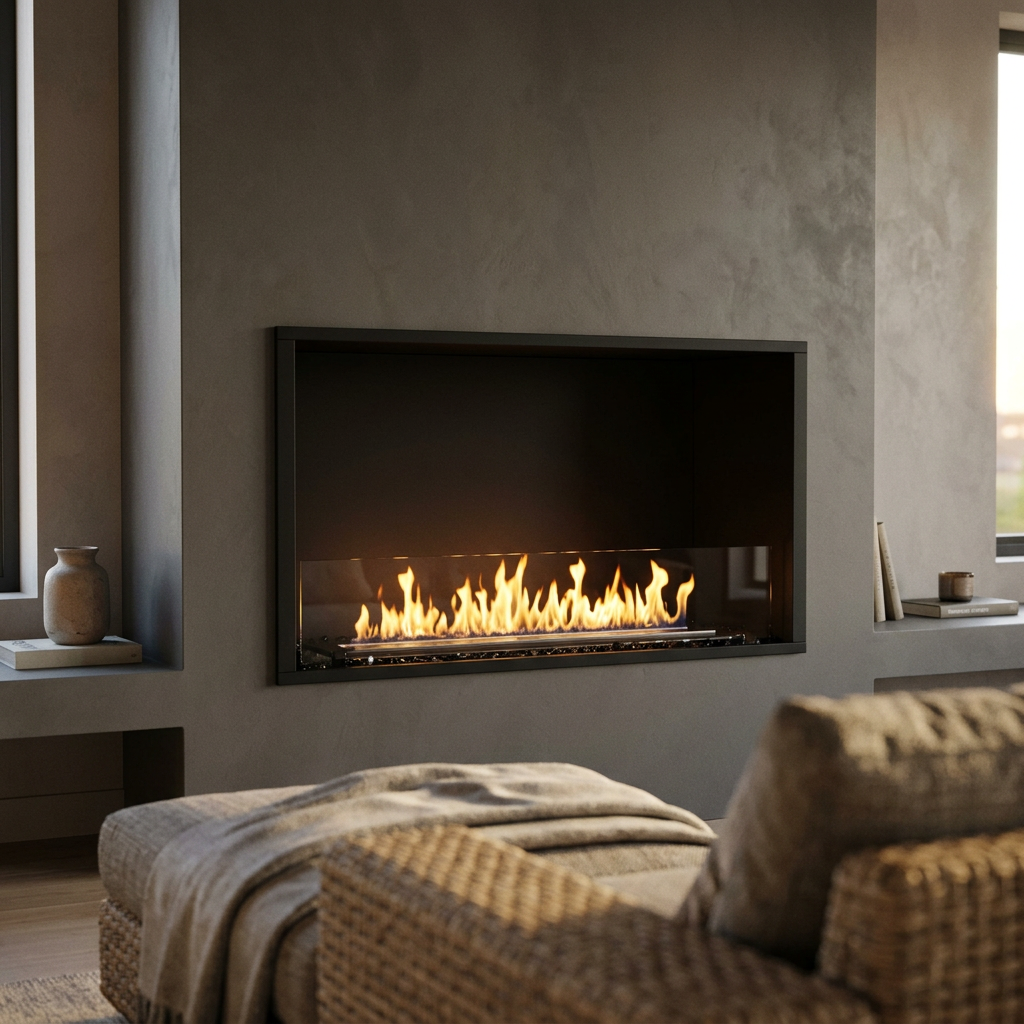

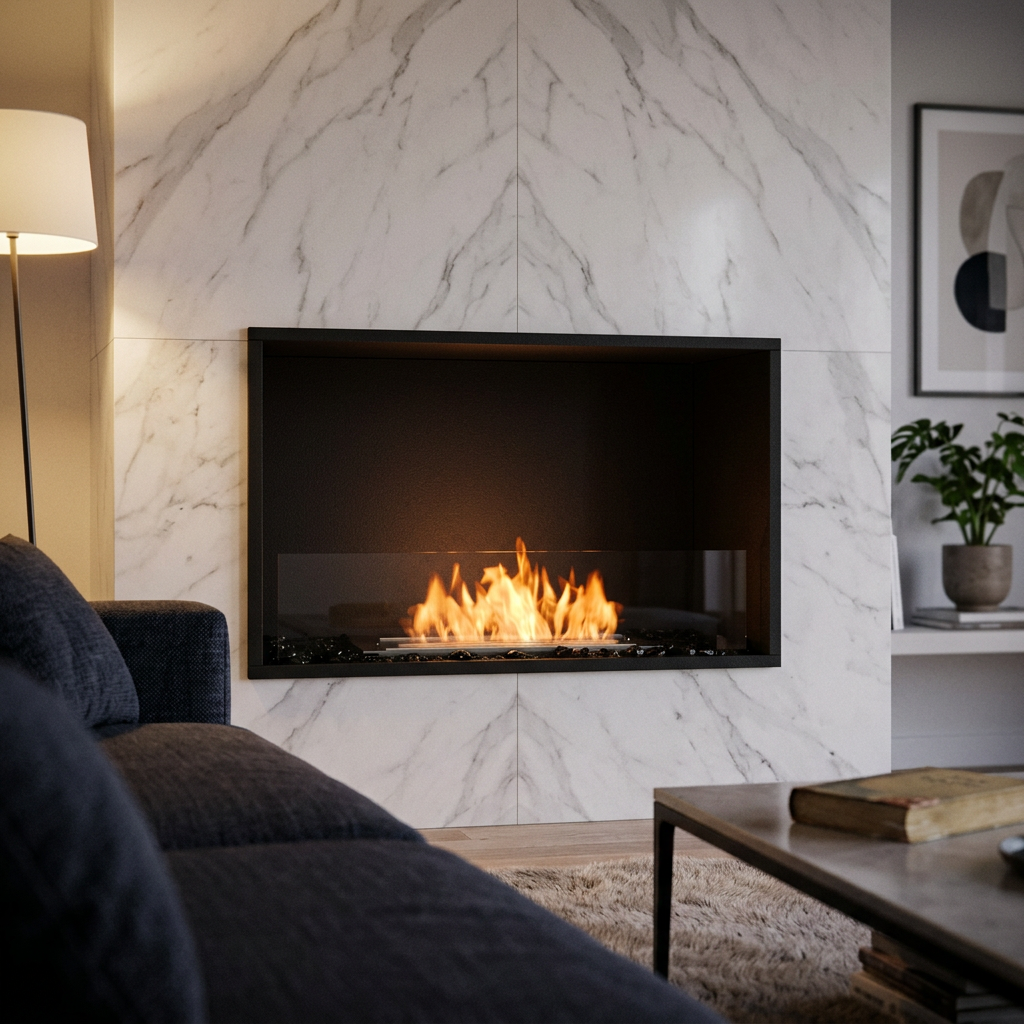

Its streamlined form can be incorporated into a suitable feature wall, cabinetry or fireplace setting, helping create a seamless architectural finish.

Before installation, the physical dimensions of the fireplace should always be checked against the required cut out dimensions to ensure the correct tolerances.

🛠️ True Zero Clearance Design

The self contained zero clearance construction provides greater flexibility when integrating the fireplace into an appropriate architectural setting.

The Flex 32SS does not require a traditional chimney or gas connection, helping simplify the design of a contemporary fireplace installation.

Professional installation is recommended for built in applications, and all manufacturer requirements must be followed.

🌱 Clean Burning Bioethanol

Powered by e NR G bioethanol, the Flex 32SS creates a real flame without the need for firewood or a traditional chimney.

Bioethanol provides a convenient alternative to conventional fireplaces, allowing you to enjoy warmth and ambience without the smoke, soot and ash associated with wood burning.

🖤 Sleek Contemporary Finish

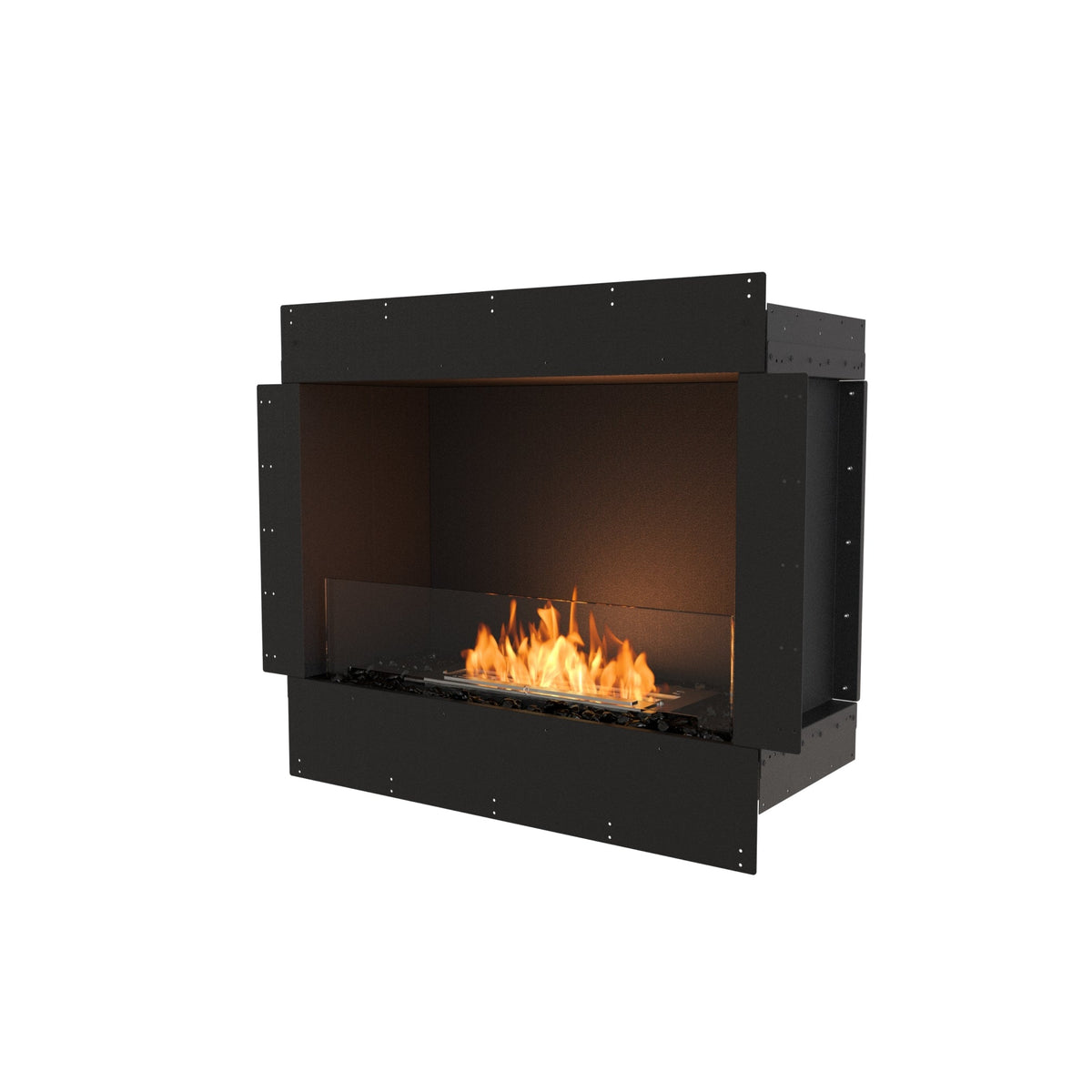

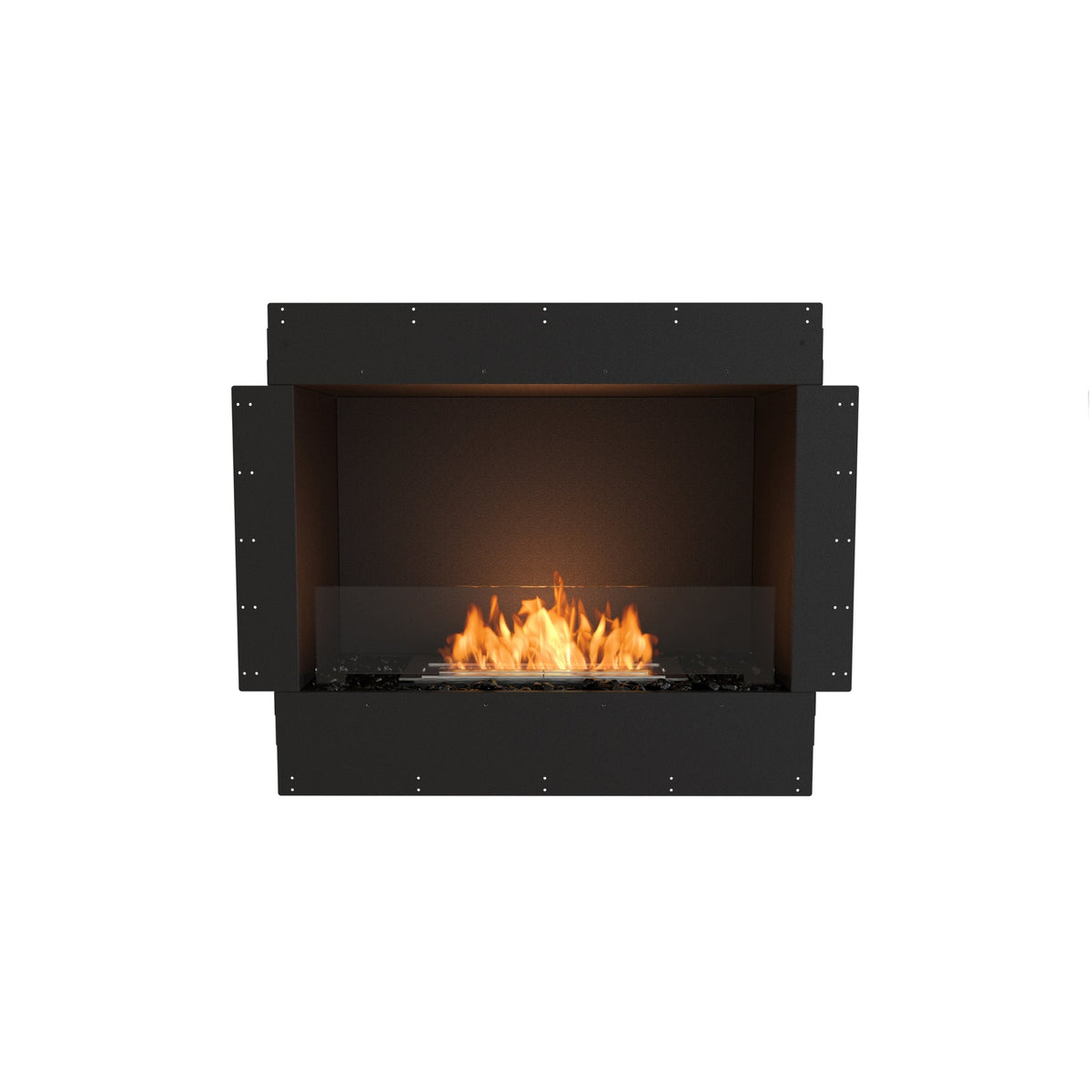

The Flex 32SS features a black mild steel surround with a zinc sealed high temperature powder coated finish.

The burner is available in stainless steel or black, allowing you to create a subtle contrast or a coordinated appearance.

Its understated finish allows the flame to remain the main visual attraction.

🛡️ Safety and Certification

The Flex 32SS features a manufacturer approved surround for the BS EN16647 compliant XL500 burner.

The burner is O T L listed to UL 1370, BSI certified to EN16647 and compliant with the ACCC Safety Mandate for bioethanol burners.

The firebox is manufactured to high standards in accordance with ISO 9001:2008.

Always use approved e NR G bioethanol and follow the manufacturer's instructions for installation, filling, lighting, operation and extinguishing.

Specifications

📏 Dimensions & Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 32SS
• Application: Indoor and outdoor
• Fuel Type: e NR G bioethanol
• Burner: XL500
• Burner Capacity: 5 L
• Burn Time: 10 to 13 hours
• Thermal Output: 11,430 BTU/h / 12.06 MJ/h / approximately 3 kW
• Fuel Consumption: 0.5 L/h on maximum setting
• Heating Capacity: Up to 40 m²
• Minimum Room Size: 80 m³
• Model Width: 1,010 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 810 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 45.7 kg
• Surround Material: Mild steel with zinc sealed high temperature powder coating
• Burner Material: Grade 304 stainless steel
• Model Colour: Black
• Burner Colours: Stainless Steel and Black
• Certification: UL 1370, EN16647 BSI Certified and ACCC Safety Mandate compliant
• Packaging Weight: 71 kg
• Packaging Dimensions: 1097 mm L x 536 mm W x 1068 mm H
• Packaging Type: Crate with skid
• Packaging Volume: 0.63 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NR G bioethanol used.

Physical model dimensions should always be checked against the required cut out dimensions before installation begins.

Included

📦 What’s Included

Your EcoSmart Fire Flex 32SS includes:

• XL Baffles
• Jerry Can 5 L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen

The XL Baffles help regulate and stabilise the flame, while the Black Glass Charcoal provides a decorative finishing touch around the fireplace.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order. Due to the packaged weight of 71 kg, suitable access and handling space should be available.

Bioethanol Fuel Delivery

e NR G Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NR G Bioethanol order.

Warranty

🤝 Warranty & Support

EcoSmart Fire products are designed using quality materials and components for reliable, long lasting performance. The Flex 32SS is supported by the manufacturer's applicable warranty terms.

Before installation, carefully check the fireplace dimensions against the required cut out dimensions. Always follow the manufacturer's installation, operating and maintenance instructions.

Safety

⚠️ Safety Information

Always read and follow the manufacturer's installation, safety and operating instructions before using the Flex 32SS.

Professional installation is recommended for built in applications. Always verify the physical model dimensions against the required cut out dimensions before installation.

Only use approved e NR G bioethanol. Never refill the burner while it is burning or hot. Allow the burner to cool completely before refuelling.

Keep combustible materials away from the fireplace and maintain all required clearances. Never modify or move the fireplace while the burner is lit or hot.

Wood burning and gas products are designed for use outdoors in a well ventilated space. The Flex 32SS is a bioethanol fireplace and has separate indoor and outdoor operating requirements. Always ensure the installation and ventilation requirements specified by the manufacturer are followed.

FAQs

❓ Frequently Asked Questions

Is the Flex 32SS a single sided fireplace?

Yes. The Flex 32SS has one open side, allowing the flame to be viewed directly from the front.

Can the Flex 32SS be integrated into a feature wall?

Yes. Its zero clearance construction allows it to be incorporated into suitable feature walls, cabinetry and fireplace settings when installed according to the manufacturer's requirements.

How long does the XL500 burner burn?

The 5 litre XL500 burner provides an approximate burn time of 10 to 13 hours, depending on operating conditions.

How much space can the Flex 32SS heat?

The XL500 burner can heat an average area of up to 40 m², depending on the installation environment and other conditions.

Can the Flex 32SS be used outdoors?

Yes. The Flex 32SS is suitable for indoor and outdoor applications, subject to the manufacturer's installation and operating requirements.

Does the Flex 32SS require a chimney?

No. The bioethanol fireplace does not require a traditional chimney or gas connection.

What fuel does the Flex 32SS use?

The Flex 32SS is designed to use e NR G bioethanol. Only the manufacturer's recommended fuel should be used.
