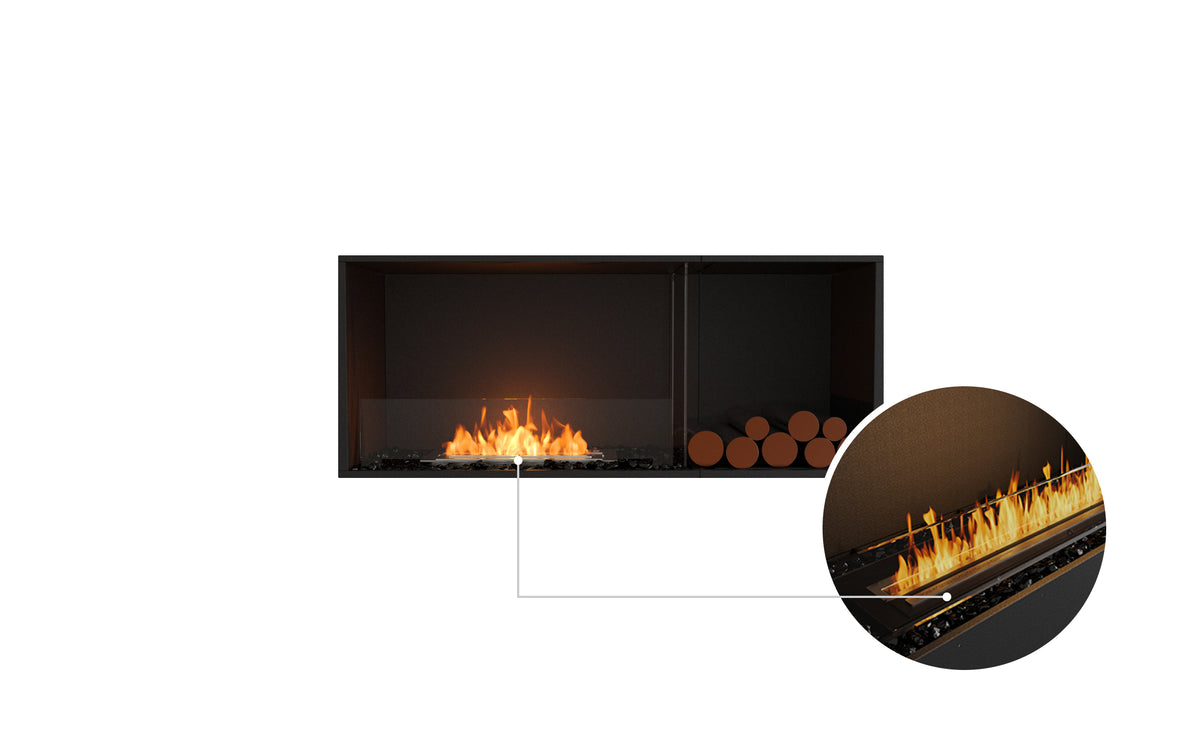

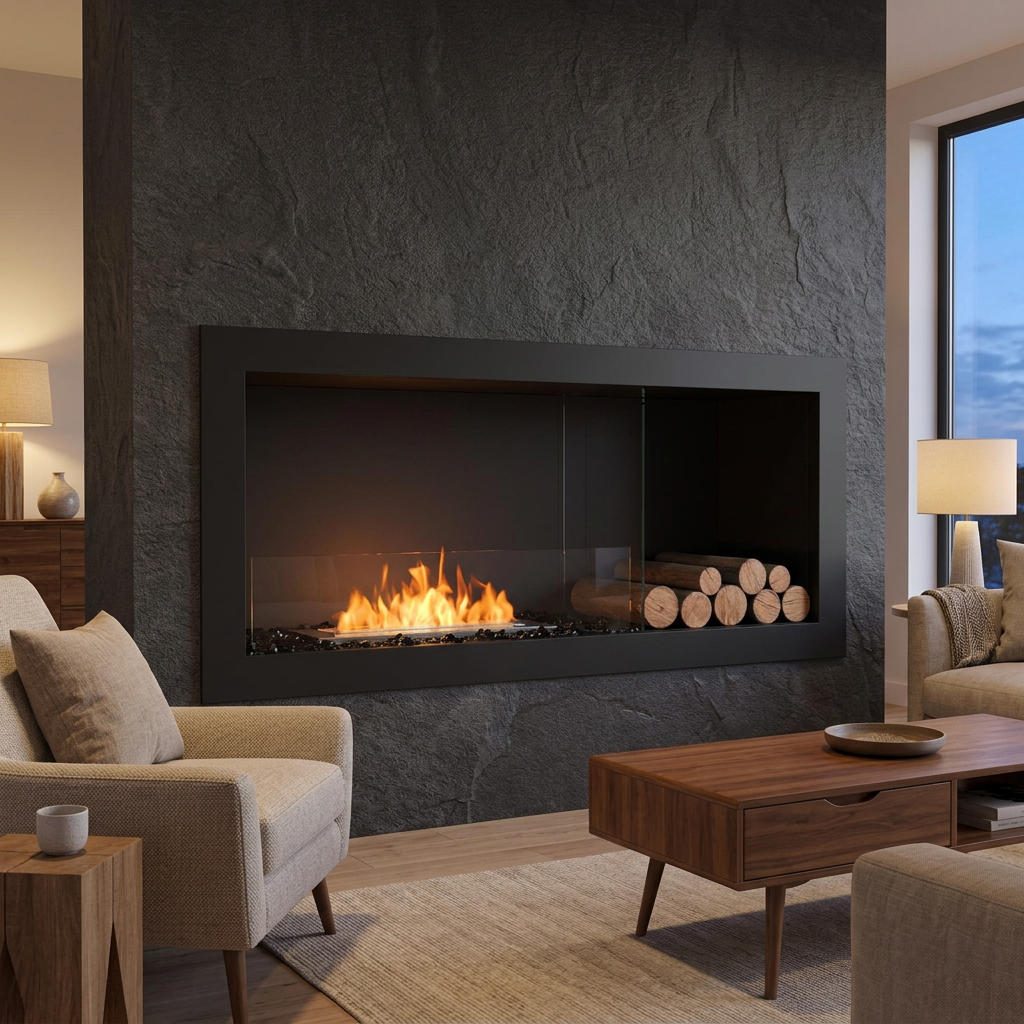

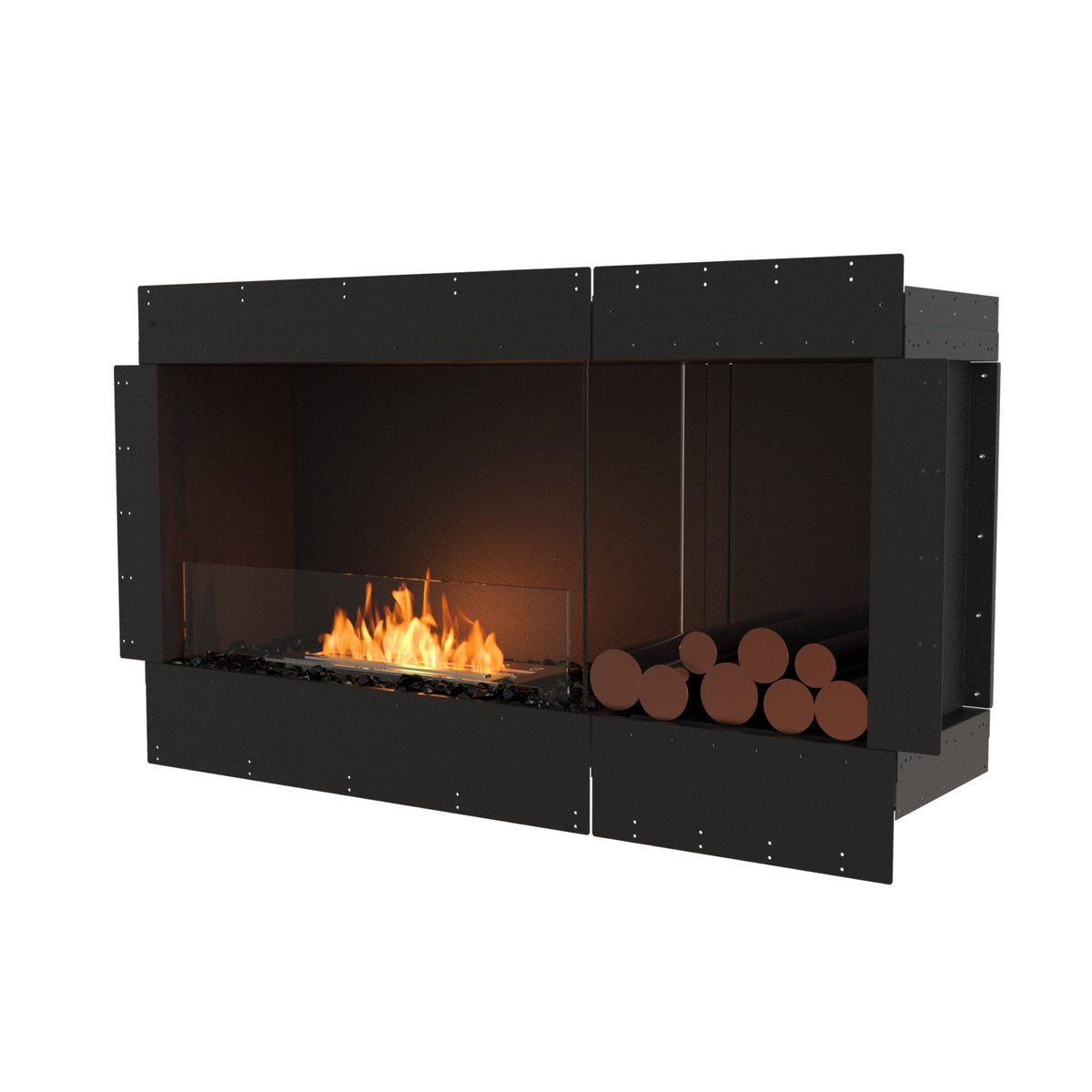

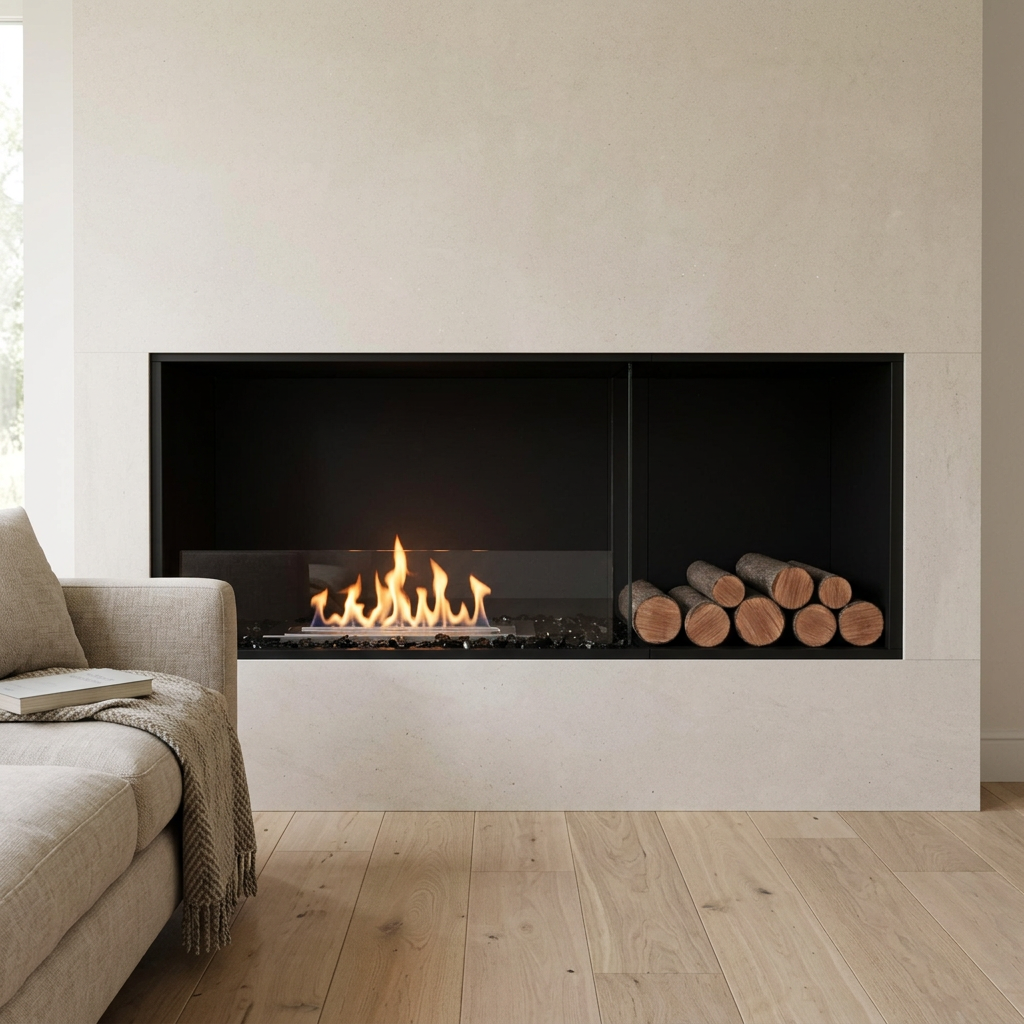

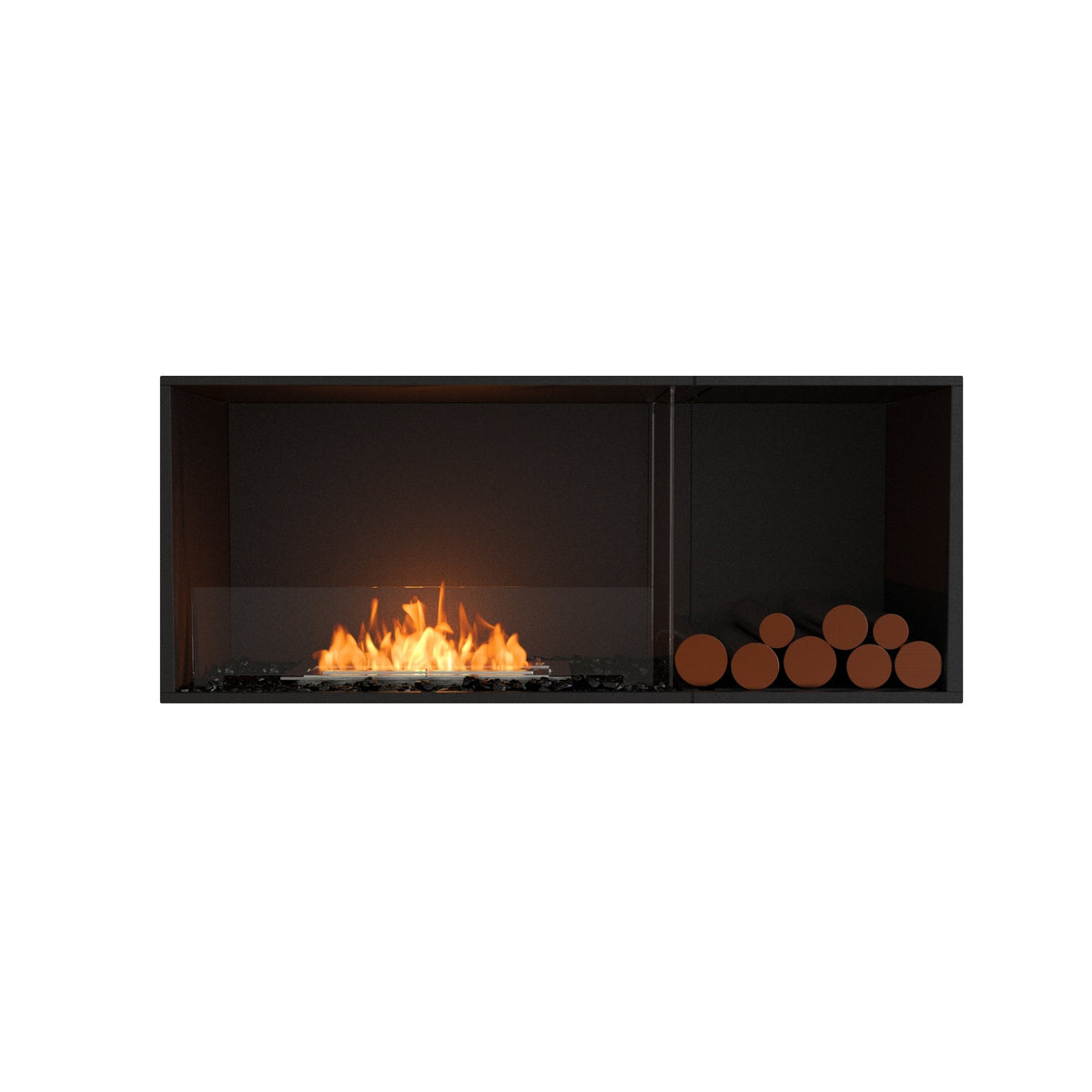

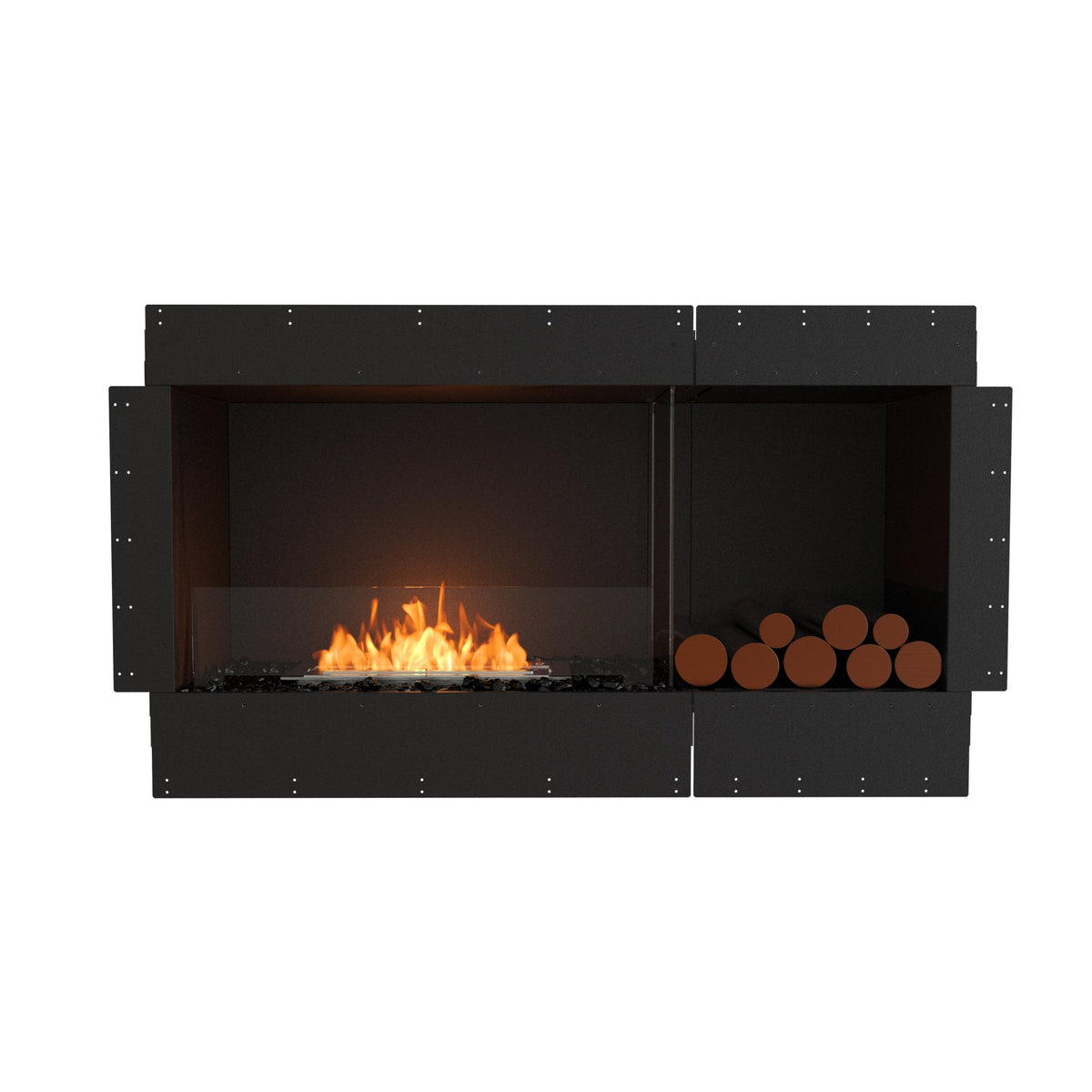

EcoSmart Fire Flex 50SS.BXR Wide Bioethanol Fireplace Insert with XL500 Burner

Description

🔥 EcoSmart Fire Flex 50SS.BXR Bioethanol Fireplace Insert

Bring the warmth and visual appeal of a contemporary fireplace into your home or outdoor living area with the EcoSmart Fire Flex 50SS.BXR. This wide single sided bioethanol fireplace insert is designed to integrate beautifully into a feature wall, cabinetry or fireplace setting, creating a striking focal point without the need for a chimney, flue or traditional utility connections. With its generous 1,270 mm viewing area and all flame configuration, the entire opening is dedicated to the dancing flame, making it an impressive choice for residential and commercial spaces.

Features

✨ Contemporary Design for Integrated Spaces

The Flex 50SS.BXR combines clean architectural lines with the natural beauty of a real flame. Its single sided design allows the fire to be viewed from the front, making it ideal for dining rooms, living spaces, covered outdoor areas and hospitality settings.

The black mild steel surround features a zinc sealed, high temperature powder coated finish, while the Grade 304 stainless steel ethanol burner provides a durable and refined centrepiece.

🔥 XL500 Bioethanol Burner

The Flex 50SS.BXR uses the XL500 bioethanol burner, offering a generous 5 litre fuel capacity and an impressive burn time of approximately 10 to 13 hours.

Powered by e NRG bioethanol fuel, the fireplace creates a clean burning flame without wood, ash or soot. The XL Baffles help regulate and stabilise the flame while supporting efficient fuel use.

With a thermal output of up to 12 MJ/h, 11,430 BTU/h or approximately 3.4 kW, the XL500 configuration can heat an average area of up to 40 m², subject to installation conditions and fuel composition.

🏡 Indoor or Outdoor Installation

The Flex 50SS.BXR is designed for indoor or outdoor applications, giving you flexibility when creating a fireplace feature.

Use it as a dramatic centrepiece in a living or dining room, integrate it into a feature wall, or incorporate it into an outdoor living area where you want to create a warm and inviting atmosphere.

For outdoor applications, the installation environment should provide appropriate protection and comply with all applicable installation and safety requirements.

🧱 True Zero Clearance Design

The self contained true zero clearance construction provides greater flexibility when planning an integrated fireplace installation.

With no chimney, flue or utility connection required, the Flex 50SS.BXR can be incorporated into suitable cabinetry, feature walls and fireplace settings when installed according to the manufacturer's requirements.

Always verify the physical model dimensions against the required cut out dimensions before installation begins to ensure the correct tolerances are maintained.

🌟 Efficient Heat Without a Chimney

The Flex fireplace uses a closed combustion system designed to retain heat within the room rather than losing warmth through traditional ventilation systems.

This makes bioethanol an attractive option for creating a fireplace feature without the structural requirements associated with many conventional fireplaces.

🛡️ Safety and Certification

The Flex 50SS.BXR includes a manufacturer approved surround designed for the BS EN16647 compliant XL500 burner.

The fireplace complies with applicable standards across the USA, Europe, UK and Australia, with the bioethanol burner:

• O T L listed to UL 1370
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant

The firebox is manufactured to high standards in accordance with ISO 9001:2008.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 50SS.BXR
• Configuration: All Flame
• Application: Indoor or Outdoor
• Burner: XL500
• Fuel Type: e NRG Bioethanol
• Burner Capacity: 5 L
• Burn Time: 10 to 13 hours
• Thermal Output: 12 MJ/h / 11,430 BTU/h / 3.4 kW
• Fuel Consumption: 0.5 L/h
• Heating Coverage: Up to 40 m²
• Minimum Room Size: 80 m³
• Model Width: 1,470 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 1,270 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 71.4 kg
• Model Material: Mild steel with zinc sealed, high temperature powder coat
• Burner Material: Grade 304 stainless steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC compliant
• Packaging Type: Crate with skid
• Shipping Weight: 88 kg
• Packaging Dimensions: 1,557 x 536 x 1,068 mm
• Packaging Volume: 0.89 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol sourced in each country.

Included

📦 What’s Included

The EcoSmart Fire Flex 50SS.BXR includes:

• XL Baffles
• Jerry Can 5L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen
• Manufacturer approved surround for the XL500 burner

The Black Glass Charcoal is made from tempered glass and designed to withstand temperatures of up to 700°C.

🌿 Optional Accessories

Copper Log Set

The optional Copper Log Set is made from stainless steel and adds a decorative finishing touch to the fireplace design. It can help create a more traditional fireplace appearance while complementing the contemporary structure of the Flex range.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly due to the size and shipping weight of the Flex 50SS.BXR.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are designed and manufactured to high quality standards. For installation, operation and maintenance, always follow the manufacturer's instructions and use approved fuel and accessories.

Professional installation is recommended to ensure the fireplace is correctly integrated into its intended setting and all applicable safety requirements are followed.

Safety

⚠️ Safety Information

Always read and follow the manufacturer's installation and operating instructions before using the fireplace.

Only use approved e NRG bioethanol fuel and follow the manufacturer's fuel handling and filling procedures.

Never refuel the burner while it is lit or still hot. Allow the burner to cool completely before refuelling.

The fireplace must be installed in accordance with applicable building, fire and safety regulations.

Physical model dimensions should be checked against the required cut out dimensions before installation begins.

Wood burning and gas products are designed for use outdoors in a well ventilated space. The Flex 50SS.BXR is a bioethanol fireplace and has separate indoor and outdoor operating requirements.

FAQs

❓ Frequently Asked Questions

Can the Flex 50SS.BXR be installed indoors?

Yes. The Flex 50SS.BXR is designed for indoor or outdoor applications. Indoor installation must follow the manufacturer's installation requirements and applicable local regulations.

Does the Flex 50SS.BXR need a chimney or flue?

No. The bioethanol burner does not require a traditional chimney or flue, making it suitable for integrated fireplace designs where conventional fireplace infrastructure is not available.

How long does the XL500 burner burn?

The XL500 has a 5 litre capacity and provides an approximate burn time of 10 to 13 hours, depending on operating conditions.

How much space can the Flex 50SS.BXR heat?

The XL500 configuration can heat an average area of up to 40 m². Actual heating performance can vary according to room size, installation environment and other conditions.

What fuel does the Flex 50SS.BXR use?

The fireplace is designed for e NRG bioethanol fuel. Always use the fuel recommended by the manufacturer.

Can I install the Flex 50SS.BXR in cabinetry?

The Flex 50SS.BXR is specifically designed for integration within suitable cabinetry, feature walls and fireplace settings. Installation must follow the manufacturer's clearance and construction requirements.

What is the viewing area?

The Flex 50SS.BXR provides a generous front viewing area measuring approximately 1,270 mm wide by 502 mm high, giving the flame a strong visual presence.

Does it come with decorative media?

Yes. Black Glass Charcoal is included. The optional Copper Log Set can also be purchased separately for an alternative decorative finish.
