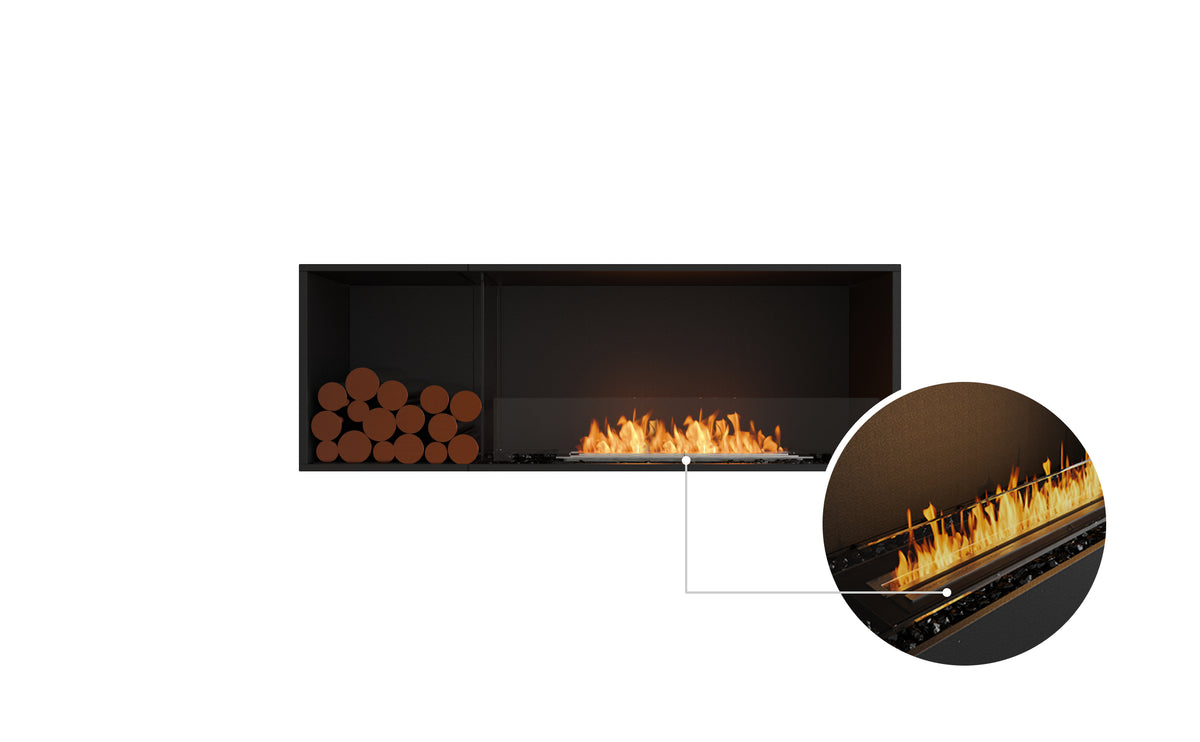

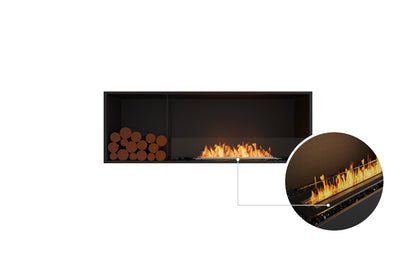

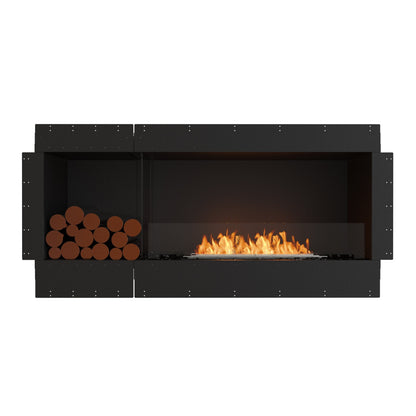

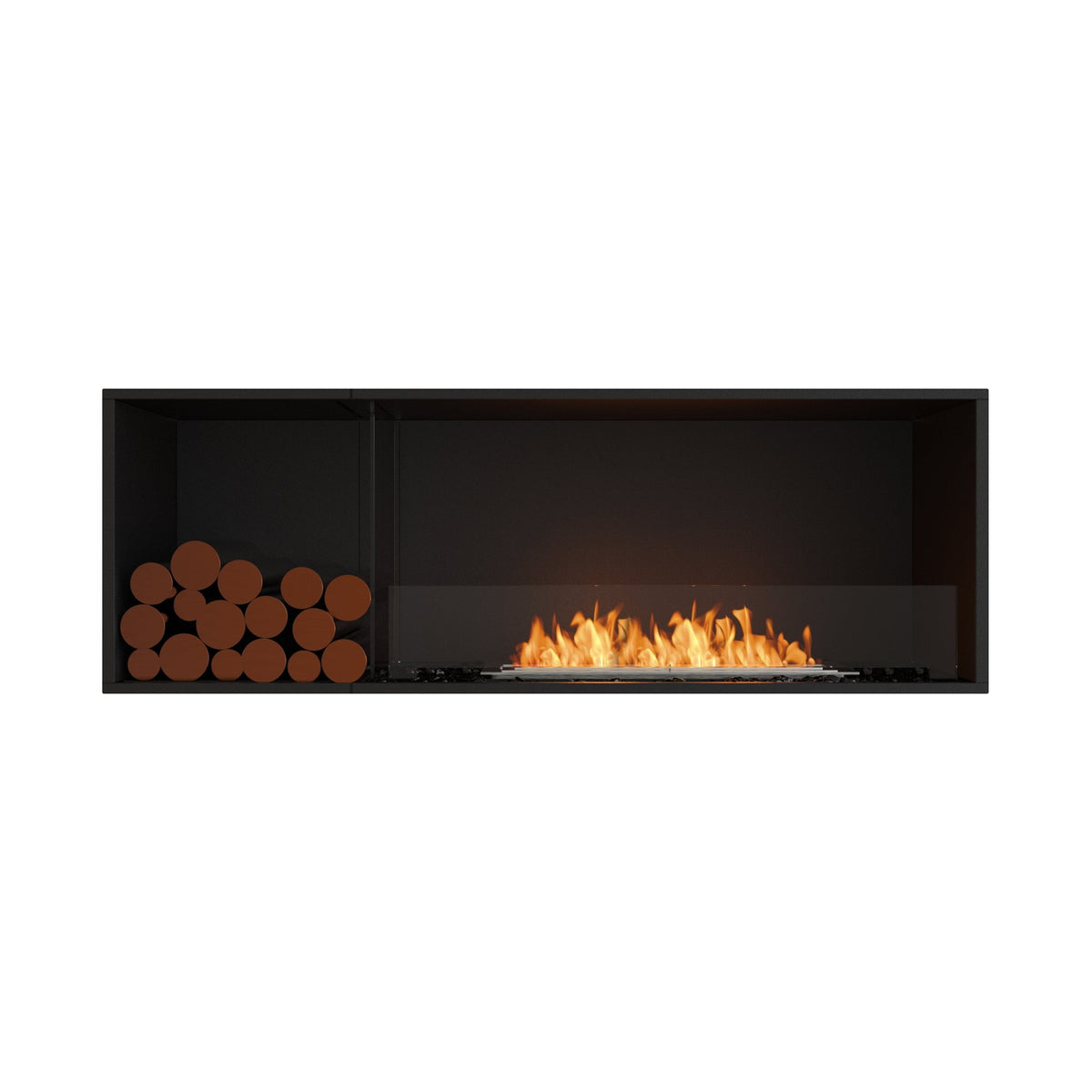

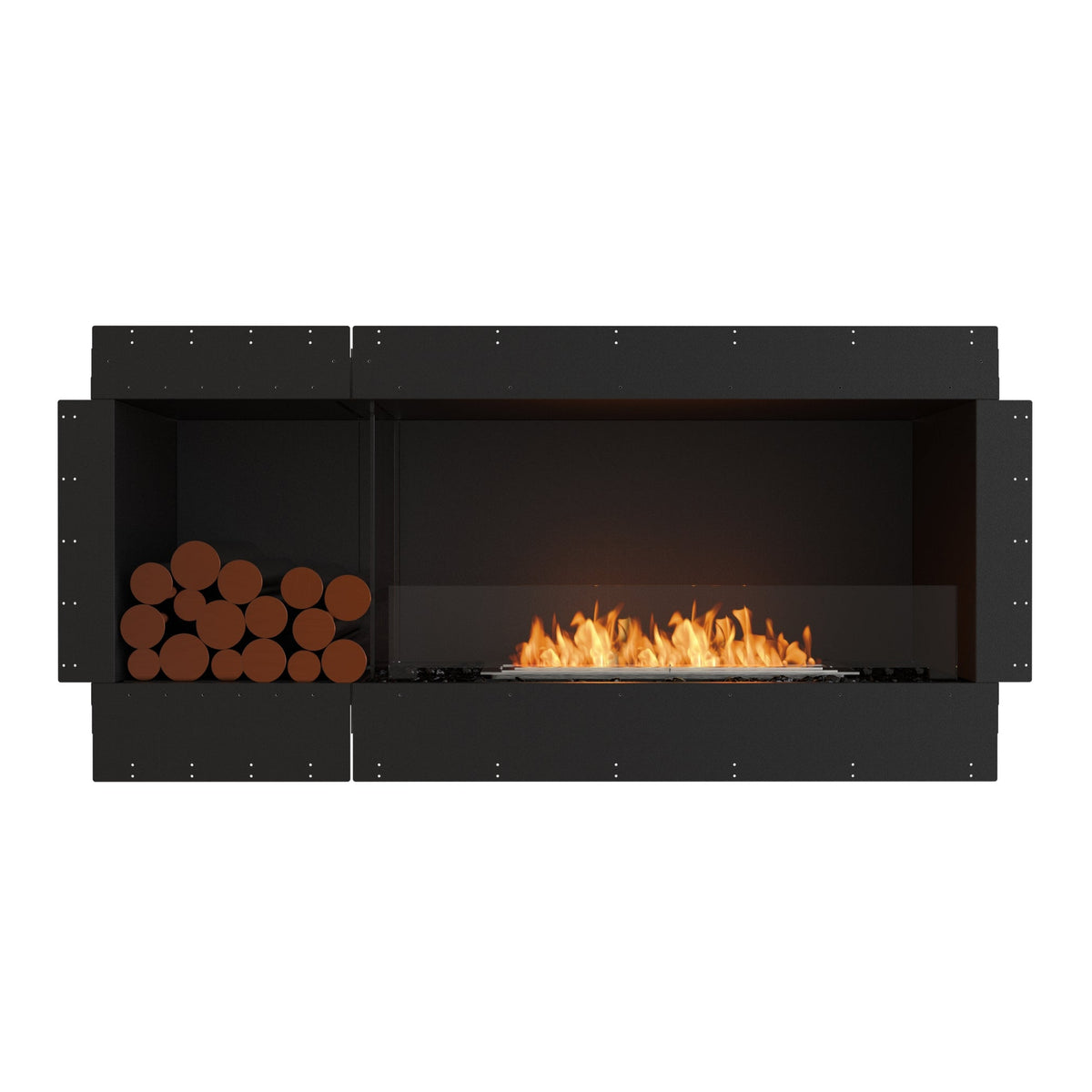

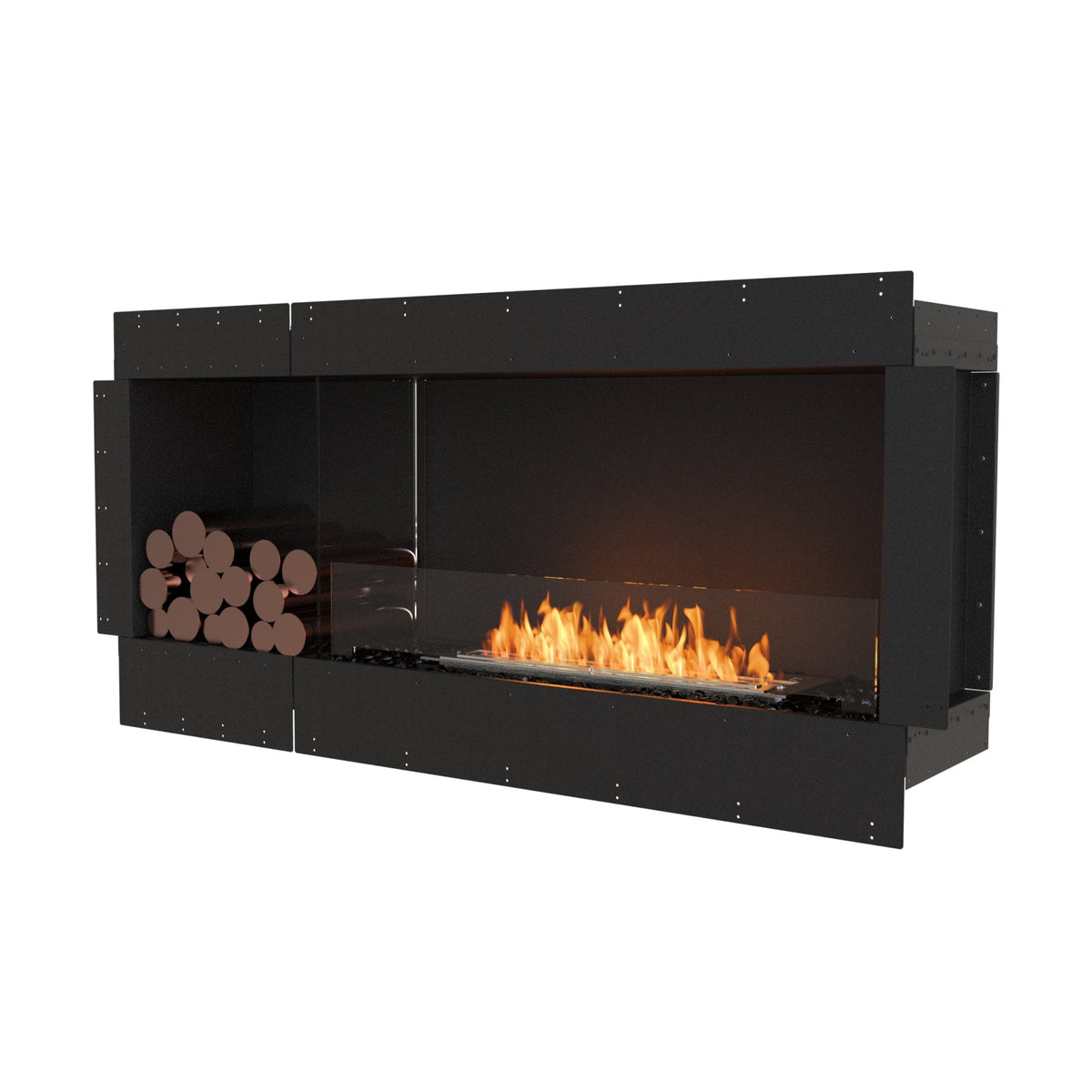

EcoSmart Fire Flex 60SS.BXL Wide Bioethanol Fireplace Insert with XL700 Burner

Description

🔥 EcoSmart Fire Flex 60SS.BXL Bioethanol Fireplace Insert

Create an impressive architectural focal point with the EcoSmart Fire Flex 60SS.BXL. This wide single sided bioethanol fireplace insert is designed to integrate seamlessly into cabinetry, feature walls and fireplace settings, bringing together contemporary design, generous flame visibility and efficient warmth. With a 1,525 mm viewing area and Box Left configuration, the Flex 60SS.BXL makes a striking addition to residential and commercial interiors as well as outdoor living spaces.

Features

✨ Wide Single Sided Fireplace Design

The Flex 60SS.BXL features one open side, allowing the flame to be enjoyed from the front while keeping the overall design clean and streamlined. Its generous proportions make it particularly suited to large feature walls and spacious living areas.

The all flame design dedicates the viewing area to the flame itself, creating a dramatic visual centrepiece without the need for a traditional wood burning fireplace.

🔥 Powerful XL700 Bioethanol Burner

The Flex 60SS.BXL is equipped with the XL700 bioethanol burner, offering a 7 litre fuel capacity and an approximate burn time of 9 to 12 hours.

The burner produces up to 13,650 BTU/h, 14.4 MJ/h or 4 kW of thermal output and can heat an average area of up to 50 m², depending on the installation environment and operating conditions.

XL Baffles are included to help regulate and stabilise the flame while supporting efficient fuel use.

🏡 Indoor or Outdoor Application

Designed for versatility, the Flex 60SS.BXL can be used in indoor or outdoor living spaces. It is suitable for creating a sophisticated fireplace feature in a dining room, living area, hospitality space or suitable outdoor setting.

Powered by clean burning e NRG bioethanol, the fireplace provides a real flame without the need for wood, ash or a traditional chimney.

🧱 True Zero Clearance Construction

The self contained true zero clearance construction provides flexibility for architects, builders, interior designers and homeowners when planning an integrated fireplace.

The Flex 60SS.BXL can be incorporated into suitable cabinetry, feature walls or fireplace settings, subject to the manufacturer's installation requirements.

Physical model dimensions should always be checked against the required cut out dimensions before installation begins to ensure the correct tolerances are maintained.

🌟 Designed for Efficient Heat

The Flex fireplace uses a closed combustion system designed to keep heat within the room rather than losing warmth through traditional venting.

With no chimney or utility connection required, it offers a practical way to introduce a fireplace feature while maintaining a clean architectural appearance.

🎨 Decorative Finishing Options

The Flex 60SS.BXL includes Black Glass Charcoal, providing a sleek decorative finish around the flame.

For a warmer and more traditional fireplace appearance, the optional Copper Log Set can be added. The stainless steel log set creates an attractive contrast against the contemporary black surround.

🛡️ Safety and Certification

The Flex 60SS.BXL includes a manufacturer approved surround designed for the BS EN16647 compliant XL700 burner.

The fireplace complies with applicable standards across the USA, Europe, UK and Australia. The bioethanol burner is:

• O T L listed to UL 1370
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant

The fireboxes are manufactured to high standards in accordance with ISO 9001:2008.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 60SS.BXL
• Configuration: Box Left
• Application: Indoor or Outdoor
• Burner: XL700
• Fuel Type: e NRG Bioethanol
• Burner Capacity: 7 L
• Burn Time: 9 to 12 hours
• Thermal Output: 14.4 MJ/h / 13,650 BTU/h / 4 kW
• Fuel Consumption: 0.7 L/h
• Heating Coverage: Up to 50 m²
• Minimum Room Size: 90 m³
• Model Width: 1,725 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 1,525 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 83.9 kg
• Model Material: Mild steel with zinc sealed, high temperature powder coat
• Burner Material: Grade 304 stainless steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC compliant
• Packaging Type: Crate with skid
• Shipping Weight: 89.9 kg
• Packaging Dimensions: 1,812 x 536 x 1,068 mm
• Packaging Volume: 1.04 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol sourced in each country.

Included

📦 What’s Included

The EcoSmart Fire Flex 60SS.BXL includes:

• XL Baffles
• Jerry Can 5L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen
• Manufacturer approved surround for the XL700 burner

The Black Glass Charcoal is made from high quality tempered glass and is designed to withstand temperatures of up to 700°C.

🌿 Optional Accessories

Copper Log Set

The optional Copper Log Set is made from stainless steel and provides a decorative finishing touch. It adds a more traditional fireplace feel while complementing the clean contemporary lines of the Flex 60SS.BXL.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly due to the large dimensions and shipping weight of the Flex 60SS.BXL.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are manufactured to high quality standards and designed for reliable performance. For installation, operation and maintenance, always follow the manufacturer's instructions and use approved fuel and accessories.

Professional installation is recommended to ensure the fireplace is correctly integrated into its intended setting and complies with applicable safety requirements.

Safety

⚠️ Safety Information

Always read and follow the manufacturer's installation and operating instructions before using the fireplace.

Only use approved e NRG bioethanol fuel and follow the manufacturer's instructions for filling, lighting and extinguishing the burner.

Never refuel while the burner is lit or still hot. Allow the burner to cool completely before refuelling.

The fireplace must be installed in accordance with applicable building, fire and safety regulations.

Always verify the physical model dimensions against the required cut out dimensions before installation begins.

Wood burning and gas products are designed for use outdoors in a well ventilated space. The Flex 60SS.BXL is a bioethanol fireplace and has separate indoor and outdoor operating requirements.

FAQs

❓ Frequently Asked Questions

Can the Flex 60SS.BXL be installed indoors?

Yes. The Flex 60SS.BXL is designed for indoor or outdoor applications. Indoor installation must follow the manufacturer's installation requirements and all applicable local regulations.

What burner does the Flex 60SS.BXL use?

The Flex 60SS.BXL uses the XL700 bioethanol burner with a 7 litre fuel capacity.

How long does the XL700 burner burn?

The XL700 provides an approximate burn time of 9 to 12 hours, depending on operating conditions and fuel consumption.

How much space can the Flex 60SS.BXL heat?

The XL700 burner can heat an average area of up to 50 m². Actual performance can vary depending on the room, installation environment and other conditions.

Does the Flex 60SS.BXL need a chimney?

No. The bioethanol fireplace does not require a traditional chimney or flue, making it suitable for integrated fireplace designs.

Can it be built into cabinetry?

Yes. The Flex 60SS.BXL is designed for integration within suitable cabinetry, feature walls and fireplace settings. The installation must follow the manufacturer's construction, clearance and safety requirements.

What does Box Left mean?

Box Left refers to the burner configuration and positioning available for this model. The Flex 60SS.BXL is supplied with the XL700 burner in the Box Left configuration.

What decorative media is included?

Black Glass Charcoal is included. The optional Copper Log Set is available separately for an alternative decorative finish.

Does it come with a fire screen?

Yes. An integrated fire screen is included and sits flush behind the frame.
