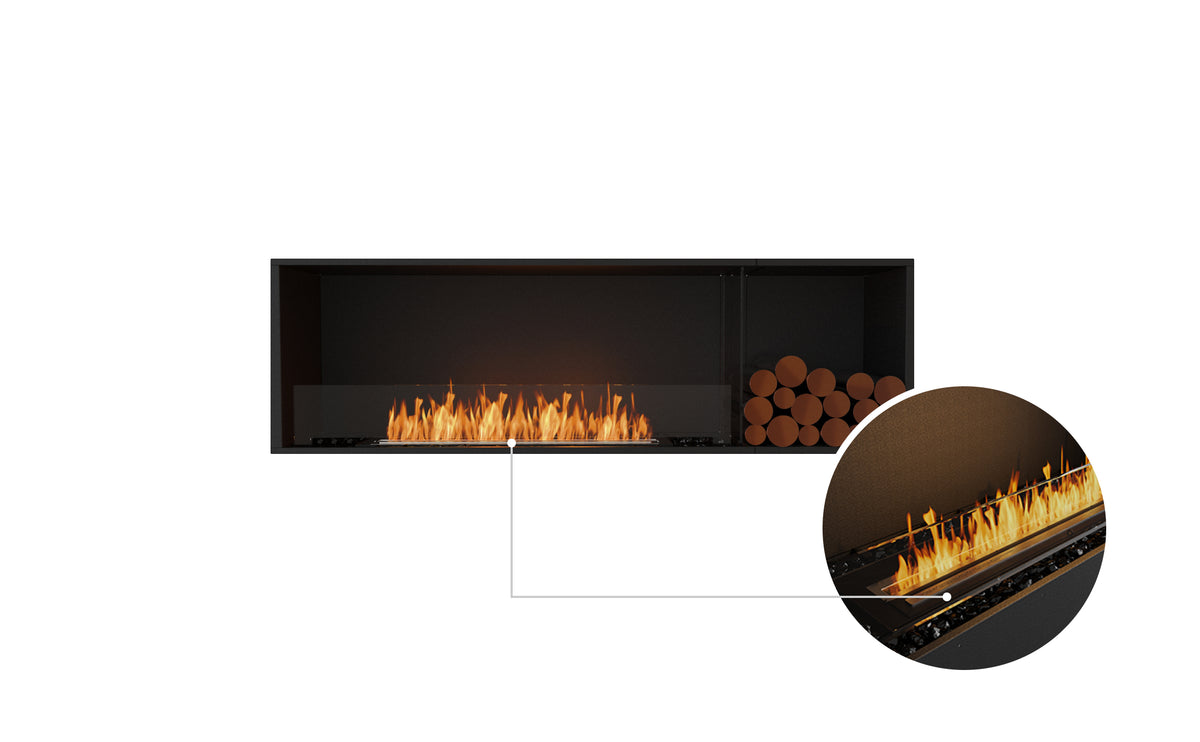

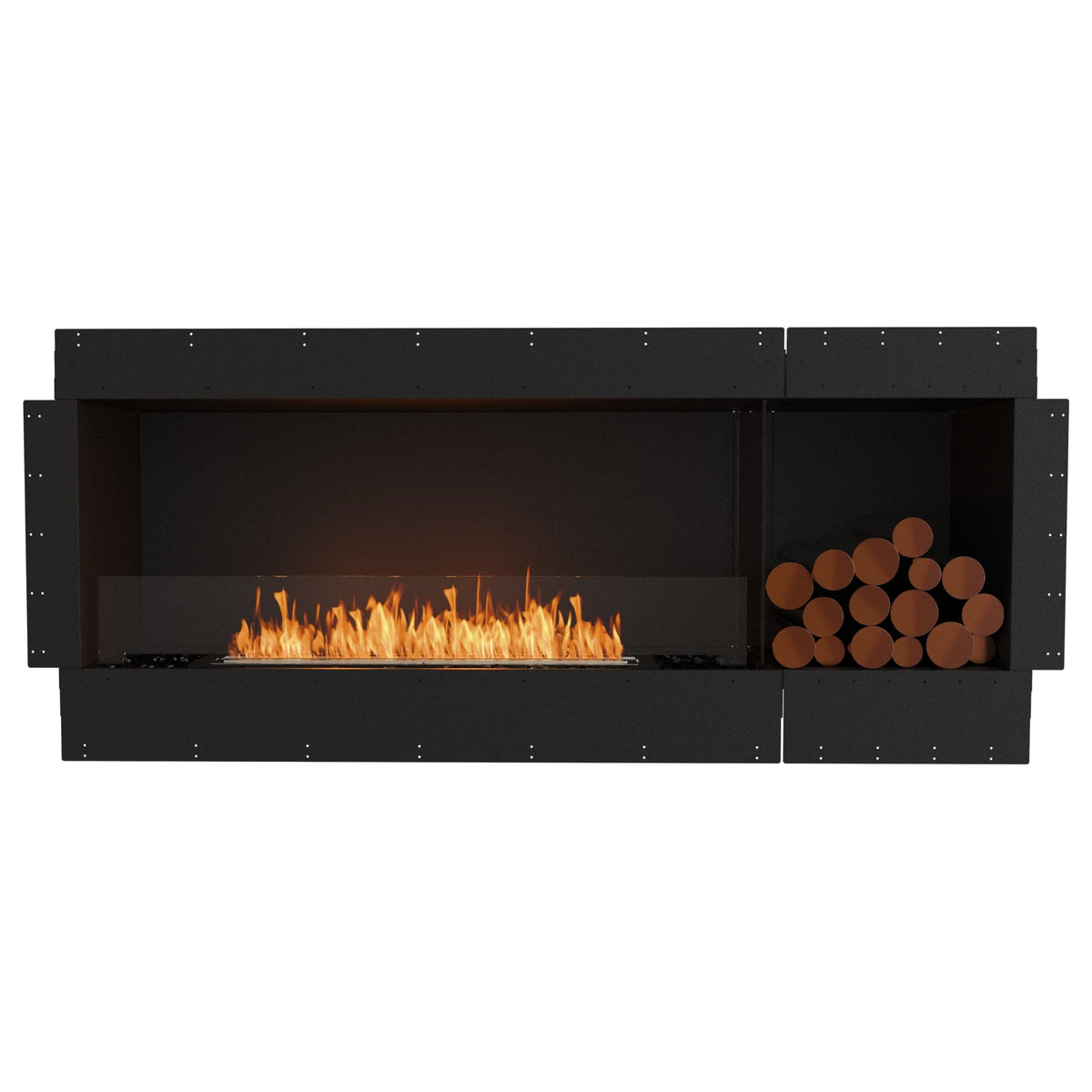

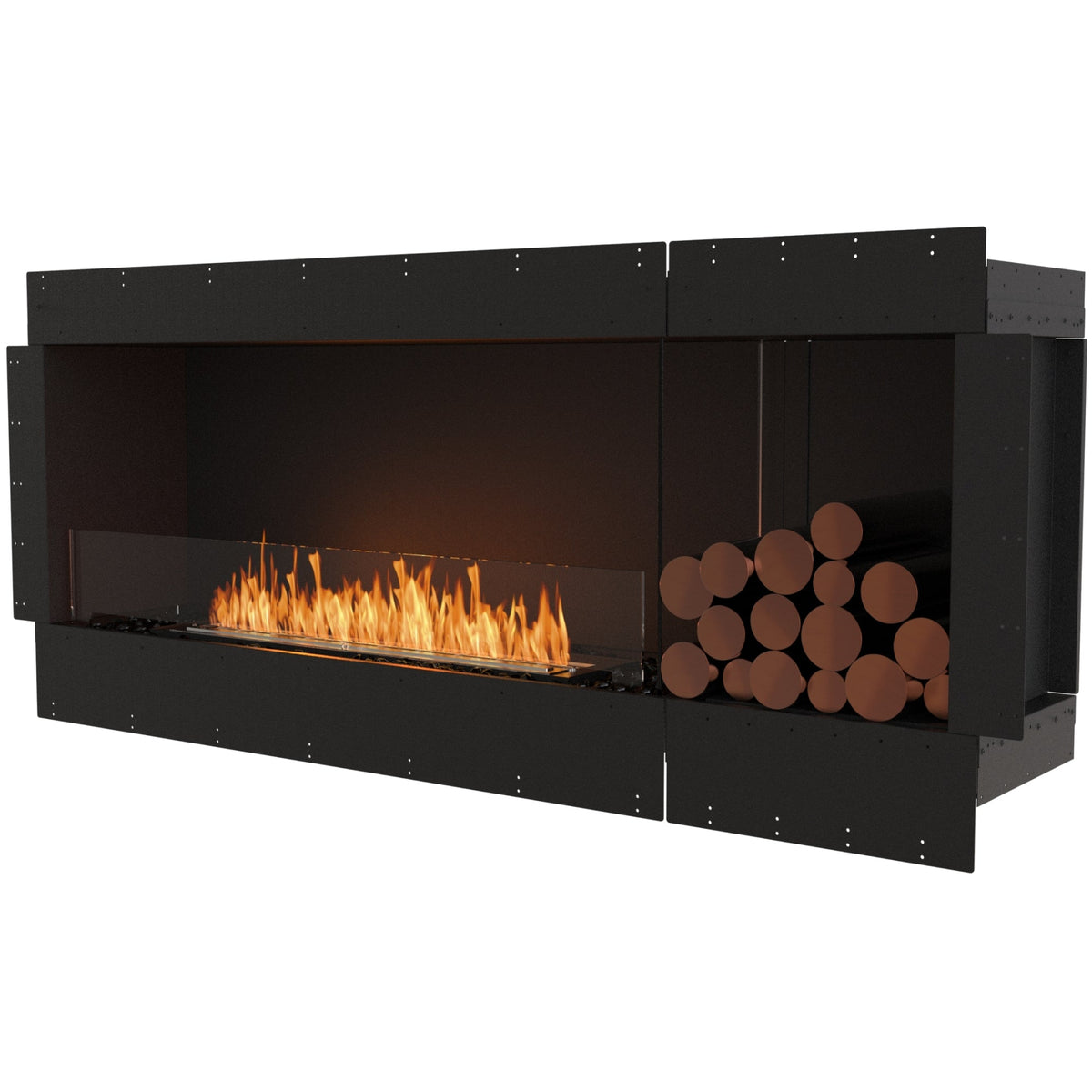

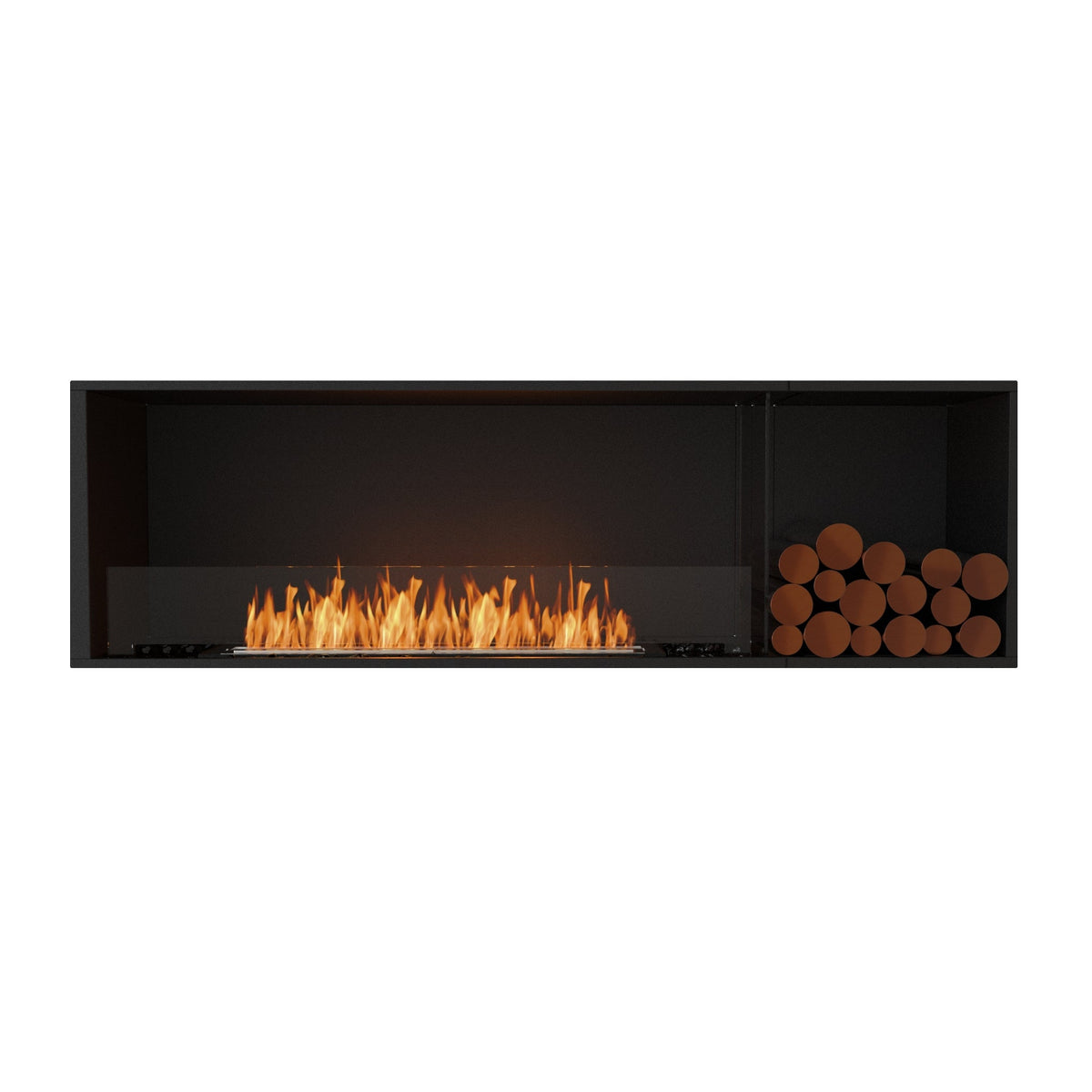

EcoSmart Fire Flex 68SS.BXR Wide Bioethanol Fireplace with XL900 Burner

Description

🔥 EcoSmart Fire Flex 68SS.BXR Wide Bioethanol Fireplace Insert

Create a spectacular centrepiece with the EcoSmart Fire Flex 68SS.BXR, an expansive single sided bioethanol fireplace insert designed for feature walls, cabinetry and fireplace settings. With a generous 1,730 mm viewing area and powerful XL900 burner, this wide fireplace brings together contemporary design, real flame ambience and practical heating. Its impressive proportions make it ideal for creating a memorable focal point in residential, commercial and suitable outdoor living spaces.

Features

✨ Expansive Single Sided Design

The Flex 68SS.BXR features one open side, allowing the flame to be viewed beautifully from the front. Its generous 1,930 mm wide frame and 1,730 mm viewing area create an impressive visual display.

The clean architectural lines of the black surround complement contemporary interiors while also working beautifully within more traditional fireplace settings.

🔥 Powerful XL900 Bioethanol Burner

The Flex 68SS.BXR is equipped with the XL900 bioethanol burner, providing a 9 litre fuel capacity and an approximate burn time of 8 to 13 hours.

The burner produces up to 15,000 BTU/h, 16 MJ/h or approximately 4.4 kW of thermal output and can heat an average area of up to 60 m², depending on the installation environment and operating conditions.

Included XL Baffles help regulate and stabilise the flame while supporting efficient fuel use.

🏡 Indoor or Outdoor Application

The Flex 68SS.BXR is designed for indoor or outdoor applications, giving you flexibility when creating a fireplace feature.

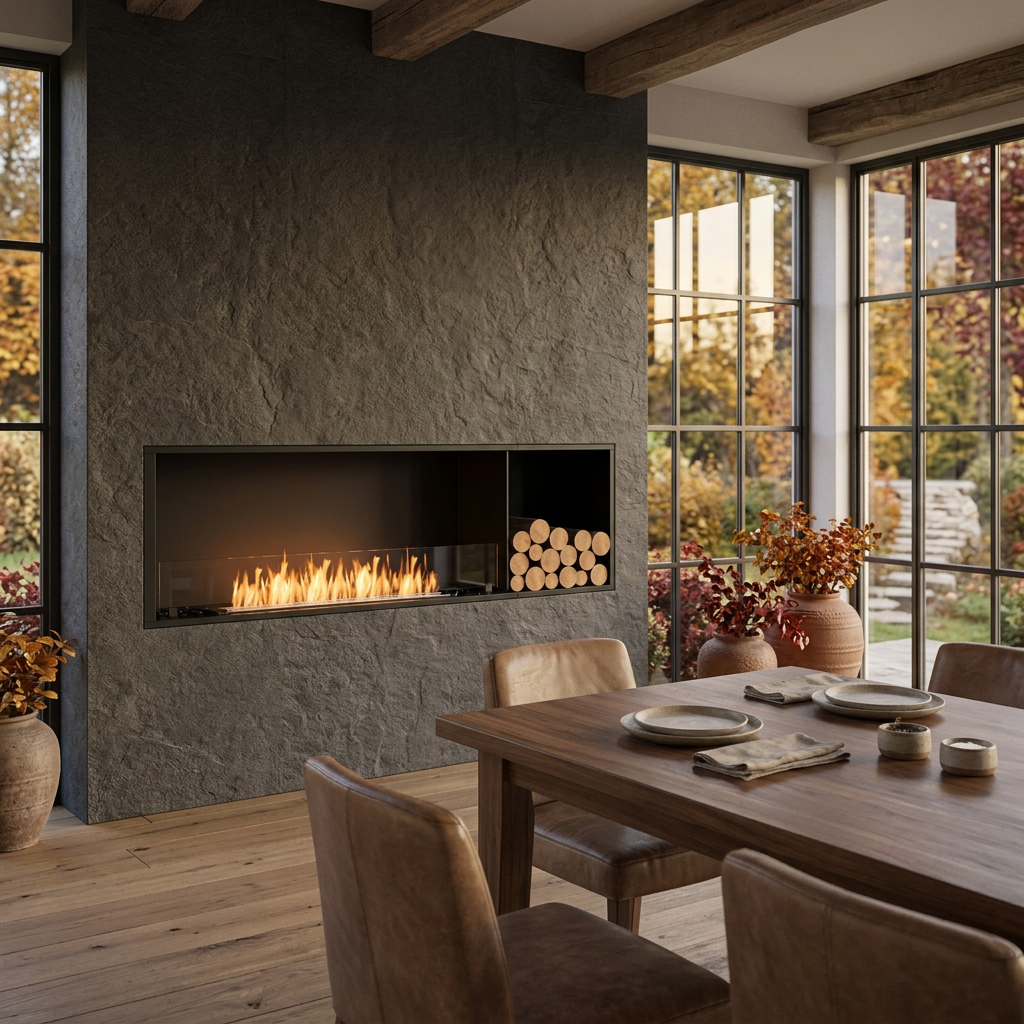

Use it as a dramatic centrepiece in a living room or dining area, integrate it into a feature wall, or incorporate it into a suitable outdoor living space.

Powered by clean burning e NRG bioethanol, the fireplace creates a real flame without wood, ash or the need for a traditional chimney.

🧱 True Zero Clearance Construction

The self contained true zero clearance construction provides flexibility for builders, architects, interior designers and homeowners when planning an integrated fireplace.

The Flex 68SS.BXR can be incorporated into suitable cabinetry, feature walls and fireplace settings, subject to the manufacturer's installation requirements.

Physical model dimensions should always be verified against the required cut out dimensions before installation begins to ensure the correct tolerances are maintained.

🌟 Efficient Heat Without a Traditional Chimney

The Flex fireplace uses a closed combustion system designed to retain heat within the room rather than losing warmth through traditional venting.

With no chimney or utility connection required, the Flex 68SS.BXR offers a streamlined way to introduce a large fireplace feature while maintaining a clean and contemporary appearance.

🎨 Decorative Finishing Options

Black Glass Charcoal is included with the Flex 68SS.BXR, providing a sleek decorative finish around the flame.

For a warmer and more traditional fireplace appearance, the optional Copper Log Set can be added. Made from stainless steel, it provides an attractive finishing detail while complementing the contemporary design of the fireplace.

🛡️ Safety and Certification

The Flex 68SS.BXR includes a manufacturer approved surround designed for the BS EN16647 compliant XL900 burner.

The fireplace complies with applicable standards across the USA, Europe, UK and Australia. The bioethanol burner is:

• O T L listed to UL 1370
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant

The fireboxes are manufactured to high standards in accordance with ISO 9001:2008.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 68SS.BXR
• Configuration: All Flame
• Application: Indoor or Outdoor
• Burner: XL900
• Fuel Type: e NRG Bioethanol
• Burner Capacity: 9 L
• Burn Time: 8 to 13 hours
• Thermal Output: 16 MJ/h / 15,000 BTU/h / 4.4 kW
• Fuel Consumption: 0.8 L/h
• Heating Coverage: Up to 60 m²
• Minimum Room Size: 110 m³
• Model Width: 1,930 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 1,730 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 97.1 kg
• Model Material: Mild steel with zinc sealed, high temperature powder coat
• Burner Material: Grade 304 stainless steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC compliant
• Packaging Type: Crate with skid
• Shipping Weight: 129 kg
• Packaging Dimensions: 2,017 x 536 x 1,068 mm
• Packaging Volume: 1.15 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol sourced in each country.

Included

📦 What’s Included

The EcoSmart Fire Flex 68SS.BXR includes:

• XL Baffles
• Jerry Can 5L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen
• Manufacturer approved surround for the XL900 burner

The Black Glass Charcoal is made from high quality tempered glass and is designed to withstand temperatures of up to 700°C.

🌿 Optional Accessories

Copper Log Set

The optional Copper Log Set is made from stainless steel and adds a decorative finishing touch to the fireplace. It provides a warmer, more traditional fireplace appearance while complementing the clean lines of the Flex 68SS.BXR.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly due to the substantial dimensions and 129 kg shipping weight of the Flex 68SS.BXR.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are manufactured to high quality standards and designed for reliable performance. For installation, operation and maintenance, always follow the manufacturer's instructions and use approved fuel and accessories.

Professional installation is recommended to ensure the fireplace is correctly integrated into its intended setting and complies with applicable safety requirements.

Safety

⚠️ Safety Information

Always read and follow the manufacturer's installation and operating instructions before using the fireplace.

Only use approved e NRG bioethanol fuel and follow the manufacturer's instructions for filling, lighting and extinguishing the burner.

Never refuel while the burner is lit or still hot. Allow the burner to cool completely before refuelling.

The fireplace must be installed in accordance with applicable building, fire and safety regulations.

Always verify the physical model dimensions against the required cut out dimensions before installation begins.

Wood burning and gas products are designed for use outdoors in a well ventilated space. The Flex 68SS.BXR is a bioethanol fireplace and has separate indoor and outdoor operating requirements.

FAQs

❓ Frequently Asked Questions

Can the Flex 68SS.BXR be installed indoors?

Yes. The Flex 68SS.BXR is designed for indoor or outdoor applications. Indoor installation must follow the manufacturer's installation requirements and applicable local regulations.

What burner does the Flex 68SS.BXR use?

The Flex 68SS.BXR uses the XL900 bioethanol burner with a 9 litre fuel capacity.

How long does the XL900 burner burn?

The XL900 provides an approximate burn time of 8 to 13 hours, depending on operating conditions and fuel consumption.

How much space can the Flex 68SS.BXR heat?

The XL900 configuration can heat an average area of up to 60 m². Actual performance can vary depending on room size, installation environment and other conditions.

Does the Flex 68SS.BXR need a chimney?

No. The bioethanol fireplace does not require a traditional chimney or flue, making it suitable for integrated fireplace designs.

Can the Flex 68SS.BXR be integrated into cabinetry?

Yes. The Flex 68SS.BXR is designed for integration within suitable cabinetry, feature walls and fireplace settings. Installation must follow the manufacturer's construction, clearance and safety requirements.

What is the viewing area of the Flex 68SS.BXR?

The Flex 68SS.BXR has a generous viewing area measuring 1,730 mm wide by 502 mm high, providing an expansive view of the flame.

What decorative media is included?

Black Glass Charcoal is included. The optional Copper Log Set is available separately for an alternative decorative finish.

Does the Flex 68SS.BXR come with a fire screen?

Yes. An integrated fire screen is included and sits flush behind the frame.

Downloads

Model Specifications

Clearance & Installation - Flex Series

Installation & Operation - Ethanol Burners
