Description

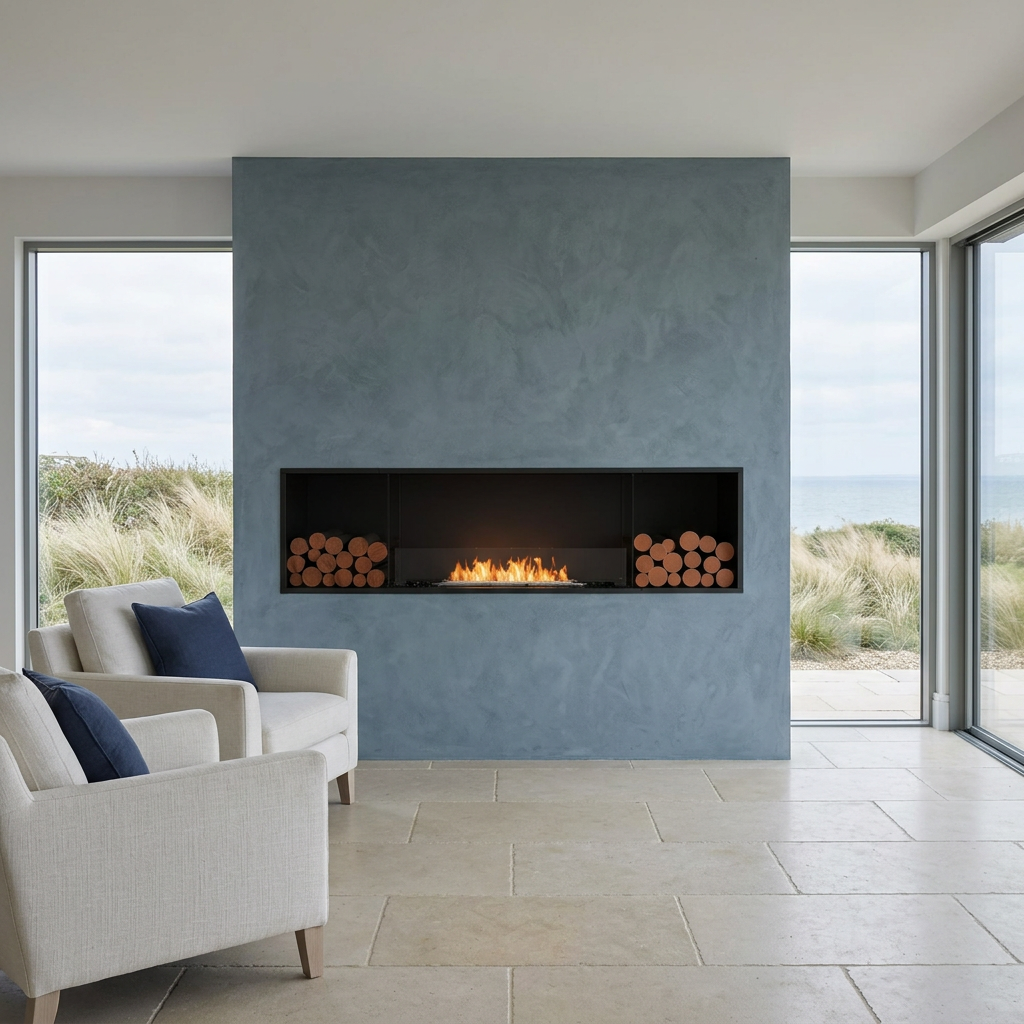

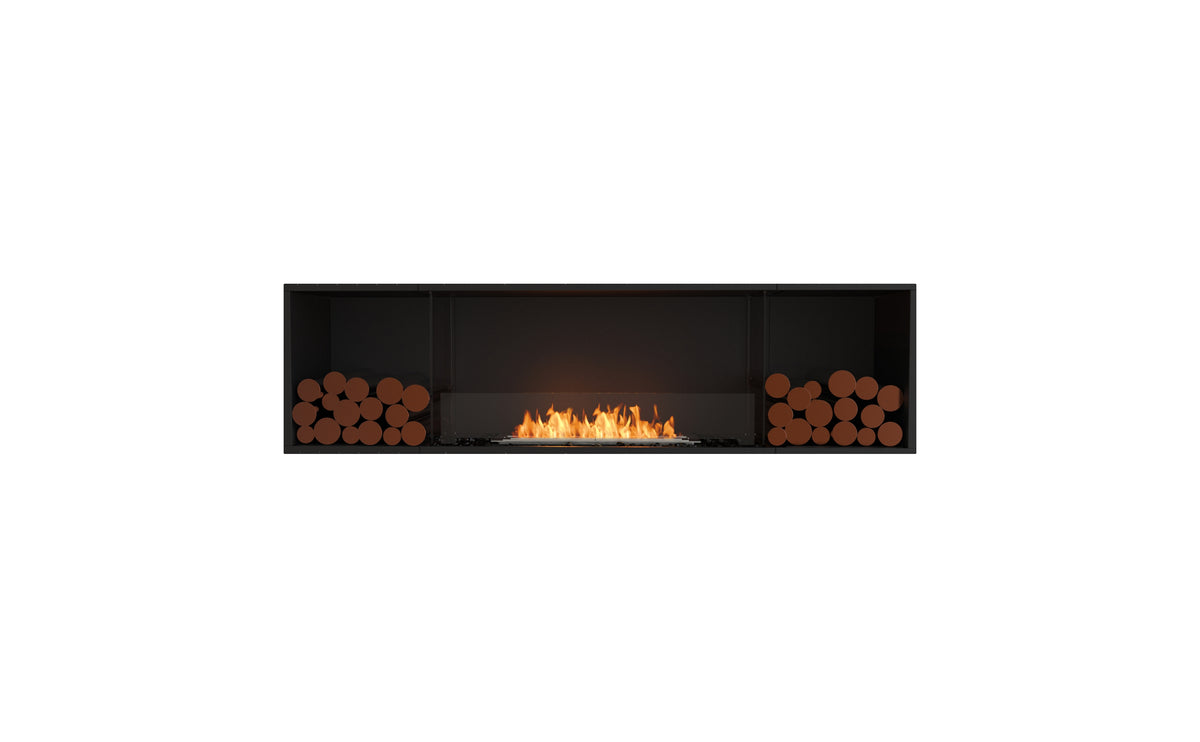

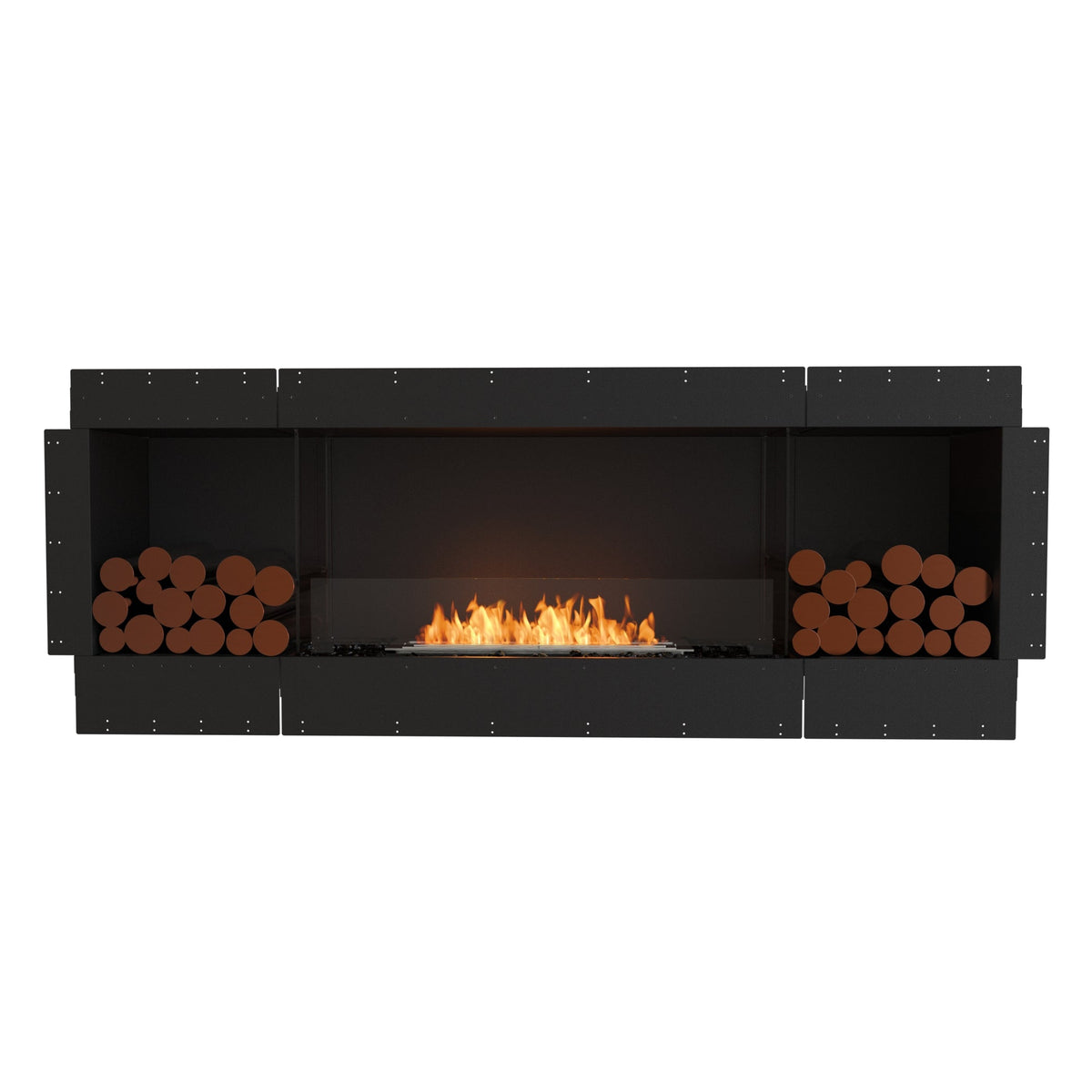

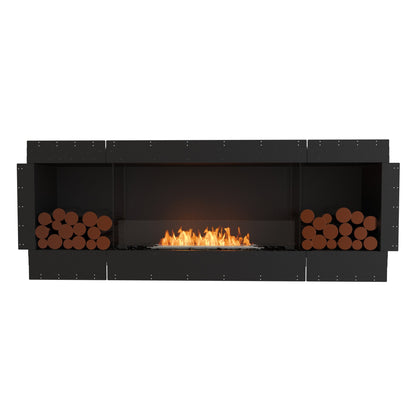

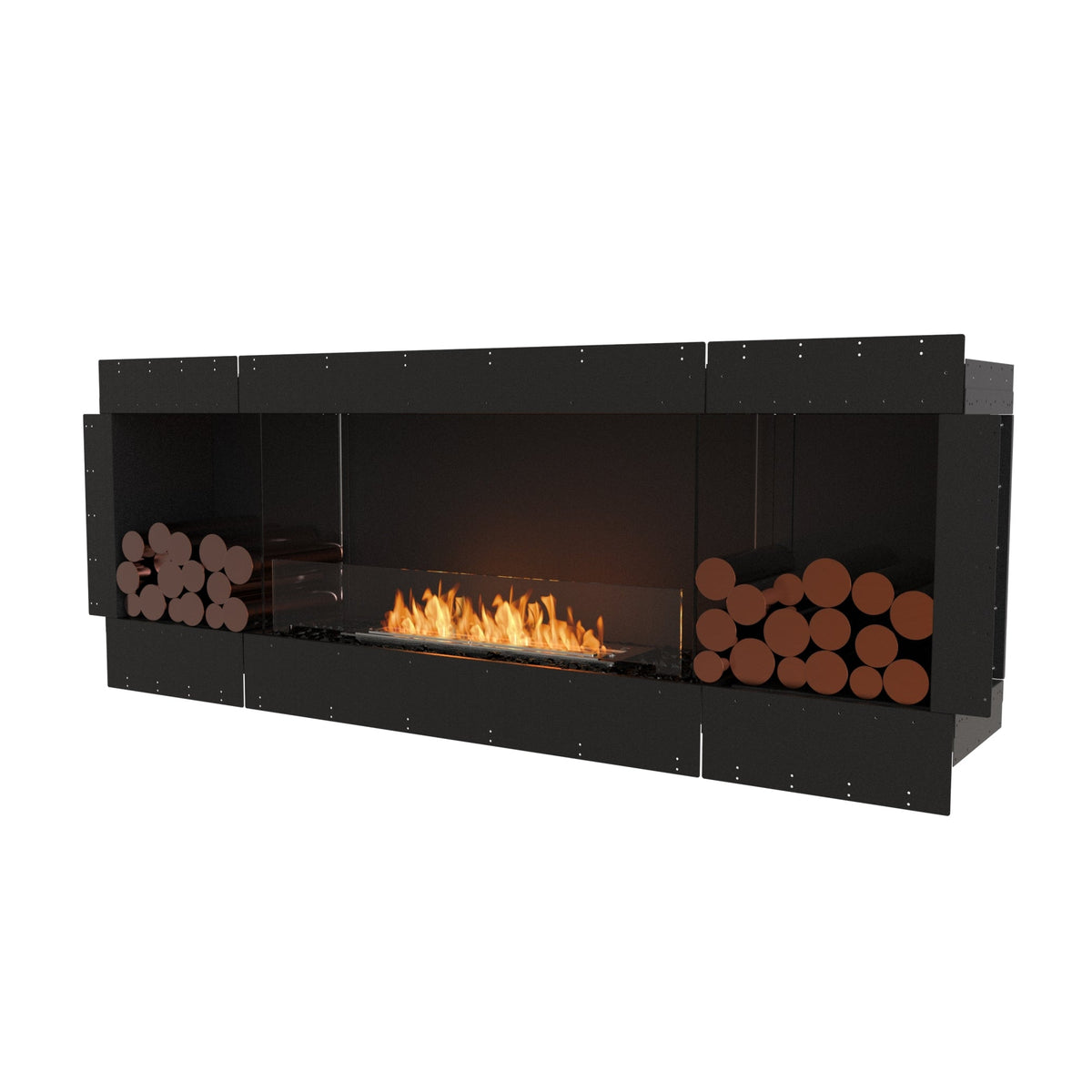

🔥 EcoSmart Fire Flex 78SS.BX2 Wide Bioethanol Fireplace Insert

Create an impressive fireplace feature with the EcoSmart Fire Flex 78SS.BX2, a wide single sided bioethanol fireplace insert designed to bring contemporary style and inviting warmth to residential and commercial spaces. With a generous 1,986 mm viewing area and XL700 burner, this fireplace creates a striking flame feature while offering the flexibility of indoor or outdoor installation. Its clean lines and integrated design make it ideal for feature walls, cabinetry, fireplace settings, dining rooms and outdoor living areas.

Features

✨ Expansive Single Sided Design

The Flex 78SS.BX2 is specifically designed for a single room application with one open side, allowing the flame to be enjoyed from the front. Its wide 1,986 mm viewing area gives the fire a strong visual presence, making it an impressive focal point for entertaining spaces and contemporary interiors.

The streamlined black firebox integrates neatly into cabinetry or a fireplace setting, creating a sophisticated blend of traditional fireplace styling and modern design.

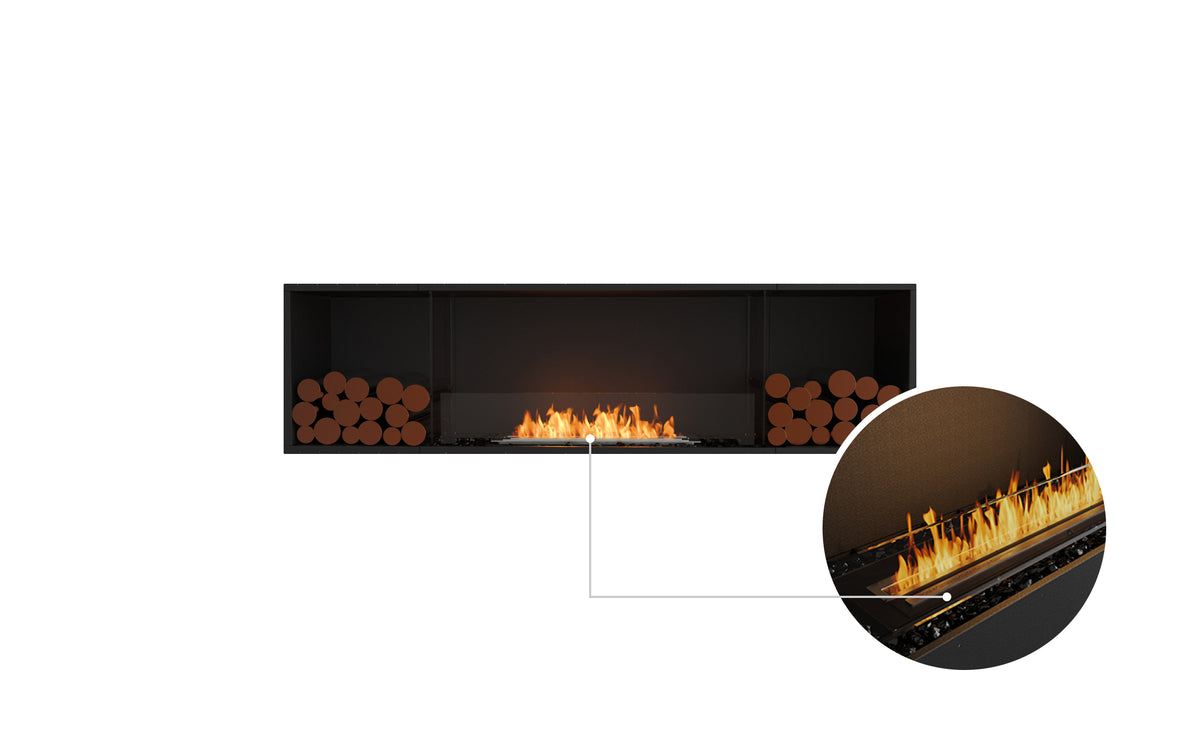

🔥 Powerful XL700 Bioethanol Burner

The Flex 78SS.BX2 is compatible with the XL700 bioethanol burner, providing a 7 litre fuel capacity and a burn time of approximately 9 to 12 hours.

The clean burning e NRG bioethanol fuel produces a lively flame without the need for wood, gas connections or a traditional chimney. The XL700 burner can heat an average area of up to 50 m², making it suitable for creating a comfortable atmosphere in larger living and entertaining spaces.

XL Baffles are included to help regulate and stabilise the flame while supporting fuel efficiency.

🏡 Indoor or Outdoor Application

Designed for versatility, the Flex 78SS.BX2 can be installed indoors or outdoors when the appropriate installation requirements are met. It can become a dramatic centrepiece in a residential dining room, an indoor living area, an outdoor entertaining space or a commercial environment.

The bioethanol fuel system means there is no need for a gas connection or traditional chimney, giving designers and homeowners greater flexibility when planning a fireplace feature.

🧱 True Zero Clearance Construction

The Flex 78SS.BX2 features self contained true zero clearance construction, providing greater freedom when integrating the fireplace into feature walls, cabinetry and custom architectural settings.

Its mild steel surround is zinc sealed and finished with a high temperature powder coating, while the toughened glass and Grade 304 stainless steel burner provide a durable foundation for a contemporary fireplace installation.

Always verify the physical fireplace dimensions against the required cut out dimensions before installation begins to ensure suitable tolerances.

🌟 Efficient Heat Without a Traditional Chimney

The closed combustion design helps keep heat within the room rather than losing warmth through a conventional chimney or venting system. This makes the Flex 78SS.BX2 an efficient way to introduce both warmth and atmosphere without the infrastructure associated with many traditional fireplaces.

The XL700 burner provides:

• 7 litre fuel capacity
• 9 to 12 hour burn time
• 13,650 BTU/h thermal output
• 14.4 MJ/h thermal output
• 4 kW thermal output
• Fuel consumption of approximately 0.7 L/h
• Heating coverage of approximately 50 m²
• Minimum room size of 90 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol used.

🎨 Decorative Finishing Options

The Flex 78SS.BX2 comes with Black Glass Charcoal, providing a contemporary decorative finish around the flame. The tempered glass charcoal is designed to withstand high temperatures and harsh weather conditions.

For an alternative decorative look, the optional Copper Log Set adds a warm and refined finishing touch to the fireplace.

🛡️ Safety and Certification

The Flex 78SS.BX2 is manufactured to high standards and features a manufacturer approved surround for the BS EN16647 compliant XL700 burner.

The bioethanol burner complies with relevant standards and certifications across key markets, including:

• UL 1370 listed
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant
• ISO 9001:2008 manufacturing standards

The integrated fire screen and included XL Baffles provide additional support for safe and controlled operation.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 78SS.BX2
• Application: Indoor or Outdoor
• Configuration: Two Boxes
• Burner: XL700
• Fuel Type: e NRG Bioethanol
• Burner Capacity: 7 L
• Burn Time: 9 to 12 hours
• Thermal Output: 13,650 BTU/h / 14.4 MJ/h / 4 kW
• Fuel Consumption: 0.7 L/h
• Heating Coverage: 50 m²
• Minimum Room Size: 90 m³
• Model Width: 2,186 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 1,986 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 107.8 kg
• Model Material: Mild Steel with zinc sealed high temperature powder coating
• Burner Material: Grade 304 Stainless Steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC Safety Mandate
• Manufacturing Standard: ISO 9001:2008

📦 Packaging Specifications

• Shipping Weight: 141 kg
• Packaging Length: 2,272 mm
• Packaging Width: 536 mm
• Packaging Height: 1,068 mm
• Packaging Volume: 1.3 m³
• Packaging Type: Crate with skid

Included

📦 What’s Included

The EcoSmart Fire Flex 78SS.BX2 includes:

• XL Baffles
• Jerry Can 5 L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen

The included accessories are designed to make fuelling, lighting and flame adjustment easier while providing a finished appearance around the fireplace.

🌿 Optional Accessories

• Copper Log Set

The Copper Log Set is made from stainless steel and provides an elegant decorative finish for the fireplace.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly as the Flex 78SS.BX2 has a shipping weight of approximately 141 kg and is supplied in a large crate with skid.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are designed and manufactured with quality, durability and safety in mind. For installation, fuel and operating guidance, always follow the manufacturer's instructions and applicable local requirements.

For a custom installation, professional advice should be obtained to ensure the fireplace, surrounding materials and installation environment are suitable for the intended application.

Safety

⚠️ Safety Information

Bioethanol fireplaces must always be installed and operated in accordance with the manufacturer's instructions and applicable local regulations.

The Flex 78SS.BX2 is a bioethanol fireplace with separate indoor and outdoor operating requirements. Ensure adequate clearances, suitable surrounding materials and appropriate ventilation are provided for the intended installation.

Never refuel a burner while it is operating or still hot. Allow the burner to cool completely before refuelling and use only the recommended e NRG bioethanol fuel.

Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

FAQs

❓ Frequently Asked Questions

Can the Flex 78SS.BX2 be installed indoors?

Yes. The Flex 78SS.BX2 is suitable for indoor or outdoor applications when installed in accordance with the manufacturer's requirements and applicable local regulations.

Does the Flex 78SS.BX2 require a chimney?

No traditional chimney is required for the bioethanol fireplace. The self contained design provides greater flexibility for integrating the fire into suitable architectural settings.

How long does the XL700 burner burn?

The 7 litre XL700 burner has an approximate burn time of 9 to 12 hours. Actual burn time can vary depending on installation conditions and fuel composition.

How much space can the Flex 78SS.BX2 heat?

The XL700 burner is rated to heat an average area of approximately 50 m², with a minimum room size of 90 m³.

What fuel does the Flex 78SS.BX2 use?

The fireplace is designed to use e NRG bioethanol fuel. Always use the manufacturer approved fuel and follow the specified fuelling procedure.

What is included with the fireplace?

The Flex 78SS.BX2 includes XL Baffles, a 5 litre Jerry Can, Fire Lighter, Lighting Rod, Bottle Adaptor, Black Glass Charcoal and an integrated fire screen.

Can the fireplace be installed into cabinetry?

Yes. The true zero clearance design allows the fireplace to be integrated into suitable cabinetry, feature walls and fireplace settings, subject to the manufacturer's installation requirements.

Downloads

Model Specifications

Clearance & Installation - Flex Series

Installation & Operation - Ethanol Burners
