EcoSmart Fire Flex 86SS.BXR Bioethanol Fireplace with XL1200 Burner

Description

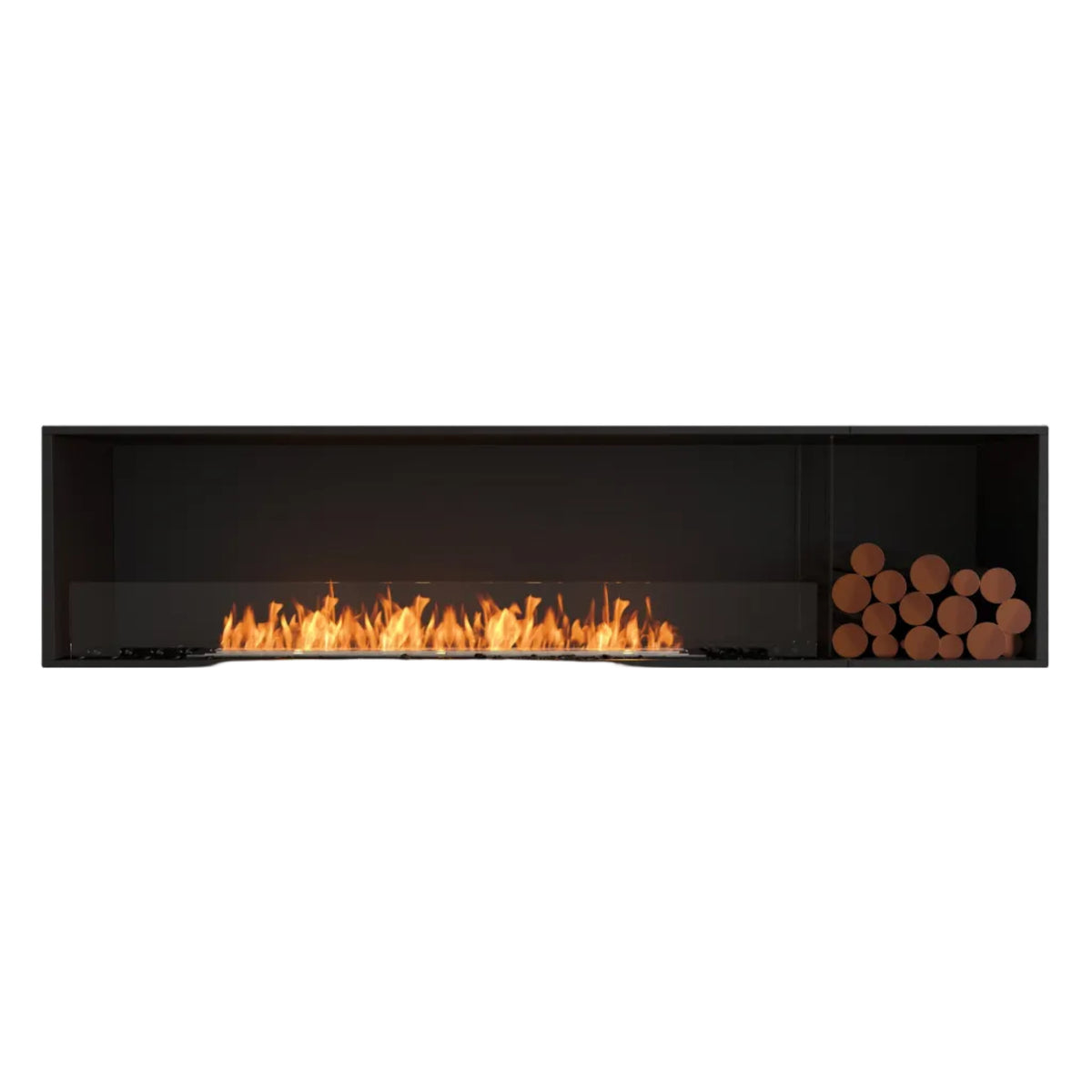

🔥 EcoSmart Fire Flex 86SS.BXR Wide Bioethanol Fireplace Insert

Bring an impressive architectural feature to your home or outdoor living space with the EcoSmart Fire Flex 86SS.BXR, a wide single sided bioethanol fireplace insert designed to combine contemporary styling with practical warmth. With a generous 2,190 mm viewing area and XL1200 burner, this fireplace creates a striking flame feature that can be integrated into cabinetry, a feature wall or a custom fireplace setting.

Features

✨ Expansive Single Sided Design

The Flex 86SS.BXR is specifically designed for a single room application with one open side, allowing the flame to be viewed clearly from the front. Its expansive 2,190 mm viewing area gives the fireplace a strong visual presence, while the clean black finish complements contemporary and traditional design schemes.

The wide viewing area allows the flame to become the main feature, creating an elegant focal point for dining rooms, living spaces, outdoor entertaining areas and suitable commercial environments.

🔥 Powerful XL1200 Bioethanol Burner

The Flex 86SS.BXR uses an XL1200 bioethanol burner with a 10 litre fuel capacity and an approximate burn time of 9 to 14 hours.

The burner delivers up to 15,290 BTU/h, 17 MJ/h or 4.5 kW of thermal output and can heat an average area of approximately 65 m².

XL Baffles are included to help regulate and stabilise the flame while supporting efficient fuel use.

🏡 Indoor or Outdoor Application

The Flex 86SS.BXR is suitable for indoor or outdoor applications when installed in accordance with the manufacturer's requirements and applicable local regulations.

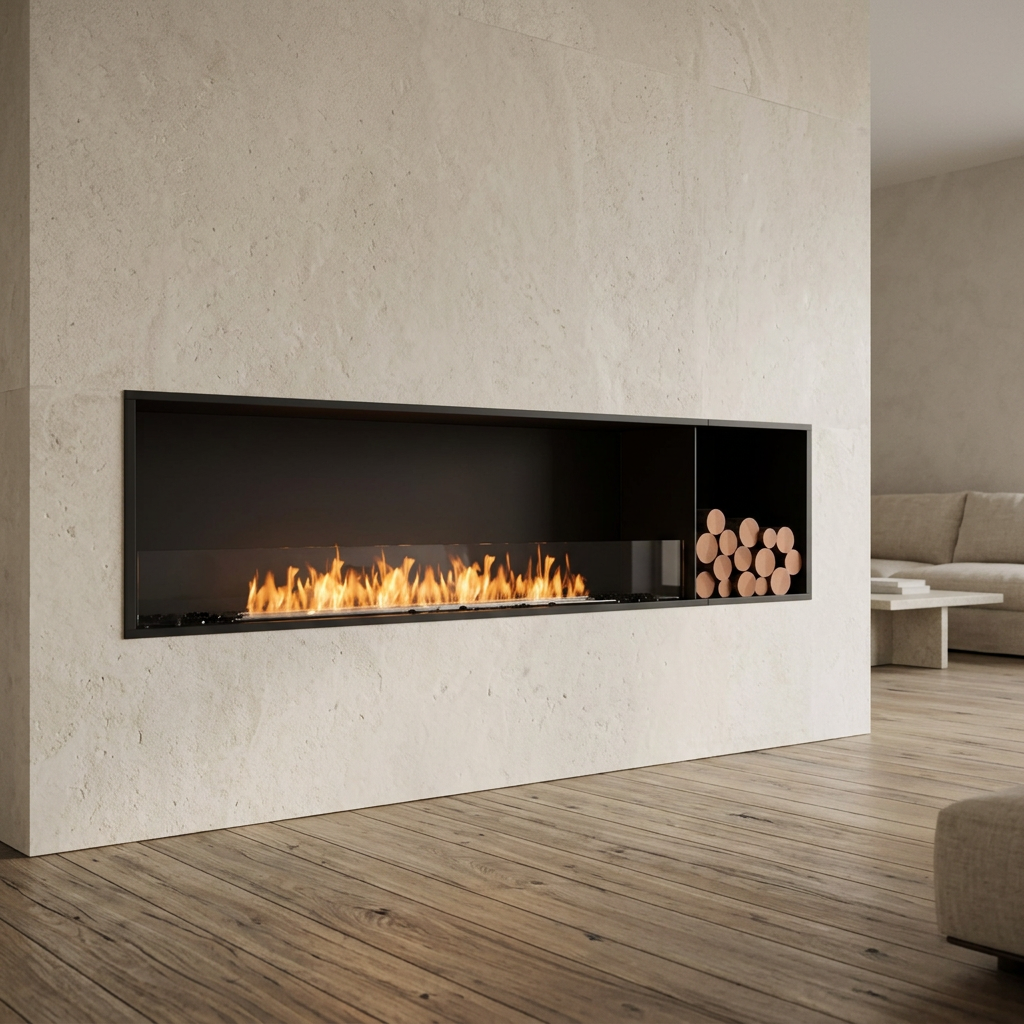

Use it to create a sophisticated fireplace feature in a residential dining room, bring warmth to an indoor living area or add atmosphere to an outdoor entertaining space.

Powered by clean burning e NRG bioethanol, the fireplace does not require a gas connection or conventional chimney, providing greater flexibility for suitable installations.

🧱 True Zero Clearance Construction

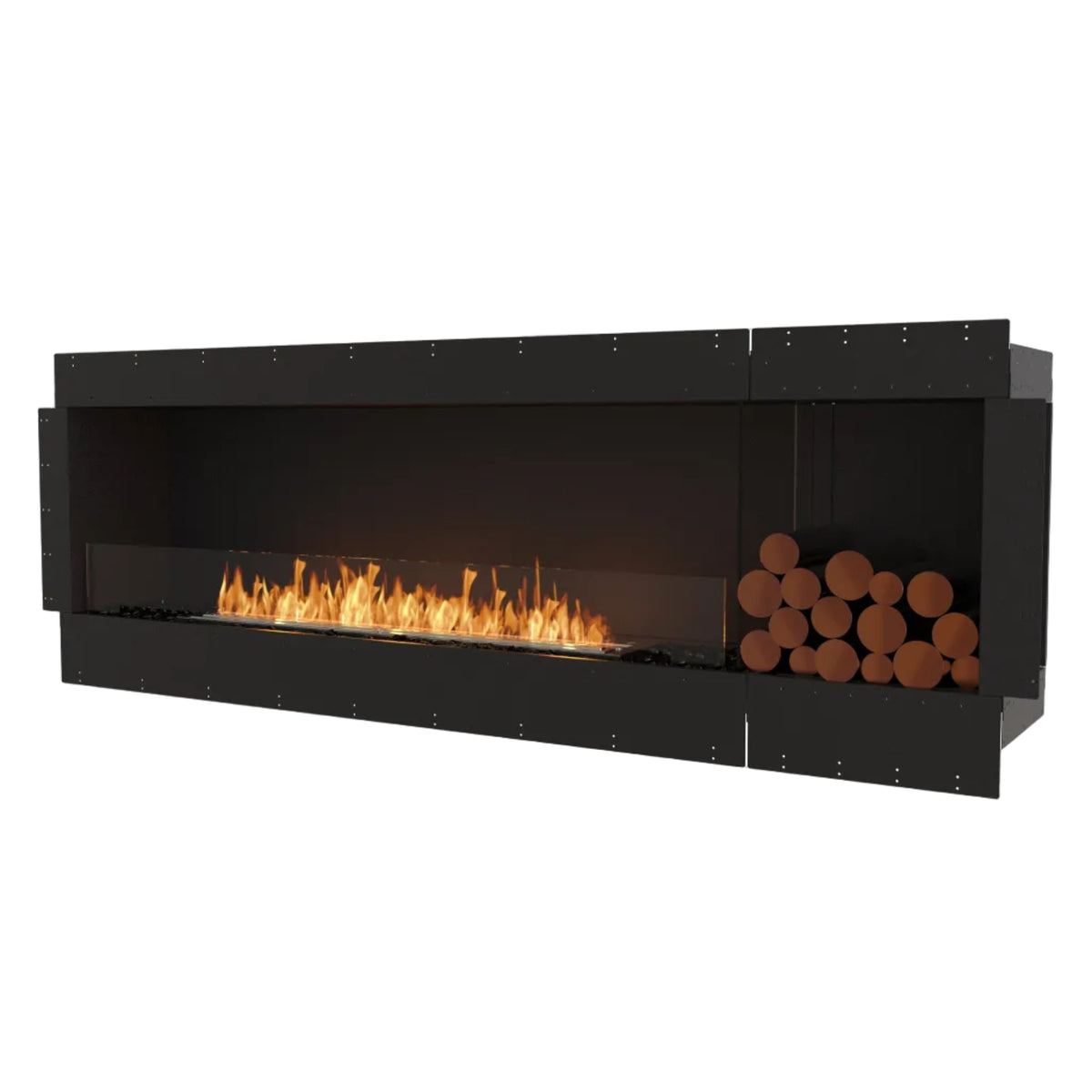

The self contained true zero clearance construction provides flexibility for integrating the Flex 86SS.BXR into suitable architectural designs.

It can be incorporated into feature walls, cabinetry and fireplace settings, giving builders, architects, interior designers and homeowners greater freedom when planning a custom fireplace installation.

The surround is made from mild steel with a zinc sealed high temperature powder coat finish. The burner is manufactured from Grade 304 stainless steel, with a black ceramic coating available as an option.

Always verify the physical fireplace dimensions against the required cut out dimensions before installation begins to ensure suitable tolerances.

🌟 Efficient Heat Without a Traditional Chimney

The Flex 86SS.BXR provides real flame and warmth without the infrastructure associated with many conventional fireplaces. Its bioethanol burner eliminates the need for a traditional chimney or gas utility connection.

The XL1200 burner provides:

• 10 litre fuel capacity
• 9 to 14 hour burn time
• 15,290 BTU/h thermal output
• 17 MJ/h thermal output
• 4.5 kW thermal output
• Fuel consumption of approximately 0.87 L/h
• Heating coverage of approximately 65 m²
• Minimum room size of 115 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol used.

🎨 Decorative Finishing Options

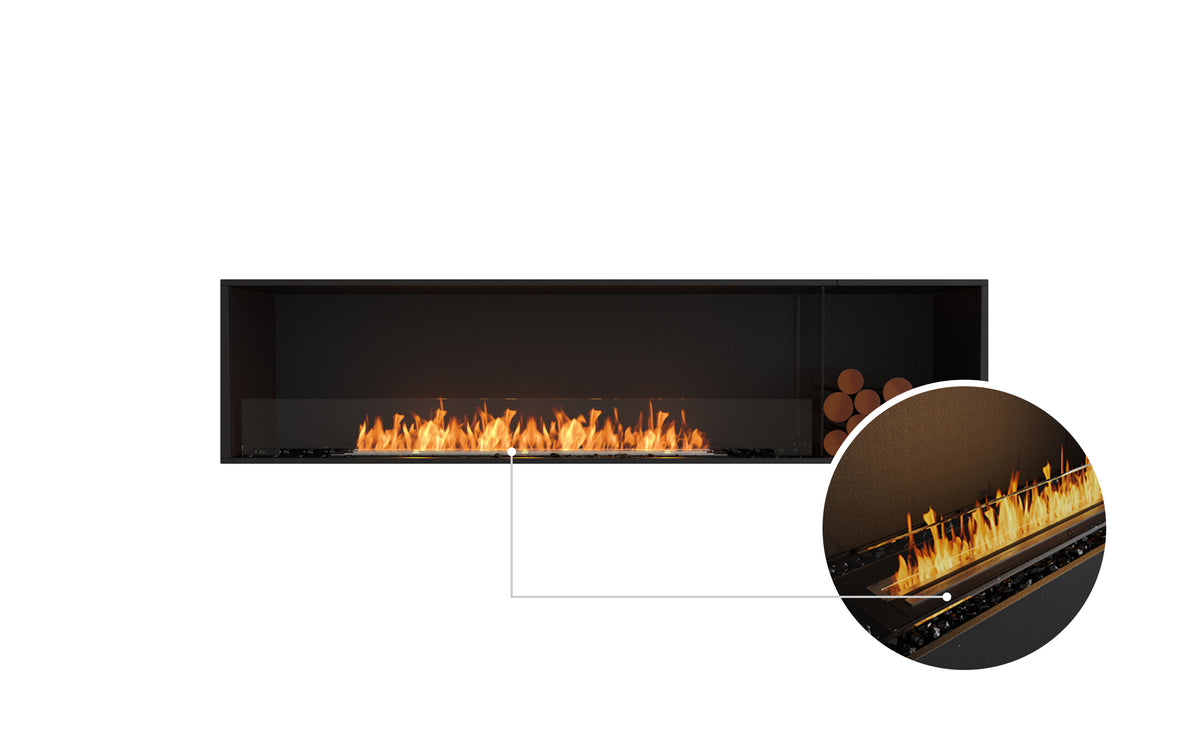

The Flex 86SS.BXR includes Black Glass Charcoal, offering a sleek contemporary finish around the flame. The tempered glass decorative media is designed to withstand temperatures of up to 700°C.

For a warmer decorative appearance, the optional Copper Log Set adds an elegant finishing touch and can create a more traditional fireplace aesthetic.

🛡️ Safety and Certification

The Flex 86SS.BXR features a manufacturer approved surround for the BS EN16647 compliant XL1200 burner.

EcoSmart Fire manufactures its fireboxes to high standards in accordance with ISO 9001:2008. The bioethanol burner also complies with recognised standards and safety requirements across key markets.

Certifications and compliance include:

• UL 1370 listed
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant
• ISO 9001:2008 manufacturing standards

The integrated fire screen and included XL Baffles provide additional support for controlled operation.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 86SS.BXR
• Application: Indoor or Outdoor

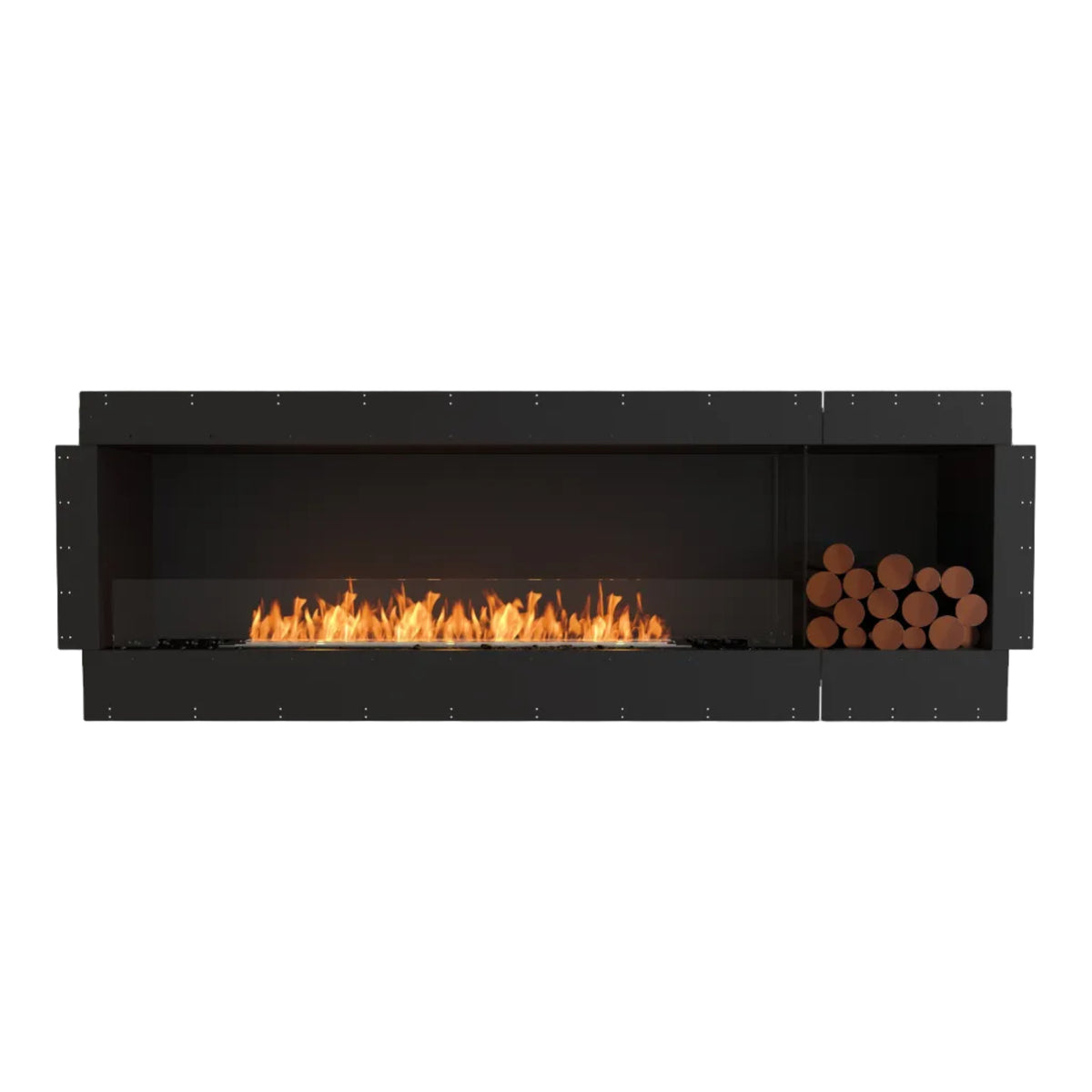

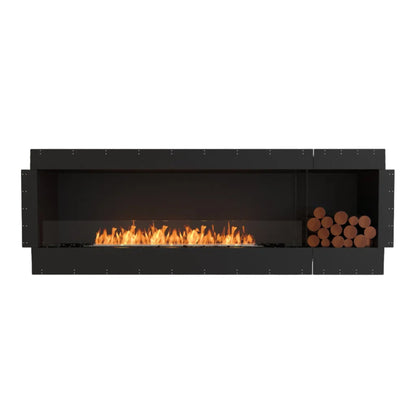

• Configuration: Box Right
• Burner: XL1200
• Fuel Type: e NRG Bioethanol
• Burner Capacity: 10 L
• Burn Time: 9 to 14 hours
• Thermal Output: 15,290 BTU/h / 17 MJ/h / 4.5 kW
• Fuel Consumption: 0.87 L/h
• Heating Coverage: 65 m²
• Minimum Room Size: 115 m³
• Model Width: 2,390 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 2,190 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 121.5 kg
• Model Material: Mild Steel with zinc sealed high temperature powder coating
• Burner Material: Grade 304 Stainless Steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC Safety Mandate
• Manufacturing Standard: ISO 9001:2008

📦 Packaging Specifications

• Shipping Weight: 156 kg
• Packaging Length: 2,477 mm
• Packaging Width: 536 mm
• Packaging Height: 1,068 mm
• Packaging Volume: 1.42 m³
• Packaging Type: Crate with skid

Included

📦 What’s Included

The EcoSmart Fire Flex 86SS.BXR includes:

• XL Baffles
• Jerry Can 5 L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen

These accessories provide the essentials for fuelling, ignition, flame adjustment and decorative finishing.

🌿 Optional Accessories

• Copper Log Set

The stainless steel Copper Log Set adds a refined decorative element and can give the fireplace a more traditional appearance.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly as the Flex 86SS.BXR has a shipping weight of approximately 156 kg and is supplied in a large crate with skid.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are designed and manufactured with quality, durability and safety in mind. For installation, fuel and operating guidance, always follow the manufacturer's instructions and applicable local requirements.

For custom installations, professional advice should be obtained to ensure the fireplace, surrounding materials and installation environment are suitable for the intended application.

Safety

⚠️ Safety Information

Bioethanol fireplaces must always be installed and operated in accordance with the manufacturer's instructions and applicable local regulations.

The Flex 86SS.BXR is a bioethanol fireplace with separate indoor and outdoor operating requirements. Ensure suitable clearances, appropriate surrounding materials and the required installation conditions are provided for the intended application.

Never refuel a burner while it is operating or still hot. Allow the burner to cool completely before refuelling and use only the recommended e NRG bioethanol fuel.

Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

FAQs

❓ Frequently Asked Questions

Can the Flex 86SS.BXR be installed indoors?

Yes. The Flex 86SS.BXR is suitable for indoor or outdoor applications when installed according to the manufacturer's requirements and applicable local regulations.

What burner does the Flex 86SS.BXR use?

The Flex 86SS.BXR uses an XL1200 bioethanol burner with a 10 litre fuel capacity.

How long does the XL1200 burner burn?

The XL1200 provides an approximate burn time of 9 to 14 hours. Actual burn time can vary depending on installation conditions and fuel composition.

How much space can the Flex 86SS.BXR heat?

The XL1200 burner is rated to heat an average area of approximately 65 m² and requires a minimum room size of 115 m³.

Does the Flex 86SS.BXR require a chimney?

No traditional chimney is required. The self contained bioethanol design provides greater flexibility for suitable fireplace installations.

What fuel does the Flex 86SS.BXR use?

The fireplace is designed for use with e NRG bioethanol fuel. Always use the recommended fuel and follow the manufacturer's fuelling instructions.

What is included with the Flex 86SS.BXR?

The fireplace includes XL Baffles, a 5 litre Jerry Can, Fire Lighter, Lighting Rod, Bottle Adaptor, Black Glass Charcoal and an integrated fire screen.

Can the Flex 86SS.BXR be integrated into cabinetry?

Yes. The true zero clearance construction allows the fireplace to be integrated into suitable cabinetry, feature walls and fireplace settings, subject to the manufacturer's installation requirements.
