EcoSmart Fire Flex 86SS Wide Bioethanol Fireplace with Dual XL900 Burners

Description

🔥 EcoSmart Fire Flex 86SS Wide Bioethanol Fireplace Insert

Make a bold statement with the EcoSmart Fire Flex 86SS, an extra wide single sided bioethanol fireplace insert designed to bring warmth, atmosphere and contemporary style to spacious interiors and outdoor living areas. With an impressive 2,190 mm viewing area and dual XL900 burners, the Flex 86SS creates an expansive flame feature that can transform a feature wall, cabinetry or fireplace setting into a striking focal point.

Features

✨ Expansive Single Sided Design

The Flex 86SS is specifically designed for a single room application with one open side, allowing the flame to be enjoyed directly from the front. Its generous 2,190 mm viewing area gives the fireplace an impressive presence, while the clean lines complement both contemporary and traditional architectural settings.

The All Flame configuration dedicates the entire viewing area to the flame, creating a seamless and dramatic fireplace feature without a conventional log grate or visible burner assembly.

🔥 Dual XL900 Bioethanol Burners

The Flex 86SS features two XL900 bioethanol burners with a combined fuel capacity of 18 litres. Together, the burners provide an impressive thermal output of up to 30,000 BTU/h, 31.65 MJ/h or 9 kW.

The dual burner configuration provides a wide and continuous flame presentation across the fireplace while offering an approximate burn time of 8 to 13 hours.

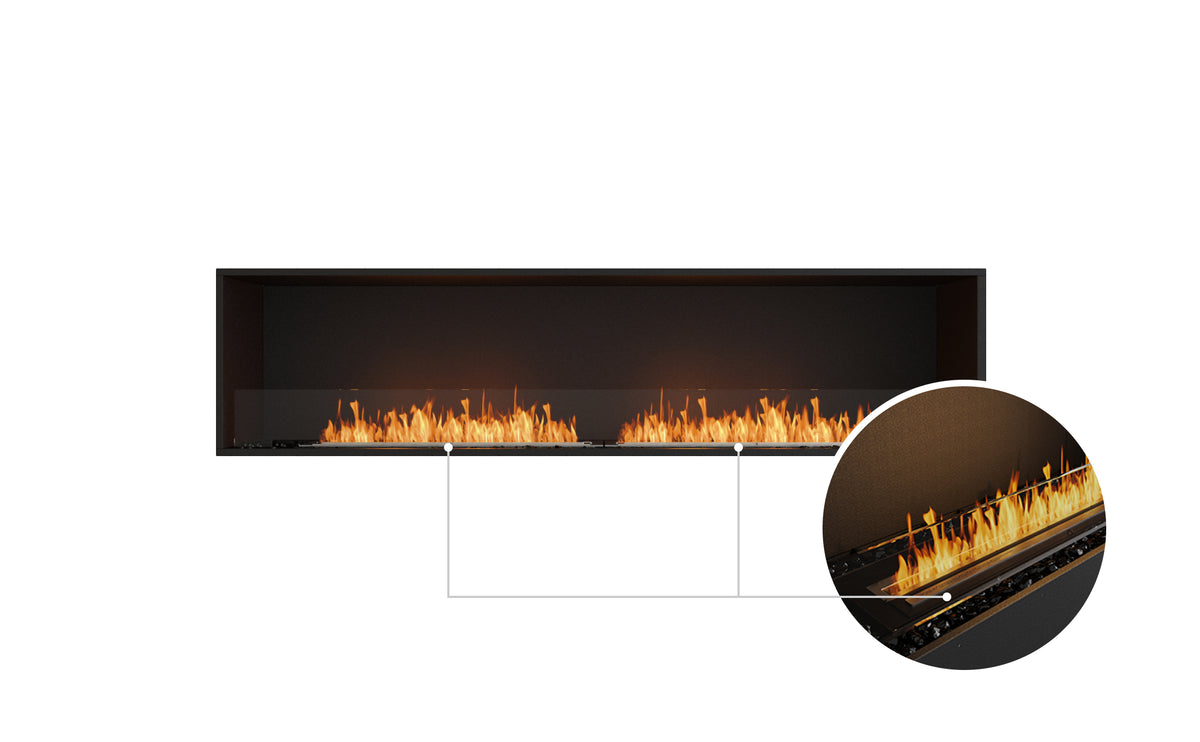

The XL Baffles are included to help regulate and stabilise the flames while supporting fuel efficiency.

🏡 Indoor or Outdoor Application

Designed for versatility, the Flex 86SS is suitable for indoor or outdoor installation when the appropriate installation requirements are met.

Use it to create an elegant centrepiece in a residential dining room, add warmth to an indoor living space, enhance an outdoor entertaining area or create an impressive feature in a suitable commercial environment.

The fireplace operates using clean burning e NRG bioethanol, eliminating the need for a gas connection or traditional chimney.

🧱 True Zero Clearance Construction

The Flex 86SS features self contained true zero clearance construction, giving architects, builders, interior designers and homeowners greater flexibility when planning a fireplace installation.

The fireplace can be integrated into suitable feature walls, cabinetry and custom fireplace settings, subject to the manufacturer's installation requirements.

The surround is constructed from mild steel with a zinc sealed high temperature powder coat finish, while the burner is made from Grade 304 stainless steel.

Always verify the physical fireplace dimensions against the required cut out dimensions before installation begins to ensure suitable tolerances.

🌟 High Heat Output for Large Spaces

The dual XL900 configuration is designed to provide substantial heat across larger areas.

The Flex 86SS can heat an average area of approximately 120 m² and requires a minimum room size of 220 m³ for the All Flame configuration.

Key performance figures include:

• 18 litre combined fuel capacity
• 8 to 13 hour burn time
• 30,000 BTU/h thermal output
• 31.65 MJ/h thermal output
• 9 kW thermal output
• Fuel consumption of approximately 1.6 L/h
• Heating coverage of approximately 120 m²
• Minimum room size of 220 m³

Performance figures are indicative only and may vary depending on the model, installation environment and composition of the e NRG bioethanol used.

🎨 Decorative Finishing Options

The Flex 86SS comes with Black Glass Charcoal, providing a sleek contemporary finish around the flame. The tempered glass decorative media is designed to withstand temperatures of up to 700°C.

For a warmer decorative appearance, the optional Copper Log Set provides a stylish finishing touch while complementing the natural appearance of the flame.

🛡️ Safety and Certification

The Flex 86SS features a manufacturer approved surround designed for the BS EN16647 compliant XL900 burner.

The fireplace is manufactured to high standards in accordance with ISO 9001:2008 and the bioethanol burner complies with relevant standards and certifications across key markets.

Certifications and compliance include:

• UL 1370 listed
• EN 16647 BSI Certified
• ACCC Safety Mandate compliant
• ISO 9001:2008 manufacturing standards

The integrated fire screen and included XL Baffles provide additional support for controlled operation.

Specifications

📏 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Product Type: Single sided bioethanol fireplace insert
• Model: Flex 86SS
• Application: Indoor or Outdoor
• Configuration: All Flame
• Burner: XL900 x2
• Fuel Type: e NRG Bioethanol
• Combined Burner Capacity: 18 L
• Burn Time: 8 to 13 hours
• Thermal Output: 30,000 BTU/h / 31.65 MJ/h / 9 kW
• Fuel Consumption: 1.6 L/h
• Heating Coverage: 120 m²
• Minimum Room Size: 220 m³
• Model Width: 2,390 mm
• Model Height: 807 mm
• Model Depth: 365 mm
• Viewing Area Width: 2,190 mm
• Viewing Area Height: 502 mm
• Viewing Area Depth: 340 mm
• Weight: 121.5 kg
• Model Material: Mild Steel with zinc sealed high temperature powder coating
• Burner Material: Grade 304 Stainless Steel
• Model Colour: Black
• Burner Colours: Stainless Steel or Black
• Certification: UL 1370, EN 16647 BSI, ACCC Safety Mandate
• Manufacturing Standard: ISO 9001:2008

📦 Packaging Specifications

• Shipping Weight: 153 kg
• Packaging Length: 2,477 mm
• Packaging Width: 536 mm
• Packaging Height: 1,068 mm
• Packaging Volume: 1.42 m³
• Packaging Type: Crate with skid

Included

📦 What’s Included

The EcoSmart Fire Flex 86SS includes:

• XL Baffles
• Jerry Can 5 L
• Fire Lighter
• Lighting Rod
• Bottle Adaptor
• Black Glass Charcoal
• Integrated fire screen

These accessories provide the essentials for safe fuelling, ignition, flame adjustment and finishing the fireplace installation.

🌿 Optional Accessories

• Copper Log Set

The stainless steel Copper Log Set adds an elegant decorative element and creates a more traditional fireplace appearance.

Delivery

🚚 Delivery Information

We work with selected freight companies to help provide a fast and reliable delivery service.

Standard delivery provides ground delivery to the easiest access point on your property. It does not include inside delivery, packaging removal or assembly.

Please ensure there is suitable access for delivery of your order, particularly as the Flex 86SS has a shipping weight of approximately 153 kg and is supplied in a large crate with skid.

Bioethanol Fuel Delivery

e NRG Bioethanol may be shipped separately from your EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for your e NRG Bioethanol order.

Warranty

🤝 Warranty and Support

EcoSmart Fire products are designed and manufactured with quality, durability and safety in mind. For installation, fuel and operating guidance, always follow the manufacturer's instructions and applicable local requirements.

For custom installations, professional advice should be obtained to ensure the fireplace, surrounding materials and installation environment are suitable for the intended application.

Safety

⚠️ Safety Information

Bioethanol fireplaces must always be installed and operated in accordance with the manufacturer's instructions and applicable local regulations.

The Flex 86SS is a bioethanol fireplace with separate indoor and outdoor operating requirements. Ensure suitable clearances, appropriate surrounding materials and the required installation conditions are provided for the intended application.

Never refuel a burner while it is operating or still hot. Allow the burners to cool completely before refuelling and use only the recommended e NRG bioethanol fuel.

Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

FAQs

❓ Frequently Asked Questions

Can the Flex 86SS be installed indoors?

Yes. The Flex 86SS is suitable for indoor or outdoor applications when installed according to the manufacturer's requirements and applicable local regulations.

How many burners does the Flex 86SS have?

The All Flame configuration uses two XL900 bioethanol burners, providing a combined fuel capacity of 18 litres.

How long does the Flex 86SS burn?

The dual XL900 burner configuration provides an approximate burn time of 8 to 13 hours. Actual burn time can vary depending on installation conditions and fuel composition.

How much space can the Flex 86SS heat?

The All Flame configuration is rated to heat an average area of approximately 120 m² and requires a minimum room size of 220 m³.

Does the Flex 86SS require a chimney?

No traditional chimney is required for the bioethanol fireplace. Its self contained design provides greater flexibility when integrating the fire into suitable architectural settings.

What fuel does the Flex 86SS use?

The Flex 86SS is designed for use with e NRG bioethanol fuel. Always use the recommended fuel and follow the manufacturer's fuelling instructions.

What is included with the Flex 86SS?

The fireplace includes XL Baffles, a 5 litre Jerry Can, Fire Lighter, Lighting Rod, Bottle Adaptor, Black Glass Charcoal and an integrated fire screen.

Can the Flex 86SS be integrated into cabinetry?

Yes. Its true zero clearance construction is designed to provide flexibility for integration into suitable cabinetry, feature walls and fireplace settings, subject to the manufacturer's installation requirements.
