EcoSmart Fire Grate 30 Graphite Bioethanol Fireplace Insert

Description

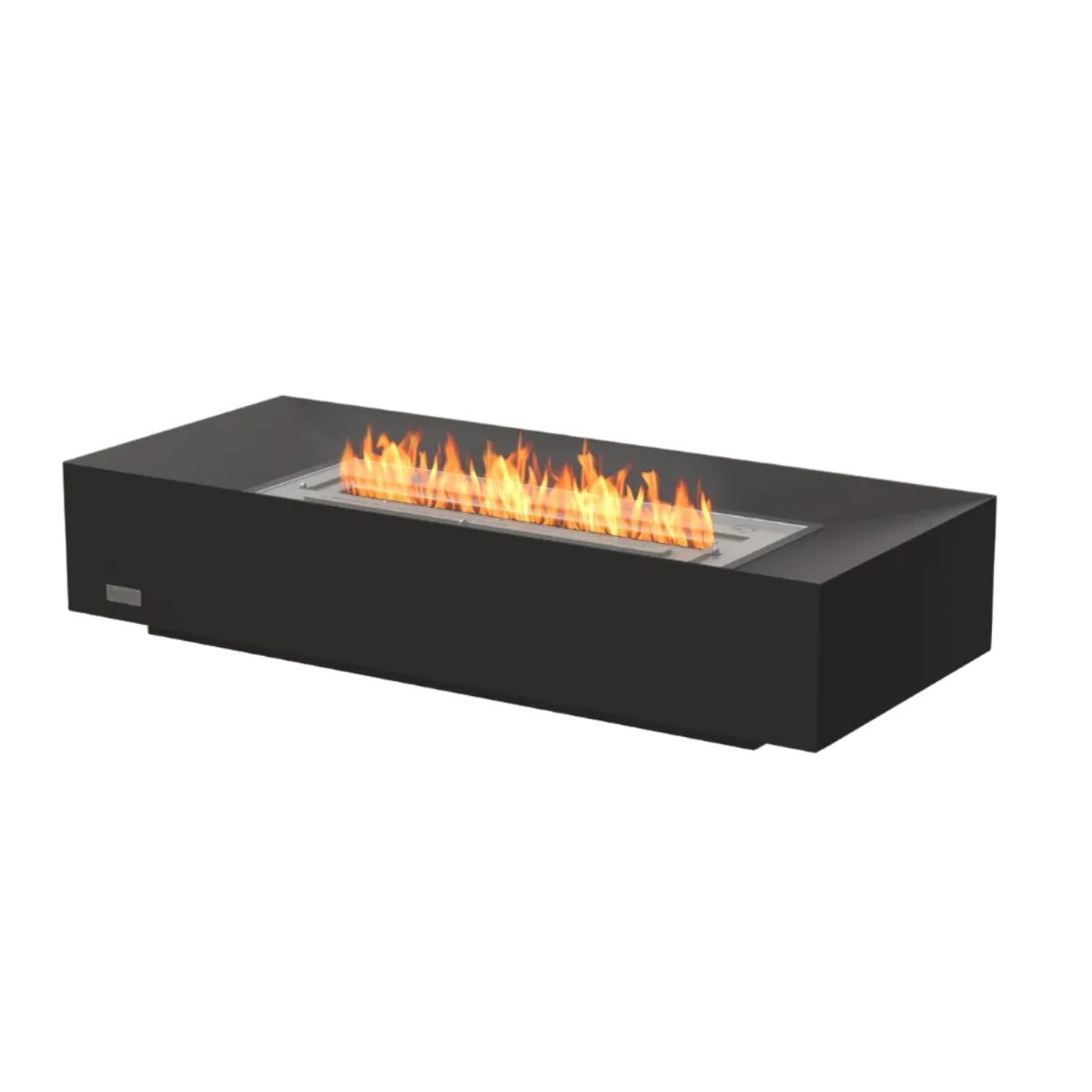

EcoSmart Fire Grate 30 Graphite Bioethanol Fireplace Insert 🔥

Give an old, unused fireplace a fresh lease of life with the EcoSmart Fire Grate 30. Designed to complement traditional hearths and contemporary interiors, this stylish bioethanol fireplace insert brings the beauty of a long, elegant flame into your home without the usual mess of burning wood. Its sleek graphite surround and stainless steel burner create an inviting focal point for cosy evenings, relaxed weekends and entertaining guests. With a compact 30 inch design, it is particularly well suited to narrower fireplace openings and custom interior settings where you want the atmosphere of an open fire without the hassle of logs and ash.

🏡 Design and Materials

The EcoSmart Fire Grate 30 combines modern design with durable construction. Its Fluid™ concrete composite surround in graphite provides a refined, architectural finish that works beautifully in both traditional and contemporary homes.

At the heart of the design is the XL500 stainless steel bioethanol burner, which produces a striking linear flame. The 30 inch format offers a practical alternative to longer fireplace grates, making it easier to incorporate an elegant flame feature into a more compact space.

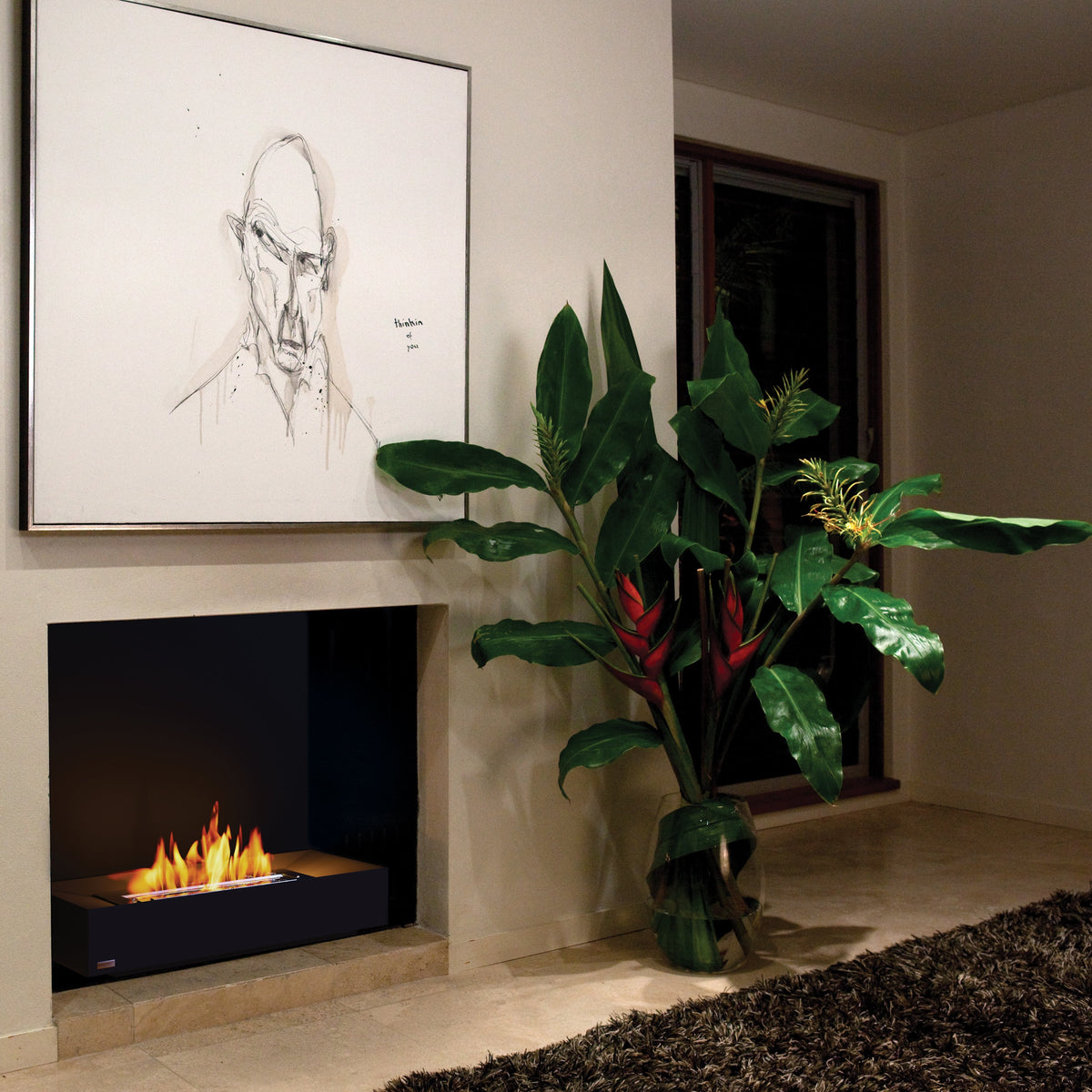

Designed for indoor use, the Grate 30 can refresh a suitable existing fireplace or complement a custom hearth installation, subject to the manufacturer's installation requirements.

Features

✨ Performance and Features

Enjoy the warmth and ambience of a real flame with the convenience of liquid bioethanol fuel.

• Elegant linear flame: The XL500 burner creates an attractive flame display that adds warmth and character to your living space.

• Compact fireplace design: The 30 inch length suits narrower fireplace openings where a longer grate may not fit comfortably.

• Convenient fuel capacity: The 5 litre burner supports an indicative burn time of approximately 10 to 13 hours, depending on operating conditions and fuel.

• Efficient heat output: Producing up to approximately 3.4 kW of heat, the Grate 30 can help create a comfortable atmosphere in suitable indoor spaces.

• Less everyday mess: Clean burning e NRG bioethanol eliminates the need to handle firewood and avoids the ash, sparks and soot associated with wood burning.

• Improved flame control: The included XL Baffles help regulate and stabilise the flame while supporting fuel efficiency.

🛡️ Safety and Certification

The EcoSmart Fire Grate 30 is designed for indoor application and must be operated according to the manufacturer's instructions.

The manufacturer states compliance with relevant standards and certifications, including UL 1370 listing, EN 16647, BSI certification and the Australian ACCC safety mandate for bioethanol burners.

Always use the specified burner components and recommended e NRG bioethanol fuel. Maintain the required minimum room volume and installation clearances, and provide suitable ventilation. Never refuel a lit or hot burner, and never leave a burning fireplace unattended.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Model: Grate 30
• Product Type: Indoor bioethanol fireplace insert
• Application: Indoor
• Surround Material: Fluid™ concrete composite
• Burner Material: Grade 304 stainless steel
• Surround Colour: Graphite
• Burner Colour: Stainless steel
• Compatible Burner: XL500
• Fuel Type: e NRG liquid bioethanol
• Burner Capacity: 5 litres
• Maximum Fuel Consumption: Approximately 0.5 litres per hour
• Thermal Output: Approximately 3 to 3.4 kW, depending on the manufacturer's specification
• Indicative Burn Time: 10 to 13 hours
• Average Heating Area: Up to 40 m²
• Minimum Room Volume: 80 m³
• Product Dimensions: 762 mm L × 330 mm W × 156 mm H
• Product Weight: 18.7 kg
• Shipping Weight: 26.7 kg
• Packaging Dimensions: 1,175 mm L × 456 mm W × 301 mm H
• Packaging Type: Carton

Performance figures are indicative and may vary depending on the installation environment, burner settings and fuel composition.

Included

📦 What's Included

• EcoSmart Fire Grate 30 graphite surround
• XL500 bioethanol burner
• XL Baffles for flame regulation
• 5 litre safety Jerry Can
• Refillable butane fire lighter
• Lighting rod for burner operation
• Bottle adaptor for convenient fuel transfer

Please refer to the manufacturer's product documentation to confirm the supplied components for your specific order.

Safety

⚠️ Important Safety Information

The EcoSmart Fire Grate 30 is an indoor bioethanol fireplace, not a wood burning or gas fire. Operate it in a suitable, well ventilated indoor space and follow all specified room volume, installation and clearance requirements. Never refill the burner while it is lit or hot. Allow it to cool completely before refuelling, keep combustible materials away from the flame, and never leave the fire unattended. Keep children and pets at a safe distance.

Warranty

Warranty and Support

EcoSmart Fire products are designed with quality materials and careful engineering. Please consult the manufacturer's warranty documentation for applicable coverage, conditions and exclusions. If you need help with product suitability, installation requirements or fuel guidance, contact the Sal's Place customer service team before purchasing or installing your fireplace.

Delivery

🚚 Delivery Information

Standard delivery is made to the easiest accessible point on your property. Indoor delivery, packaging removal and assembly are not included.

e NRG bioethanol fuel may be shipped separately from the fireplace and may arrive on a different day. A separate tracking number will be emailed for the fuel shipment where applicable.

FAQs

❓ Frequently Asked Questions

Can the EcoSmart Fire Grate 30 be installed in an existing fireplace?

Yes. It is designed to complement conventional hearths and suitable existing fireplaces. Check the opening dimensions, installation surface, clearances and manufacturer's requirements before installation.

What is the difference between the Grate 30 and Grate 36?

The Grate 30 is shorter, measuring 762 mm in length, making it a suitable option for narrower fireplace settings. The appropriate model depends on your available space and installation requirements.

How long does the Grate 30 burn on one fill?

The 5 litre XL500 burner has an indicative burn time of approximately 10 to 13 hours. Actual burn time depends on the flame setting, fuel and surrounding conditions.

How much heat does the Grate 30 produce?

The manufacturer lists a thermal output of approximately 3 to 3.4 kW, with an average heating area of up to 40 m². Heating performance varies with room size, insulation and ventilation.

Does the Grate 30 use wood or gas?

No. It uses liquid e NRG bioethanol fuel, offering an alternative to traditional wood burning fireplaces and gas fires.

Can I use the Grate 30 outdoors?

No. This model is specified for indoor application. For a garden, patio or other outdoor setting, choose a model approved for outdoor use.
