EcoSmart Fire Grate 36 Graphite Bioethanol Fireplace Insert

Description

EcoSmart Fire Grate 36 Graphite Bioethanol Fireplace Insert 🔥

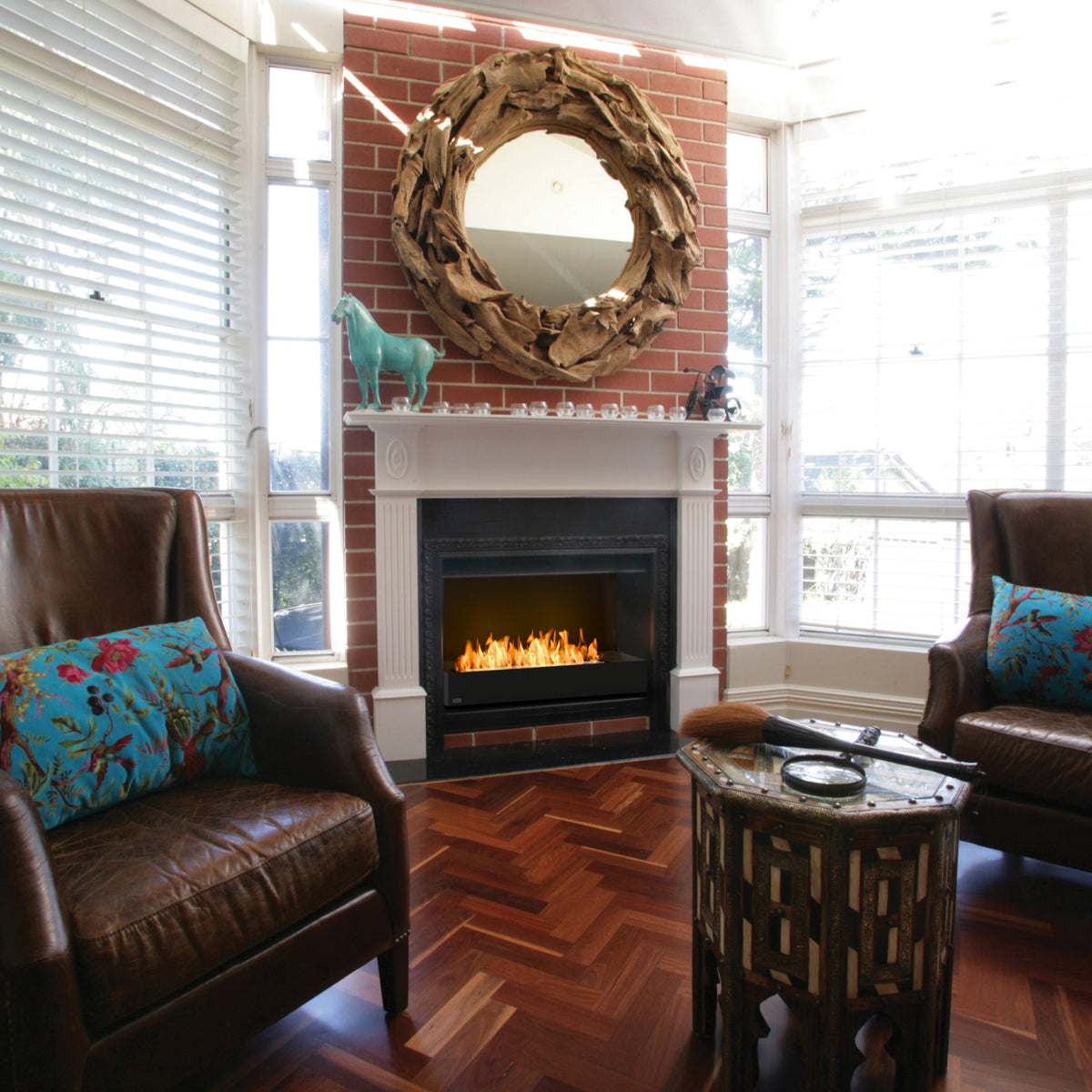

Turn an unused fireplace into a striking centrepiece with the EcoSmart Fire Grate 36. Designed to bring contemporary style and the beauty of an elegant, elongated flame into your home, this graphite bioethanol fireplace insert offers a fresh alternative to a traditional wood burning fire. Its generous 36 inch design creates a bold visual statement, making it ideal for spacious living rooms, modern interiors and traditional hearths ready for a stylish update. Enjoy the welcoming glow of a real flame during cosy evenings, family gatherings and relaxed nights at home, without the everyday mess of storing firewood or clearing ash.

🏡 Design and Materials

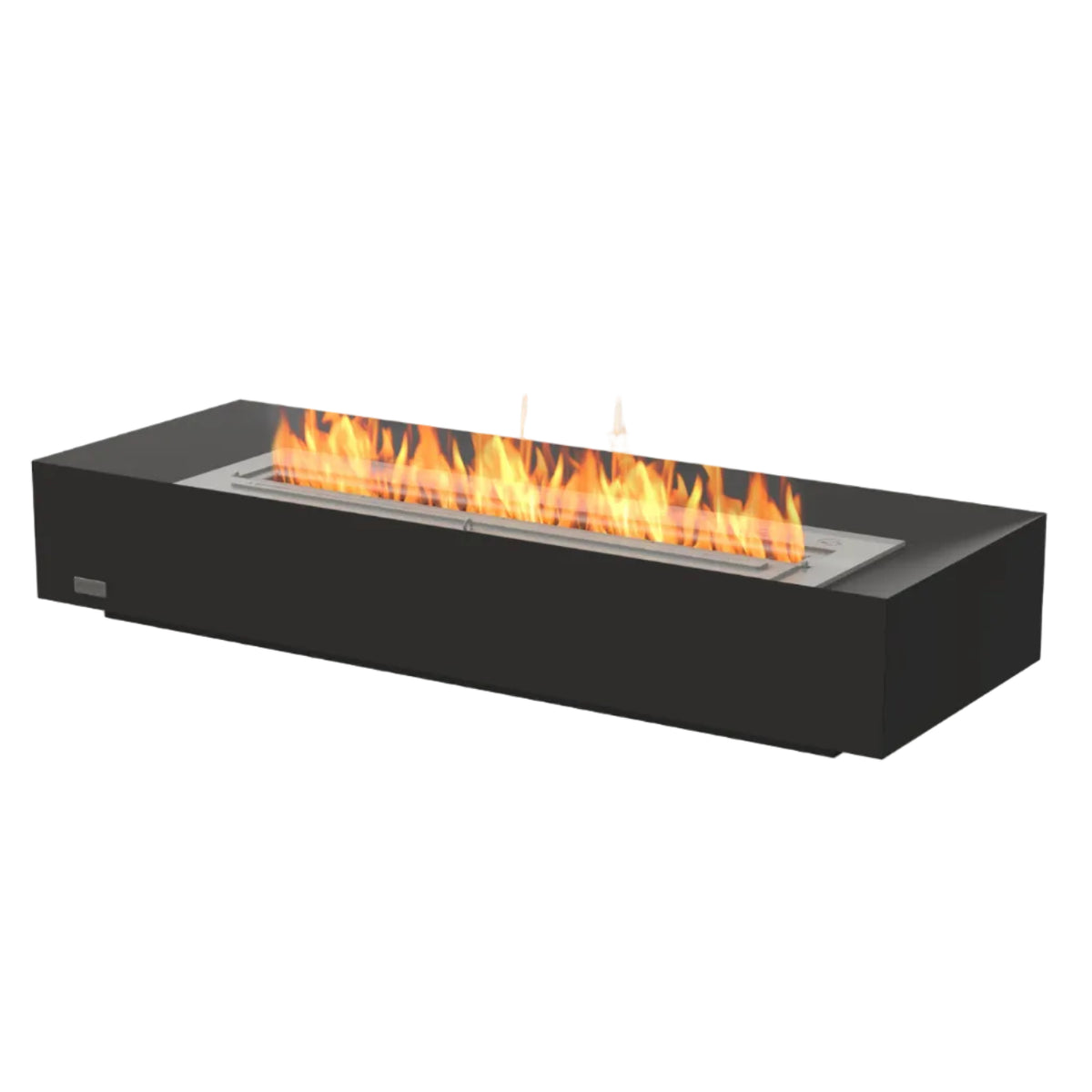

The EcoSmart Fire Grate 36 combines clean lines with robust construction to complement a wide range of interior styles. Its Fluid™ concrete composite surround features a sophisticated graphite finish, adding depth and texture to your fireplace setting.

At the centre is the XL700 bioethanol burner, crafted from Grade 304 stainless steel. Its long flame creates an attractive horizontal display that draws attention to the fireplace without overwhelming the surrounding décor.

Measuring 914 mm in length, the Grate 36 provides a larger flame presentation than the Grate 30, making it a suitable option for wider fireplace openings and custom hearth designs. It is designed for indoor application and can revitalise a suitable existing fireplace when installed according to the manufacturer's requirements.

Features

✨ Performance and Features

Enjoy the atmosphere of an open fire with the convenience of liquid bioethanol fuel.

• Elegant linear flame: The XL700 burner creates an elongated flame that gives your fireplace a distinctive, contemporary appearance.

• Generous burner capacity: The 7 litre fuel capacity supports an indicative burn time of approximately 9 to 12 hours, depending on the operating conditions.

• Comfortable warmth: With a thermal output of approximately 4 kW, the Grate 36 can help create a welcoming atmosphere in suitable indoor spaces.

• Less everyday mess: Bioethanol combustion avoids the wood ash, sparks and soot associated with traditional wood burning, reducing routine fireplace cleaning.

• Flame regulation: The included XL Baffles help regulate and stabilise the flame while supporting fuel efficiency.

• Versatile styling: The graphite concrete surround pairs beautifully with modern, minimalist and traditional interiors.

🛡️ Safety and Certification

The EcoSmart Fire Grate 36 is intended for indoor use and must be operated in accordance with the manufacturer's instructions.

The manufacturer states that the bioethanol burner meets relevant standards and certifications, including UL 1370 listing, EN 16647, BSI certification and the Australian ACCC safety mandate.

Always use the recommended e NRG bioethanol fuel and specified burner components. Follow the required minimum room volume, installation clearances and ventilation guidance. Never refill a lit or hot burner, and never leave a burning fireplace unattended.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire
• Model: Grate 36
• Product Type: Indoor bioethanol fireplace insert
• Application: Indoor
• Surround Material: Fluid™ concrete composite
• Burner Material: Grade 304 stainless steel
• Surround Colour: Graphite
• Burner Colour: Stainless steel or black, depending on configuration
• Compatible Burner: XL700
• Fuel Type: e NRG liquid bioethanol
• Burner Capacity: 7 litres
• Maximum Fuel Consumption: Approximately 0.7 litres per hour
• Thermal Output: Approximately 4 kW / 13,650 BTU/h / 14.4 MJ/h
• Indicative Burn Time: 9 to 12 hours
• Average Heating Area: Up to 50 m²
• Minimum Room Volume: 90 m³
• Product Dimensions: 914 mm L × 330 mm W × 156 mm H
• Product Weight: Approximately 20.66 to 23.4 kg, depending on the supplied specification
• Shipping Weight: 33.7 kg
• Packaging Dimensions: 1,327 mm L × 456 mm W × 301 mm H
• Packaging Type: Carton

Performance figures are indicative and may vary depending on the installation environment, burner settings and fuel composition.

Included

📦 What's Included

• EcoSmart Fire Grate 36 graphite surround
• XL700 bioethanol burner
• XL Baffles for flame regulation
• 5 litre safety Jerry Can
• Refillable butane fire lighter
• Lighting rod for burner operation
• Bottle adaptor for convenient fuel transfer

Please check the manufacturer's documentation to confirm the supplied components and burner configuration for your specific order.

Delivery

🚚 Delivery Information

Standard delivery is made to the easiest accessible point on your property. Indoor delivery, packaging removal and assembly are not included.

e NRG bioethanol fuel may be shipped separately from your fireplace order and may arrive on a different day. A separate tracking number will be emailed for the fuel shipment where applicable.

Safety

⚠️ Important Safety Information

The EcoSmart Fire Grate 36 is an indoor bioethanol fireplace, not a wood burning or gas fire. Operate it only in a suitable, well ventilated indoor space and follow the manufacturer's requirements for room volume, installation and clearances. Never refuel the burner while it is lit or hot. Allow it to cool completely before refuelling, keep combustible materials away from the flame, and never leave the fire unattended. Keep children and pets at a safe distance.

Warranty

Warranty and Support

EcoSmart Fire products are designed with quality materials and careful engineering. Refer to the manufacturer's warranty documentation for applicable coverage, terms and exclusions. For advice about product suitability, installation requirements or fuel guidance, contact the Sal's Place customer service team before purchasing or installing your fireplace.

FAQs

❓ Frequently Asked Questions

Can the EcoSmart Fire Grate 36 be installed in an existing fireplace?

Yes. It is designed to complement conventional hearths and suitable existing fireplaces. Check the opening dimensions, supporting surface, installation clearances and manufacturer's requirements before installation.

What is the difference between the Grate 30 and Grate 36?

The Grate 36 measures 914 mm in length, compared with 762 mm for the Grate 30. Its longer format creates a more prominent flame display and is better suited to wider fireplace openings.

How long does the Grate 36 burn on one fill?

The XL700 burner has a 7 litre capacity and an indicative burn time of approximately 9 to 12 hours. Actual duration depends on the flame setting, fuel and surrounding conditions.

How much heat does the Grate 36 produce?

The manufacturer lists a thermal output of approximately 4 kW and an average heating area of up to 50 m². Actual heating performance depends on room size, insulation and ventilation.

Does the Grate 36 require wood or gas?

No. It uses liquid e NRG bioethanol fuel, offering an alternative to conventional wood burning fireplaces and gas fires.

Is the Grate 36 suitable for outdoor use?

No. This model is specified for indoor application. For a garden or patio, choose a fireplace model approved for outdoor use.
