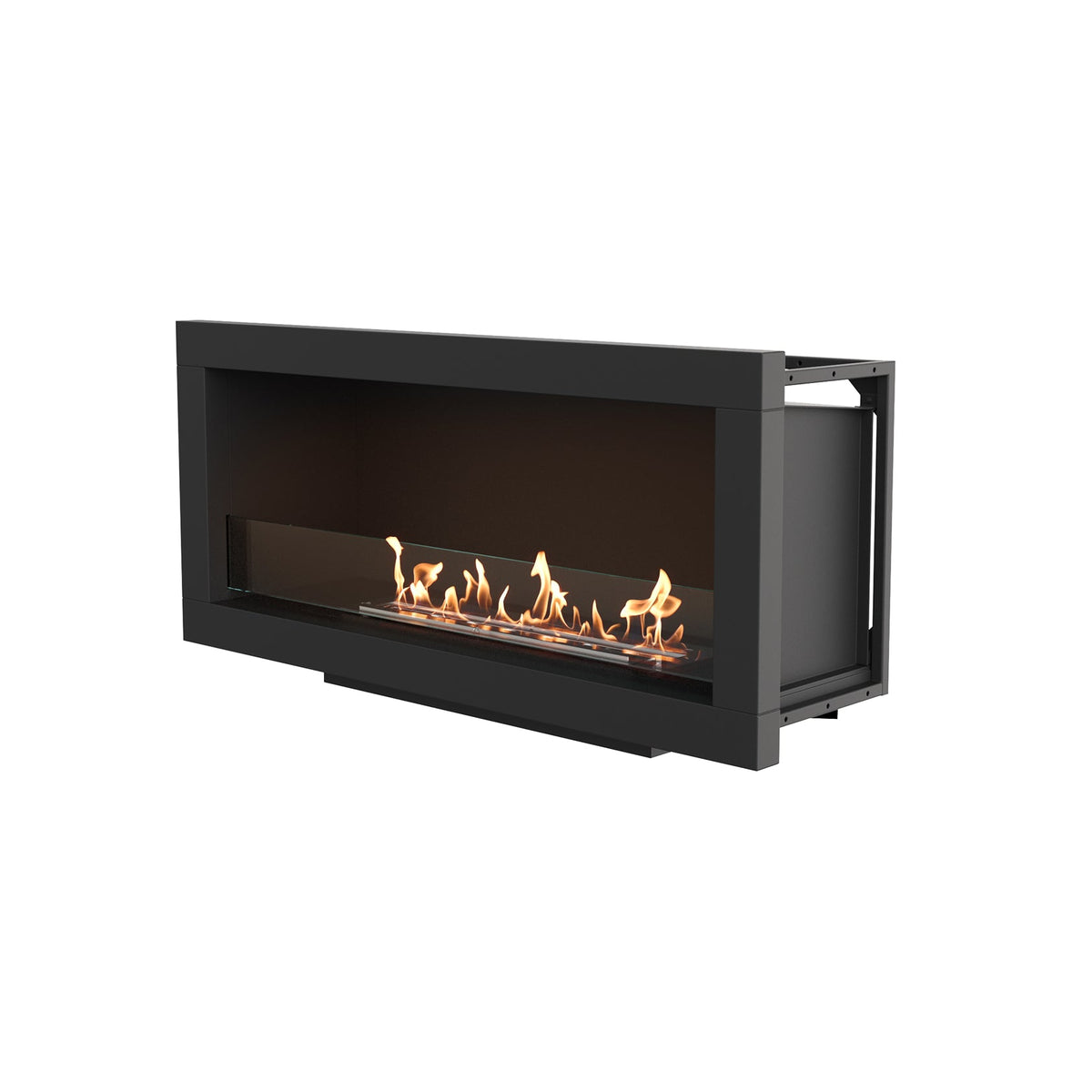

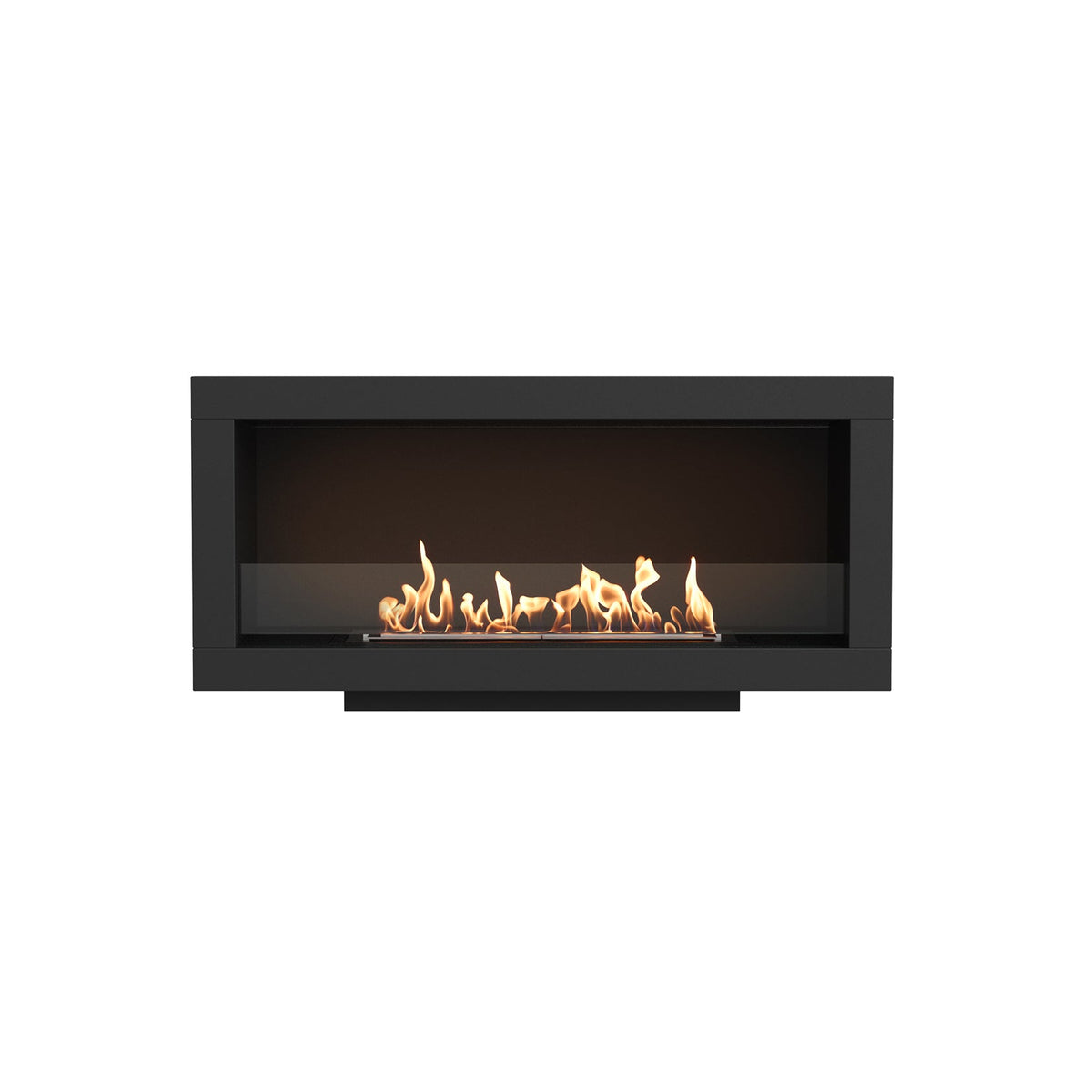

EcoSmart Frame 1000SS Built In Bioethanol Fireplace with Linear Flame

Description

EcoSmart Fire Frame 1000SS Built In Bioethanol Fireplace 🔥

Make a commanding statement with the EcoSmart Fire Frame 1000SS. Designed for living rooms, spacious interiors, lobbies and grand entertaining areas, this single sided built in bioethanol fireplace combines a generous linear flame with refined architectural styling.

The 1066 mm wide viewing area creates an impressive visual centrepiece, while the streamlined black surround keeps the overall design sophisticated and contemporary. Powered by the XL700 bioethanol burner, the Frame 1000SS offers an extended burn time and flexible installation without the need for a gas connection, electricity or traditional chimney.

Features

🏡 A Striking Linear Fireplace

The Frame 1000SS is designed to make an impact. Its generous width allows the flame to stretch across the wall, creating a strong horizontal feature that works beautifully in large living rooms, open plan spaces and sophisticated entertaining areas.

The single sided design provides a clear view of the flame from the front, making it ideal for feature walls and architectural fireplace installations.

Its black finish provides a versatile backdrop for contemporary interiors, while the clean lines allow the fireplace to work with a variety of surrounding materials and furnishings.

🔥 XL700 Bioethanol Burner

The Frame 1000SS is powered by the XL700 bioethanol burner, which has a 7 litre fuel capacity and an indicative burn time of 9 to 12 hours.

The burner produces approximately 13,650 BTU/h of thermal output and is designed to heat an average area of around 50 m². Maximum fuel consumption is approximately 0.7 litres per hour.

The included XL Baffles help regulate and stabilise the flame while supporting fuel efficiency, allowing you to enjoy an attractive and consistent flame across the fireplace.

🌿 No Gas, Chimney or Electricity Required

The self contained bioethanol system gives the Frame 1000SS considerable installation flexibility. There is no need for a mains gas connection or electrical utility connection, and the fireplace is designed to operate without a conventional chimney or flue when installed according to the manufacturer's requirements.

Compatible e NRG bioethanol provides the fuel for the flame, offering the visual appeal of a traditional fireplace without the need to store or burn firewood.

Always follow the manufacturer's requirements for ventilation, room volume, clearances and installation.

✨ Flexible Built In Installation

The Frame 1000SS is designed for built in installation into suitable wall structures, including wood or metal studs, subject to the manufacturer's installation requirements.

Its space conscious construction can also make it suitable for retrofit and renovation projects where major structural changes should be minimised.

The wall surrounding the fireplace can be customised to suit your interior design. From natural timber and elegant marble to concrete and bespoke millwork, the Frame 1000SS provides a versatile foundation for creating a personalised fireplace feature.

🎨 Complete Design Freedom

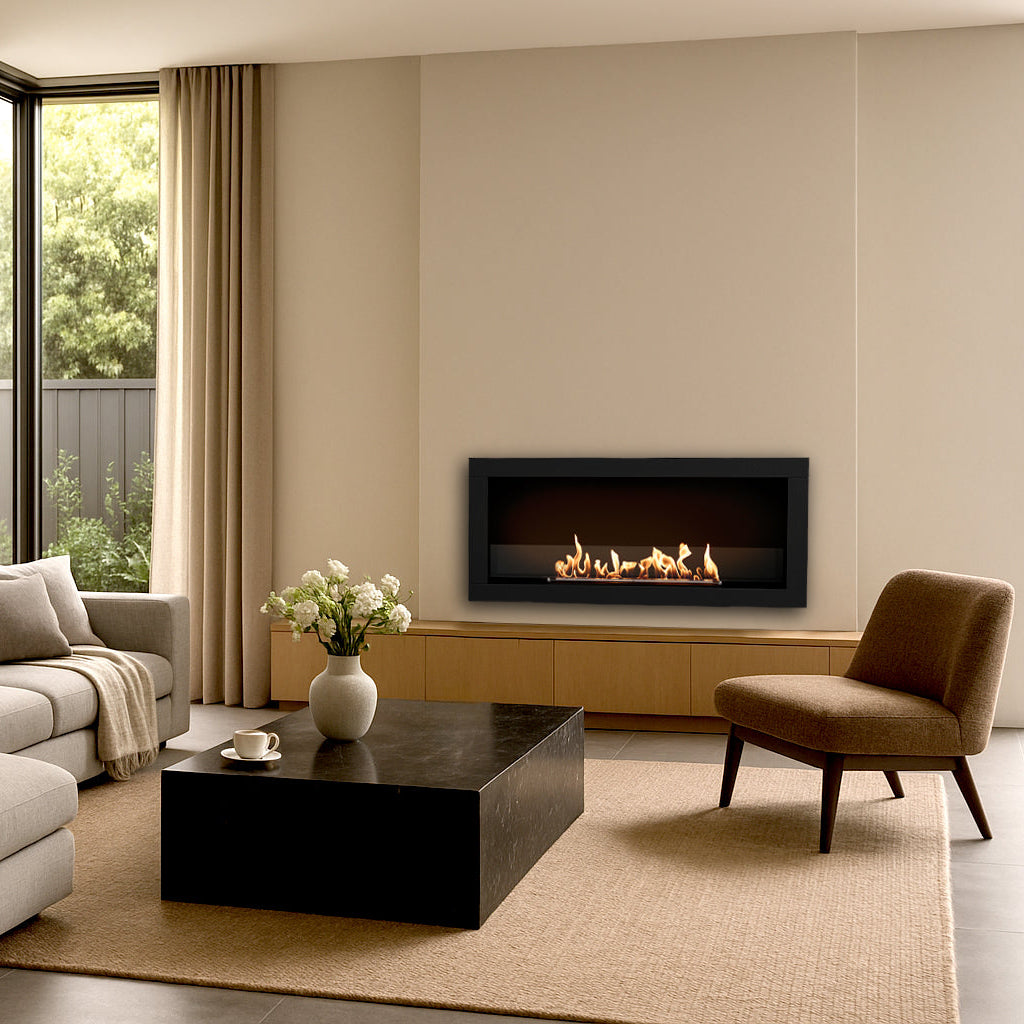

A wide fireplace creates an opportunity to make your wall a true architectural feature. The Frame 1000SS can be incorporated into contemporary media walls, open plan living spaces, hospitality settings and carefully designed entertaining areas.

Its clean black surround provides a simple visual frame around the flame, allowing the surrounding materials and interior design to take centre stage.

💎 Premium Materials

The Frame 1000SS combines durable construction with a refined contemporary appearance.

The surround is made from mild steel with zinc sealing and a high temperature powder coated finish. The XL700 burner is constructed from Grade 304 stainless steel and is available with an optional black ceramic coating.

A toughened low iron glass fire screen provides a clear view of the flame while complementing the clean architectural design.

Safety

🛡️ Safety and Global Compliance

The Frame 1000SS is designed to comply with applicable standards across the USA, Europe, UK and Australia. The XL700 bioethanol burner is O TL listed to UL 1370, EN 16647 and BSI certified, with ACCC Safety Mandate compliance according to the manufacturer's supplied information.

Important safety information:

• Use compatible bioethanol fuel only.

• Never refuel while the burner is lit or hot.

• Allow the burner to cool completely before refuelling.

• Keep children, pets and combustible materials away from the flame.

• Maintain the required ventilation, room volume and installation clearances.

• Check physical model dimensions against the required cut out dimensions before installation.

• Use the supplied lighting and refuelling accessories according to the manufacturer's instructions.

• Wood burning and gas products are designed for outdoor use in a well ventilated space. This model uses bioethanol and must be installed according to its specific indoor or outdoor requirements.

• Always consult the latest EcoSmart Fire installation and operating instructions before use.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire

• Product Name: Frame 1000SS

• Product Type: Built in bioethanol fireplace

• Design: Single sided

• Application: Indoor or outdoor

• Model Colour: Black

• Burner Colour: Stainless steel, with black option available

• Burner Configuration: XL700

• Surround Material: Mild steel with zinc sealing and high temperature powder coating

• Burner Material: Grade 304 stainless steel

• Fire Screen: Toughened low iron glass

• Overall Width: 1216 mm (47.9 in)

• Overall Height: 598 mm (23.5 in)

• Overall Depth: 363 mm (14.3 in)

• Viewing Area Width: 1066 mm (42 in)

• Viewing Area Height: 398 mm (15.7 in)

• Product Weight: 49.7 kg (109.6 lb)

• Bioethanol Capacity: 7 litres (1.8 US gallons)

• Bioethanol Burn Time: Approximately 9 to 12 hours

• Fuel Consumption: Approximately 0.7 litres per hour at maximum

• Thermal Output: Approximately 13,650 BTU/h, 14.4 MJ/h, 4 kW

• Average Heating Area: Approximately 50 m² (538 ft²)

• Minimum Room Volume: 90 m³ (3,178 ft³)

• Shipping Weight: 45 kg (99.21 lb)

• Packaging Length: 1295 mm (51 in)

• Packaging Width: 467 mm (18.4 in)

• Packaging Height: 673 mm (26.5 in)

• Packaging Volume: 0.41 m³

• Packaging Type: Carton

Performance figures are indicative only and may vary depending on the installation environment, model and composition of the e NRG bioethanol used.

Included

📦 What's Included

The Frame 1000SS includes:

• Frame 1000SS fireplace

• XL700 bioethanol burner

• Heritage Glass Fire Screen

• XL Baffles

• 5 litre Jerry Can

• Refillable fire lighter

• Lighting rod

• Bottle adaptor

The supplied accessories are designed to support fuel storage, refuelling, ignition and flame adjustment when used according to the manufacturer's instructions.

Delivery

🚚 Delivery Information

Standard delivery provides ground delivery to the easiest accessible point on your property. It does not include inside delivery, packaging removal or assembly.

Due to the size and weight of the Frame 1000SS, please check doorways, access routes and the intended installation area before ordering to ensure suitable delivery access.

e NRG bioethanol may be shipped separately from the EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for the fuel shipment.

Warranty

🔧 Warranty and Support

The EcoSmart Fire Frame 1000SS is designed for homeowners who want a fireplace that makes a genuine statement. Its generous linear flame, wide viewing area and flexible built in design make it a striking addition to living rooms, hospitality spaces and grand entertaining areas.

For assistance with installation requirements, wall materials, fuel selection or choosing the right EcoSmart Fire model, contact the Sal’s Place team before ordering. Always verify physical dimensions, clearances, access requirements and installation conditions before work begins.

FAQs

❓ Frequently Asked Questions

Does the Frame 1000SS require a chimney?

No traditional chimney is required. The self contained XL700 bioethanol burner is designed to operate without a conventional chimney or flue when installed according to the manufacturer's requirements.

Does the Frame 1000SS need gas or electricity?

No. The fireplace uses bioethanol and does not require a mains gas or electrical connection.

How long does the Frame 1000SS burn?

The 7 litre XL700 burner provides an indicative burn time of approximately 9 to 12 hours. Actual burn time depends on operating conditions and fuel composition.

How much space can it heat?

The XL700 burner is designed to heat an average area of approximately 50 m². Actual heating performance depends on the room, insulation, installation and environmental conditions.

Can the Frame 1000SS be used outdoors?

Yes. The model is listed for indoor and outdoor applications. Outdoor installation must meet the manufacturer's requirements for location, protection, ventilation and safe operation.

What are the XL Baffles used for?

The XL Baffles help regulate and stabilise the flame while supporting fuel efficiency of the XL700 burner.

Can I customise the wall around the fireplace?

Yes. The Frame series can be integrated with suitable materials such as marble, timber, concrete and custom millwork. Always follow the manufacturer's installation clearances and material requirements.

Is the Frame 1000SS suitable for large living rooms?

Yes. Its 1066 mm wide viewing area and XL700 burner make it particularly suited to larger living rooms, open plan areas and entertaining spaces where a strong linear fireplace feature is desired.

Is the Frame 1000SS suitable for apartment living?

Its built in design and self contained bioethanol burner can make it suitable for certain apartment and urban applications, subject to local regulations and the manufacturer's installation requirements.

Downloads

Frame 1000SS Fireplace - Model Specifications

Clearances & Installation Manual - Frame Fireplaces

Installation & Operation - Ethanol Burners
