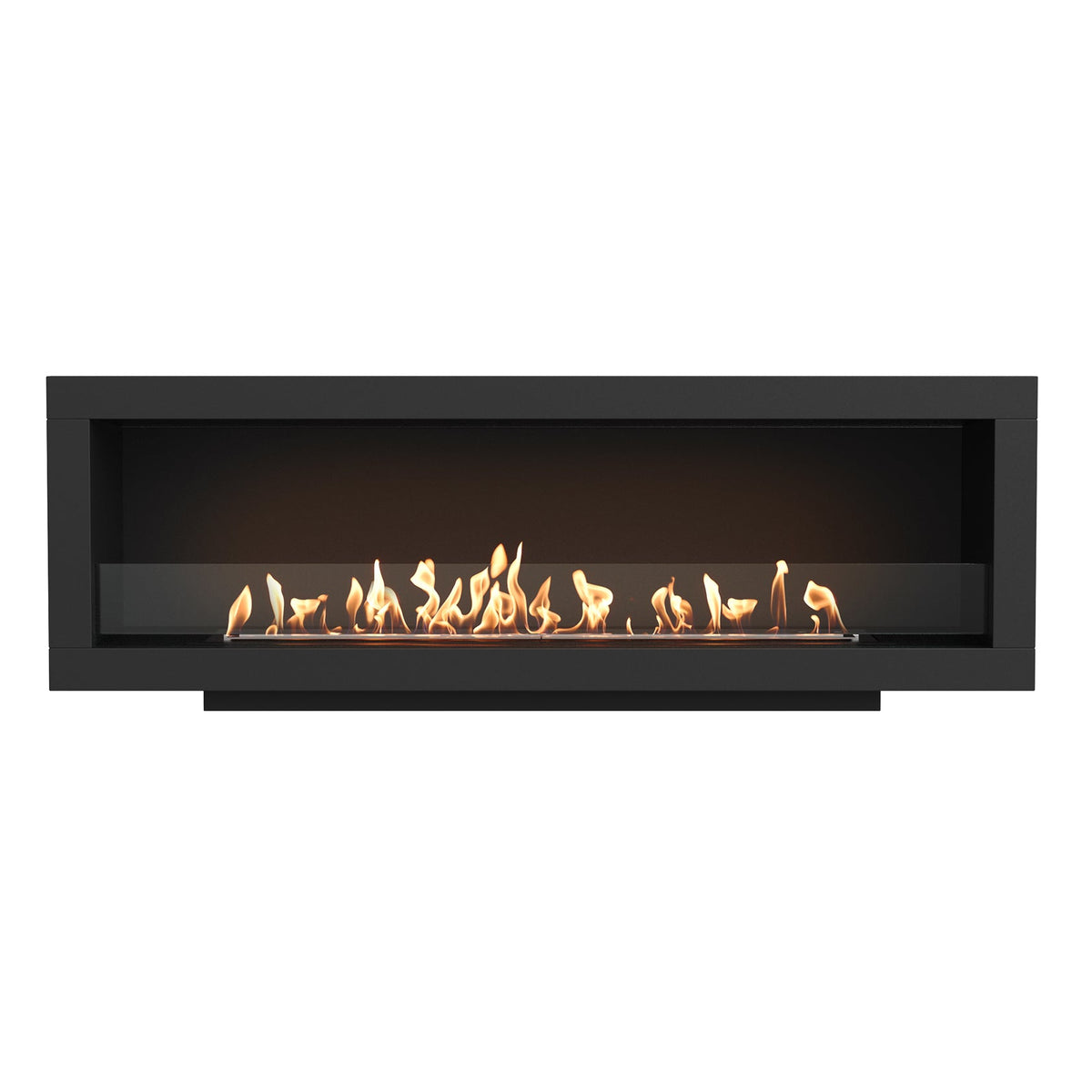

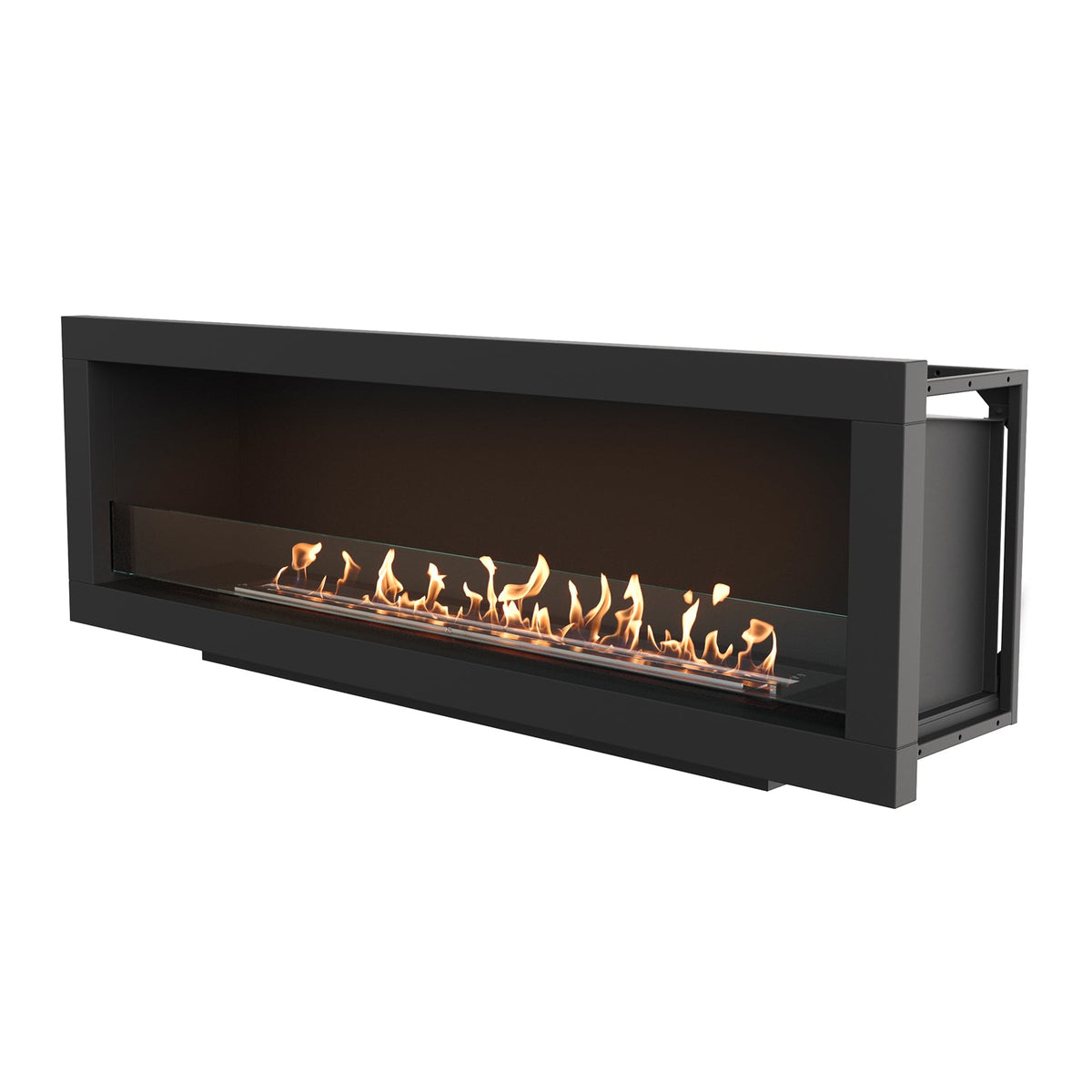

EcoSmart Frame 1500SS Built In Bioethanol Fireplace with XL1200 Flame

Decription

EcoSmart Fire Frame 1500SS Built In Bioethanol Fireplace 🔥

Make a spectacular architectural statement with the EcoSmart Fire Frame 1500SS. Featuring an expansive 1.5 metre wide fireplace frame and a generous 1566 mm viewing area, this impressive single sided bioethanol fireplace is designed for large living rooms, open plan interiors, hospitality spaces and grand entertaining areas.

Powered by the XL1200 bioethanol burner, the Frame 1500SS combines an impressive linear flame with sophisticated contemporary styling. Its self contained design offers installation flexibility without the need for gas lines, electricity or a traditional chimney, making it a striking alternative to conventional fireplaces.

Features

🏡 The Ultimate Architectural Centrepiece

The Frame 1500SS is designed for spaces where the fireplace needs to make a genuine visual impact. Its substantial 1716 mm overall width creates a strong architectural feature, while the 1566 mm viewing area gives the flame an impressive presence across the wall.

The single sided design provides a clear front view of the fire, making it ideal for feature walls and carefully planned interior installations.

Its sleek black surround creates a sophisticated backdrop for the flame and complements a wide range of architectural styles, from minimalist interiors to luxurious entertaining spaces.

🔥 Powerful XL1200 Bioethanol Burner

The Frame 1500SS is paired with the XL1200 bioethanol burner, providing a 10 litre fuel capacity and an indicative burn time of 9 to 14 hours.

The burner produces approximately 15,290 BTU/h of thermal output and is designed to heat an average area of around 65 m². Maximum fuel consumption is approximately 0.87 litres per hour.

Included XL Baffles help regulate and stabilise the flame while supporting fuel efficiency, helping the wide fireplace deliver a beautiful and consistent flame display.

The extended burn time means you can enjoy the atmosphere of the fire throughout an evening of entertaining or relaxing without frequent refuelling.

🌿 No Gas, Chimney or Electricity Required

The Frame 1500SS uses a self contained bioethanol burner, so there is no requirement for a mains gas connection or electrical utility connection.

The fireplace is designed to operate without a conventional chimney or flue when installed according to the manufacturer's requirements. This can provide greater freedom when designing a new fireplace feature or incorporating a fire into an existing interior.

Compatible e NRG bioethanol provides the fuel for the flame without the need for traditional firewood.

Always follow the manufacturer's requirements for ventilation, room volume, clearances and installation.

✨ Flexible Built In Installation

Despite its impressive size, the Frame 1500SS is designed with installation flexibility in mind. The Frame series can be incorporated into suitable wood or metal stud structures, subject to the manufacturer's installation requirements.

Its design can also work well for renovation and retrofit projects where extensive structural changes need to be minimised.

The surrounding wall finish can be customised and updated over time, allowing the fireplace to remain part of an evolving interior design.

🎨 Complete Design Freedom

The expansive proportions of the Frame 1500SS provide an opportunity to create a truly bespoke fireplace feature.

Integrate it with suitable marble, timber, concrete or custom millwork to complement your interior. The clean black surround creates a simple frame around the flame, allowing the surrounding materials and architectural details to enhance the overall design.

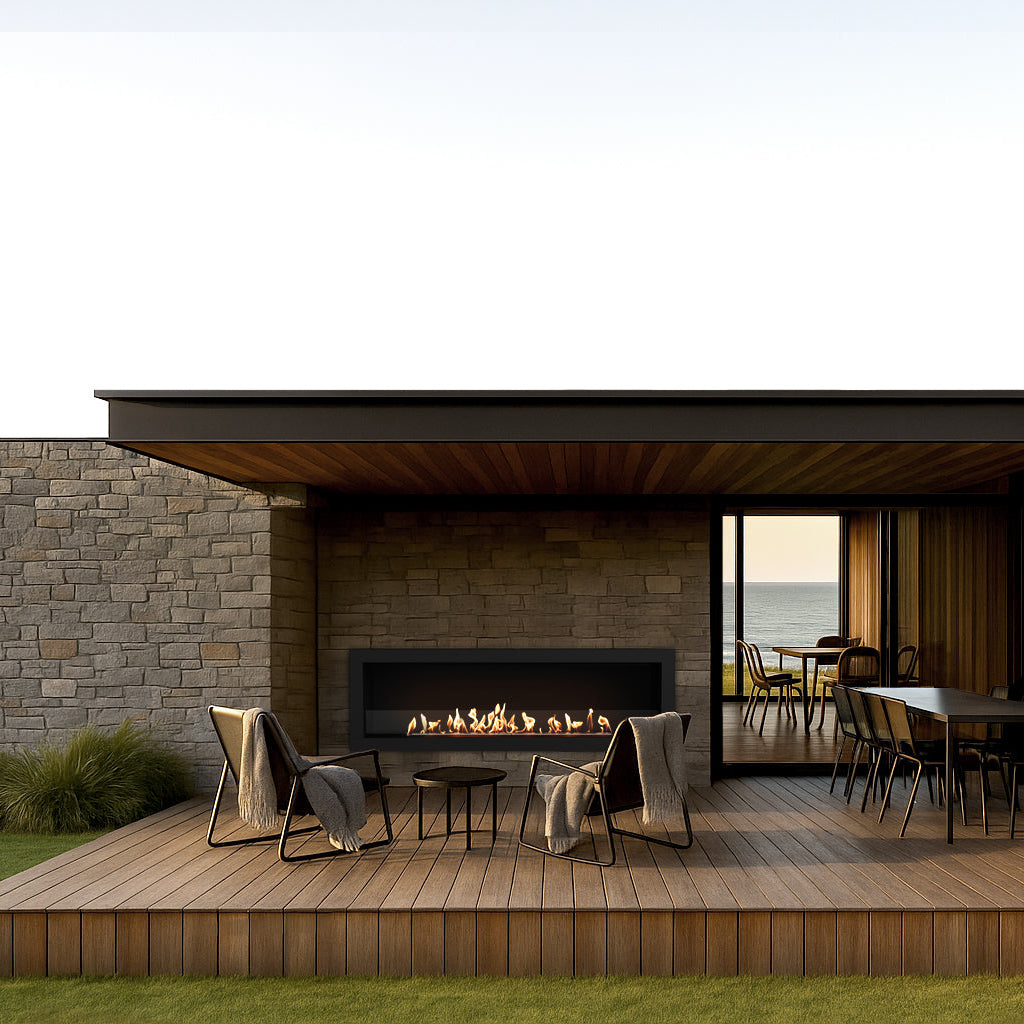

It can become the centrepiece of a luxurious living room, a dramatic feature in a hospitality environment or an impressive focal point for large entertaining spaces.

💎 Premium Materials

The Frame 1500SS combines durable construction with refined contemporary styling.

The surround is made from mild steel with zinc sealing and a high temperature powder coated finish. The XL1200 burner is constructed from Grade 304 stainless steel and is available with an optional black ceramic coating.

A toughened low iron glass fire screen provides a clear view of the flame while complementing the streamlined architectural design.

Safety

🛡️ Safety and Global Compliance

The Frame 1500SS is designed to comply with applicable standards in the USA, Europe, UK and Australia. The bioethanol burner is O TL listed to UL 1370, EN 16647 and BSI certified, with ACCC Safety Mandate compliance according to the manufacturer's supplied information.

Important safety information:

• Use compatible bioethanol fuel only.

• Never refuel while the burner is lit or hot.

• Allow the burner to cool completely before refuelling.

• Keep children, pets and combustible materials away from the flame.

• Maintain the required ventilation, room volume and installation clearances.

• Check physical model dimensions against the required cut out dimensions before installation.

• Use the supplied lighting and refuelling accessories according to the manufacturer's instructions.

• Wood burning and gas products are designed for outdoor use in a well ventilated space. This model uses bioethanol and must be installed according to its specific indoor or outdoor requirements.

• Always consult the latest EcoSmart Fire installation and operating instructions before use.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire

• Product Name: Frame 1500SS

• Product Type: Built in bioethanol fireplace

• Design: Single sided

• Application: Indoor or outdoor

• Model Colour: Black

• Burner Colour: Stainless steel, with black option available

• Burner Configuration: XL1200

• Surround Material: Mild steel with zinc sealing and high temperature powder coating

• Burner Material: Grade 304 stainless steel

• Fire Screen: Toughened low iron glass

• Overall Width: 1716 mm (67.6 in)

• Overall Height: 598 mm (23.5 in)

• Overall Depth: 363 mm (14.3 in)

• Viewing Area Width: 1566 mm (61.7 in)

• Viewing Area Height: 398 mm (15.7 in)

• Product Weight: 69.7 kg (153.7 lb)

• Bioethanol Capacity: 10 litres (2.6 US gallons)

• Bioethanol Burn Time: Approximately 9 to 14 hours

• Fuel Consumption: Approximately 0.87 litres per hour at maximum

• Thermal Output: Approximately 15,290 BTU/h, 16.13 MJ/h, 4 kW

• Average Heating Area: Approximately 65 m² (700 ft²)

• Minimum Room Volume: 115 m³ (4,061 ft³)

• Shipping Weight: 64 kg (141 lb)

• Packaging Length: 1795 mm (70.7 in)

• Packaging Width: 467 mm (18.4 in)

• Packaging Height: 805 mm (31.7 in)

• Packaging Volume: 0.67 m³

• Packaging Type: Carton with skid

Performance figures are indicative only and may vary depending on the installation environment, model and composition of the e NRG bioethanol used.

Included

📦 What's Included

The Frame 1500SS includes:

• Frame 1500SS fireplace

• XL1200 bioethanol burner

• XL Baffles

• 5 litre Jerry Can

• Refillable fire lighter

• Lighting rod

• Bottle adaptor

The supplied accessories are designed to support safe fuel storage, refuelling, ignition and flame adjustment when used according to the manufacturer's instructions.

Delivery

🚚 Delivery Information

Standard delivery provides ground delivery to the easiest accessible point on your property. It does not include inside delivery, packaging removal or assembly.

Due to the substantial size and weight of the Frame 1500SS, please check doorways, access routes and the intended installation area carefully before ordering. Ensure there is suitable access for delivery of the packaged fireplace.

e NRG bioethanol may be shipped separately from the EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for the fuel shipment.

Warranty

🔧 Warranty and Support

The EcoSmart Fire Frame 1500SS is the ultimate choice for homeowners looking to make a dramatic architectural statement. Its expansive frame, generous flame viewing area and powerful XL1200 burner create an impressive centrepiece for large interiors and entertaining spaces.

For assistance with installation requirements, wall materials, fuel selection or choosing the right EcoSmart Fire model, contact the Sal’s Place team before ordering. Always verify physical dimensions, clearances, access requirements and installation conditions before work begins.

FAQs

❓ Frequently Asked Questions

Does the Frame 1500SS require a chimney?

No traditional chimney is required. The self contained XL1200 bioethanol burner is designed to operate without a conventional chimney or flue when installed according to the manufacturer's requirements.

Does the Frame 1500SS need gas or electricity?

No. The fireplace uses bioethanol and does not require a mains gas or electrical connection.

How long does the Frame 1500SS burn?

The 10 litre XL1200 burner provides an indicative burn time of approximately 9 to 14 hours. Actual burn time depends on operating conditions and fuel composition.

How much space can it heat?

The XL1200 burner is designed to heat an average area of approximately 65 m². Actual heating performance depends on the room, insulation, installation and environmental conditions.

Can the Frame 1500SS be used outdoors?

Yes. The model is listed for indoor and outdoor applications. Outdoor installation must meet the manufacturer's requirements for location, protection, ventilation and safe operation.

What are the XL Baffles used for?

The XL Baffles help regulate and stabilise the flame while supporting fuel efficiency of the XL1200 burner.

Can I customise the wall around the fireplace?

Yes. The Frame series can be integrated with suitable materials such as marble, timber, concrete and custom millwork. Always follow the manufacturer's installation clearances and material requirements.

Is the Frame 1500SS suitable for large living spaces?

Yes. Its expansive 1566 mm viewing area and XL1200 burner make it particularly suited to large living rooms, open plan interiors, hospitality spaces and grand entertaining areas.

Is the Frame 1500SS suitable for apartment living?

The Frame series has been designed with urban living in mind, but the substantial size of the Frame 1500SS means suitability depends on the individual property. Always confirm local regulations, room volume and installation requirements before ordering.

Downloads

Frame 1500SS Fireplace - Model Specifications

Clearances & Installation Manual - Frame Fireplaces

Installation & Operation - Ethanol Burners
