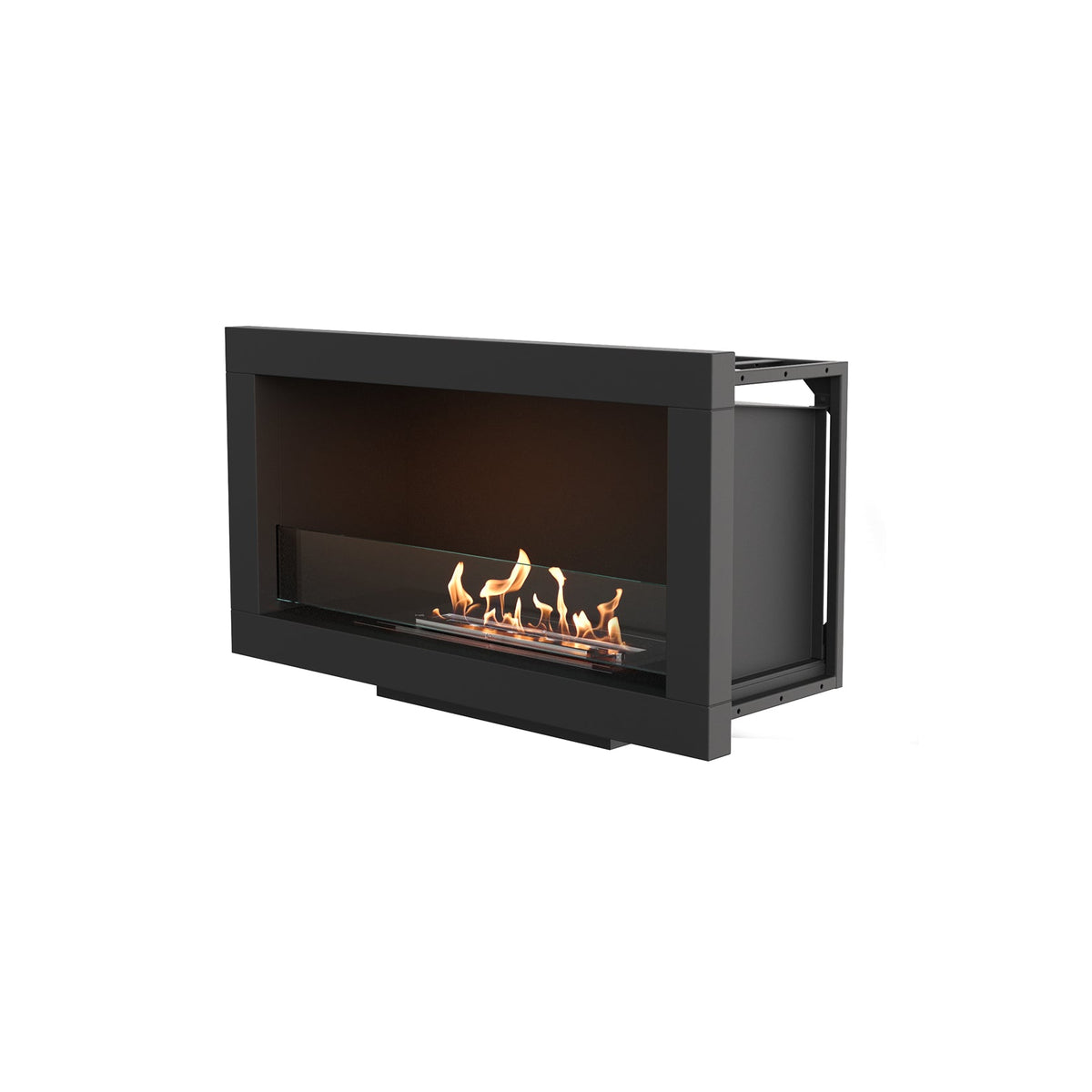

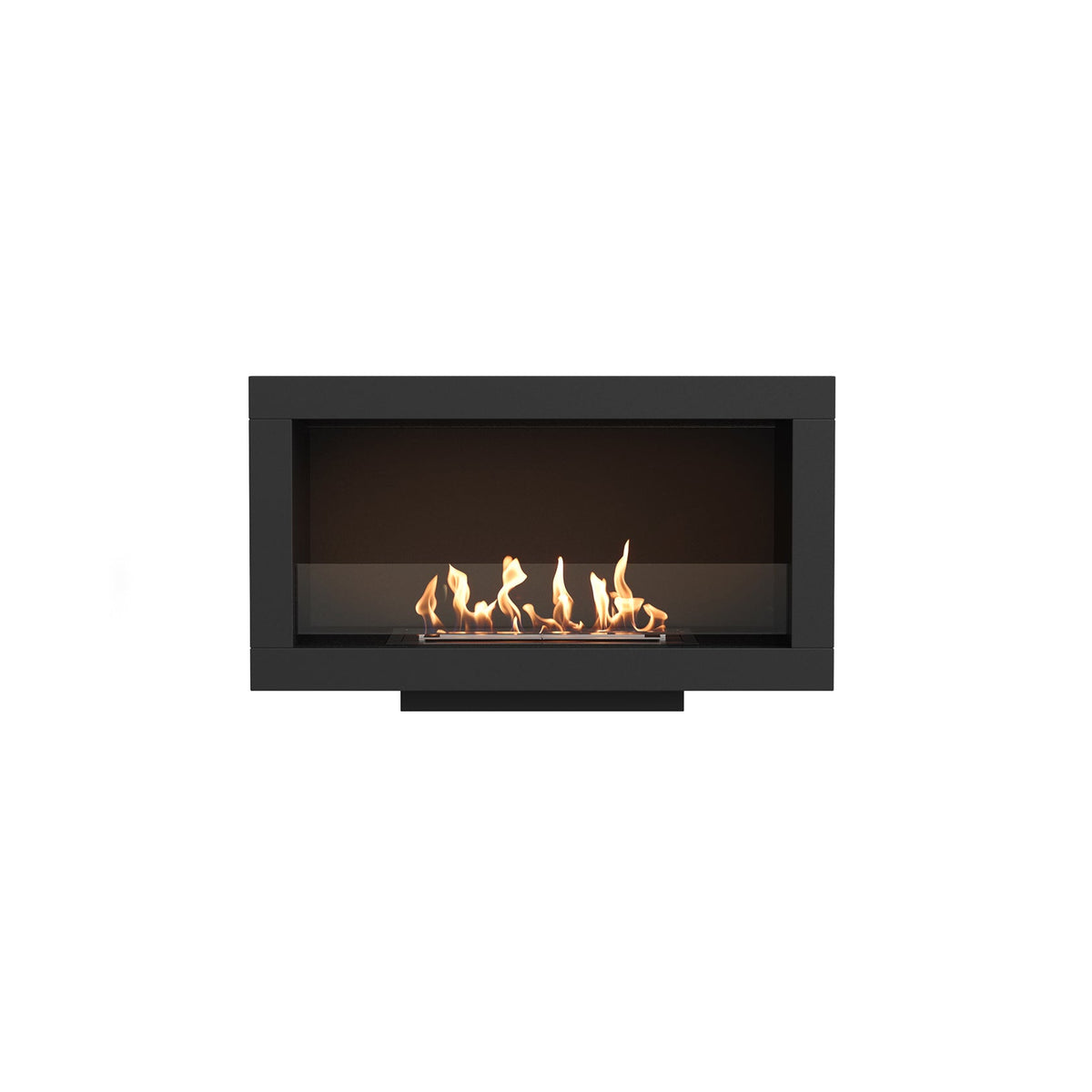

EcoSmart Frame 800SS Built In Bioethanol Fireplace for Modern Living

Description

EcoSmart Fire Frame 800SS Built In Bioethanol Fireplace 🔥

Create a stylish focal point without overwhelming your room with the EcoSmart Fire Frame 800SS. Designed to strike the right balance between presence and intimacy, this single sided built in bioethanol fireplace is ideal for medium sized lounges, contemporary interiors and covered outdoor entertaining areas.

With an 866 mm wide viewing area, sophisticated black surround and stainless steel XL500 burner, the Frame 800SS brings the warmth and atmosphere of a real flame into modern spaces. Its self contained bioethanol technology removes the need for a gas connection, electricity or traditional chimney, giving you greater freedom when designing your fireplace feature.

Features

🏡 Contemporary Fireplace Design

The Frame 800SS is designed for homeowners who want a fireplace that feels substantial without dominating the room. Its clean lines and streamlined proportions make it a natural fit for modern living rooms, dining areas, apartments and suitable covered outdoor spaces.

The single sided design provides a clear front view of the flame, allowing the fire to become a focal point while maintaining a sleek architectural appearance.

The black surround works beautifully with a wide range of finishes and furnishings, from minimalist interiors to warmer, more traditional schemes.

🔥 XL500 Bioethanol Burner

The Frame 800SS is powered by the XL500 bioethanol burner. With a 5 litre fuel capacity and an indicative burn time of 10 to 13 hours, it offers an extended flame experience for relaxing evenings, entertaining and everyday use.

The burner produces approximately 11,430 BTU/h of thermal output and is designed to heat an average area of around 40 m². Maximum fuel consumption is approximately 0.5 litres per hour.

The longer burn time makes the Frame 800SS particularly appealing for homeowners who want to enjoy a beautiful flame without frequent refuelling.

🌿 No Gas, Chimney or Electricity Required

The self contained bioethanol burner gives the Frame 800SS considerable installation flexibility. It does not require a mains gas connection or electrical utility connection and is designed to operate without a conventional chimney or flue when installed according to the manufacturer's requirements.

Compatible e NRG bioethanol provides the fuel for the flame, giving you the atmosphere of a traditional fireplace without the need to store and burn firewood.

Always follow the manufacturer's requirements for ventilation, room volume, clearances and installation.

✨ Flexible Built In Installation

The Frame 800SS features a space conscious design that can be incorporated into suitable wood or metal stud walls, subject to the manufacturer's installation requirements.

Its flexible design also makes it suitable for renovation and retrofit projects. Wall finishes can be updated over time, allowing your fireplace feature to evolve alongside your interior.

The minimal wall cavity preparation can be particularly useful when major structural modifications need to be kept to a minimum.

🎨 Complete Design Freedom

One of the biggest advantages of the Frame series is the ability to customise the area surrounding the fireplace.

The Frame 800SS can be integrated with suitable marble, timber, concrete or custom millwork, allowing you to create a fireplace feature that feels completely connected to your interior design.

Whether you are creating a minimalist media wall, an elegant living room centrepiece or a welcoming entertaining area, the Frame 800SS provides a versatile foundation.

💎 Premium Materials

The Frame 800SS combines durable construction with contemporary styling.

The surround is made from mild steel with zinc sealing and a high temperature powder coated finish. The XL500 burner is constructed from Grade 304 stainless steel and is available with an optional black ceramic coating.

A toughened low iron glass fire screen provides a clear view of the flame while complementing the clean architectural design.

Safety

🛡️ Safety and Global Compliance

The Frame 800SS is designed to comply with applicable standards in the USA, Europe, UK and Australia. The XL500 bioethanol burner is O TL listed to UL 1370, EN 16647 and BSI certified, with ACCC Safety Mandate compliance according to the manufacturer's supplied information.

Important safety information:

• Use compatible bioethanol fuel only.

• Never refuel while the burner is lit or hot.

• Allow the burner to cool completely before refuelling.

• Keep children, pets and combustible materials away from the flame.

• Maintain the required ventilation, room volume and installation clearances.

• Check physical model dimensions against the required cut out dimensions before installation.

• Use the supplied lighting and refuelling accessories according to the manufacturer's instructions.

• Wood burning and gas products are designed for outdoor use in a well ventilated space. This model uses bioethanol and must be installed according to its specific indoor or outdoor requirements.

• Always consult the latest EcoSmart Fire installation and operating instructions before use.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire

• Product Name: Frame 800SS

• Product Type: Built in bioethanol fireplace

• Design: Single sided

• Application: Indoor or outdoor

• Model Colour: Black

• Burner Colour: Stainless steel, with black option available

• Burner Configuration: XL500

• Surround Material: Mild steel with zinc sealing and high temperature powder coating

• Burner Material: Grade 304 stainless steel

• Fire Screen: Toughened low iron glass

• Overall Width: 1016 mm (40 in)

• Overall Height: 598 mm (23.5 in)

• Overall Depth: 363 mm (14.3 in)

• Viewing Area Width: 866 mm (34.1 in)

• Viewing Area Height: 398 mm (15.7 in)

• Product Weight: Approximately 38 kg as listed in construction data

• Bioethanol Capacity: 5 litres (1.3 US gallons)

• Bioethanol Burn Time: Approximately 10 to 13 hours

• Fuel Consumption: Approximately 0.5 litres per hour at maximum

• Thermal Output: Approximately 11,430 BTU/h, 12.06 MJ/h, 3 kW

• Average Heating Area: Approximately 40 m² (431 ft²)

• Minimum Room Volume: 80 m³ (2,825 ft³)

• Shipping Weight: 38 kg (83.78 lb)

• Packaging Length: 1095 mm (43.1 in)

• Packaging Width: 467 mm (18.4 in)

• Packaging Height: 673 mm (26.5 in)

• Packaging Volume: 0.34 m³

• Packaging Type: Carton

Performance figures are indicative only and may vary depending on the installation environment, model and composition of the e NRG bioethanol used.

Included

📦 What's Included

The Frame 800SS includes:

• Frame 800SS fireplace

• XL500 bioethanol burner

• Toughened glass fire screen

The supplied burner and fireplace components are designed for use with compatible bioethanol fuel and must be installed and operated according to the manufacturer's instructions.

Delivery

🚚 Delivery Information

Standard delivery provides ground delivery to the easiest accessible point on your property. It does not include inside delivery, packaging removal or assembly.

Please check doorways, access routes and the intended installation area before ordering to ensure the fireplace can be safely delivered and installed.

e NRG bioethanol may be shipped separately from the EcoSmart Fire order and may arrive on a different day. A separate tracking number will be provided for the fuel shipment.

Warranty

🔧 Warranty and Support

The EcoSmart Fire Frame 800SS provides an elegant way to introduce real flame ambience into medium sized living spaces and covered entertaining areas. Its generous viewing area, extended burn time and flexible built in design make it a practical and stylish alternative to traditional fireplaces.

For assistance with installation requirements, wall materials, fuel selection or choosing the right EcoSmart Fire model, contact the Sal’s Place team before ordering. Always verify physical dimensions, clearances and installation requirements before work begins.

FAQs

❓ Frequently Asked Questions

Does the Frame 800SS require a chimney?

No traditional chimney is required. The self contained XL500 bioethanol burner is designed to operate without a conventional chimney or flue when installed according to the manufacturer's requirements.

Does the Frame 800SS need gas or electricity?

No. The fireplace uses bioethanol and does not require a mains gas or electrical connection.

How long does the Frame 800SS burn?

The 5 litre XL500 burner provides an indicative burn time of approximately 10 to 13 hours. Actual burn time depends on operating conditions and fuel composition.

How much space can it heat?

The XL500 burner is designed to heat an average area of approximately 40 m². Actual heating performance depends on the room, insulation, installation and environmental conditions.

Can the Frame 800SS be used outdoors?

Yes. The model is listed for indoor and outdoor applications. Outdoor installation must meet the manufacturer's requirements for location, protection, ventilation and safe operation.

Can the Frame 800SS be installed into a feature wall?

Yes. The Frame series is designed for built in installation into suitable wall structures, including wood or metal studs, subject to the specified installation requirements.

Can I customise the finish around the fireplace?

Yes. The Frame series can be integrated with suitable materials such as marble, timber, concrete and custom millwork. Installation clearances and material requirements must always be followed.

Is the Frame 800SS suitable for apartments?

Its space conscious design and self contained bioethanol burner make it suitable for certain apartment and urban living applications, subject to local regulations and the manufacturer's installation requirements.
