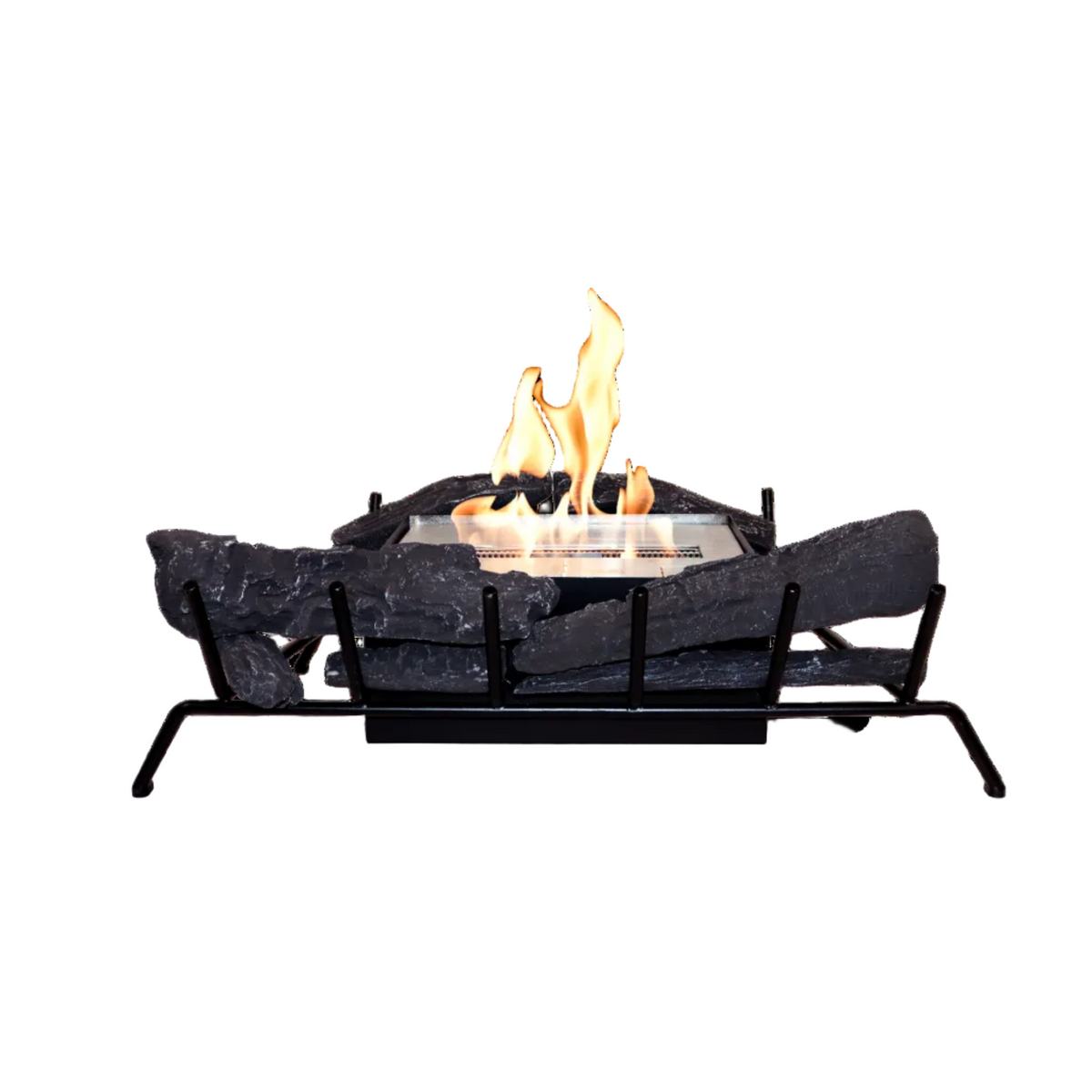

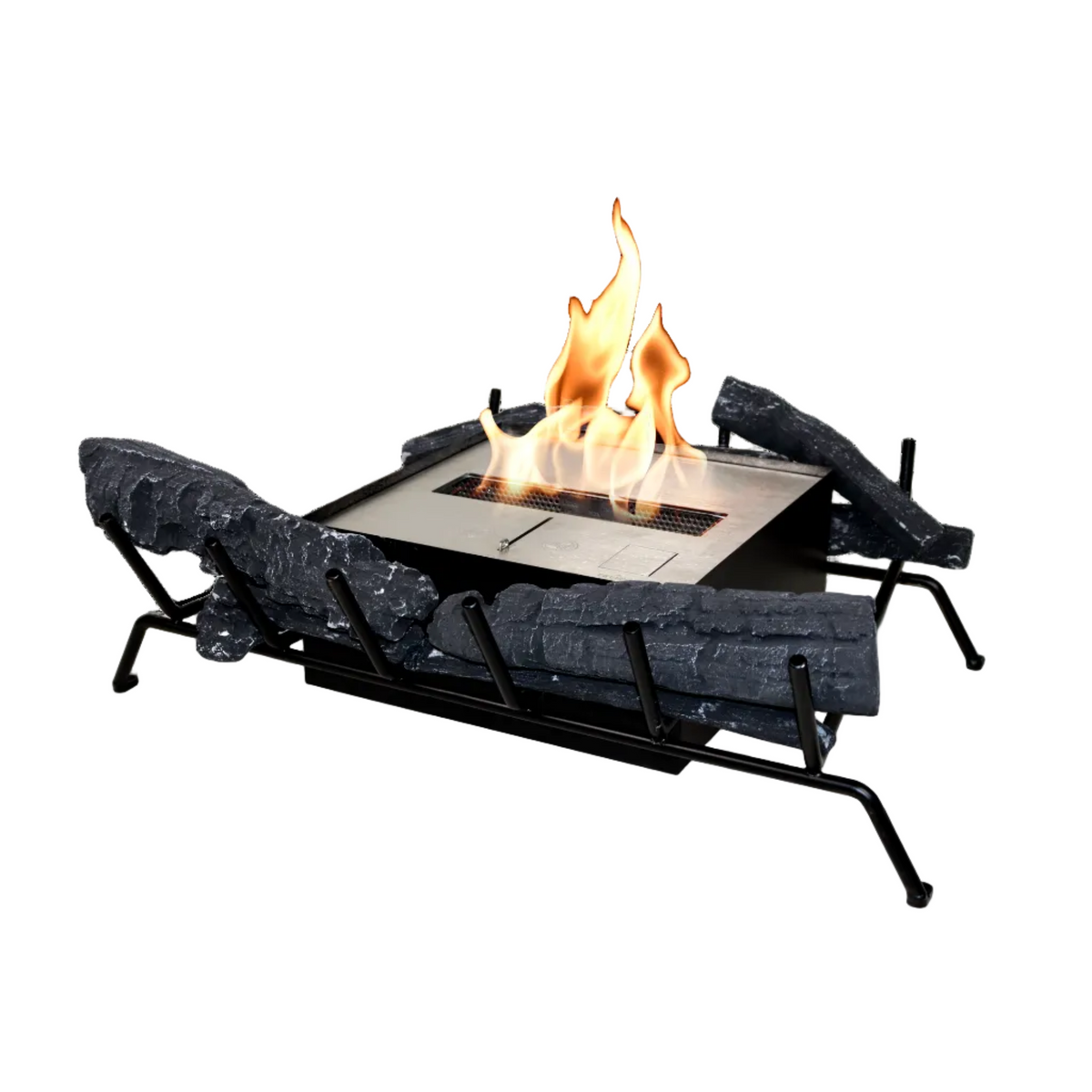

EcoSmart Heritage Grate 25 Bioethanol Fireplace Grate

Description

EcoSmart Fire Heritage Grate 25 – Graphite Bioethanol Fireplace Grate

Bring timeless fireplace charm into your home with the EcoSmart Fire Heritage Grate 25. Designed to recreate the traditional look of a classic log fire, this stylish bioethanol fireplace grate combines a familiar hearth aesthetic with modern, clean burning technology. Its graphite finish, stainless steel burner and decorative ceramic fire rated logs create a welcoming focal point for relaxing evenings and entertaining guests.

Features

🔥 Classic Design with a Modern Finish

The Heritage Grate 25 features a traditional iron grate appearance, crafted from 1.2 mm SECC steel with a high temperature black powder coating. Its graphite finish complements a range of interior styles, from classic living rooms to contemporary spaces looking for a touch of traditional character.

The design makes it an attractive option for updating an existing fireplace or creating a cosy atmosphere without the usual mess associated with burning wood.

✨ Clean Burning Bioethanol Technology

Powered by the BK5 stainless steel burner, the Heritage Grate 25 uses e NRG bioethanol fuel to produce a beautiful orange flame without smoke, soot or ash. It does not require a conventional flue or chimney for operation, making it an alternative to traditional wood burning fireplaces when installed in a suitable space according to the manufacturer's instructions.

With a 5 litre fuel capacity and an indicative burn time of 7 to 11 hours, it offers an inviting flame for everyday relaxation and special occasions. The burner can heat an average area of approximately 35 m², with a minimum room volume of 70 m³.

Bioethanol fireplaces are also low maintenance, leaving no carbon residue from combustion. The surrounding surfaces can be wiped with a damp cloth when cool, following the care instructions.

🏡 Designed for Your Living Space

The Heritage Grate 25 is intended for indoor use according to its detailed specifications. Its compact design makes it suitable for a variety of fireplace settings, subject to the required installation clearances and room size.

If converting an existing wood burning fireplace, ensure all gas connections and pipework are disconnected and made safe by an appropriately qualified and licensed professional before installation. Follow all manufacturer requirements for safe operation and ventilation.

Specifications

📐 Technical Specifications

• Brand: EcoSmart Fire

• Model: Heritage Grate 25

• Fuel type: e NRG bioethanol

• Application: Indoor

• Surround material: Mild steel with zinc sealing and high temperature powder coating

• Burner: BK5

• Burner material: Stainless steel

• Model colour: Graphite

• Burner colour: Stainless steel

• Fuel capacity: 5 litres

• Approximate burn time: 7 to 11 hours

• Maximum fuel consumption: 0.64 litres per hour

• Thermal output: Manufacturer specifications list approximately 3.5 to 4 kW

• Average heating area: 35 m²

• Minimum room volume: 70 m³

• Dimensions: Approximately 631 mm long × 467 mm wide × 173 mm high

• Product weight: 13.4 kg

• Packaging dimensions: 715 × 555 × 246 mm

• Shipping weight: 12 kg as listed in the supplied packaging specifications

Heating performance and burn time are indicative and can vary with installation conditions and fuel composition. Please confirm final installation dimensions before fitting.

Included

📦 What’s Included

• EcoSmart Fire Heritage Grate 25

• BK5 stainless steel burner

• 5 litre Jerry Can for safe fuel storage and decanting

• Refillable butane fire lighter

• Lighting rod for adjusting, igniting and extinguishing the burner

• Bottle adaptor for easier refuelling

Optional accessories include the Plasma Fire Screen and Twin Feet Fixings, which help secure the glass screen in position.

Safety

🛡️ Safety and Certification

The supplied specifications state that this model complies with applicable standards in the USA, Europe, the UK and Australia, including UL 1370 listing, EN 16647 BSI certification and the Australian ACCC safety mandate for bioethanol burners.

Always operate the fireplace according to the manufacturer's instructions. Never refill a lit or hot burner. Allow it to cool completely before refuelling, keep children and pets at a safe distance, and observe all required clearances and minimum room volume requirements.

Delivery

🚚 Delivery Information

Standard delivery is made to the easiest accessible point on your property at ground level. It does not include delivery inside your home, packaging removal or assembly.

e NRG bioethanol fuel may be shipped separately and could arrive on a different day. A separate tracking number will be provided for the fuel order.

FAQs

❓ Frequently Asked Questions

Does the EcoSmart Heritage Grate 25 need a chimney?

The bioethanol burner does not require a conventional chimney or flue for operation. Installation must still follow the manufacturer's requirements for the room, clearances and ventilation.

How long does the Heritage Grate 25 burn?

The BK5 burner has a 5 litre capacity and an indicative burn time of 7 to 11 hours. Actual performance depends on operating conditions and fuel composition.

How much space can it heat?

The manufacturer lists an average heating area of approximately 35 m² and a minimum room volume of 70 m³.

Is the fire screen included?

No. The Plasma Fire Screen and Twin Feet Fixings are optional accessories and are sold separately.

Is the Heritage Grate 25 easy to maintain?

Yes. Bioethanol combustion does not leave the usual soot and ash associated with wood fires. Allow the unit to cool completely before cleaning and follow the manufacturer's care instructions.

Create a warm, inviting focal point with the EcoSmart Fire Heritage Grate 25, combining the character of a traditional fireplace with the convenience of modern bioethanol technology.
