EcoSmart

EcoSmart Linear 130 Fire Pit Kit with Three Long Flames

£7,780.00 GBP

Sale Sold out

Why You’ll Love This Product

✅ Create a spectacular focal point across large open spaces

✅ Define dining and entertaining areas with elegant flames

✅ Choose a fuel option suited to your installation and lifestyle

Shipping calculated at checkout.

Burner Option Stainless Steel (Ethanol) Black (Ethanol) Gas Burner

Quantity

Description

EcoSmart Fire Linear 130 Fire Pit Kit 🔥

Make a spectacular statement with the EcoSmart Fire Linear 130, the longest model in the Fire Pit Kit Series. Measuring an impressive 3,375 mm in length, this contemporary linear fireplace creates a dramatic flame feature for spacious homes, hospitality venues and commercial interiors or outdoor settings.

With three powerful burners, a sleek black metal tray and glowing black glass charcoal, the Linear 130 is designed to define space as much as it creates warmth. Use it as an architectural centrepiece, a stylish room divider or an integrated feature within a suitable benchtop or dining table. Choose bioethanol, liquid propane or natural gas to create a fire feature suited to your project.

Features

✨ A Striking Architectural Feature

The Linear 130 is made for spaces where you want the fire to become part of the architecture. Its exceptionally long profile creates an impressive visual line, while three flames provide a beautiful, continuous focal point.

The clean black finish gives the fire pit a sophisticated contemporary appearance, while the included black glass charcoal reflects the glow of the flames and adds depth to the overall design.

In a large open plan interior, the Linear 130 can help visually separate different areas without closing off the space. Outdoors, it can become the centrepiece of a generous patio, terrace, outdoor dining area or commercial entertaining space.

🔥 Three Burner Configurations

The Linear 130 is available with three compatible burners, giving you a choice of fuel depending on your installation and requirements.

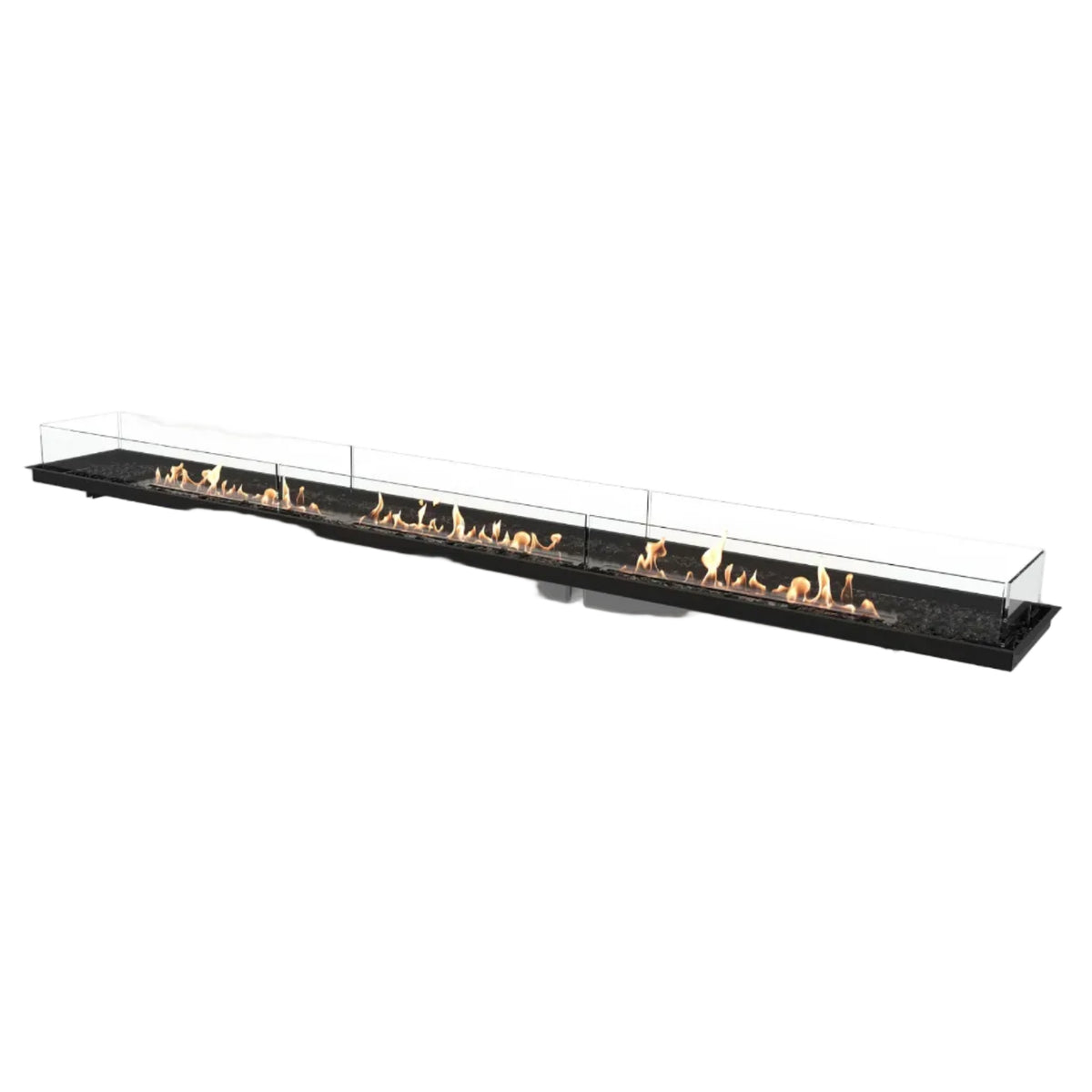

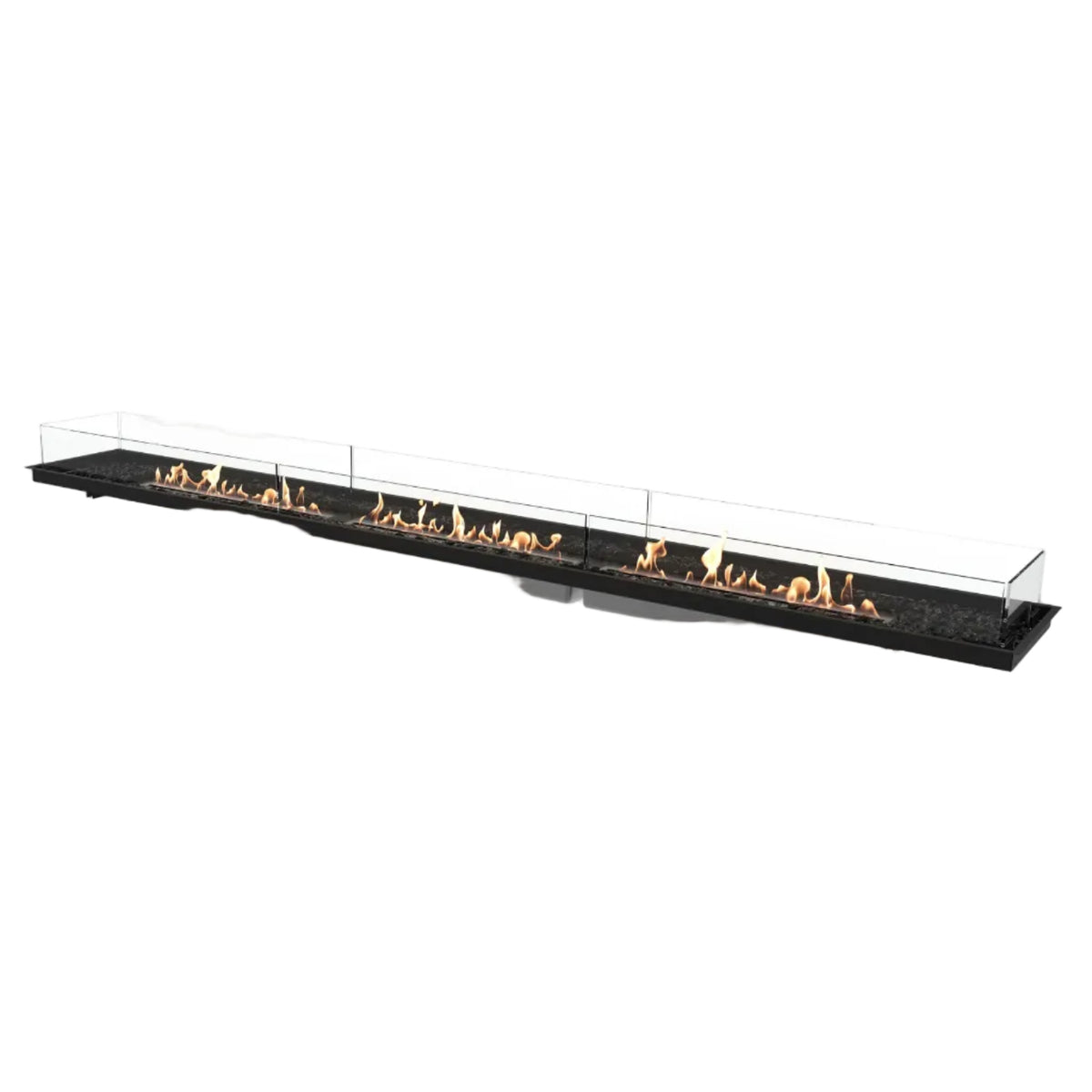

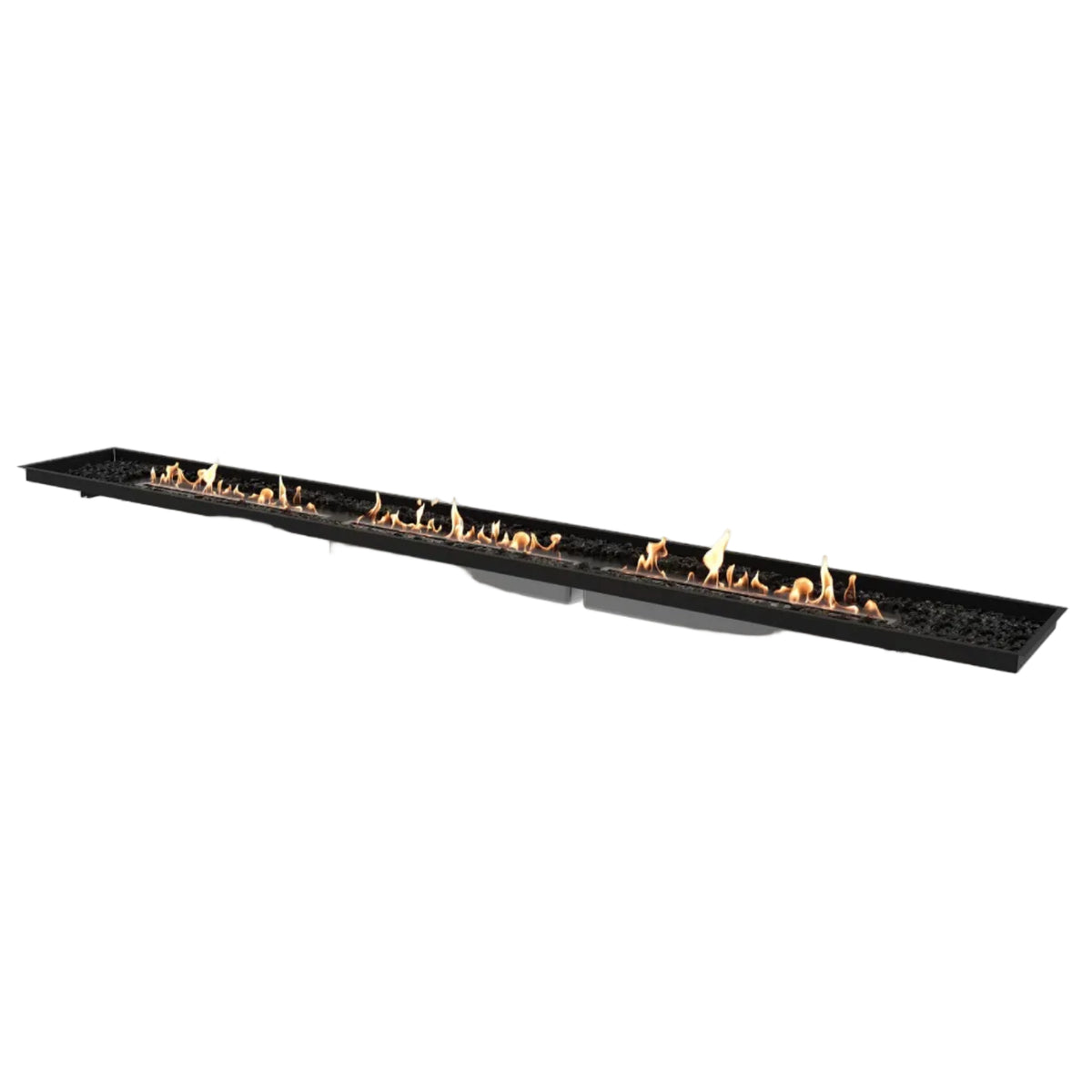

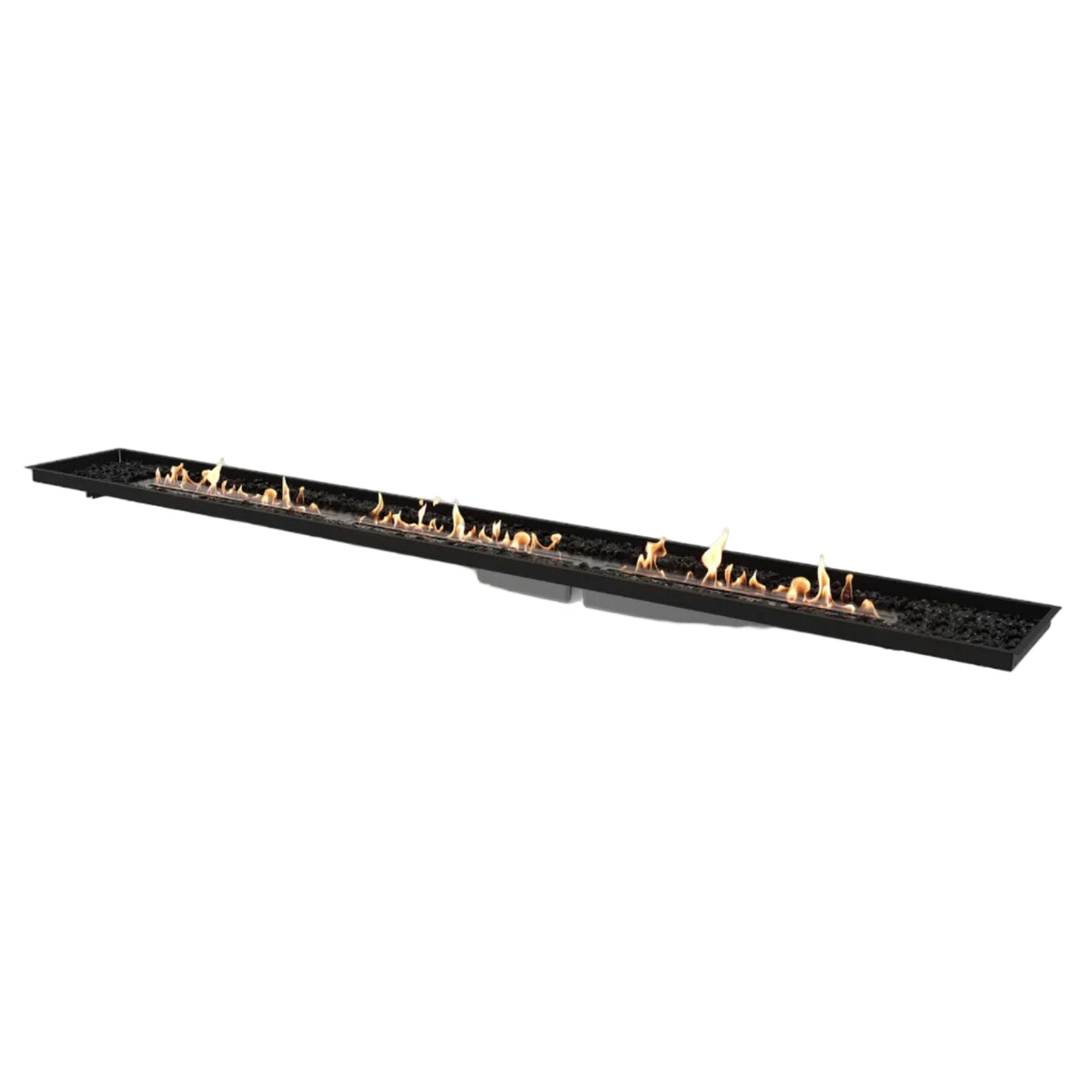

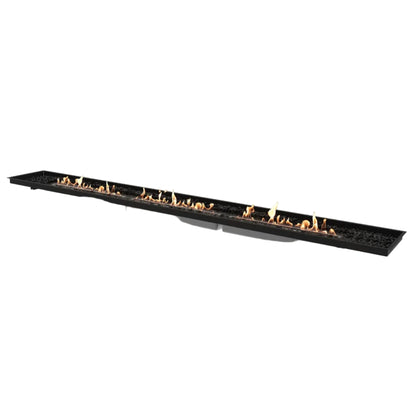

Bioethanol

The bioethanol configuration uses three XL900 burners with a combined fuel capacity of 27 litres. It can be suitable for indoor or outdoor applications when the required additional components, room volume and installation requirements are met.

With an indicative thermal output of approximately 45,000 BTU/h, the three burner configuration creates a substantial flame feature for large spaces.

Liquid Propane

The liquid propane configuration uses three G37T burners and is designed for outdoor use only. It delivers a powerful combined thermal output of approximately 195,000 BTU/h, making it well suited to large outdoor entertaining areas.

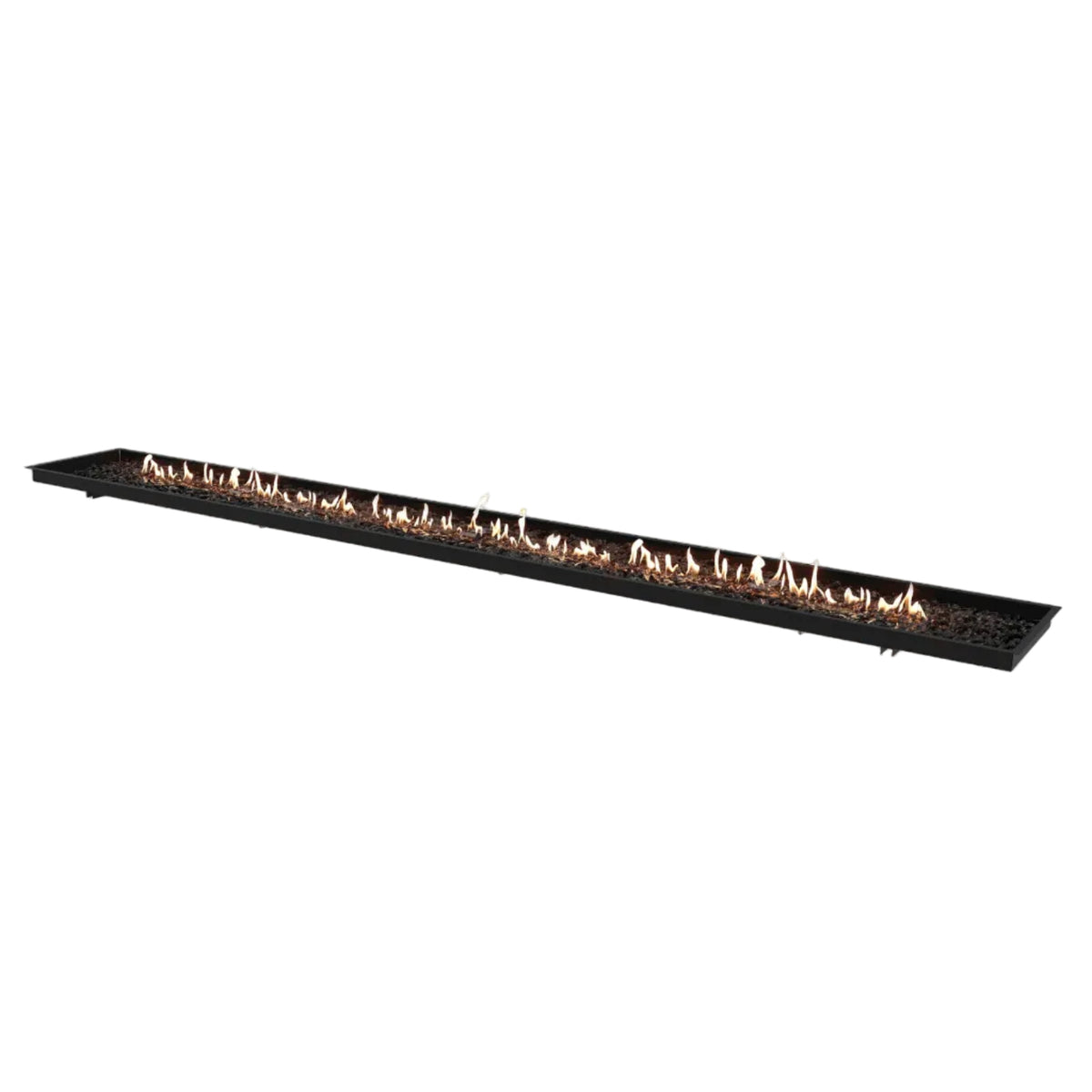

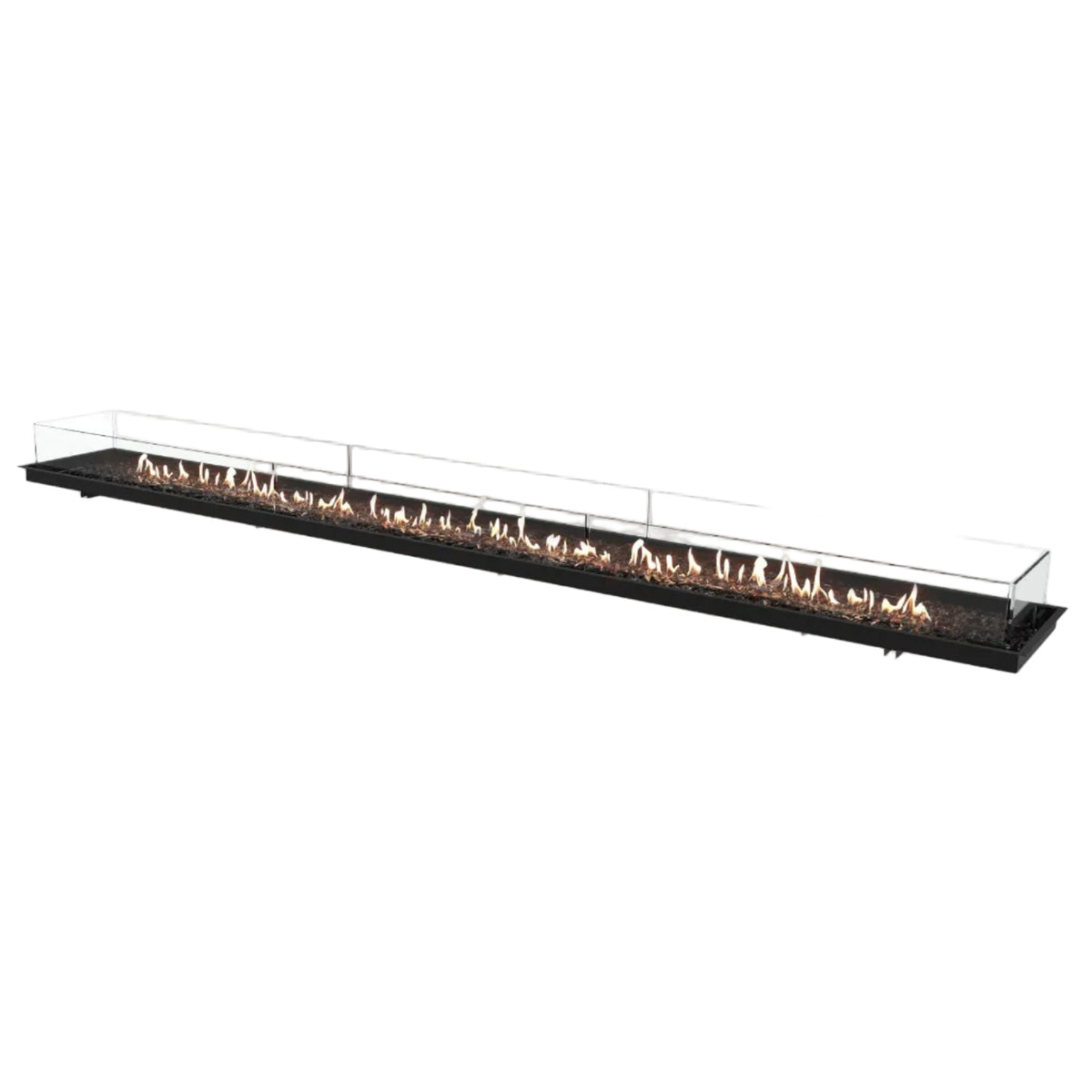

Natural Gas

The natural gas configuration also uses three G37T burners and is designed for outdoor use only. With a suitable continuous gas supply, it offers a convenient solution for permanent outdoor installations without the need for regular refuelling.

Fuel performance varies according to the selected configuration, installation environment and fuel supply or composition.

🌿 Enjoy a Clean Burning Flame

The bioethanol configuration provides the warmth and beauty of a real flame without the smoke, soot and ash associated with traditional wood burning fires.

For the three burner bioethanol configuration, XL baffles help regulate and stabilise the flames while supporting efficient burner performance.

The result is a captivating fire feature that can transform large spaces into welcoming areas for entertaining, dining and relaxing.

🏡 Design Freedom for Large Spaces

The Linear 130 is designed to be integrated into suitable non combustible surfaces, allowing you to create a bespoke fireplace or fire table that works with your architecture.

It can be incorporated into suitable stone, concrete, brick or tiled surfaces, subject to the manufacturer's installation requirements and clearances.

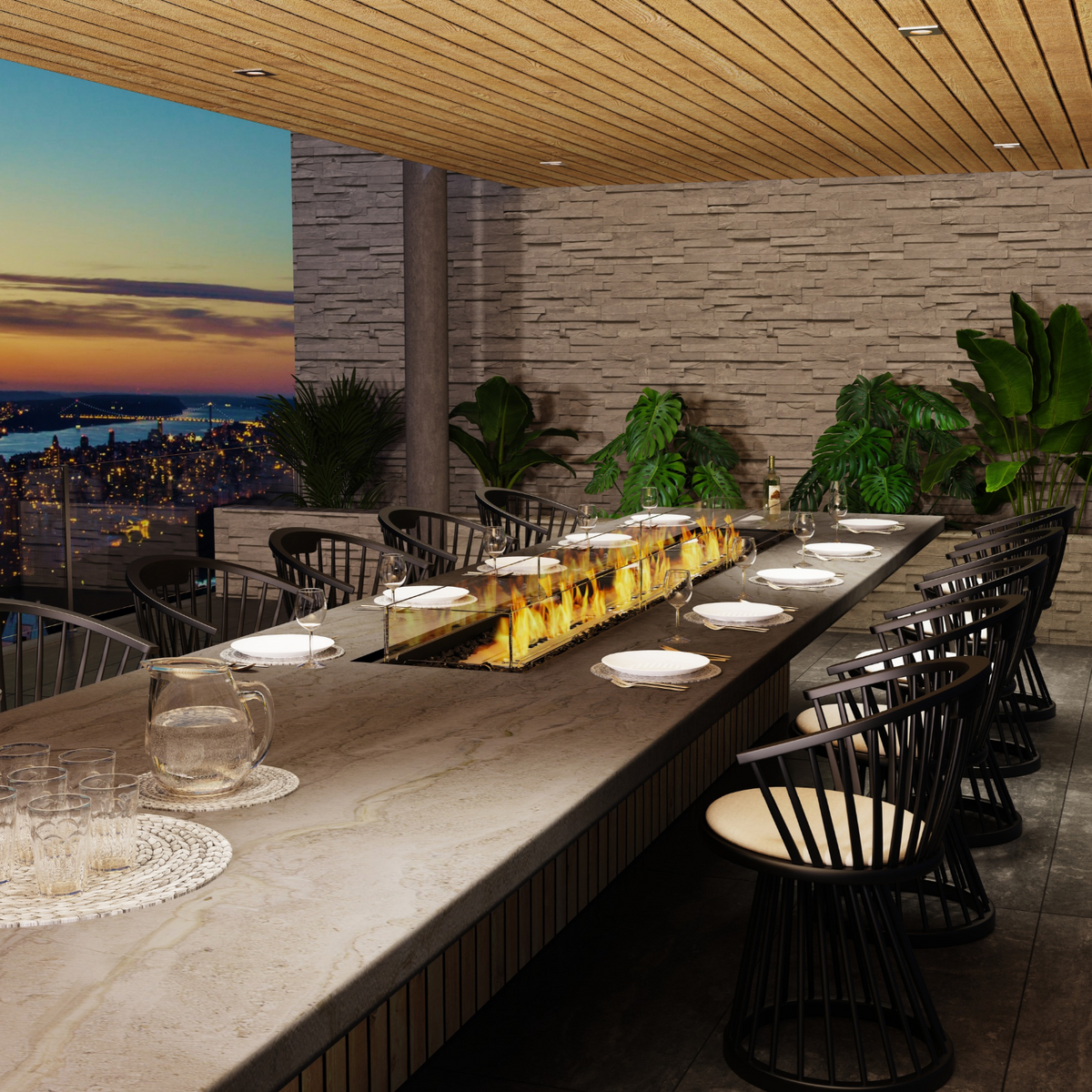

Its impressive length makes it particularly effective when integrated into a large dining table or benchtop. It can also be used as a room divider or design element within spacious residential and commercial environments.

💎 Quality Materials

The Linear 130 combines a stainless steel tray with a black high temperature coating and Grade 304 stainless steel burners. Toughened glass components and black glass charcoal provide a refined finish while complementing the dancing flames.

The black colour works effortlessly with contemporary architecture, outdoor furniture and modern landscaping, allowing the fire feature to remain visually striking without overpowering the surrounding design.

Safety

🛡️ Safety and Certification

The Linear 130 is designed to comply with applicable standards in the USA, Europe, UK and Australia.

The bioethanol burner configuration is O TL listed to UL 1370, EN 16647 and BSI certified, with compliance with the Australian ACCC Safety Mandate stated by the manufacturer.

Safety information:

• Bioethanol installations require additional components for indoor use.

• The minimum room volume for the three burner bioethanol configuration is 330 m³.

• Liquid propane and natural gas versions are designed for outdoor use only.

• Wood burning and gas products are designed for use outdoors in a well ventilated space.

• Never refuel a bioethanol burner while it is lit or hot.

• Allow all burners to cool completely before refuelling.

• Keep children, pets and combustible materials away from the flames.

• Gas configurations must be installed according to the manufacturer's requirements and applicable regulations.

• Ensure the required clearances and ventilation are maintained.

• Always follow the latest EcoSmart Fire installation, operating and safety instructions.

Specifications

📐 Dimensions and Technical Specifications

• Brand: EcoSmart Fire

• Product Name: Linear 130

• Product Type: Linear fire pit kit

• Model Colour: Black

• Burner Colours: Stainless steel or black

• Application with Bioethanol: Indoor or outdoor

• Application with Liquid Propane: Outdoor only

• Application with Natural Gas: Outdoor only

• Tray Material: Stainless steel with black high temperature coating

• Burner Material: Grade 304 stainless steel

• Optional Burner Finish: Black ceramic coating

• Decorative Media: Black glass charcoal

• Length: 3,375 mm (132.9 in)

• Width: 431 mm (17 in)

• Height: 158 mm (6.2 in)

• Product Weight: 79.82 kg (176 lb)

• Bioethanol Burner Configuration: XL900 x3

• Bioethanol Capacity: 27 litres (7.1 US gallons)

• Bioethanol Burn Time: Approximately 8 to 13 hours

• Bioethanol Fuel Consumption: Approximately 2.4 litres per hour at maximum

• Bioethanol Thermal Output: Approximately 45,000 BTU/h, 47.48 MJ/h, 13 kW

• Bioethanol Heating Area: Approximately 180 m² (1,938 ft²)

• Bioethanol Minimum Room Volume: 330 m³ (11,654 ft³)

• Liquid Propane Burner Configuration: G37T x3

• Natural Gas Burner Configuration: G37T x3

• Gas Thermal Output: Approximately 195,000 BTU/h, 205.74 MJ/h, 57 kW

• Liquid Propane Burn Time: Approximately 8 to 20 hours depending on tank

• Natural Gas Burn Time: Unlimited with a suitable gas supply

• Shipping Weight: Approximately 75.5 kg (166 lb)

• Packaging Length: 3,477 mm (136.9 in)

• Packaging Width: 533 mm (21 in)

• Packaging Height: 188 mm (7.4 in)

• Packaging Volume: 0.35 m³

• Packaging Type: Carton

Performance figures are indicative only and may vary according to the selected model, installation environment and fuel composition or supply.

Included

📦 What's Included

The listed bioethanol configuration includes:

• Linear 130 fire pit kit

• Three XL900 bioethanol burners

• Black glass charcoal decorative media

• XL baffles

• 5 litre Jerry Can

• Refillable fire lighter

• Lighting rod

• Bottle adaptor

• Three XL900 silicone burner covers

Optional accessories include:

• L130 Fire Screen

The exact contents may vary according to the selected fuel configuration. Please confirm the chosen configuration and included accessories before ordering.

Warranty

🔧 Warranty and Support

The EcoSmart Fire Linear 130 is designed for customers looking for an exceptional architectural fire feature that can define large residential, hospitality and commercial spaces.

Its impressive length, three burner configuration and choice of fuel options provide considerable flexibility for bespoke installations. For help selecting the right fuel configuration, accessories or installation approach, contact the Sal’s Place team before ordering.

Always consult the latest EcoSmart Fire installation and operating instructions before installation and use. Professional installation is recommended where required, particularly for gas configurations and bespoke architectural installations.

Delivery

🚚 Delivery Information

Standard delivery provides ground delivery to the easiest accessible point on your property. It does not include inside delivery, packaging removal or assembly.

Due to the substantial size and weight of the Linear 130, customers should ensure the delivery location provides suitable access for the selected freight service.

e NRG bioethanol may be shipped separately from the EcoSmart Fire order and can arrive on a different day. A separate tracking number will be provided for the fuel shipment.

FAQs

❓ Frequently Asked Questions

What makes the Linear 130 different from smaller Linear models?

The Linear 130 is the longest model in the Fire Pit Kit Series, measuring 3,375 mm in length. It uses three burners and is designed for spacious residential and commercial environments where a substantial fire feature is required.

Can the Linear 130 be used indoors?

The bioethanol configuration can be used indoors when all required components, ventilation, minimum room volume and installation requirements are met. Liquid propane and natural gas versions are designed for outdoor use only.

How many burners does the Linear 130 have?

The Linear 130 uses three XL900 burners for the bioethanol configuration or three G37T burners for liquid propane and natural gas configurations.

How long does the bioethanol configuration burn?

The three burner configuration has an indicative burn time of approximately 8 to 13 hours. Actual performance can vary according to operating conditions and fuel composition.

Does the Linear 130 produce smoke?

The bioethanol configuration creates a clean burning flame without the smoke, soot and ash associated with traditional wood burning fires.

Can the Linear 130 be integrated into a dining table?

Yes. Its long, linear design makes it suitable for integration into appropriate custom benchtops and dining tables using suitable non combustible materials. Installation must follow the manufacturer's specifications and required clearances.

Is the L130 Fire Screen included?

The L130 Fire Screen is an optional accessory. It can help reduce the impact of wind on the flame and may help reduce fuel consumption.

What size room is required for indoor bioethanol use?

The stated minimum room volume for the three burner configuration is 330 m³ (11,654 ft³). Indoor installation must also meet all applicable ventilation, clearance and manufacturer's requirements.
