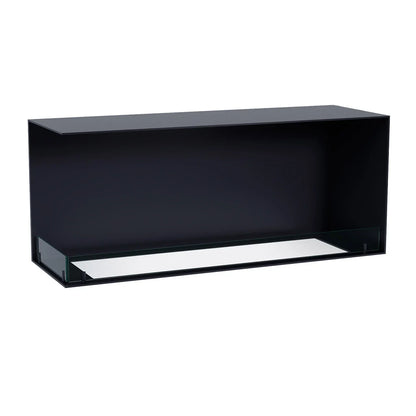

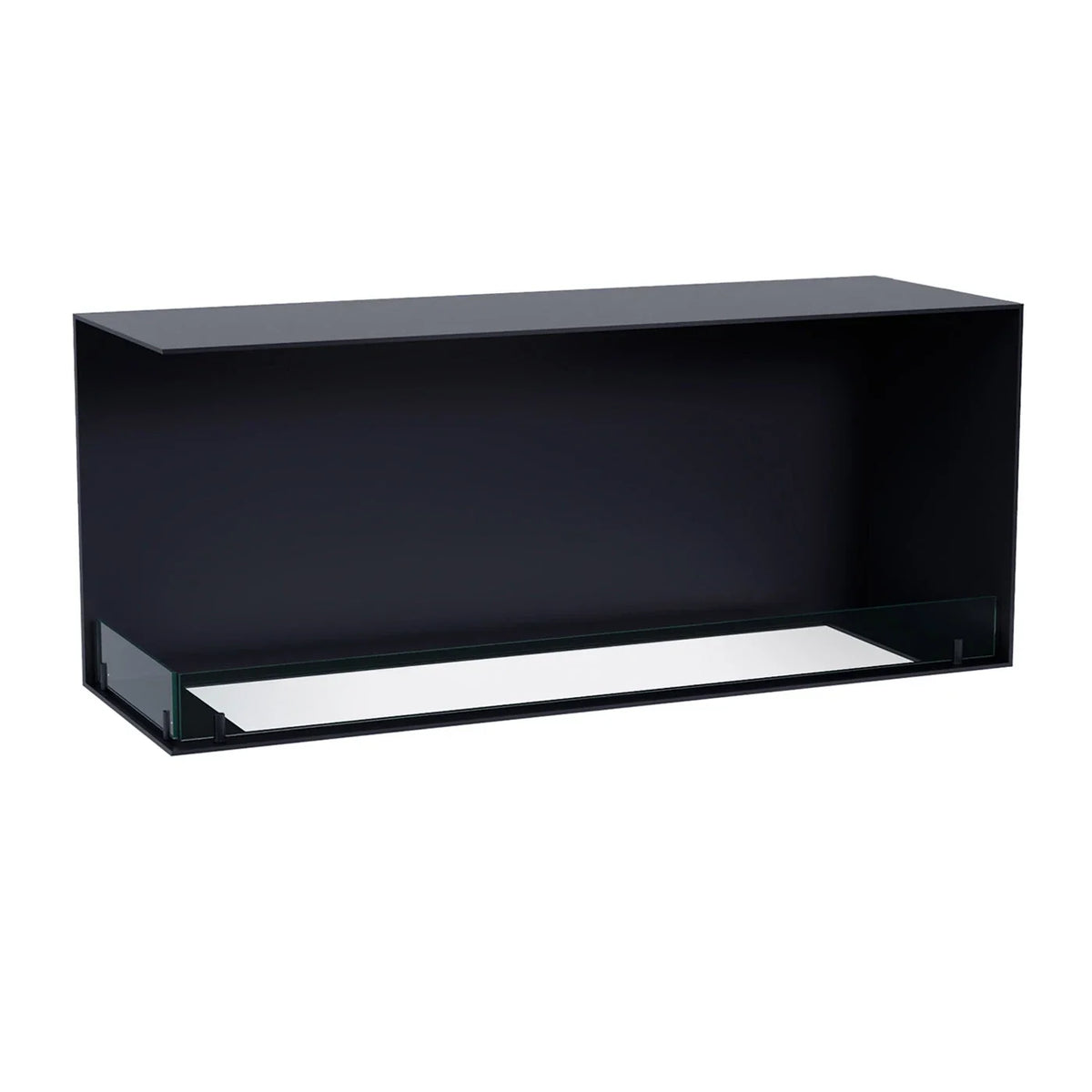

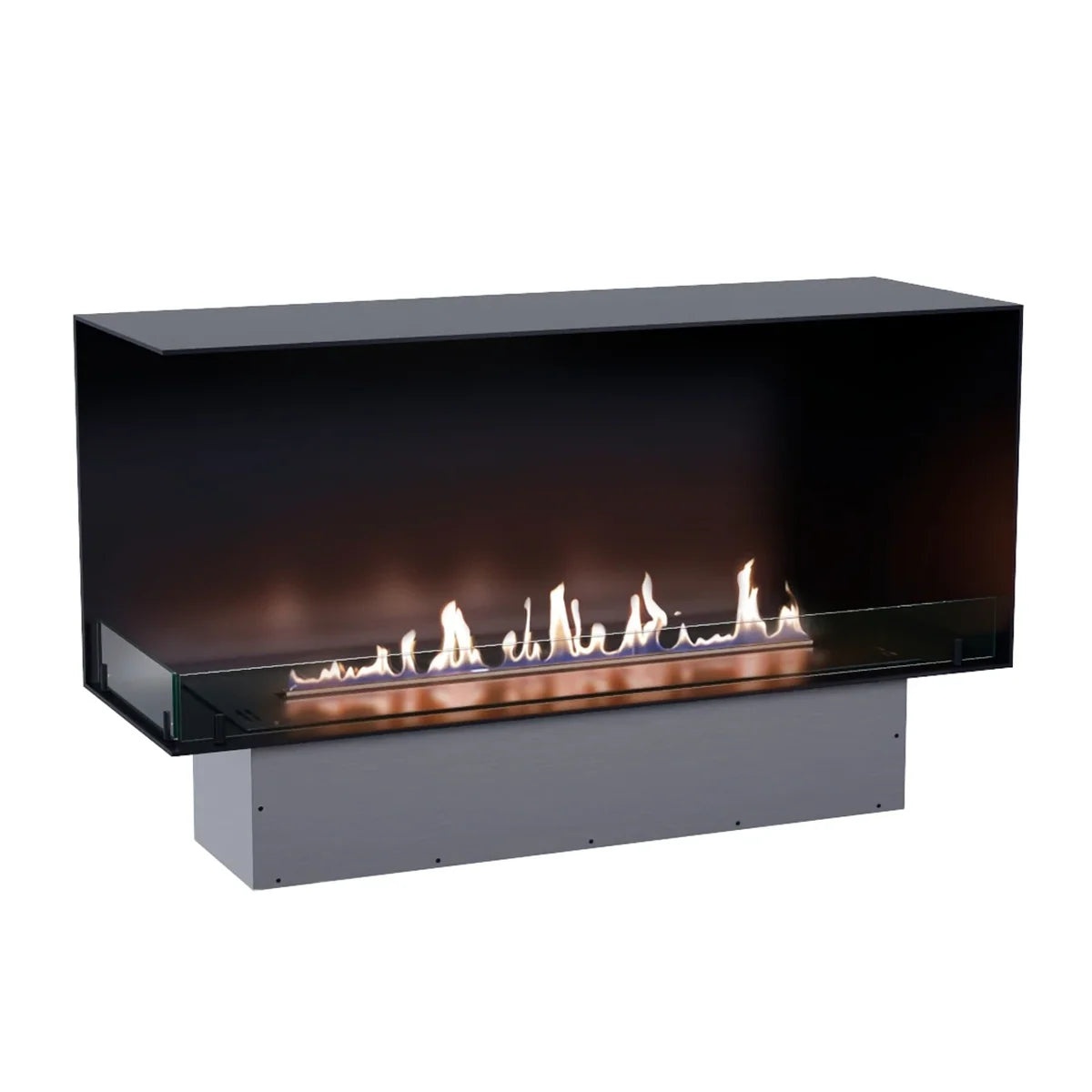

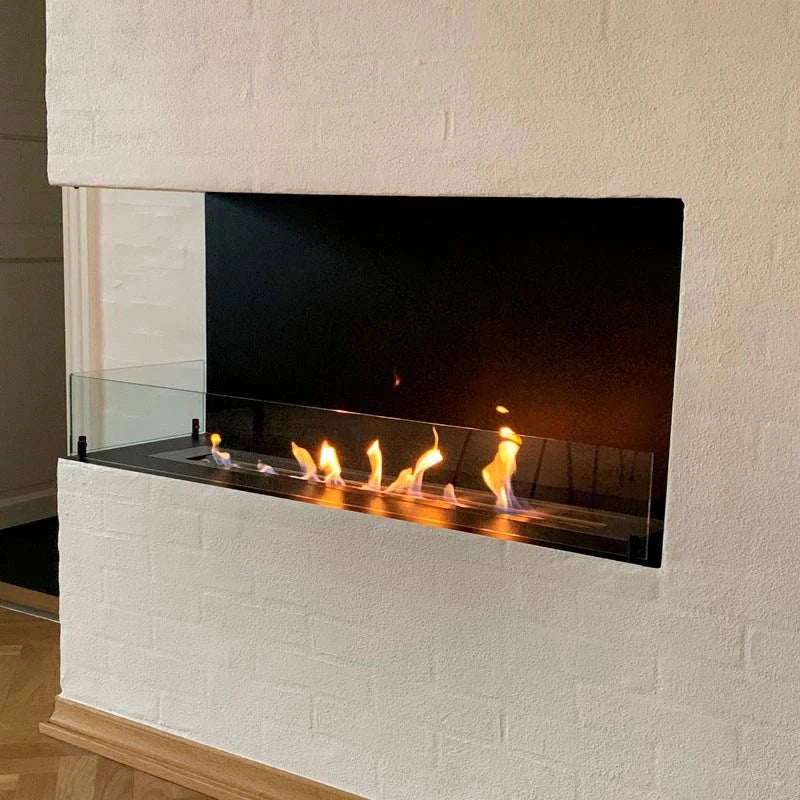

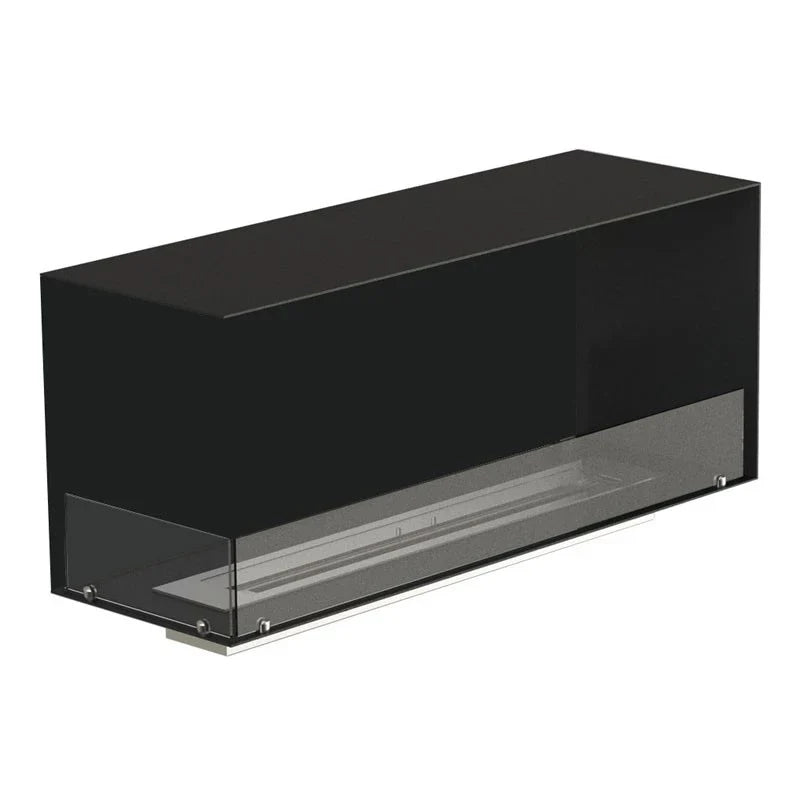

Foco Corner Left 1200 Manual Bioethanol Fireplace

Description

Foco Corner Left 1200 Manual Bioethanol Fireplace

Create a striking focal point in your home with the Foco Corner Left 1200, a contemporary built in bioethanol fireplace designed to showcase real flames from the front and left sides. With its generous 120 cm width, sleek black finish and minimalist frame, this fireplace brings a sophisticated touch to modern living rooms, open plan interiors and other suitable indoor spaces.

Designed for corner installation, the Foco Corner Left 1200 combines architectural style with the atmosphere of a real flame. It runs on bioethanol fuel and requires no traditional chimney or flue, giving you greater flexibility when planning your interior. This listing features the manual burner, offering straightforward flame adjustment without an electrical connection.

Bring Modern Elegance to Your Interior

With its wide flame display, two sided viewing design and sleek black finish, the Foco Corner Left 1200 offers an elegant way to introduce the atmosphere of a real flame into your home. The manual burner provides simple operation without electricity, while the built in corner design creates a clean, integrated finish.

Features

🔥 Key Features and Benefits

• Two sided flame view from the front and left sides

• 80 cm flame length for an impressive display

• Manual bioethanol burner with adjustable flames

• Manual burner heat output of up to 6.5 kW

• No chimney or flue required

• Durable 4 mm thick steel frame with black powder coating

• Two tempered glass panels included

• Suitable for rooms with a minimum volume of 90 m³

Contemporary Design and Quality Materials

The Foco Corner Left 1200 features a sturdy steel frame with a 4 mm thickness and a black powder coated finish. Its clean lines and corner configuration create a refined built in appearance, allowing the fireplace to complement a wide range of contemporary interiors.

The two included tempered glass panels help shield the flames from drafts and contribute to a more stable flame display. With its generous width and two sided viewing design, this fireplace makes an attractive feature in a carefully planned living space.

Manual Bioethanol Burner Performance

The manual burner has a stated maximum heat output of 6.5 kW and an approximate flame length of 80 cm. Its 5 litre fuel capacity provides a burn time of up to 6 hours, depending on the flame setting and operating conditions.

The flame can be adjusted manually to suit your preferred atmosphere. Since the manual burner does not require electricity, it offers simple operation without the need for a power connection.

Bioethanol fireplaces produce real flames and require adequate ventilation. Always follow the manufacturer's guidance for room size, installation, fuel handling and safe operation.

Specifications

📐 Technical Specifications

Brand: Foco Fires

Model: Foco Corner Left 1200

Fireplace type: Built in corner bioethanol fireplace

Burner type: Manual

Height: 50 cm

Width: 120 cm

Depth: 40 cm

Material: Steel

Finish: Black powder coating

Steel thickness: 4 mm

Maximum heat output: 6.5 kW for the manual burner

Flame length: Approximately 80 cm

Fuel type: Bioethanol

Fuel capacity: 5 litres

Fuel consumption: 0.87 litres per hour

Burn time: Up to 6 hours

Flame adjustment: Manual

Flue or chimney required: No

Minimum room volume: 90 m³

Electricity required: No

Glass panels included: Yes

Warranty: 2 years

Packaged depth: 54.5 cm

Packaged weight: 71 kg

Included

📦 What's Included?

• One manual bioethanol burner

• Foco Corner Left 1200 frame supplied in four parts

• Screws and nuts for assembly

• Two tempered glass panels, 10 cm high

• Four glass holders

Please note: This listing includes the manual burner only. Automatic burners, remote controls, mobile app controls and optional accessories are not included.

Safety

Installation and Safety

The Foco Corner Left 1200 does not require a chimney or flue, but it must be installed in accordance with the manufacturer's instructions. If it is installed in or against a combustible wall, suitable heat insulation and fire protection must be provided. Use appropriate fire resistant materials where required and ensure all specified clearances are maintained.

Before installation, confirm that the room meets the minimum volume requirement and provides adequate ventilation. Keep combustible materials at a safe distance from the flames. Never refill the burner while it is lit or hot, and allow it to cool completely before refilling. Always follow the supplied safety instructions.

FAQs

Frequently Asked Questions

1. Does the Foco Corner Left 1200 require a chimney or flue?

No, it does not require a traditional chimney or flue. Adequate ventilation and correct installation are still essential.

2. Is this listing for a manual or automatic burner?

This listing is for the manual burner configuration. Automatic burners, remote controls, mobile app controls and optional accessories are not included.

3. What is the heat output of the manual burner?

The manual burner has a stated maximum heat output of 6.5 kW. Actual output varies with the flame setting and operating conditions.

4. How long does the burner burn for?

The manual burner has a 5 litre fuel capacity and a stated burn time of up to 6 hours. Actual burn time depends on the flame setting and conditions of use.

5. Can I adjust the flame?

Yes, the manual burner allows you to adjust the flame by hand.

6. Does the manual burner require electricity?

No, the manual burner operates without an electrical connection.

7. What is the minimum room size for this fireplace?

The stated minimum room volume is 90 m³. Always follow the manufacturer's ventilation and installation requirements.

8. Are the glass panels included?

Yes, the package includes two tempered glass panels, four glass holders and the hardware needed to assemble the fireplace frame.

9. Can the fireplace be installed in a combustible wall?

Suitable heat insulation and fire protection are required where applicable. Follow the manufacturer's installation instructions and clearance requirements before installation.

10. What warranty is included?

The Foco Corner Left 1200 comes with a 2 year warranty.
