Foco Four 1000 Four Sided Built In Bioethanol Fireplace

Description

Foco Four 1000 Four Sided Built In Bioethanol Fireplace 🔥

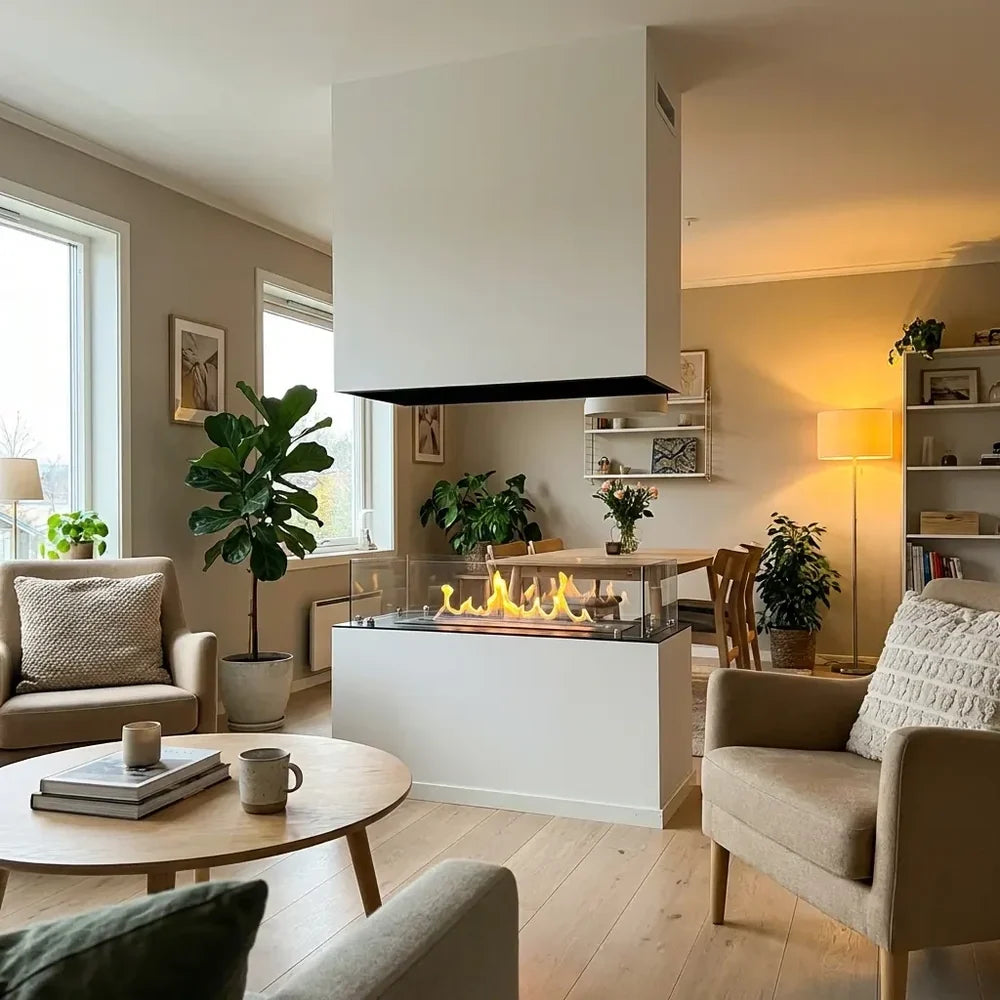

Create an impressive centrepiece in your home with the Foco Four 1000 bioethanol fireplace. Designed to showcase real flames from all four sides, this built in fireplace brings a contemporary touch to living rooms, open plan spaces and modern interiors. Its distinctive design is ideal for installation beneath a floating wall or a raised media wall, allowing the flames to become a striking feature in your space.

Measuring 100 cm wide and 40 cm deep, the Foco Four 1000 combines minimalist styling with a choice of manual and automatic bioethanol burners. As it does not require a traditional chimney or flue, it offers flexibility when planning a built in fireplace installation.

Features

✨ Sleek Design and Quality Materials

The Foco Four 1000 features a frame made from 4 mm thick steel with a black powder coated finish. Its clean lines and understated appearance complement a wide range of contemporary interiors.

Four tempered glass panels are included, one for each side of the fireplace. They help shield the flames from draughts and minor air movements while allowing you to enjoy the fire from different angles. The panels are 10 cm high and are secured using eight glass holders.

The frame is supplied in two parts, making it suitable for integration into a carefully planned built in installation.

🔥 Choose Your Bioethanol Burner

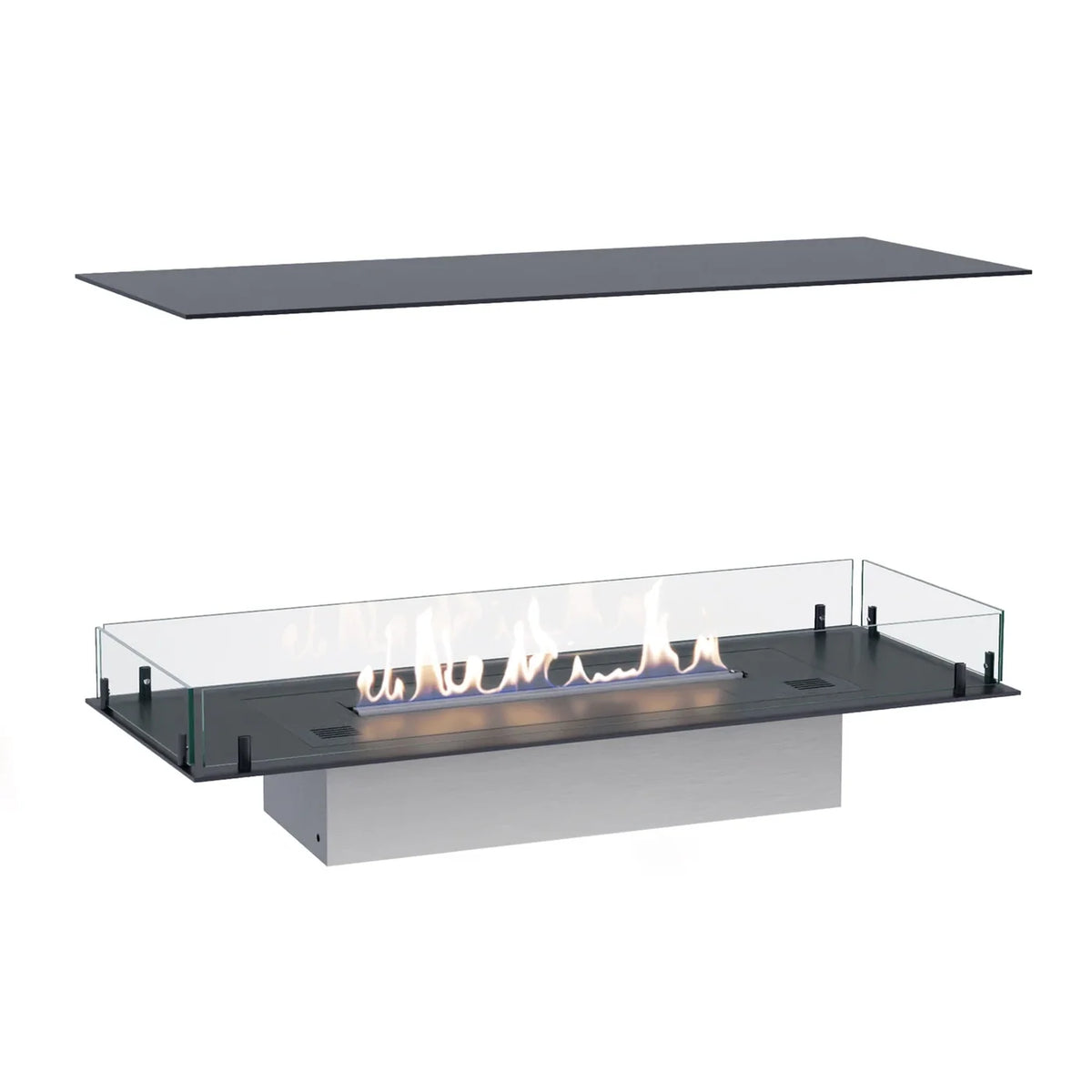

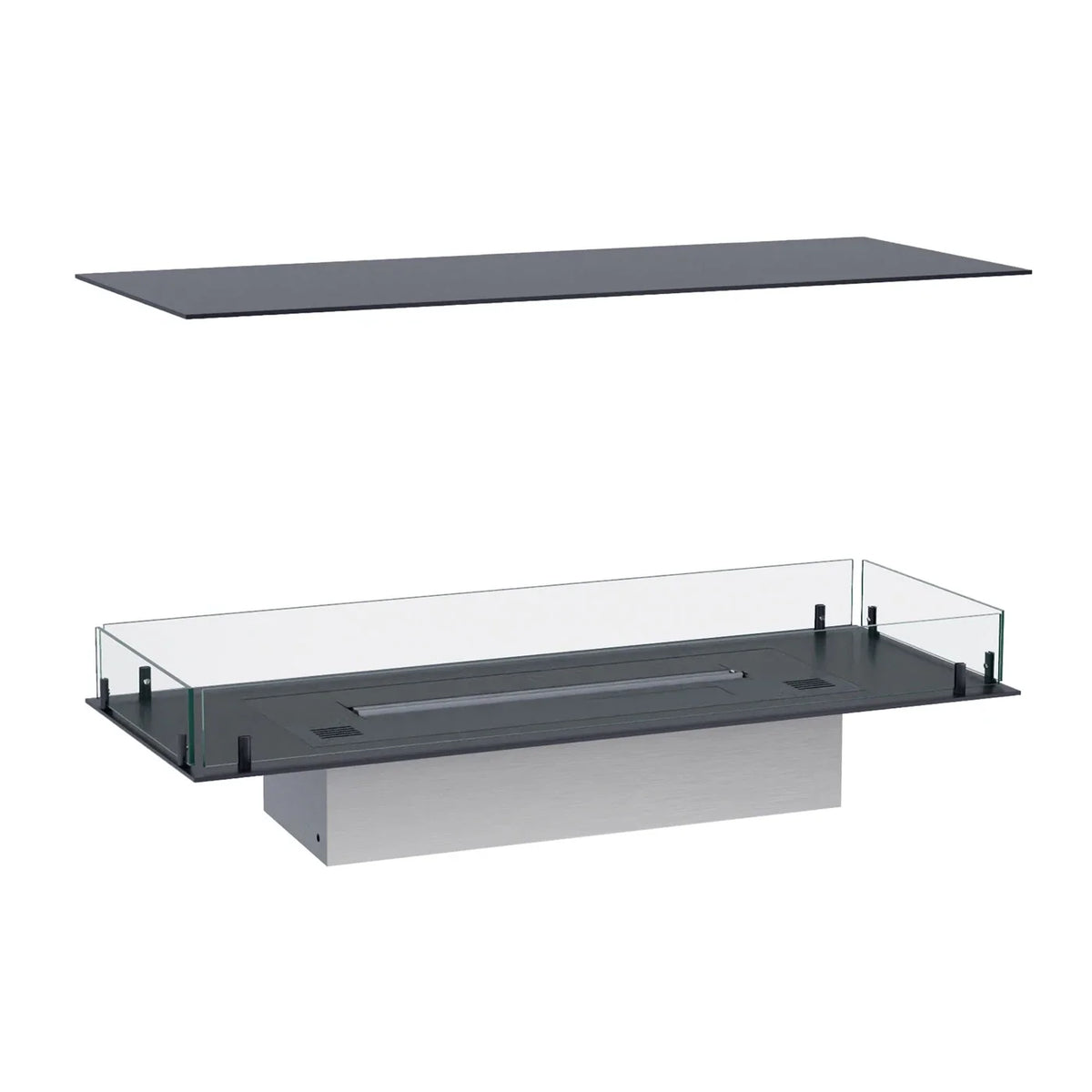

The Foco Four 1000 can be configured with a manual burner or a compatible automatic Planika burner. Each option offers different levels of convenience, fuel capacity and flame control.

Manual Bioethanol Burner

The manual burner is ideal if you prefer straightforward operation without an electrical connection. It has a 4 litre fuel capacity, a flame length of approximately 60 cm and a stated burn time of up to 6.5 hours per filling.

The supplied burner table lists heat output between 2.4 and 4.4 kW, with fuel consumption of approximately 0.62 litres per hour. The flame can be adjusted manually according to the burner's instructions.

Manual burners do not require electricity, remote controls or mobile app operation.

Automatic Planika Burners

For additional convenience, you can choose from compatible automatic burners, including the Planika Prime Fire 2.0 790, Planika FLA4 790 and Planika FLA4+ 790.

Depending on the model, these burners offer remote control, mobile app operation and adjustable flame levels. The Prime Fire 2.0 has three flame levels, while the FLA4 and FLA4+ offer six.

The FLA4 has a stated fuel capacity of 4.3 litres and a burn time of up to 8 hours. The FLA4+ has a larger 13.4 litre capacity and a stated burn time of up to 25 hours. Automatic burners require electricity, and Smart Home integration requires an additional Planika Smart Home module.

Remote controls, app features and accessories depend on the selected burner package.

🏡 Built In Installation and Media Wall Design

The Foco Four 1000 does not require a traditional flue or chimney. It is designed for indoor use and has a stated minimum room volume requirement of 80 m³.

Its four sided flame display makes it suitable for a feature installation beneath a floating wall or within a suitable enclosure. If you plan to position a television above the fireplace, check the manufacturer's recommended clearances and heat protection requirements before designing your media wall.

The surrounding structure must be suitable for the heat produced. Where combustible materials are present, use approved non combustible construction and insulation in accordance with the installation instructions. Ensure the room meets the required ventilation and minimum room volume specifications.

Always follow the instructions supplied with your selected burner. Use only suitable bioethanol fuel, never refill a burning or hot burner, and allow it to cool completely before refuelling. Never leave a lit fireplace unattended.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Four 1000

• Fireplace type: Four sided built in bioethanol fireplace

• Flame view: All four sides

• Installation: Indoor, built in

• Fuel type: Bioethanol

• Burner options: Manual or compatible automatic Planika burner

• Manual burner capacity: 4 litres

• Manual burner flame length: 60 cm

• Manual burner heat output: Listed as 2.4 to 4.4 kW

• Manual burner fuel consumption: Approximately 0.62 litres per hour

• Manual burner burn time: Up to 6.5 hours

• Automatic burner options: Planika Prime Fire 2.0 790, Planika FLA4 790 or Planika FLA4+ 790

• Automatic burner heat output: Listed as 2.2 to 4.4 kW

• Automatic burner flame length: 50 cm for Prime Fire 2.0; 59 cm for FLA4 and FLA4+

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Width: 100 cm

• Depth: 40 cm

• Minimum room volume: 80 m³

• Flue or chimney required: No

• Electrical connection: Not required for the manual burner; required for automatic burners

• Remote control: Depends on selected burner and package

• Mobile app control: Available with compatible automatic burners

• Glass: Four tempered glass panels included

• Glass panel height: 10 cm

• Packaging depth: 44.5 cm

• Packaged weight: 41.5 kg

• Warranty: 2 years

Included

📦 What’s Included?

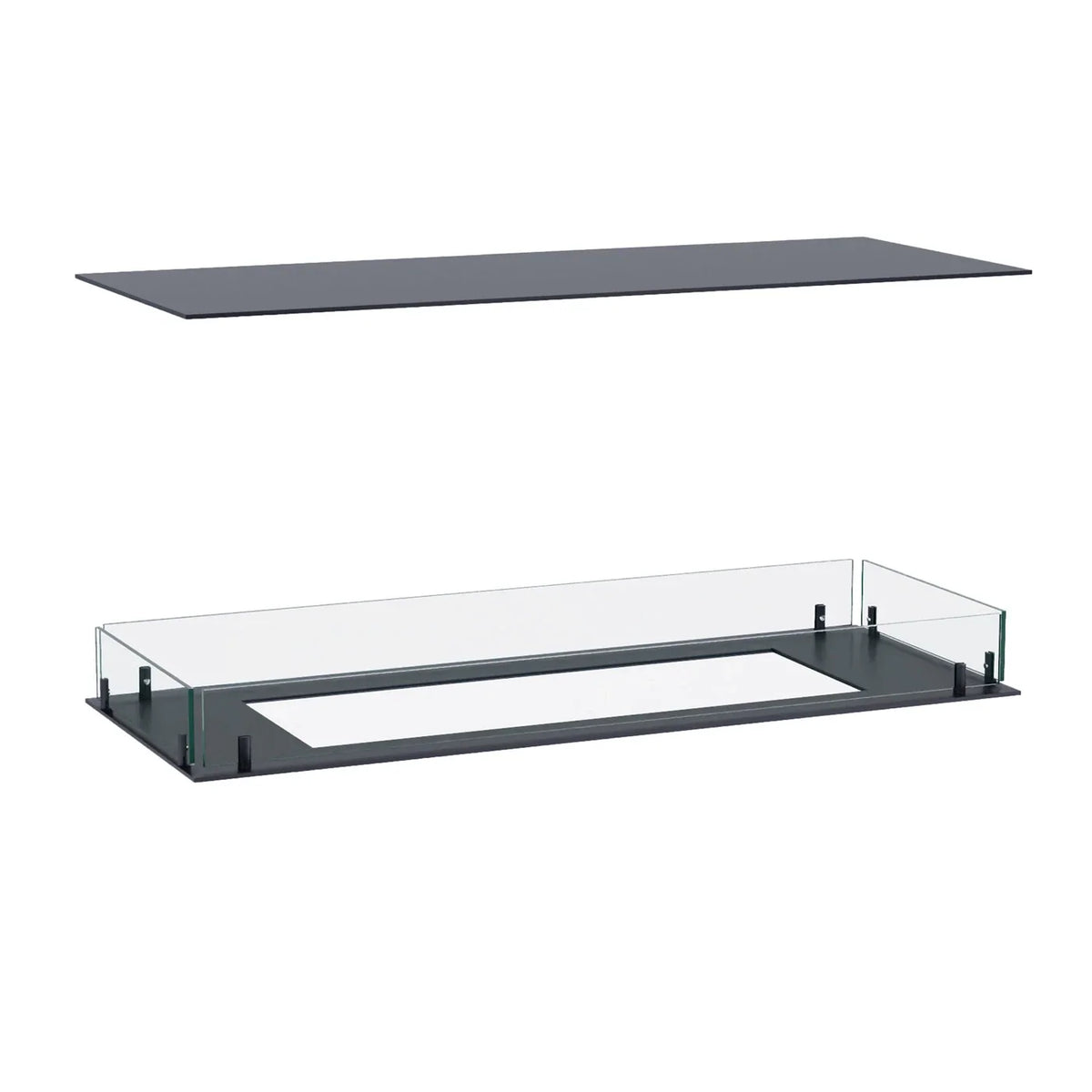

• Foco Four 1000 fireplace frame in two parts, top and bottom

• Selected bioethanol burner, according to the configuration purchased

• Four tempered glass panels, each 10 cm high

• Eight glass holders

Important: The manual configuration includes a MANUAL bioethanol burner, operated by hand. An automatic burner, remote control and Smart Home controls are not included with the manual version. Automatic burner features and accessories depend on the model selected and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Four 1000 comes with a 2 year warranty. Before installation, review the manufacturer's instructions for your selected burner and the surrounding enclosure. If you are unsure about clearances, ventilation, heat insulation or electrical requirements, consult a qualified installer.

Choose the Foco Four 1000 for a contemporary built in fireplace with a four sided flame display, refined black finish and a choice of manual or automatic operation.

FAQs

❓ Frequently Asked Questions

Can I view the flames from all four sides?

Yes. The Foco Four 1000 is designed to provide a view of the flames from all four sides, making it a distinctive feature for contemporary interiors.

Does it need a chimney or flue?

No. A traditional chimney or flue is not required. The installation must still meet the manufacturer's requirements for ventilation, room volume and clearances.

What is the minimum room size?

The stated minimum room volume is 80 m³. Check that your room meets this requirement before installing or operating the fireplace.

Can I choose between manual and automatic operation?

Yes. The Foco Four 1000 is compatible with a manual burner and selected automatic Planika models. Fuel capacity, burn time, heat output and controls vary by burner.

Can I control the fireplace with my phone?

Compatible automatic Planika burners support mobile app control. Smart Home integration requires a separately purchased Planika Smart Home module. The manual burner does not offer electronic control.

Can I install it beneath a television?

This may be possible if the installation meets the manufacturer's clearance and heat protection requirements. Confirm the required distance and whether additional heat protection is needed before installing a television above the fireplace.

Does it come with a warranty?

Yes. The Foco Four 1000 has a stated 2 year warranty. Refer to the applicable warranty terms for details.
