Foco Four 1200 Four Sided Built In Bioethanol Fireplace

Description

Foco Four 1200 Four Sided Built In Bioethanol Fireplace 🔥

Make a statement in your home with the Foco Four 1200 bioethanol fireplace. Designed to display real flames from all four sides, this impressive built in fireplace creates a striking focal point in contemporary living rooms, open plan spaces and modern interiors. Its central design is particularly suited to installation beneath a floating wall or raised media wall, allowing the flames to be enjoyed from different parts of the room.

Measuring 120 cm wide and 40 cm deep, the Foco Four 1200 combines minimalist styling with a choice of manual and automatic bioethanol burners. With no traditional chimney or flue required, it offers flexibility when planning your fireplace feature.

Features

✨ Sleek Design and Quality Materials

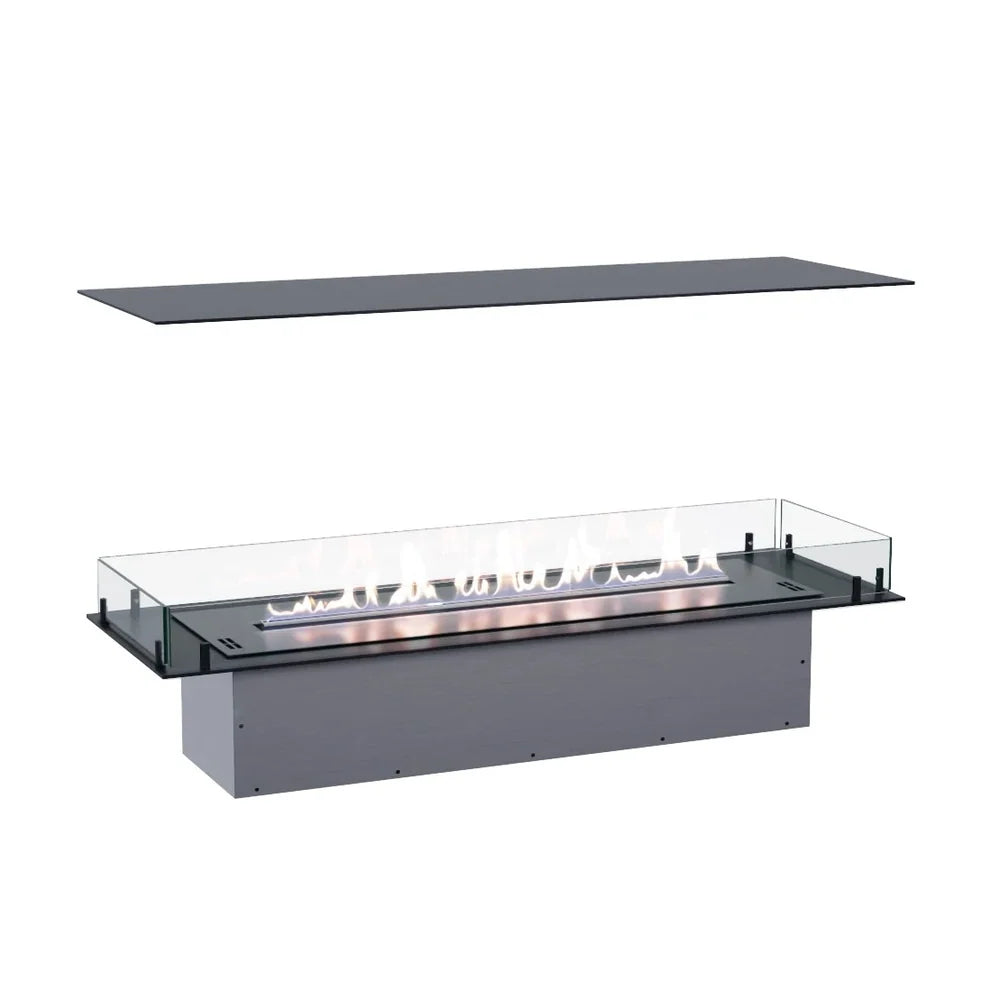

The Foco Four 1200 features a frame made from 4 mm thick steel with a black powder coated finish. Its clean, understated design complements a range of interior styles while keeping the flames at the centre of attention.

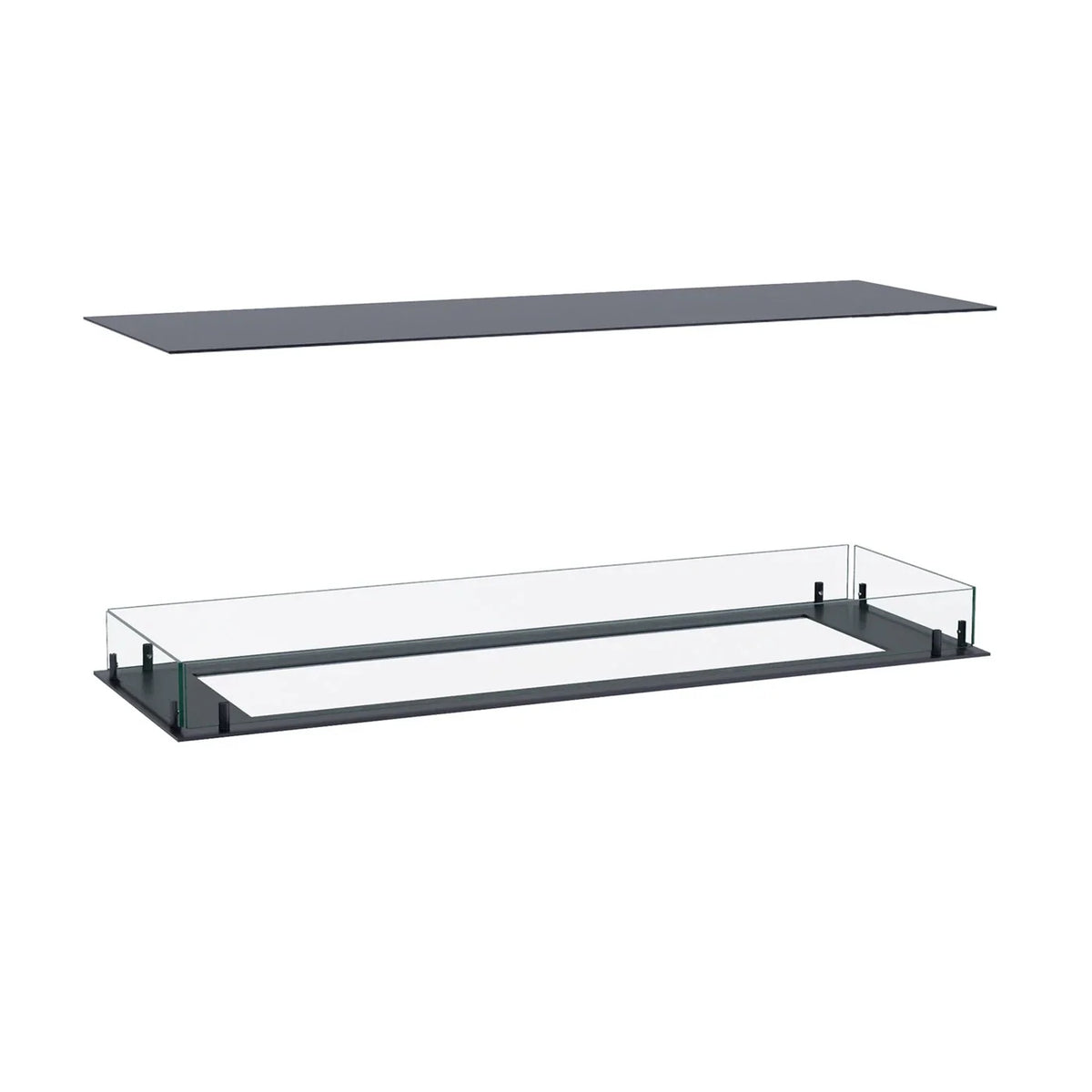

Four tempered glass panels are included to help shield the flames from draughts and minor air movements while maintaining a clear view from every side. The panels are 10 cm high and are held in place by glass holders.

The frame is supplied in two parts, making it suitable for integration into a carefully planned built in installation.

🔥 Choose Your Bioethanol Burner

The Foco Four 1200 is compatible with manual and automatic bioethanol burners, giving you flexibility over operation, flame control and burn time.

Manual Bioethanol Burner

The manual burner is ideal if you prefer straightforward operation without an electrical connection. It has a 5 litre fuel capacity, a flame length of approximately 80 cm and a stated burn time of up to 6 hours per filling.

The supplied burner table lists heat output between 3.3 and 6.5 kW, while the general product specifications state a maximum heat output of 6.2 kW. Fuel consumption is listed as approximately 0.87 litres per hour. Please confirm the precise heat output with the supplier before publishing.

The flame can be adjusted manually according to the burner's instructions. Manual operation does not require electricity, remote controls or mobile app controls.

Automatic Planika Burners

For added convenience, you can choose from compatible automatic models, including the Planika Prime Fire 2.0 990, Planika FLA4 990 and Planika FLA4+ 990.

Depending on the selected model, features include remote control, mobile app operation and adjustable flame levels. The Prime Fire 2.0 offers three flame levels, while the FLA4 and FLA4+ offer six.

The Prime Fire 2.0 and FLA4 each have a stated fuel capacity of 5.5 litres. The Prime Fire 2.0 has a listed burn time of up to 10 hours, while the FLA4 is listed at up to 8 hours. The FLA4+ has a larger 17.2 litre capacity and a stated burn time of up to 26 hours.

Automatic burners require electricity. Smart Home integration is available for compatible Planika models but requires a separately purchased Planika Smart Home module. Controls and accessories depend on the chosen burner package.

🏡 Built In Installation and Media Wall Design

The Foco Four 1200 does not require a traditional chimney or flue. It is designed for indoor use and has a stated minimum room volume requirement of 90 m³.

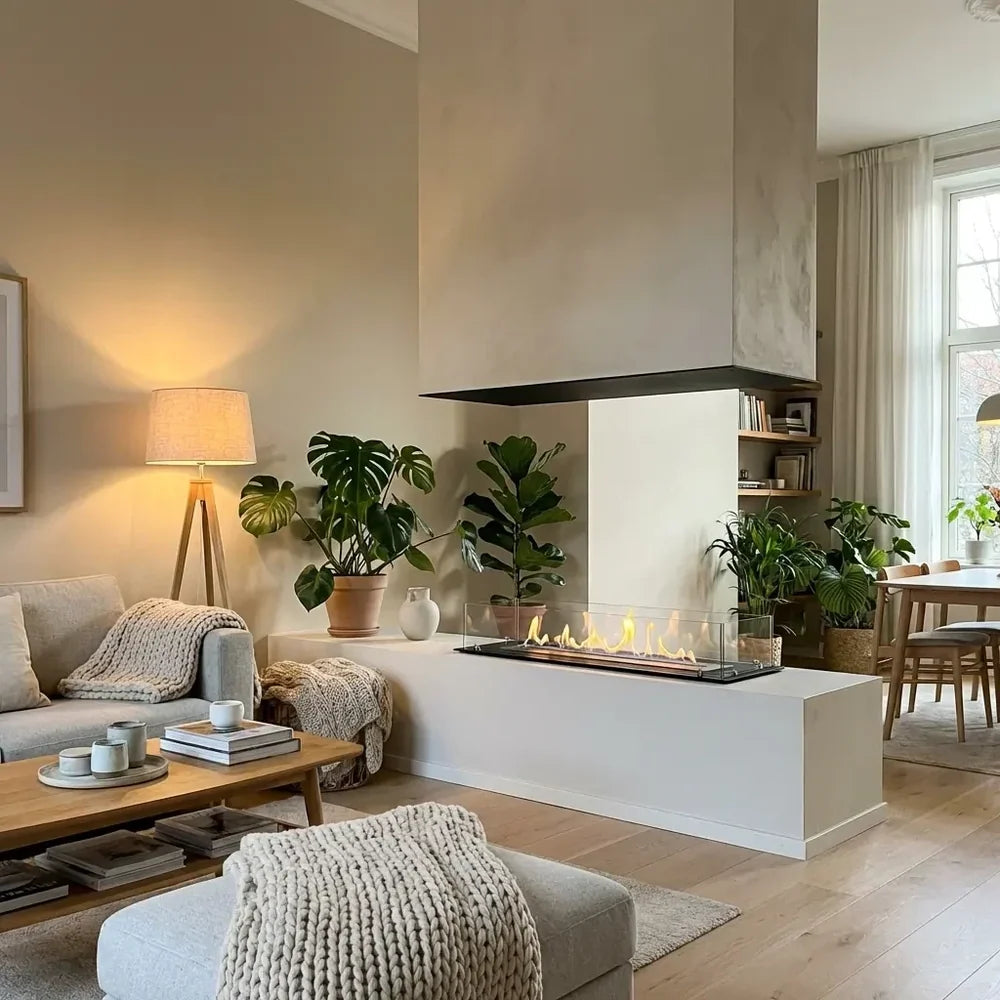

Its four sided design makes it suitable for a central fireplace feature or an installation beneath a floating wall. If you plan to position a television above the fireplace, check the manufacturer's required clearances and heat protection measures before designing your media wall.

The surrounding enclosure must be suitable for the heat produced. Where combustible materials are present, use approved non combustible construction and insulation in accordance with the installation instructions. Ensure the room has suitable ventilation and meets the minimum room volume requirement.

Always follow the instructions for your selected burner. Use only suitable bioethanol fuel, never refill a lit or hot burner, and allow it to cool completely before refuelling. Never leave a lit fireplace unattended.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Four 1200

• Fireplace type: Four sided built in bioethanol fireplace

• Flame view: All four sides

• Installation: Indoor, built in

• Fuel type: Bioethanol

• Burner options: Manual or compatible automatic Planika burner

• Manual burner capacity: 5 litres

• Manual burner flame length: Approximately 80 cm

• Manual burner heat output: Listed as 3.3 to 6.5 kW in the burner table; general specification lists 6.2 kW maximum

• Manual burner fuel consumption: Approximately 0.87 litres per hour

• Manual burner burn time: Up to 6 hours

• Automatic burner options: Planika Prime Fire 2.0 990, Planika FLA4 990 or Planika FLA4+ 990

• Automatic burner heat output: Listed as 4.6 to 7.0 kW

• Automatic burner flame length: 79 cm

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Width: 120 cm

• Depth: 40 cm

• Minimum room volume: 90 m³

• Flue or chimney required: No

• Electrical connection: Not required for the manual burner; required for automatic burners

• Remote control: Depends on selected burner and package

• Mobile app control: Available with compatible automatic burners

• Glass: Four tempered glass panels included

• Packaging depth: 44.5 cm

• Packaged weight: 34 kg

• Warranty: 2 years

Included

📦 What’s Included?

• Foco Four 1200 fireplace frame in two parts, top and bottom

• Selected bioethanol burner, according to the configuration purchased

• Four tempered glass panels, each 10 cm high

• Glass holders

Important: The manual configuration includes a MANUAL bioethanol burner, operated by hand. An automatic burner, remote control and Smart Home controls are not included with the manual version. Automatic burner features and accessories depend on the model selected and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Four 1200 comes with a 2 year warranty. Before installation, review the manufacturer's instructions for your selected burner and the surrounding enclosure. If you are unsure about clearances, ventilation, heat insulation or electrical requirements, consult a qualified installer.

Choose the Foco Four 1200 for a contemporary built in fireplace with a four sided flame display, a sleek black finish and flexible burner options.

FAQs

❓ Frequently Asked Questions

Can I see the flames from all four sides?

Yes. The Foco Four 1200 is designed to display the flames from all four sides, making it an eye catching feature for contemporary interiors.

Does it require a chimney or flue?

No. A traditional chimney or flue is not required. You must still meet the manufacturer's ventilation, room volume and installation requirements.

What is the minimum room size?

The stated minimum room volume is 90 m³. Check that your room meets this requirement before installation and use.

Can I choose manual or automatic operation?

Yes. The fireplace is compatible with a manual burner and selected automatic Planika models. Fuel capacity, burn time, heat output and control features vary by burner.

Can I control the fireplace with my phone?

Compatible automatic Planika burners support mobile app control. Smart Home integration requires an additional Planika Smart Home module. The manual burner is operated by hand.

Can I install it beneath a television?

This may be possible if the installation meets the manufacturer's clearance and heat protection requirements. Confirm the required distance and whether additional heat protection is needed before installing a television above the fireplace.

Does it come with a warranty?

Yes. The Foco Four 1200 has a stated 2 year warranty. Refer to the applicable warranty terms for details.
