Foco Four 800 Four Sided Built In Bioethanol Fireplace

Description

Foco Four 800 Four Sided Built In Bioethanol Fireplace 🔥

Bring a striking centrepiece to your home with the Foco Four 800 bioethanol fireplace. Designed to showcase real flames from all four sides, this compact built in fireplace creates an eye catching feature in modern living rooms, open plan spaces and contemporary interiors. Its open design makes it particularly suited to installation beneath a floating wall or a raised media wall, allowing the flames to be admired from different angles.

Measuring 80 cm wide and 40 cm deep, the Foco Four 800 combines a minimalist appearance with a choice of manual and automatic bioethanol burners. With no traditional chimney or flue required, it offers flexibility when planning a built in fireplace feature.

Features

✨ Modern Design and Quality Materials

The Foco Four 800 features a frame made from 4 mm thick steel with a black powder coated finish. Its understated design complements a range of interior styles while keeping the flames as the main attraction.

Four tempered glass panels are included, one for each side of the fireplace. They help shield the flames from draughts and minor air movements while maintaining a clear view of the fire. The panels are supported by eight glass holders and can be removed if permitted by the manufacturer's installation and operating instructions.

The frame is supplied in two parts, making it suitable for integration into a carefully planned built in installation.

🔥 Choose Your Bioethanol Burner

The Foco Four 800 is compatible with several burner options, allowing you to choose between straightforward manual operation and the convenience of electronic controls.

Manual Bioethanol Burner

The manual burner is a good option if you prefer simple operation without an electrical connection. It has a 3.5 litre fuel capacity, a flame width of approximately 45 cm and a stated burn time of up to 7.5 hours per filling.

The supplied burner specifications list heat output of approximately 1.6 to 3.3 kW and fuel consumption of around 0.46 litres per hour. The flame can be adjusted manually in accordance with the burner's instructions.

Manual burners do not require electricity, remote controls or mobile app operation.

Automatic and Remote Controlled Burners

For added convenience, you can choose from compatible automatic options, including the Planika BEV Burner 700, Prime Fire 2.0 590, FLA4 590 and FLA4+ 590.

Depending on the selected model, features may include remote control, mobile app operation and multiple flame levels. The Prime Fire 2.0 offers three flame levels, while the FLA4 and FLA4+ offer six. The Planika FLA4+ has a larger 9.6 litre fuel capacity and a stated burn time of up to 16 hours.

Automatic burners require electricity. Remote controls and smart home features depend on the chosen model and package. Smart Home integration for compatible Planika burners requires a separately purchased Planika Smart Home module.

🏡 Built In Installation and Media Wall Design

The Foco Four 800 does not require a traditional chimney or flue. It is designed for indoor use and has a stated minimum room volume requirement of 70 m³.

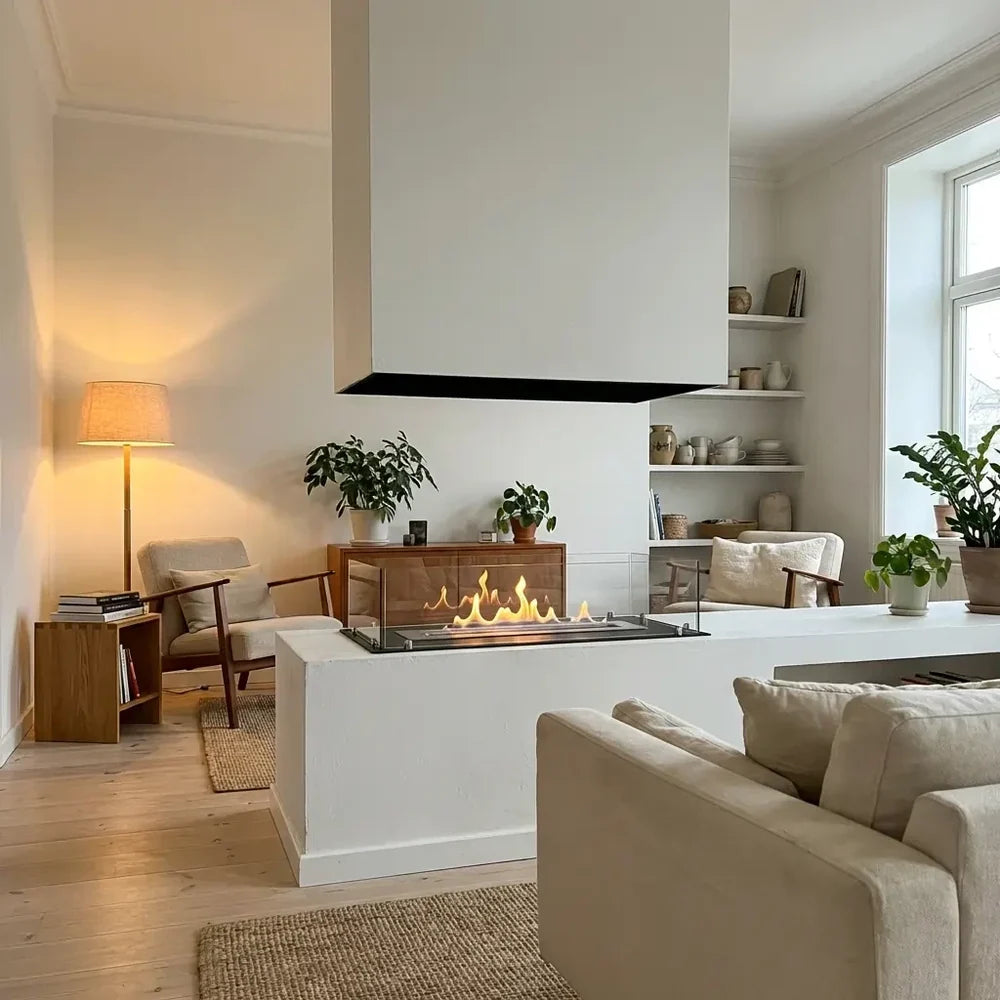

Its four sided design makes it suitable for a freestanding visual feature within an appropriate enclosure or for installation beneath a floating wall. If positioning a television above the fireplace, check the manufacturer's specified clearances and heat protection requirements before planning the installation.

The enclosure and surrounding materials must be suitable for the heat produced. Where combustible materials are present, use approved non combustible construction and insulation in accordance with the installation instructions. Ensure the room has the required ventilation and meets the minimum room volume.

Always follow the instructions for your selected burner. Use only suitable bioethanol fuel, never refill a lit or hot burner, and allow it to cool completely before refuelling. Never leave a lit fireplace unattended.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Four 800

• Fireplace type: Four sided built in bioethanol fireplace

• Flame view: All four sides

• Installation: Indoor, built in

• Fuel type: Bioethanol

• Burner options: Manual or compatible automatic burner

• Manual burner fuel capacity: 3.5 litres

• Manual burner flame width: Approximately 45 cm

• Manual burner heat output: Listed as 1.6 to 3.3 kW

• Manual burner fuel consumption: Approximately 0.46 litres per hour

• Manual burner burn time: Up to 7.5 hours

• Automatic burner options: Planika BEV Burner 700, Prime Fire 2.0 590, FLA4 590 or FLA4+ 590

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Width: 80 cm

• Depth: 40 cm

• Minimum room volume: 70 m³

• Flue or chimney required: No

• Electrical connection: Not required for the manual burner; required for automatic burners

• Remote control: Depends on selected burner; may require an additional purchase

• Mobile app control: Available with compatible automatic burners

• Glass: Four tempered glass panels included

• Packaging depth: 44.5 cm

• Packaged weight: 21 kg

• Warranty: 2 years

Included

📦 What’s Included?

• Foco Four 800 fireplace frame in two parts, top and bottom

• Selected bioethanol burner, according to the configuration purchased

• Four tempered glass panels, each 10 cm high

• Eight glass holders

Important: The manual configuration includes a MANUAL bioethanol burner, which is operated by hand. An automatic burner, remote control and Smart Home controls are not included with the manual version. Automatic burner features and accessories depend on the model selected and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Four 800 comes with a 2 year warranty. Before installation, review the manufacturer's instructions for your chosen burner and the surrounding enclosure. If you are unsure about clearances, ventilation, heat insulation or electrical requirements, consult a qualified installer.

Choose the Foco Four 800 for a contemporary built in fireplace that combines a four sided flame display, a sleek black finish and flexible burner options.

FAQs

❓ Frequently Asked Questions

Can I see the flames from every side?

Yes. The Foco Four 800 is designed to provide a view of the flames from all four sides, making it a distinctive feature for modern interiors.

Does the fireplace need a chimney?

No. A traditional flue or chimney is not required. You must still meet the manufacturer's requirements for ventilation, room volume and installation clearances.

What is the minimum room size?

The stated minimum room volume is 70 m³. Confirm that your room meets this requirement before installing or using the fireplace.

Is the burner manual or automatic?

You can choose a manual burner or a compatible automatic model. Fuel capacity, heat output, burn time and controls vary according to the burner selected.

Can I use a remote control?

Remote control is available with compatible burner options. The manual burner is operated by hand, and remote control is not included with the manual configuration.

Can I install it below a television?

This may be possible if the installation meets the manufacturer's clearance and heat protection requirements. Check the required distance between the fireplace and television before designing the media wall.

Does it come with a warranty?

Yes. The Foco Four 800 has a stated 2 year warranty. Check the applicable warranty terms for details.
