Foco Myst Four 1000 Four Sided Water Vapour Fireplace

Description

Foco Myst Four 1000 Water Vapour Fireplace

Bring a distinctive architectural feature into your home with the Foco Myst Four 1000. This open, built in water vapour fireplace measures 100 cm wide and 40 cm deep, with a four sided design that lets you enjoy the flame effect from every direction. Its minimalist black frame makes it an elegant choice for a floating wall, a central feature or a contemporary open plan interior.

Powered by Dimplex Optimyst technology, the Foco Myst Four creates the appearance of dancing flames using water vapour and light rather than a conventional fire. It produces no heat, making it ideal for adding atmosphere without increasing the room temperature.

Features

🔥 A Flame Display from Every Side

Unlike a traditional fireplace that faces one direction, the Foco Myst Four 1000 is open on all four sides. This makes it particularly suitable for installations where the fireplace can be viewed from different parts of the room.

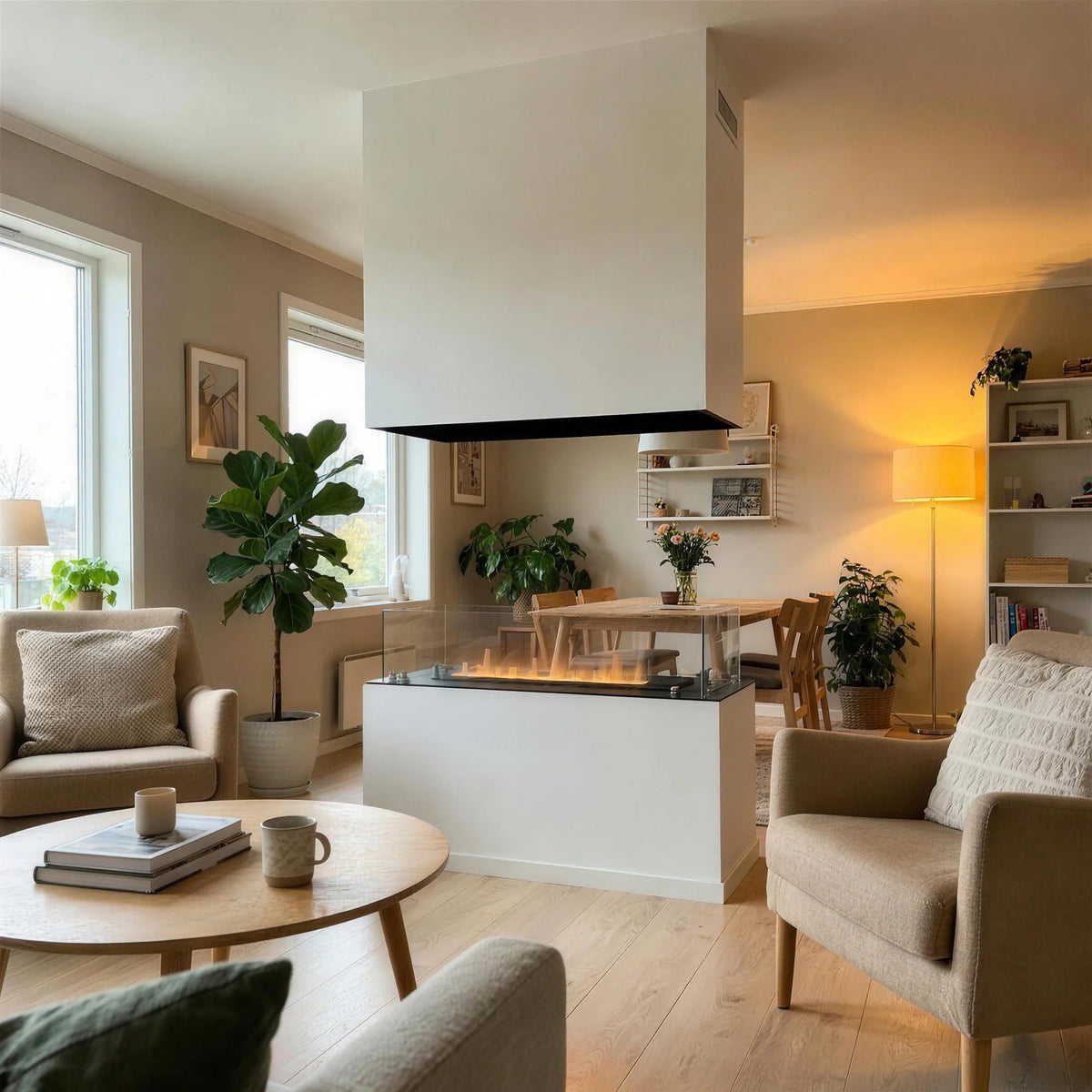

The clean rectangular design and matte black finish complement modern and Nordic inspired interiors. Whether incorporated into a floating feature or positioned as a central design element, it creates a striking focal point without the need for a conventional chimney.

💧 Dimplex Optimyst Water Vapour Technology

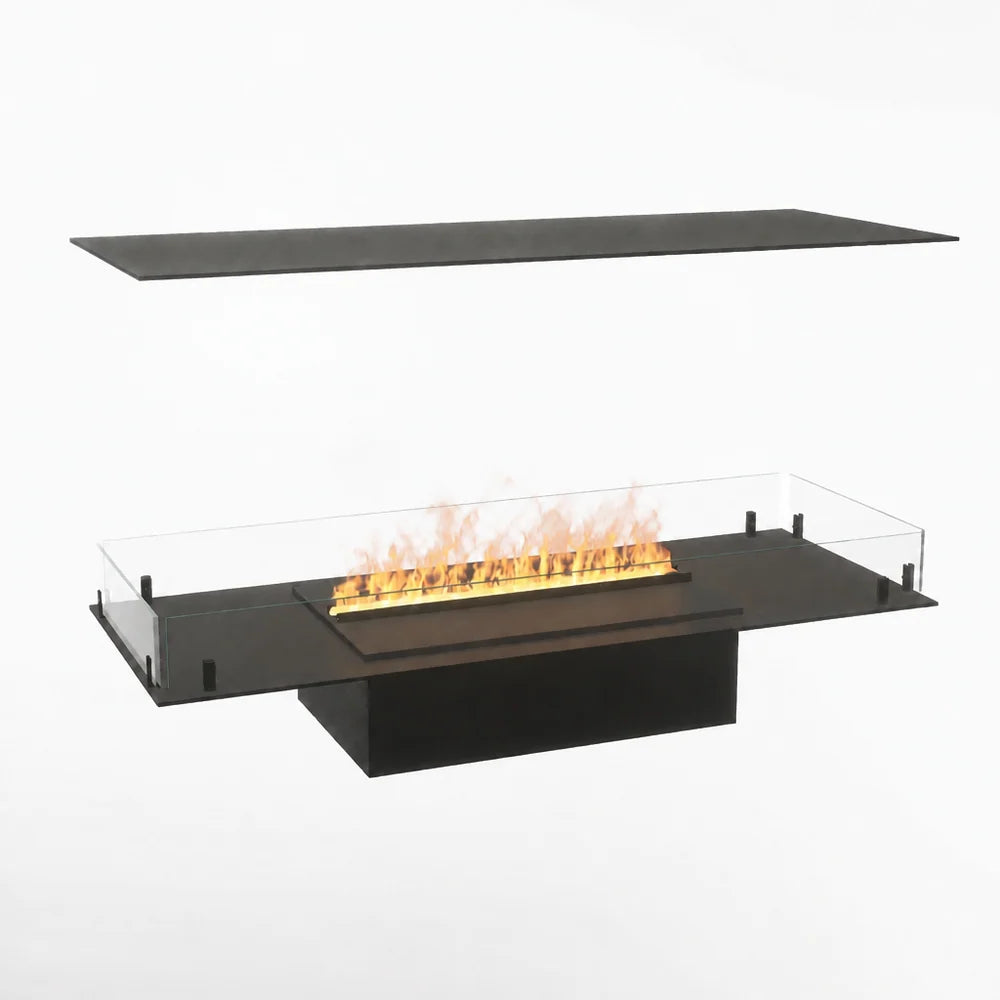

The fireplace features a Dimplex Cassette 500 burner that uses Optimyst technology to create a realistic looking flame effect with water vapour and lighting. You can switch the effect on or off and adjust the flame size to suit your preferred atmosphere.

The 1.2 litre water capacity provides a stated operating duration of up to 10 hours, with water consumption of approximately 0.12 litres per hour.

The fireplace is available with manual or automatic water refill, depending on the selected configuration. The manual version requires the water container to be refilled as needed, while the automatic version connects to a water supply and manages the water level automatically. A remote control is included for convenient operation.

🖤 Minimalist Design and Quality Materials

The Foco Myst Four 1000 features a steel frame with a matte black finish, offering a timeless look that blends easily with different interior styles. Four tempered glass panels help shield the flame effect from draughts, supporting a steadier visual display.

Optional wood decoration is available if you would like to customise the appearance of your fireplace.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Myst Four 1000

• Fireplace type: Built in water vapour fireplace

• Flame view: Four sided

• Width: 100 cm

• Depth: 40 cm

• Glass height: 15 cm

• Material: Steel

• Finish: Matte black

• Optional decoration: Wood

• Flame technology: Dimplex Optimyst

• Burner: Dimplex Cassette 500

• Fuel type: Water and electricity

• Water capacity: 1.2 litres

• Water consumption: 0.12 litres per hour

• Stated operating duration: Up to 10 hours

• Flame effect: Adjustable

• Flame colours: 1

• Water refill options: Manual or automatic, depending on configuration

• Remote control: Included

• Glass included: Yes

• Heat output: None

• Suitable for: Indoor use

• Installation: Built in

• Chimney or flue required: No

• Required free ventilation opening: 210 cm²

• Power supply: 220 to 240 V

• Thermostat: No

• Packaged depth: 44.5 cm

• Packaged weight: 26 kg

• Warranty: 2 years

Included

📦 What's Included

• Dimplex Cassette 500 burner

• Four tempered glass panels for the Foco frame

• Eight glass holders

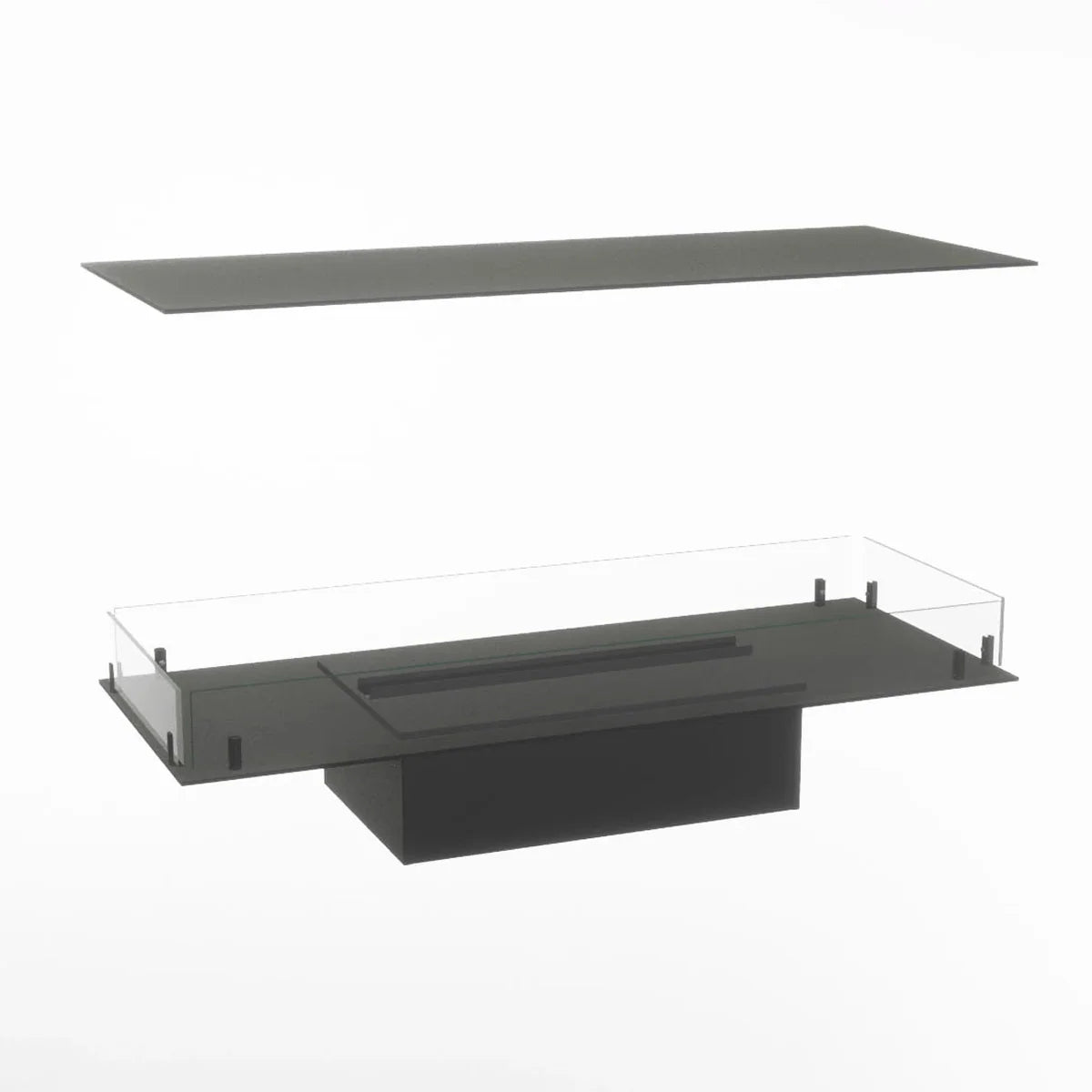

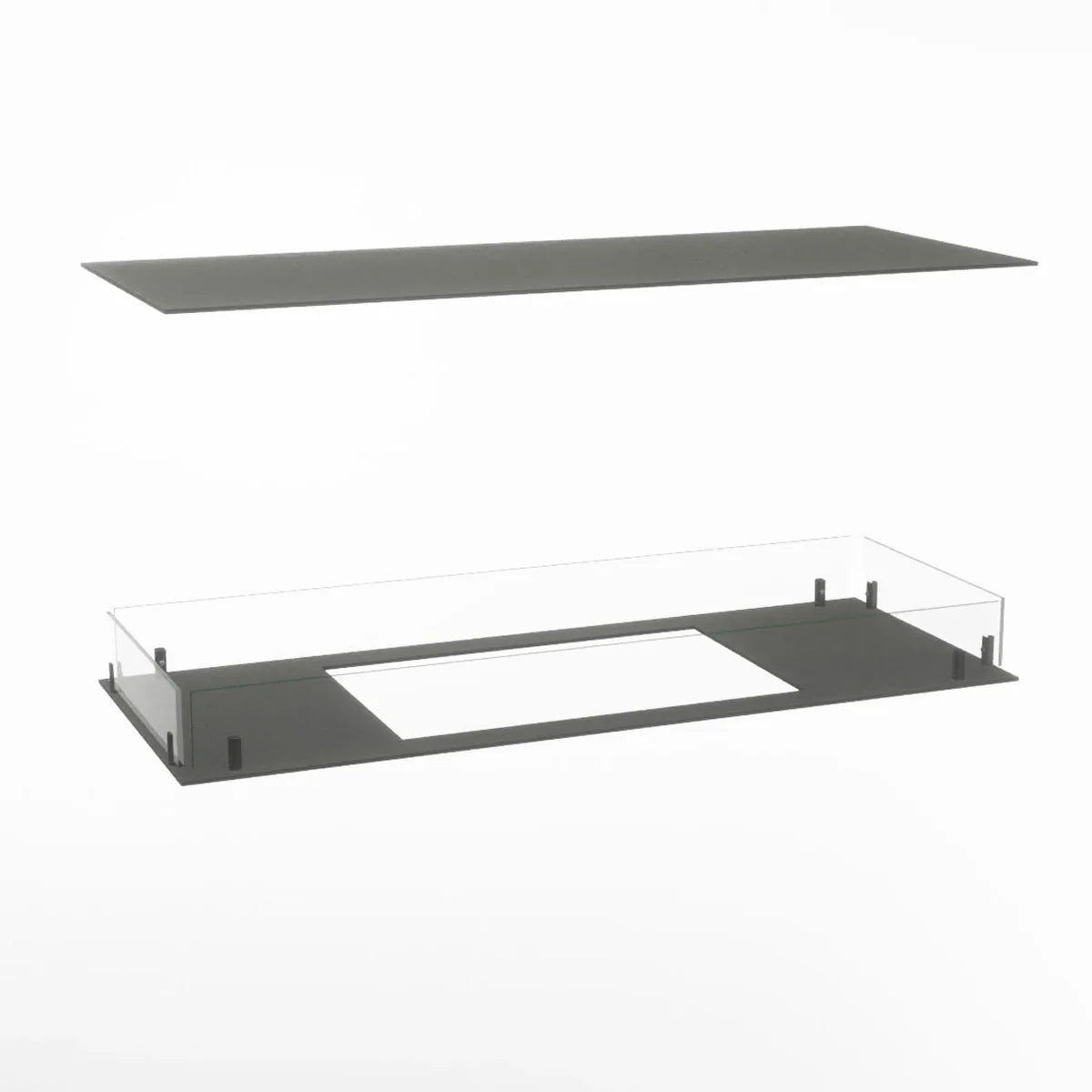

• Foco Myst frame

• Screws and nuts for assembly

• Remote control

Wood decoration is an additional option and is not included as standard. The water refill method depends on the selected configuration.

🛠️ Installation Requirements

The Foco Myst Four 1000 is designed for built in installation and does not require a chimney or flue. However, a free ventilation opening of 210 cm² is required to help cool the electronic components and allow water vapour to disperse.

When planning a floating wall or central installation, ensure the structure provides adequate support and that the ventilation opening remains unobstructed. Follow the manufacturer's installation instructions and applicable electrical safety requirements.

Safety

🛡️ Safety Information

The flame effect is created using water vapour and light rather than a conventional open flame, and the fireplace produces no heat. However, it still contains electrical components and should be installed and operated according to the manufacturer's instructions. Keep the ventilation opening clear and supervise children and pets around the unit.

Warranty

🔧 Warranty and Support

The Foco Myst Four 1000 comes with a 2 year warranty. Refer to the manufacturer's warranty terms for details of coverage, installation requirements and after sales support.

FAQs

Frequently Asked Questions

Can the flame be viewed from every side?

Yes. The four sided open design allows the flame effect to be viewed from all directions, making it suitable for central installations and floating feature walls.

Does the Foco Myst Four 1000 produce heat?

No. It creates a water vapour flame effect without heat output. It is designed for ambience rather than room heating.

Does it need a chimney or flue?

No chimney or flue is required. A free ventilation opening of 210 cm² is still necessary.

Can I choose automatic water refill?

Yes. An automatic refill configuration is available and connects to a water supply. A manual refill configuration is also available, depending on the selected model.

Is a remote control included?

Yes. A remote control is included for convenient operation of the flame effect.
