Foco Myst Four 1200 Four Sided Water Vapour Fireplace

Description

Foco Myst Four 1200 Water Vapour Fireplace

Add a distinctive design feature to your interior with the Foco Myst Four 1200. Measuring 120 cm wide and 40 cm deep, this open water vapour fireplace showcases its flame effect from all four sides, making it an eye catching centrepiece for contemporary homes, hotels, restaurants and other stylish commercial spaces.

Designed for built in installation, the Foco Myst Four combines a minimalist black frame with Dimplex Optimyst technology to create the appearance of dancing flames using water vapour and light. It produces no heat, making it ideal for spaces where atmosphere and visual appeal are the priority.

Features

🔥 A Four Sided Flame Display

The open design allows the flame effect to be enjoyed from every direction, making this model particularly suited to floating walls and central installations. Its rectangular shape and clean matte black finish complement modern and Nordic inspired interiors, while the generous 120 cm width creates a strong visual presence.

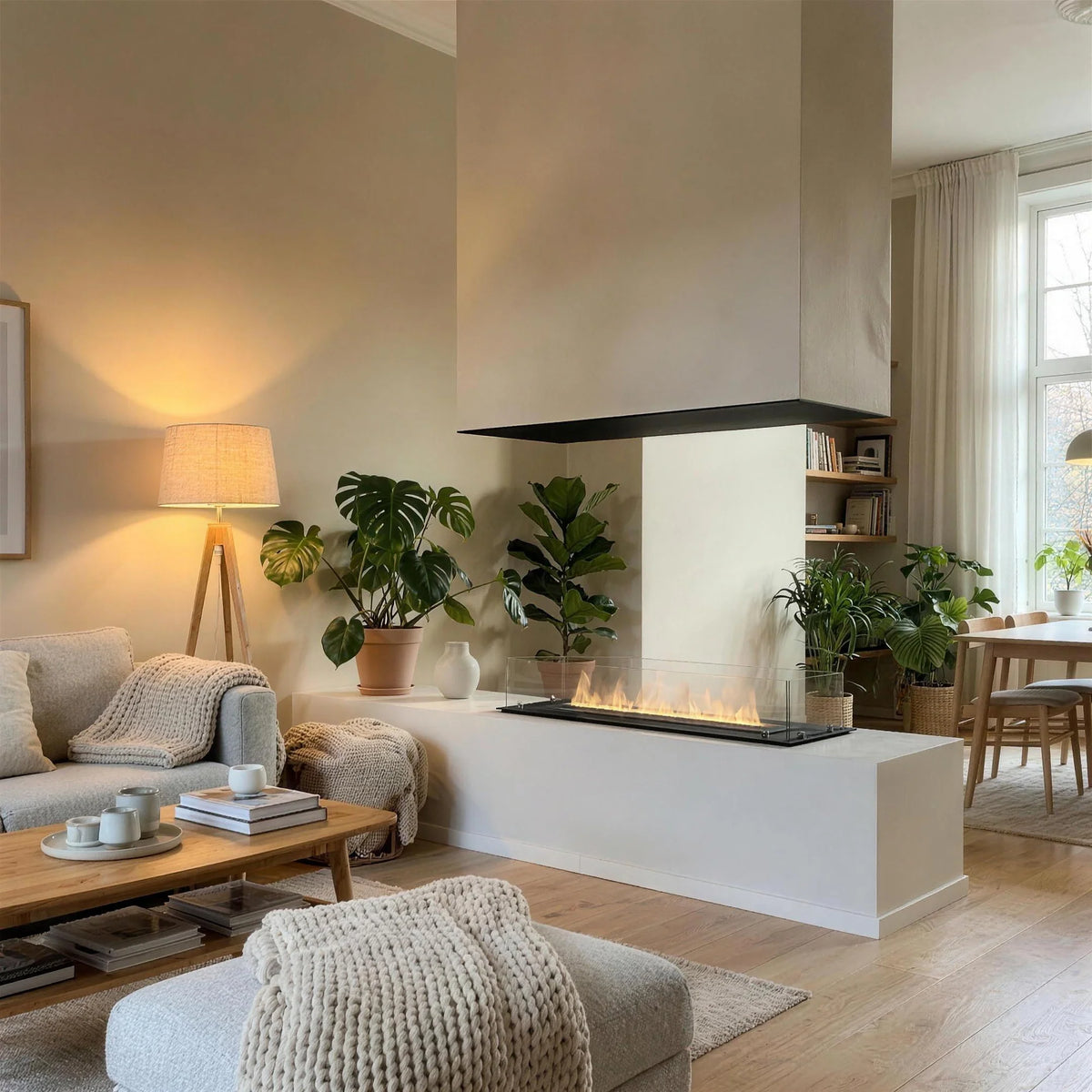

Whether used as a feature in a hotel reception, restaurant or living room, the Foco Myst Four 1200 adds the ambience of a fireplace without the need for a traditional chimney or flue.

💧 Dimplex Optimyst Water Vapour Technology

The Foco Myst Four 1200 features a Dimplex Cassette 1000 burner. Optimyst technology uses water vapour and lighting to create a realistic looking flame effect without a conventional open flame or combustion.

You can switch the flame effect on or off and adjust its size to suit the setting. The specified water capacity is 1.2 litres, with water consumption of approximately 0.12 litres per hour and a stated operating duration of up to 10 hours.

Manual and automatic water refill configurations are available. The manual version requires the water container to be refilled as needed, while the automatic version connects to a water supply and regulates the water level automatically. A remote control is included for convenient operation.

🖤 Minimalist Design and Quality Materials

The Foco Myst Four 1200 features a steel frame with a matte black finish for a refined, contemporary appearance. Four tempered glass panels are included to help shield the flame effect from draughts, supporting a steadier visual display.

Optional wood decoration is available if you would like to personalise the fireplace to complement your interior scheme.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Myst Four 1200

• Fireplace type: Built in water vapour fireplace

• Flame view: Four sided

• Width: 120 cm

• Depth: 40 cm

• Glass height: 15 cm

• Material: Steel

• Finish: Matte black

• Optional decoration: Wood

• Flame technology: Dimplex Optimyst

• Burner: Dimplex Cassette 1000

• Fuel type: Water and electricity

• Water capacity: 1.2 litres

• Water consumption: 0.12 litres per hour

• Stated operating duration: Up to 10 hours

• Flame effect: Adjustable

• Flame colours: 1

• Water refill options: Manual or automatic, depending on configuration

• Remote control: Included

• Glass included: Yes

• Heat output: None

• Suitable for: Indoor use

• Installation: Built in

• Chimney or flue required: No

• Required free ventilation opening: 420 cm²

• Power supply: 220 to 240 V

• Thermostat: No

• Packaged depth: 44.5 cm

• Packaged weight: 26 kg

• Warranty: 2 years

Included

📦 What's Included

• Dimplex Cassette 1000 burner

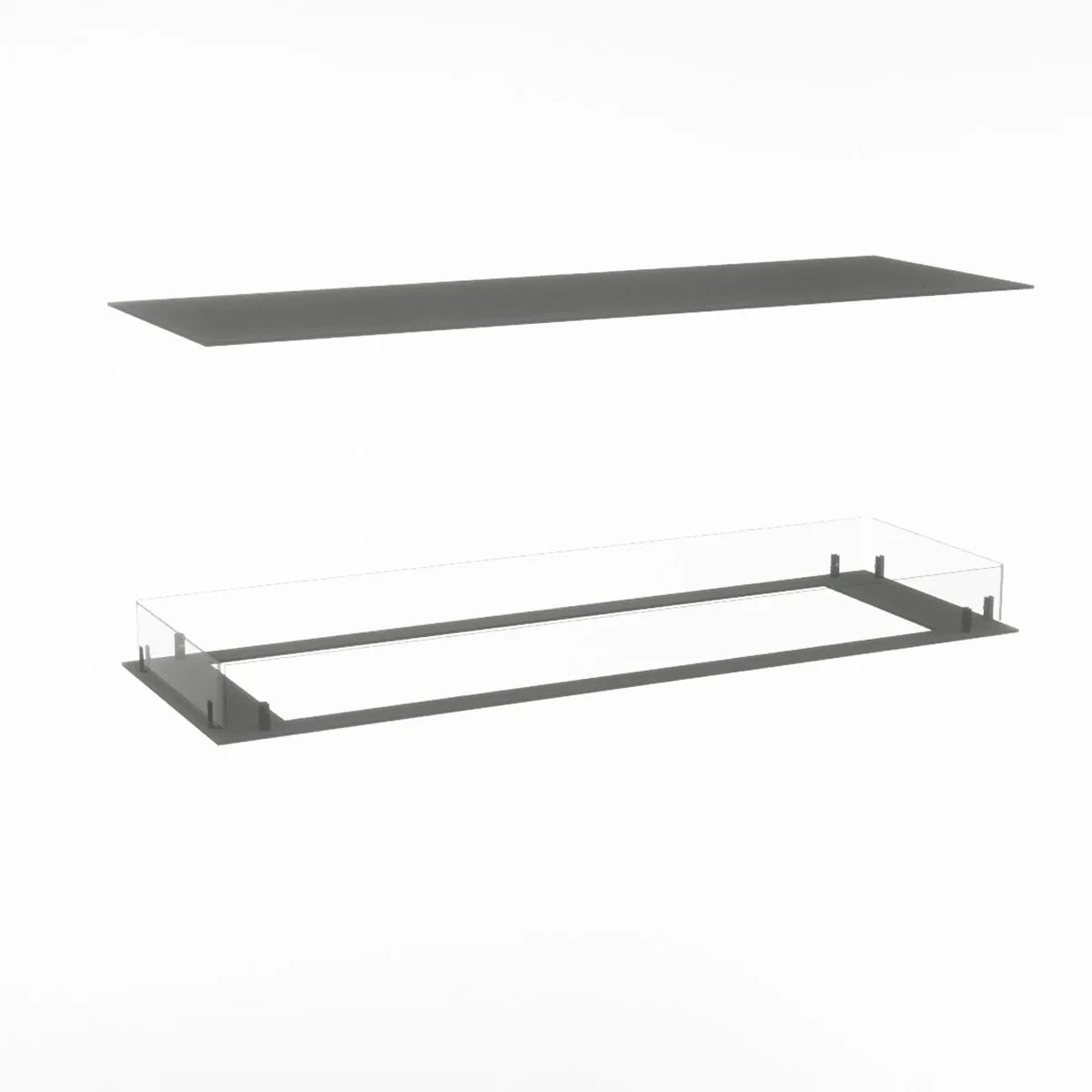

• Four tempered glass panels for the Foco frame

• Eight glass holders

• Foco Myst frame

• Screws and nuts for assembly

• Remote control

Wood decoration is an additional option and is not included as standard. The selected water refill configuration determines whether a fixed water supply connection is required.

🛠️ Installation Requirements

The Foco Myst Four 1200 is designed for built in installation and does not require a chimney or flue. However, a free ventilation opening of 420 cm² is required to help cool the electronic components and allow water vapour to disperse.

For installations in hotels, restaurants or other commercial environments, plan the supporting structure, electrical supply and ventilation carefully. Keep the required ventilation opening unobstructed and follow the manufacturer's installation instructions and applicable safety requirements.

Safety

🛡️ Safety Information

The flame effect is created using water vapour and light rather than a conventional open flame, and the fireplace produces no heat. However, the unit contains electrical components and must be installed and operated according to the manufacturer's instructions. Ensure the required ventilation is maintained, particularly in commercial settings.

Warranty

🔧 Warranty and Support

The Foco Myst Four 1200 comes with a 2 year warranty. Refer to the manufacturer's warranty terms for details of coverage, installation requirements and after sales support.

FAQs

Frequently Asked Questions

Can the flame be viewed from all four sides?

Yes. The open design allows the flame effect to be viewed from every direction, making it suitable for floating walls and central installations.

Is this fireplace suitable for hotels and restaurants?

Its four sided design and contemporary appearance make it an attractive option for hospitality interiors. Installation must meet the manufacturer's ventilation and electrical requirements, as well as any applicable commercial building and safety regulations.

Does the Foco Myst Four 1200 produce heat?

No. It creates a water vapour flame effect without heat output. It is designed for ambience rather than room heating.

Does it need a chimney or flue?

No chimney or flue is required. A free ventilation opening of 420 cm² is still necessary.

Can I choose automatic water refill?

Yes. An automatic refill configuration is available and connects to a water supply. A manual refill configuration is also available, depending on the selected model.
