Foco Myst Four 800 Four Sided Water Vapour Fireplace

Description

Foco Myst Four 800 Water Vapour Fireplace

Create a striking centrepiece with the Foco Myst Four 800, a contemporary built in water vapour fireplace designed to showcase its flame effect from every side. Measuring 80 cm wide and 40 cm deep, this open fireplace features a sleek matte black frame that suits modern interiors, floating walls and bespoke design projects.

Unlike a traditional fireplace, the Foco Myst Four uses Dimplex Optimyst technology to create the appearance of dancing flames using water vapour and light. It produces no heat, making it an attractive option for adding atmosphere to your home without increasing the room temperature.

Features

🔥 Enjoy the Flame from Every Angle

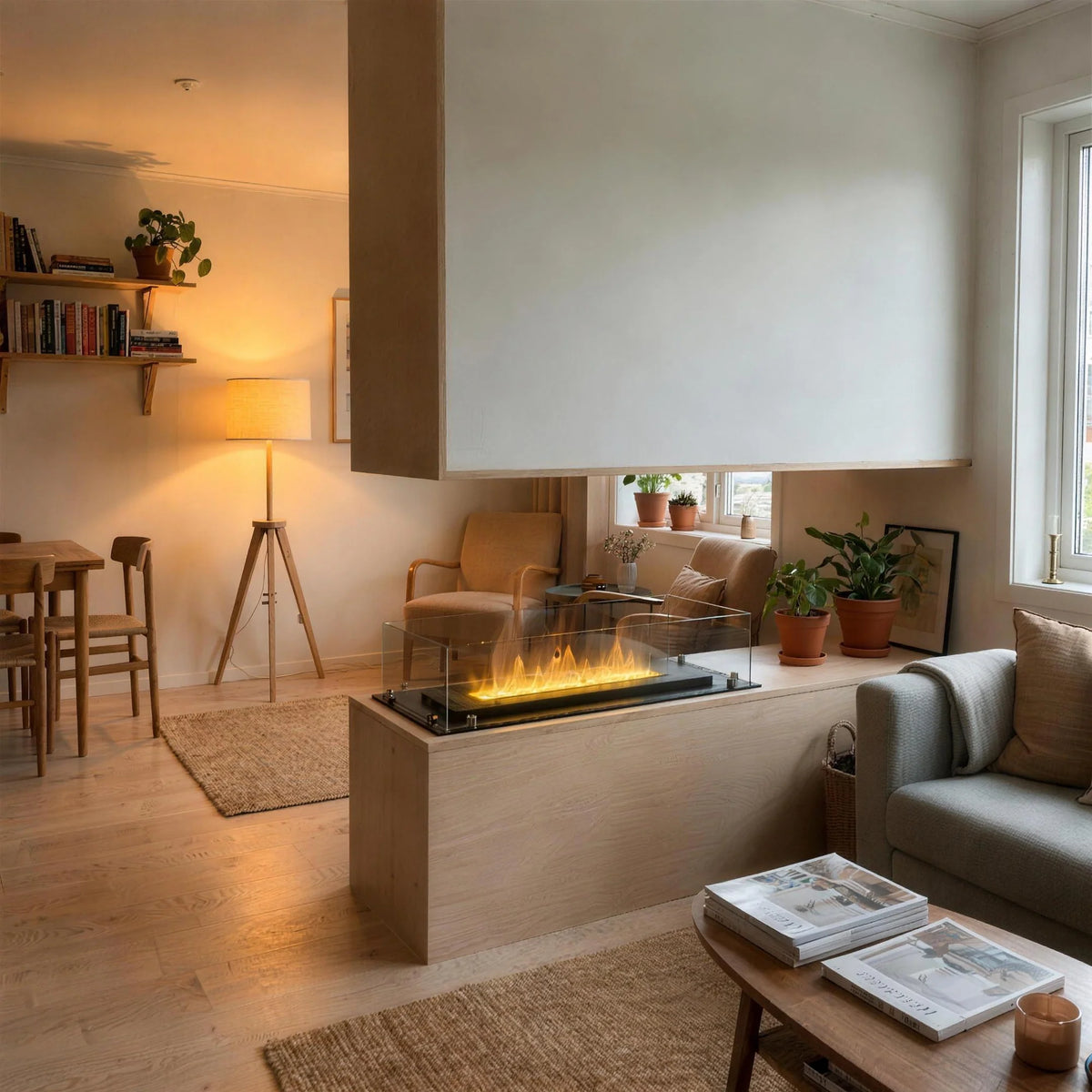

The four sided design allows the flame effect to be viewed from all sides, making this model particularly suitable for installation in a central feature or a floating wall where the fireplace can be appreciated from different parts of the room.

Its minimalist Nordic inspired styling pairs easily with a range of interior finishes. The open design creates a light, contemporary look, while the black steel frame provides a defined border around the flame display.

💧 Realistic Flames with Optimyst Technology

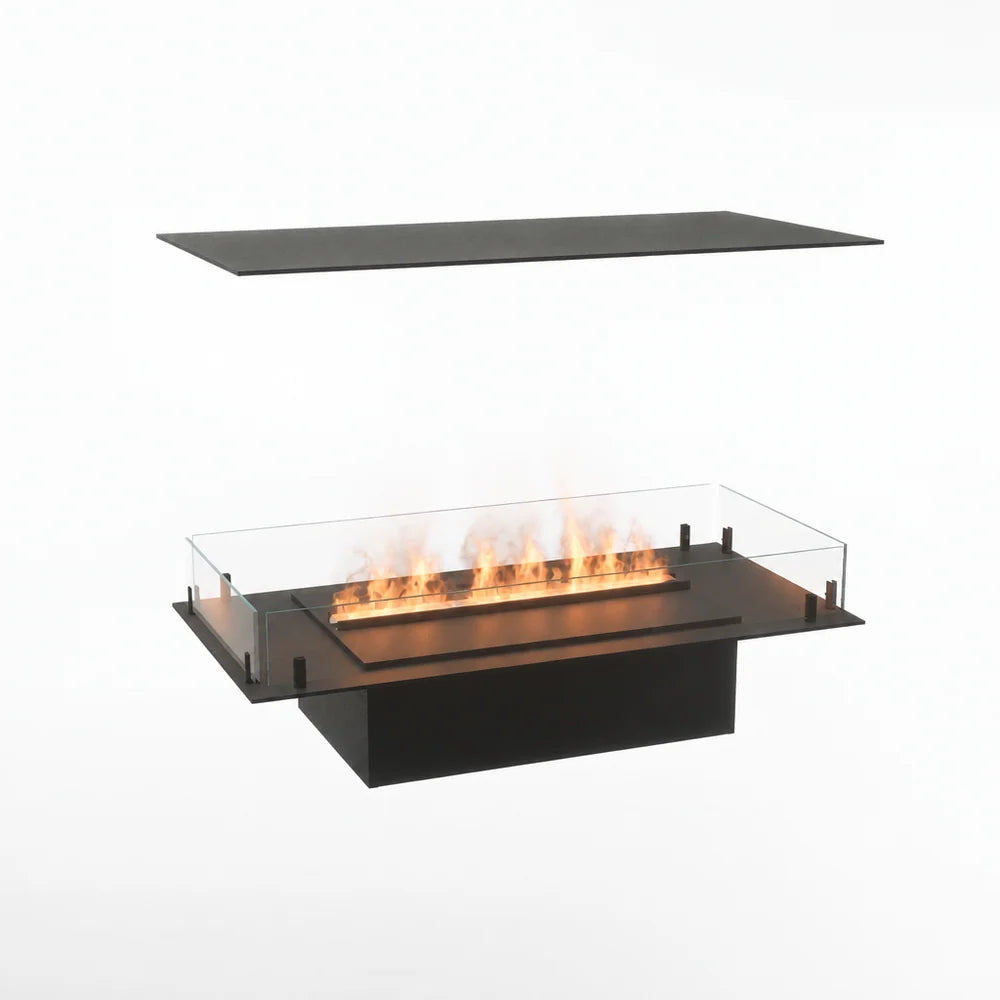

The Foco Myst Four 800 is equipped with a Dimplex Cassette 500 burner. Optimyst technology uses water vapour and lighting to create a realistic looking flame effect without a conventional open flame or combustion.

You can switch the flame effect on or off and adjust its size to suit the mood of your space. The water capacity is 1.2 litres, with a stated operating duration of up to 10 hours and water consumption of approximately 0.12 litres per hour.

This model is available with manual or automatic water refill, depending on the selected configuration. The automatic version connects to a water supply and regulates the water level automatically. The manual version requires the water container to be refilled as needed. An included remote control makes operation convenient.

🖤 Modern Materials and Refined Finish

The Foco Myst Four 800 features a steel frame with a matte black finish, creating a timeless look for contemporary homes. Four tempered glass panels are included to help shield the flame effect from draughts and support a steadier display.

Optional wood decoration is available if you would like to personalise the appearance of your fireplace.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Myst Four 800

• Fireplace type: Built in water vapour fireplace

• Flame view: Four sided

• Width: 80 cm

• Depth: 40 cm

• Glass height: 15 cm

• Material: Steel

• Finish: Matte black

• Optional decoration: Wood

• Flame technology: Dimplex Optimyst

• Burner: Dimplex Cassette 500

• Fuel type: Water and electricity

• Water capacity: 1.2 litres

• Water consumption: 0.12 litres per hour

• Stated operating duration: Up to 10 hours

• Flame effect: Adjustable

• Flame colours: 1

• Water refill options: Manual or automatic, depending on configuration

• Remote control: Included

• Glass included: Yes

• Heat output: None

• Suitable for: Indoor use

• Installation: Built in

• Chimney or flue required: No

• Required free ventilation opening: 210 cm²

• Power supply: 220 to 240 V

• Thermostat: No

• Packaged depth: 44.5 cm

• Packaged weight: 26 kg

• Warranty: 2 years

Included

📦 What's Included

• Dimplex Cassette 500 burner

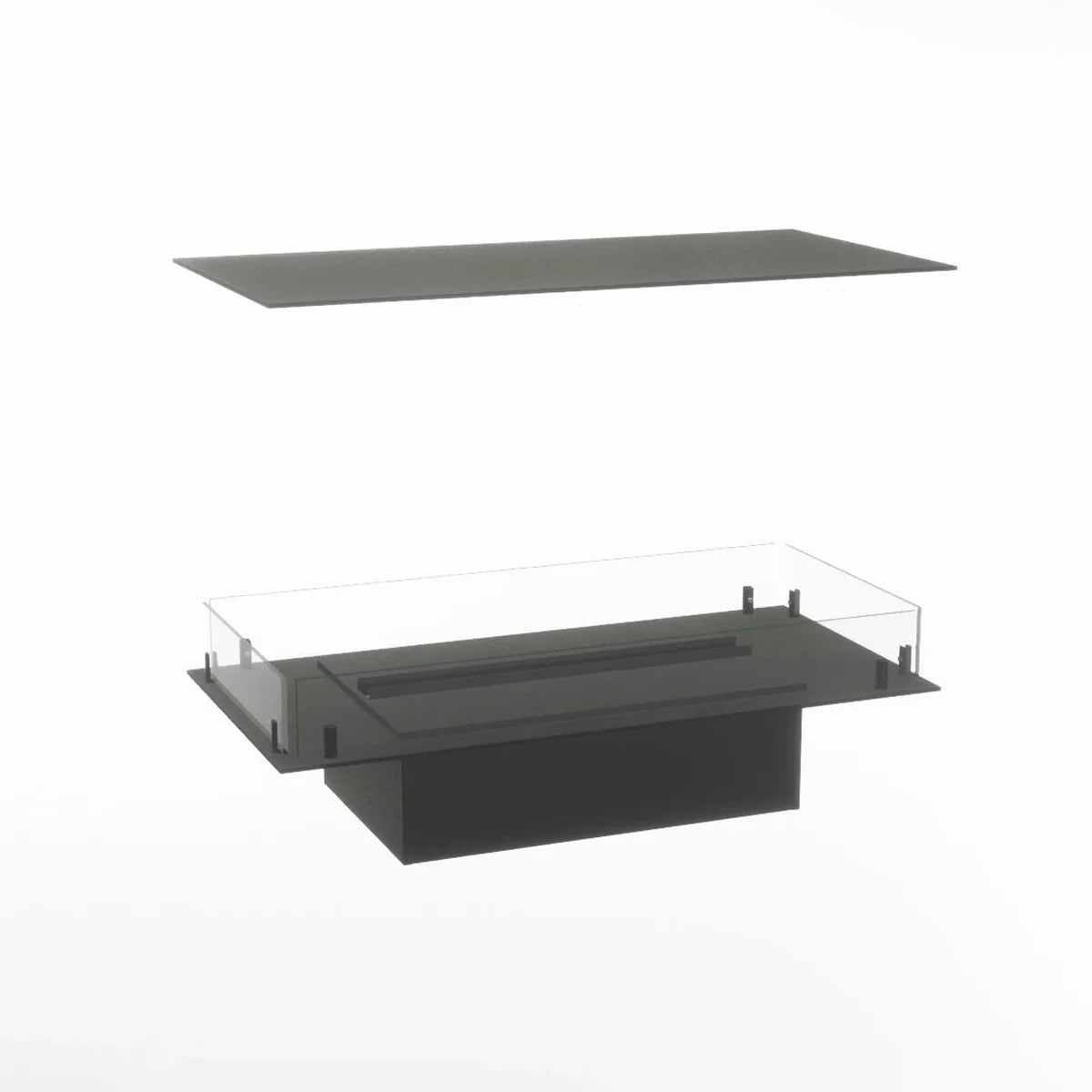

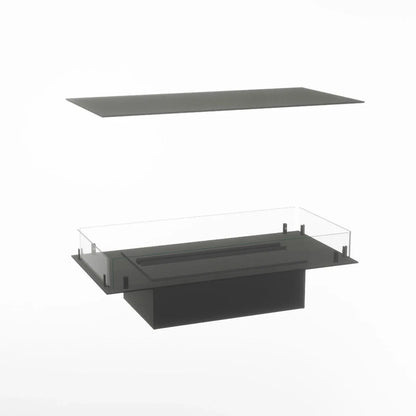

• Four tempered glass panels for the Foco frame

• Eight glass holders

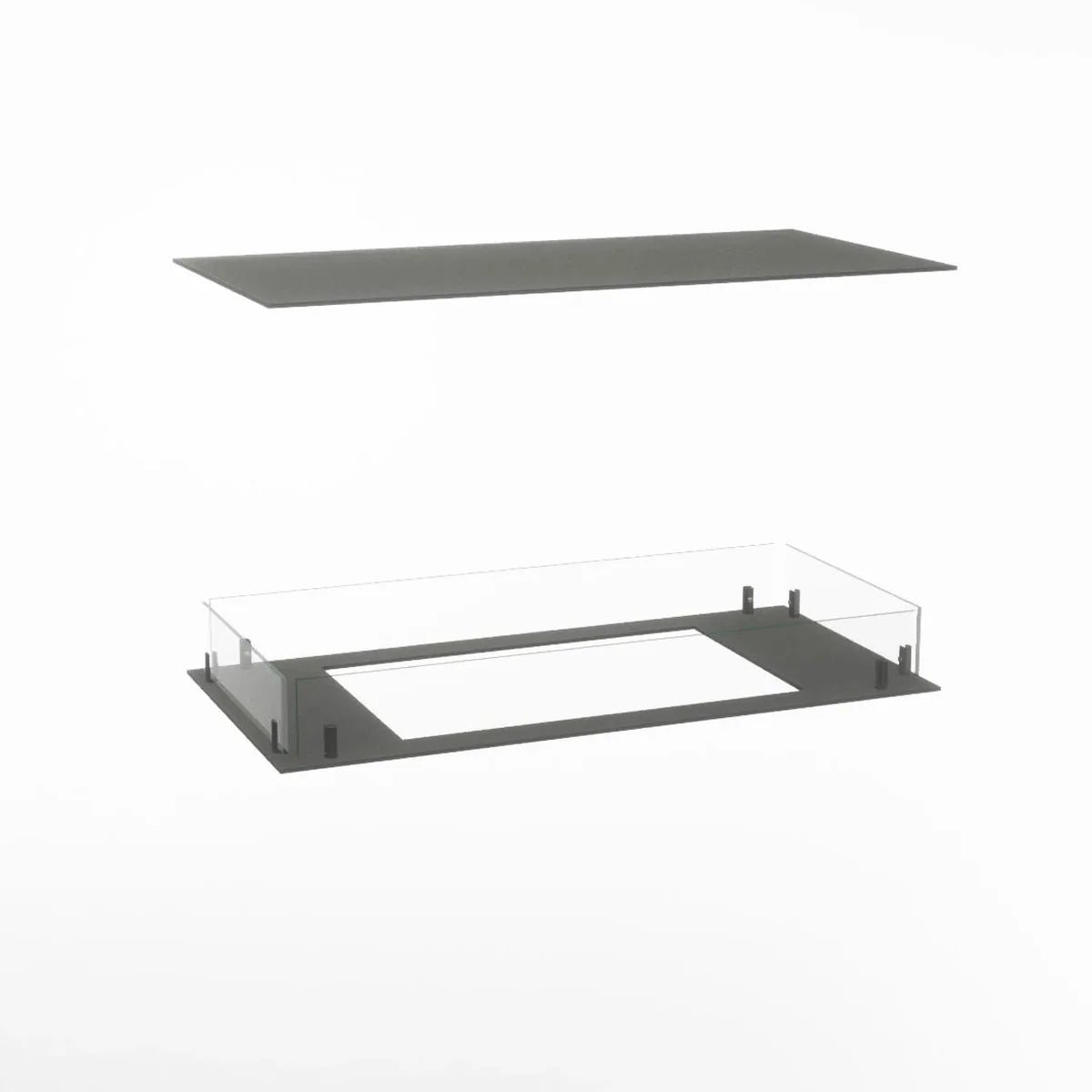

• Foco Myst frame

• Screws and nuts for assembly

• Remote control

Wood decoration is an additional option and is not included as standard. The selected water refill configuration determines whether a water supply connection is required.

🛠️ Installation Requirements

The Foco Myst Four 800 is designed for built in installation and does not require a chimney or flue. A free ventilation opening of 210 cm² is required to help cool the electronic components and allow water vapour to disperse.

When planning a central or floating wall installation, ensure the fireplace is properly supported and that the ventilation opening remains unobstructed. Follow the manufacturer's installation instructions and applicable electrical safety requirements.

Safety

🛡️ Safety Information

As the flame effect is created using water vapour and light, the fireplace does not produce heat or use a conventional open flame. However, it still contains electrical components and should be installed and operated in accordance with the manufacturer's instructions. Do not describe it as completely risk free or leave children and pets unsupervised around the unit.

Warranty

🔧 Warranty and Support

The Foco Myst Four 800 comes with a 2 year warranty. Refer to the manufacturer's warranty terms for details of coverage, installation requirements and after sales support.

FAQs

Frequently Asked Questions

Can the flame be viewed from all four sides?

Yes. The open design provides a four sided view, making it suitable for central installations and floating feature walls.

Does this fireplace produce heat?

No. The Foco Myst Four 800 creates a water vapour flame effect without heat output. It is intended for ambience rather than room heating.

Does it require a chimney or flue?

No chimney or flue is required. However, a free ventilation opening of 210 cm² is necessary.

Is the water refilled manually?

That depends on the configuration. The manual version requires refilling the water container, while the automatic version connects to a water supply and manages the water level automatically.

Is a remote control included?

Yes. A remote control is included for convenient operation of the flame effect.
