Foco Myst Three 1000 Three Sided Water Vapour Fireplace

Description

Foco Myst Three 1000 Water Vapour Fireplace

Bring contemporary style and captivating flame effects into your home with the Foco Myst Three 1000. This built in water vapour fireplace features a sleek black frame and a three sided viewing design, allowing you to enjoy the realistic looking flames from multiple angles. At 100 cm wide, it makes a striking addition to a modern living room, feature wall or media wall.

Using Dimplex Optimyst technology, the Foco Myst Three creates a flame effect from water vapour and light rather than a conventional fire. It offers the atmosphere of a fireplace without producing heat, making it a stylish choice for interiors where visual appeal is the priority.

Features

🔥 Enjoy the Flame from Three Sides

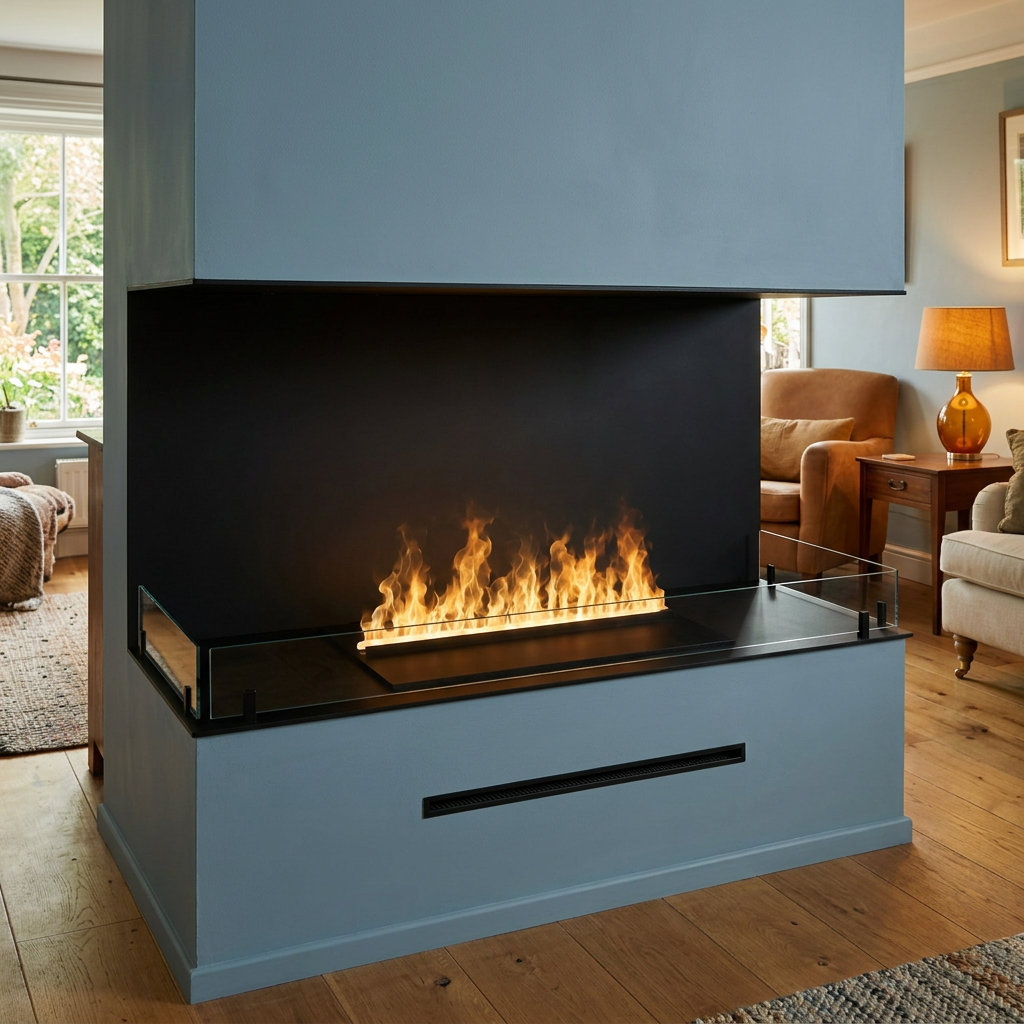

The three sided design provides a panoramic view of the flame effect, helping create an eye catching focal point in your home. Its minimalist black finish complements contemporary and Nordic inspired interiors, while the built in format gives your wall a clean, integrated appearance.

The fireplace can be incorporated into a media wall or installed beneath a television, provided the installation follows the manufacturer's requirements. As it produces no heat, it does not provide additional room heating.

💧 Realistic Water Vapour Technology

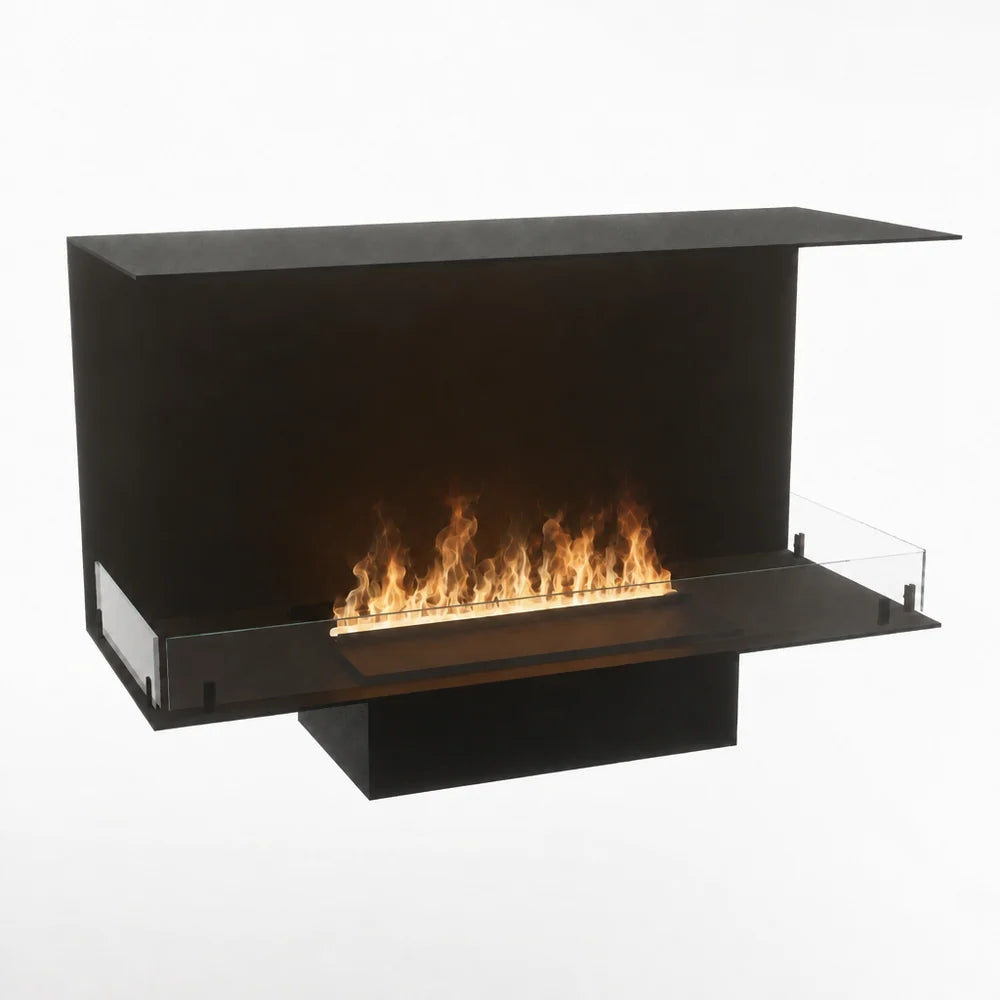

The Foco Myst Three 1000 uses a Dimplex Cassette 500 burner with Optimyst technology to create the appearance of dancing flames using water and electricity. The flame effect can be switched on or off and adjusted to suit your preferred atmosphere.

Choose the automatic water refill configuration for connection to a water supply. This version manages its water supply automatically, so the water container does not need to be filled manually. A remote control is included for convenient operation.

🖤 Minimalist Design and Quality Materials

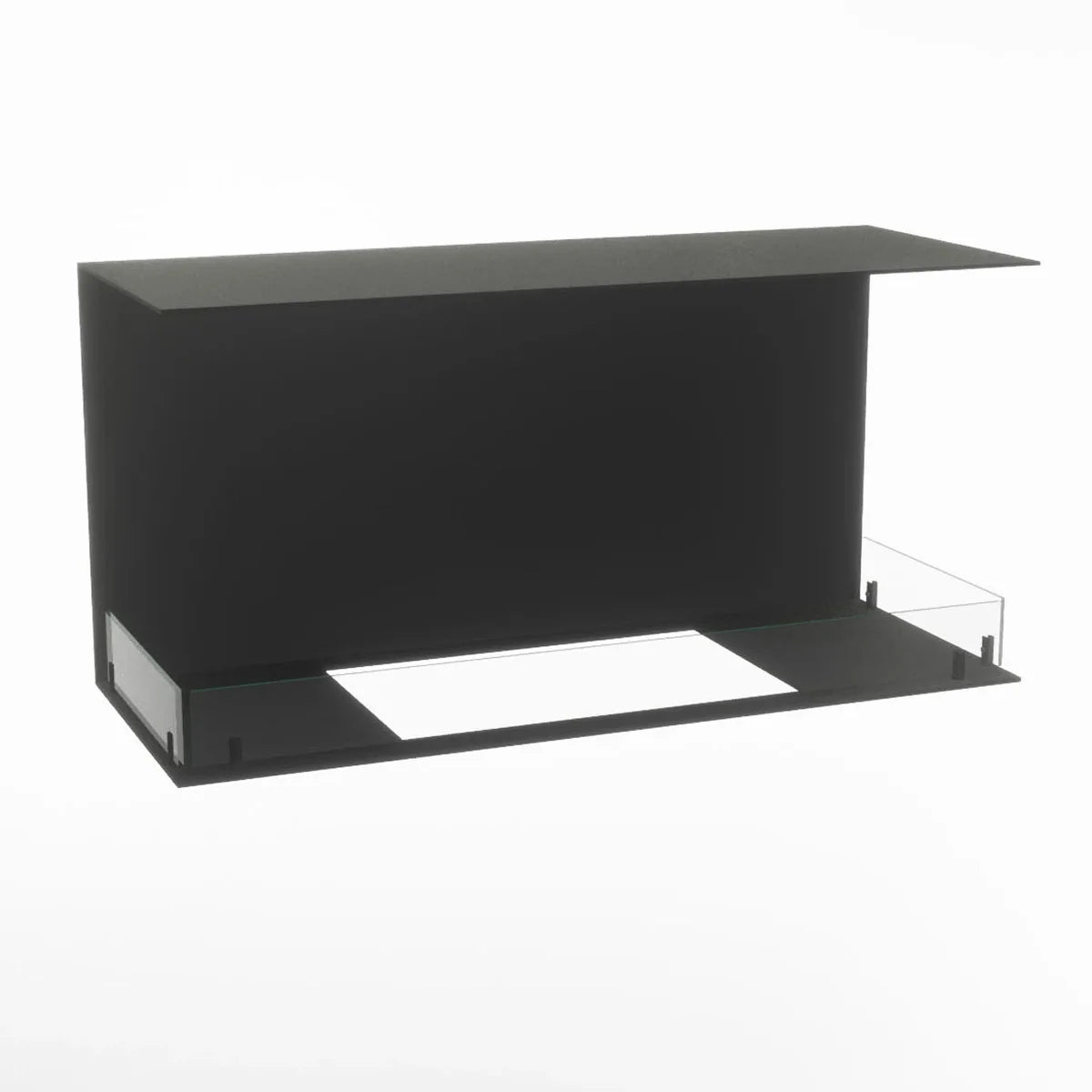

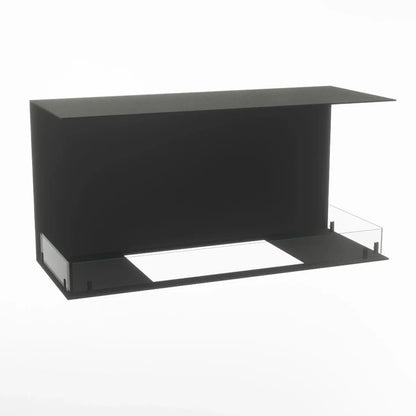

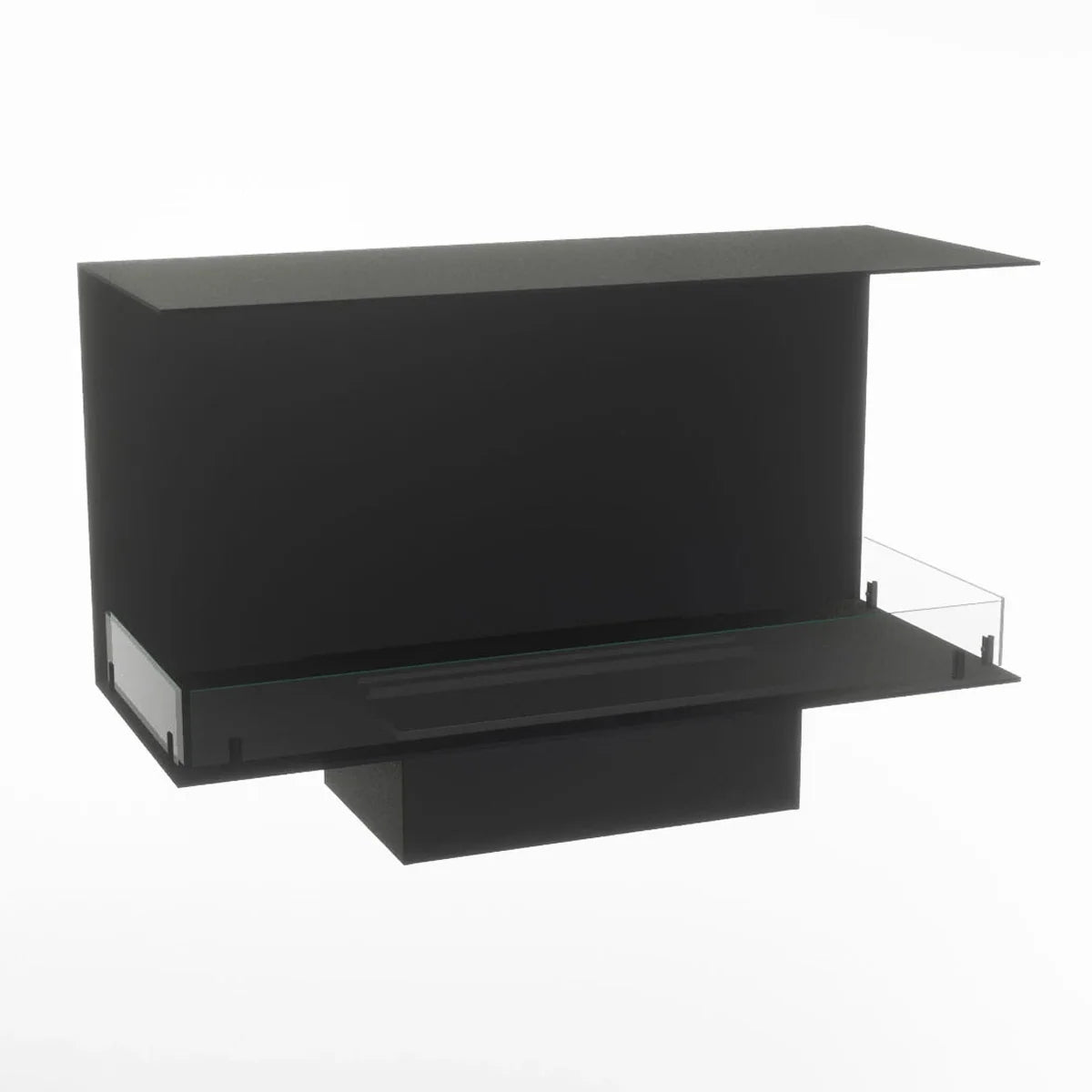

Made from steel with a matte black finish, the Foco Myst Three 1000 has a refined appearance that works beautifully in modern interiors. The included tempered glass panels help protect the flame effect from draughts, supporting a steadier visual display.

Wood decoration is available as an additional option, allowing you to personalise the fireplace to suit your interior design.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Myst Three 1000

• Fireplace type: Built in, three sided water vapour fireplace

• Height: 50 cm

• Width: 100 cm

• Depth: 40 cm

• Glass height: 15 cm

• Material: Steel

• Finish: Matte black

• Optional decoration: Wood

• Flame technology: Dimplex Optimyst

• Burner: Dimplex Cassette 500

• Flame effect: Adjustable

• Flame colours: 1

• Fuel type: Water and electricity

• Water capacity: 1.2 litres

• Water consumption: 0.12 litres per hour

• Stated operating duration: Up to 10 hours

• Water refill: Automatic

• Control: Remote control

• Remote control included: Yes

• Glass included: Yes

• Heat output: None

• Installation: Indoor, built in

• Chimney or flue required: No

• Required free ventilation opening: 210 cm²

• Power supply: 220 to 240 V

• Thermostat: No

• Packaged depth: 54.5 cm

• Packaged weight: 26 kg

• Warranty: 2 years

Included

📦 What's Included

• Foco Myst frame

• Dimplex Cassette 500 burner

• Three tempered glass panels for the Foco frame

• Six glass holders

• Screws and nuts for assembly

• Remote control

Wood decoration is an additional option and is not included as standard. The automatic water refill configuration requires connection to a water supply.

🛠️ Installation Requirements

The Foco Myst Three 1000 is designed for built in installation and does not require a chimney or flue. However, a free ventilation opening of 210 cm² is required to help cool the electronic components and allow water vapour to disperse.

Plan the installation carefully, particularly when incorporating the fireplace into a media wall or beneath a television. Follow the manufacturer's installation instructions and ensure the required ventilation is not obstructed. Electrical installation must also meet applicable safety requirements.

Safety

🛡️ Safety Information

This fireplace creates its visual flame effect using water vapour rather than a conventional open flame, and it does not produce heat. However, it still contains electrical components and must be installed and operated in accordance with the manufacturer's instructions. Keep the ventilation opening clear and use the correct electrical supply.

Warranty

🔧 Warranty and Support

The Foco Myst Three 1000 comes with a 2 year warranty. Refer to the manufacturer's warranty terms for details of coverage, installation conditions and after sales support.

FAQs

Frequently Asked Questions

Does the Foco Myst Three 1000 produce heat?

No. It creates a water vapour flame effect without providing heat, making it suitable for adding ambience without acting as a room heater.

Can it be installed beneath a television?

Yes, it can be considered for a media wall beneath a television. As the fireplace produces no heat, it avoids heat output from the fireplace itself, but the complete installation must still comply with the manufacturer's ventilation, electrical and clearance requirements.

Does it need a chimney or flue?

No chimney or flue is required. A free ventilation opening of 210 cm² is still necessary.

How is the water supplied?

This model is specified with automatic water refill. It needs to be connected to a water supply and is not designed to be manually refilled in this configuration.

Can the flame effect be adjusted?

Yes. The flame effect can be adjusted, and the included remote control allows convenient operation.
