Foco Myst Three 1500 Built In Water Vapour Fireplace

Description

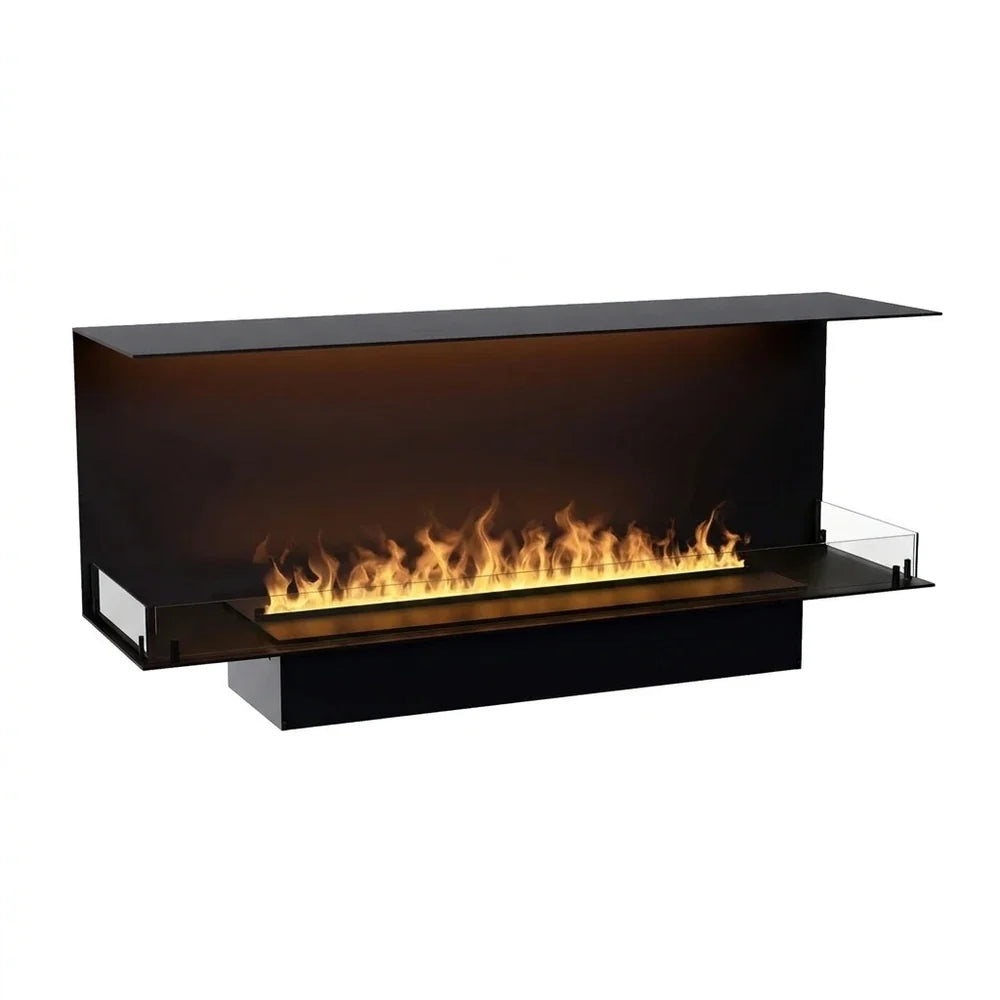

Foco Myst Three 1500 Water Vapour Fireplace

Make a statement in your home with the Foco Myst Three 1500, a contemporary built in water vapour fireplace designed to bring captivating flame effects into modern interiors. Measuring 150 cm wide, this impressive model features three open sides, allowing you to enjoy the flame display from multiple angles. Its clean rectangular shape and black finish make it an excellent centrepiece for a living room, feature wall or spacious open plan interior.

Powered by Dimplex Optimyst technology, the Foco Myst Three 1500 uses water vapour and LED lighting to create the appearance of dancing flames without a conventional fire. It produces no heat, making it ideal for adding atmosphere to a room where visual impact matters more than heating.

Features

🔥 A Striking Three Sided Flame Display

The three sided design gives the fireplace an architectural look, allowing the flame effect to become a feature within your interior. At 150 cm wide, it works particularly well in larger feature walls and bespoke interior projects where you want a more substantial focal point.

The built in format creates a clean, integrated appearance without the need for a traditional chimney or flue. The included glass panels help shield the flame effect from draughts, supporting a steadier display.

💧 Dimplex Optimyst Water Vapour Technology

The Foco Myst Three 1500 features a Dimplex Cassette 1000 burner. Its Optimyst technology uses water vapour and LED lighting to create a realistic looking flame effect without combustion, smoke or soot.

The flame effect can be adjusted to suit your preferred atmosphere. This model is specified with a 6 litre water capacity and a stated operating duration of up to 10 hours. Water consumption is approximately 0.2 litres per hour.

The automatic refill configuration connects to a fixed water supply and manages the water level automatically. A manual refill configuration is also available for those who prefer to refill the water container themselves. Check the selected configuration before ordering, as the refill method affects installation requirements.

🖤 Modern Design and Durable Materials

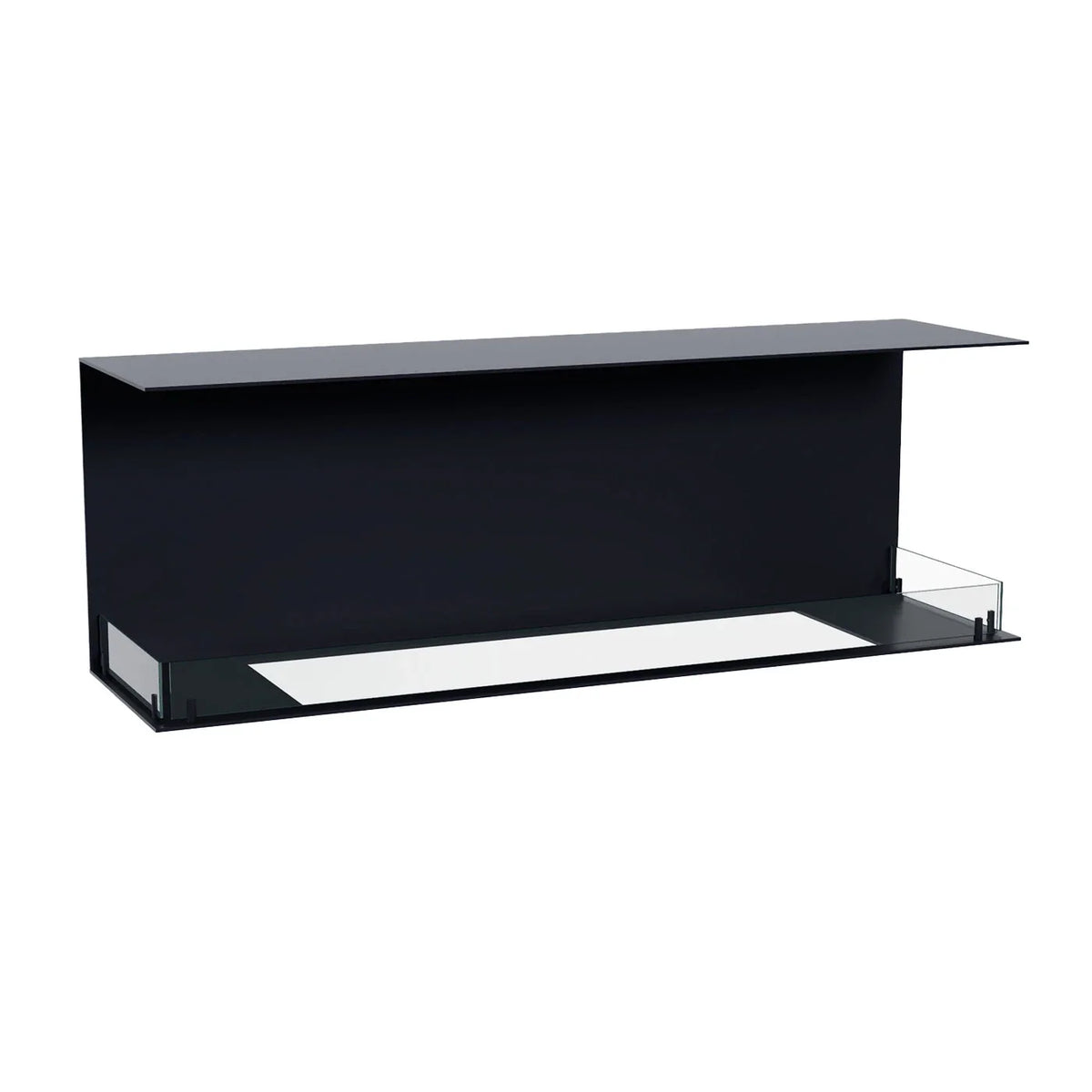

The Foco Myst Three 1500 combines a robust steel frame with a black powder coated finish for a refined, understated appearance. Its rectangular shape and clean lines complement both contemporary and classic interiors.

Tempered glass panels are included to help protect the flame effect from air movement. The result is a stylish fireplace insert that offers the ambience of flames without the upkeep associated with a traditional wood burning fire.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Myst Three 1500

• Fireplace type: Built in water vapour fireplace

• Flame view: Three sided, see through design

• Height: 50 cm

• Width: 150 cm

• Depth: 40 cm

• Shape: Rectangular

• Materials: Glass and steel

• Finish: Black powder coated

• Flame technology: Dimplex Optimyst

• Burner: Dimplex Cassette 1000

• Fuel type: Water and electricity

• Water capacity: 6 litres

• Water consumption: 0.2 litres per hour

• Stated operating duration: Up to 10 hours

• Flame effect: Adjustable

• Water refill options: Manual or automatic, depending on configuration

• Remote control: Included

• Manual control: Available

• Glass included: Yes

• Heat output: None

• Suitable for: Indoor use

• Chimney or flue required: No

• Required free ventilation opening: 420 cm²

• Power supply: 220 to 240 V

• Power consumption: 220 W

• Thermostat: No

• Timer: No

• Packaged depth: 54.5 cm

• Packaged weight: 60 kg

• Warranty: 2 years

Included

📦 What's Included

• Dimplex Cassette 1000 burner

• Three tempered glass panels

• Six glass holders

• Foco Myst frame

• Screws and nuts for assembly

• Remote control

The water refill configuration should be confirmed when ordering. The automatic version requires a fixed water supply connection, while the manual version requires the water container to be refilled as needed.

🛠️ Installation Requirements

The Foco Myst Three 1500 is designed for built in installation and does not require a chimney or flue. However, a free ventilation opening of at least 420 cm² is required to help cool the electronic components and allow water vapour to disperse.

Plan the installation around the selected refill configuration and ensure the ventilation opening remains unobstructed. Follow the manufacturer's installation instructions and applicable electrical safety requirements.

Safety

🛡️ Safety Information

This fireplace creates its visual flame effect using water vapour and LED lighting rather than a conventional open flame. It does not produce heat, but it still contains electrical components that must be installed and operated according to the manufacturer's instructions. Maintain the required ventilation and use the correct electrical supply.

Warranty

🔧 Warranty and Support

The Foco Myst Three 1500 comes with a 2 year warranty. Refer to the manufacturer's warranty terms for details of coverage, installation requirements and after sales support.

FAQs

Frequently Asked Questions

Does the Foco Myst Three 1500 produce heat?

No. It creates a water vapour flame effect without heat output. It is designed to add ambience rather than warm the room.

Does it need a chimney or flue?

No chimney or flue is required. However, a free ventilation opening of at least 420 cm² is necessary.

Can I choose manual or automatic water refill?

Yes. The fireplace is described as available with manual or automatic refill, depending on the selected configuration. The automatic version requires connection to a fixed water supply.

How long can the flame effect run?

The stated operating duration is up to 10 hours, with water consumption of approximately 0.2 litres per hour. Actual operation depends on the configuration and usage conditions.

Is a remote control included?

Yes. A remote control is included for convenient operation.

Download

User manual

Installation guide
