Foco Myst Three 800 Three Sided Water Vapour Fireplace

Description

Foco Myst Three 800 Water Vapour Fireplace

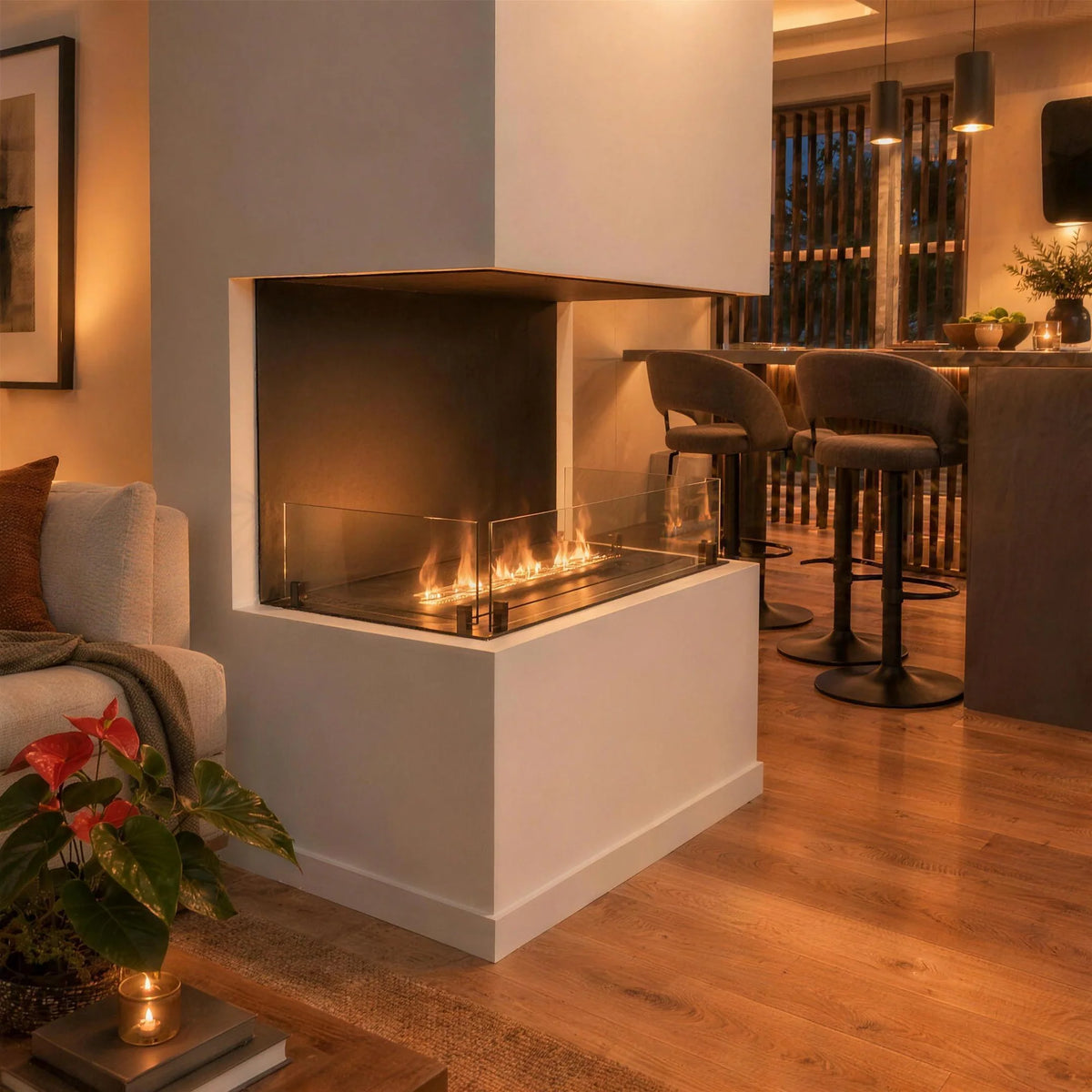

Bring contemporary style and the ambience of realistic flames into your home with the Foco Myst Three 800. Measuring 80 cm wide, this built in water vapour fireplace features a three sided design that allows the flame effect to be enjoyed from the front and both sides. It is an ideal choice for modern living rooms, feature walls and open plan interiors where you want to create an eye catching focal point.

Using Dimplex Optimyst technology, the Foco Myst Three 800 combines water vapour and LED lighting to recreate the appearance of dancing flames without combustion, smoke or soot. It produces no heat, allowing you to enjoy the visual appeal of a fireplace throughout the year without adding warmth to your room.

Features

🔥 Realistic Flames with Optimyst Technology

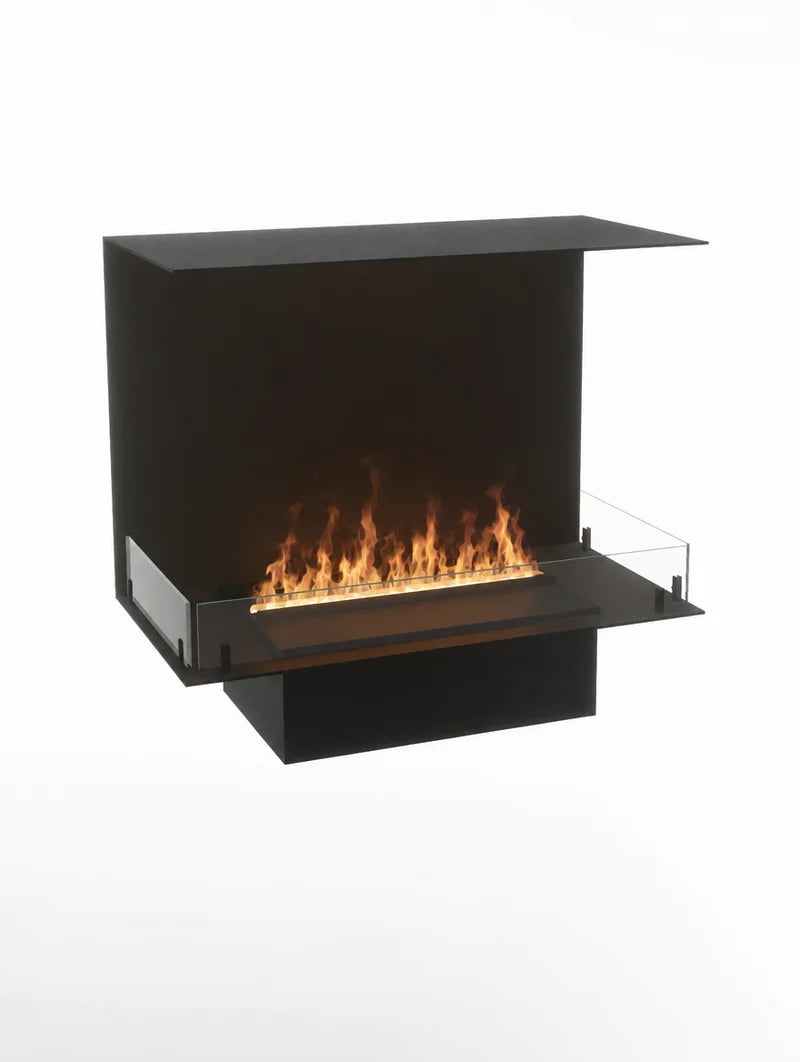

The Foco Myst Three 800 features a Dimplex Cassette 500 burner that transforms water into a fine mist, illuminated by LED lighting to create a lifelike flame effect. You can switch the flames on or off and adjust their size to suit your preferred atmosphere.

The three sided flame view makes this model particularly suitable for feature walls and open plan layouts, allowing the fireplace to be appreciated from different areas of the room.

🏡 Contemporary Design for Modern Interiors

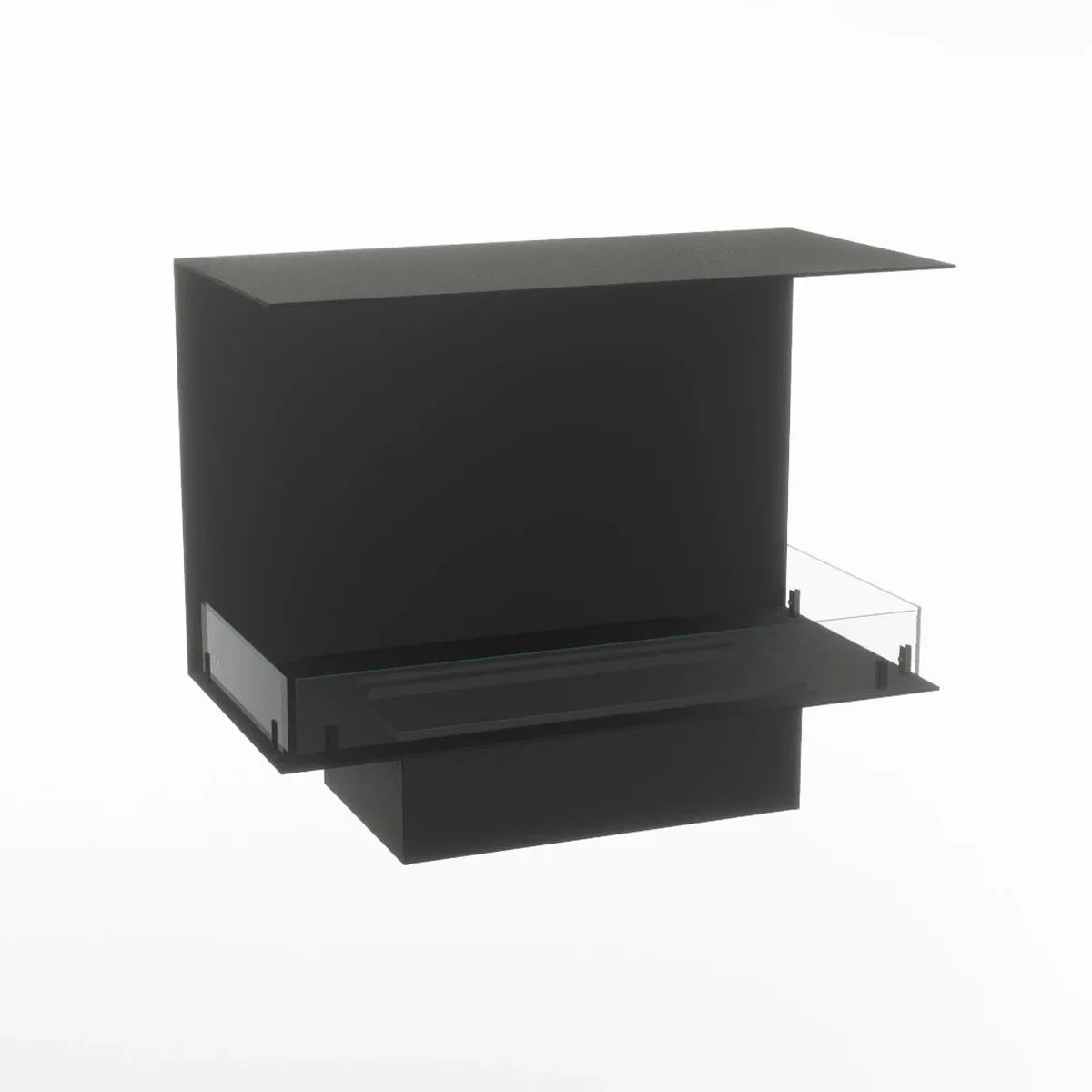

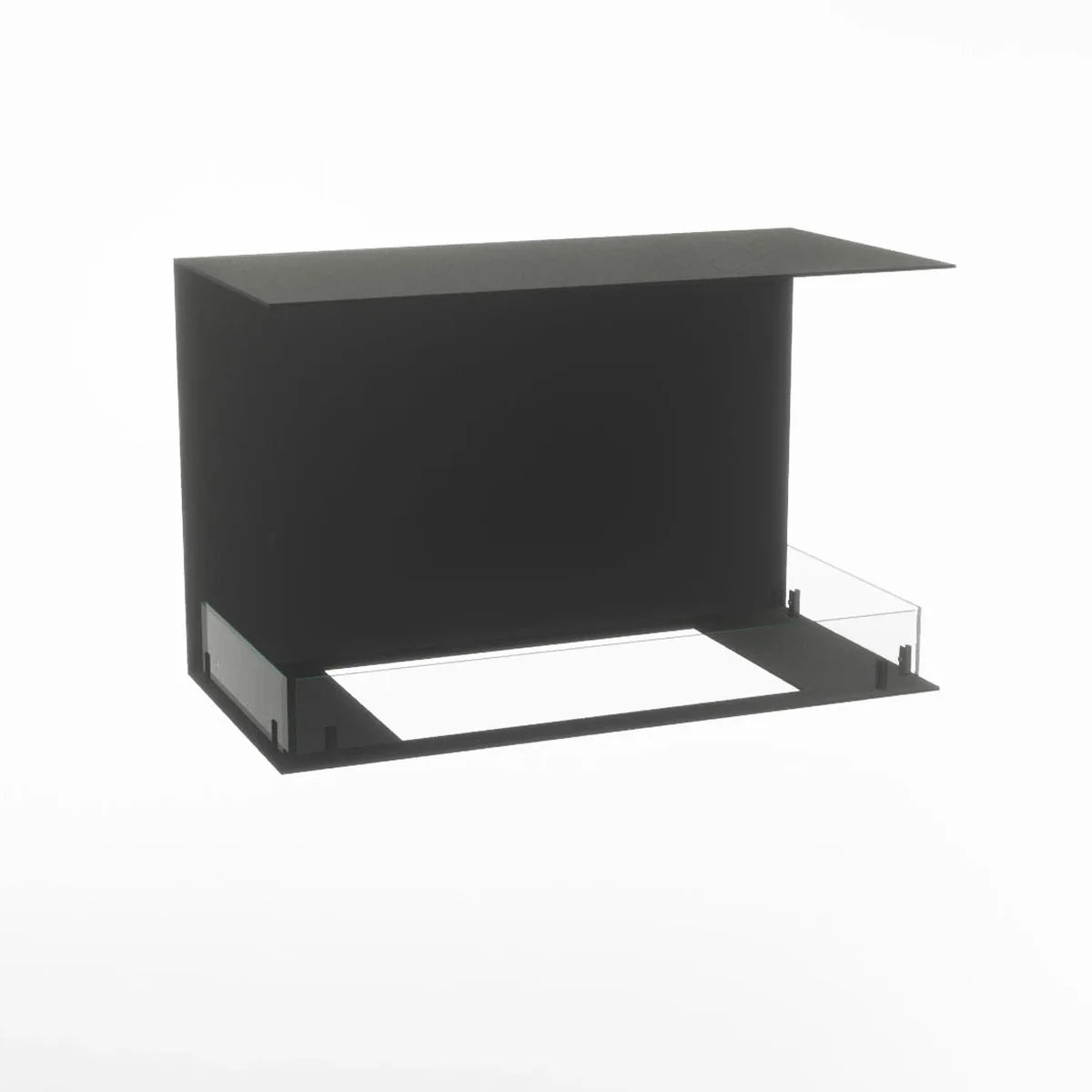

With its clean rectangular frame and matte black finish, the Foco Myst Three 800 brings understated elegance to contemporary homes. Its built in design integrates neatly into a suitable wall opening, giving you the look of a modern fireplace without the need for a traditional chimney.

The steel frame provides a sleek finish, while the included glass helps protect the flame effect from draughts. Optional decorative wood is available if you prefer to add a more traditional touch.

💧 Convenient Water Refill Options

The 1.2 litre water capacity provides up to 10 hours of operation per filling, with water consumption of approximately 0.12 litres per hour.

Choose between manual or automatic water refill, depending on the configuration selected. The manual version is filled with water as needed. The automatic version connects to a fixed water supply and regulates the water level automatically, so it cannot be refilled manually.

The included remote control makes it easy to operate the fireplace and adjust the flame effect from your seat.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Myst Three 800

• Fireplace type: Built in water vapour fireplace

• Flame technology: Dimplex Optimyst

• Burner: Dimplex Cassette 500

• Flame view: Three sided

• Heat output: No heat

• Installation: Built in

• Suitable location: Indoor use

• Material: Steel

• Finish: Matte black

• Height: 50 cm

• Width: 80 cm

• Depth: 40 cm

• Glass height: 15 cm

• Water capacity: 1.2 litres

• Water consumption: 0.12 litres per hour

• Operating duration: Up to 10 hours per filling for the manual version

• Water refill: Manual or automatic, depending on configuration

• Adjustable flame: Yes

• Remote control: Included

• Glass included: Yes

• Power supply: 220 to 240 V

• Chimney or flue required: No

• Required ventilation opening: 210 cm²

• Optional decoration: Wood

• Packaged depth: 54.5 cm

• Packaged weight: 26 kg

• Warranty: 2 years

Included

📦 What’s Included

• Dimplex Cassette 500 burner

• Three tempered glass panels for the Foco frame

• Six glass holders

• Foco Myst frame

• Screws and nuts for assembly

• Remote control

Decorative wood is available separately. The water refill system depends on the selected configuration, so confirm your preferred version when ordering.

Safety

⚠️ Safety Information

The Foco Myst Three 800 is designed for indoor use and creates a flame effect without combustion or heat output. Although no chimney or flue is required, a ventilation opening providing at least 210 cm² of free ventilation is specified to help cool the electronic components and allow water vapour to disperse.

Install the fireplace in a suitable enclosure with the required ventilation and access for maintenance. Follow the manufacturer's installation and electrical instructions, keep electrical components protected from water, and ensure ventilation openings remain unobstructed. The automatic refill version must be connected to a suitable fixed water supply as specified by the manufacturer.

Although the water vapour effect does not involve a conventional open flame, the appliance contains electrical components and must be installed and maintained according to the manufacturer's instructions. Use a qualified installer where required.

Warranty

🛡️ Warranty and Support

The Foco Myst Three 800 comes with a 2 year warranty. Refer to the manufacturer's warranty terms and installation instructions for details of coverage, maintenance and support.

FAQs

Frequently Asked Questions

Can the Foco Myst Three 800 be viewed from three sides?

Yes. Its three sided design allows the flame effect to be enjoyed from the front and both sides, making it suitable for feature walls and open plan interiors.

Does this fireplace produce heat?

No. The Dimplex Optimyst system creates the appearance of flames using water vapour and LED lighting without providing heat output.

Does it require a chimney or flue?

No chimney or flue is required. However, the specified ventilation opening of 210 cm² must be provided.

How long does it operate before refilling?

The 1.2 litre water capacity provides up to 10 hours of operation per filling for the manual version, depending on operating conditions.

What is the difference between manual and automatic refill?

The manual version is filled with water as needed. The automatic version connects to a fixed water supply and regulates the water level automatically.

Is a remote control included?

Yes. A remote control is included for convenient operation and flame adjustment.
