Foco One 600 Slim Built In Bioethanol Fireplace, 20 cm Deep

Description

Foco One 600 Slim Compact Built In Bioethanol Fireplace

Bring the beauty of real flames into your home without sacrificing valuable space with the Foco One 600 Slim built in bioethanol fireplace. Designed for contemporary interiors, this compact fireplace combines a sleek black finish with a slim 20 cm depth, making it an excellent choice for narrow partition walls and smaller feature walls. Its front facing flame display creates a welcoming atmosphere for cosy evenings at home, while the included manual burner offers simple operation without electricity or a traditional chimney.

Features

🔥 Slim Design for Space Saving Installation

The Foco One 600 Slim is designed for homes where space matters. Measuring just 20 cm deep, it can fit into suitable narrow wall constructions where a deeper fireplace insert may not be practical.

Its single sided design keeps the flames visible from the front, creating a clean and contemporary focal point in living rooms, dining areas and other suitable indoor spaces. The 60 cm wide frame delivers an elegant fireplace effect without overwhelming the surrounding interior.

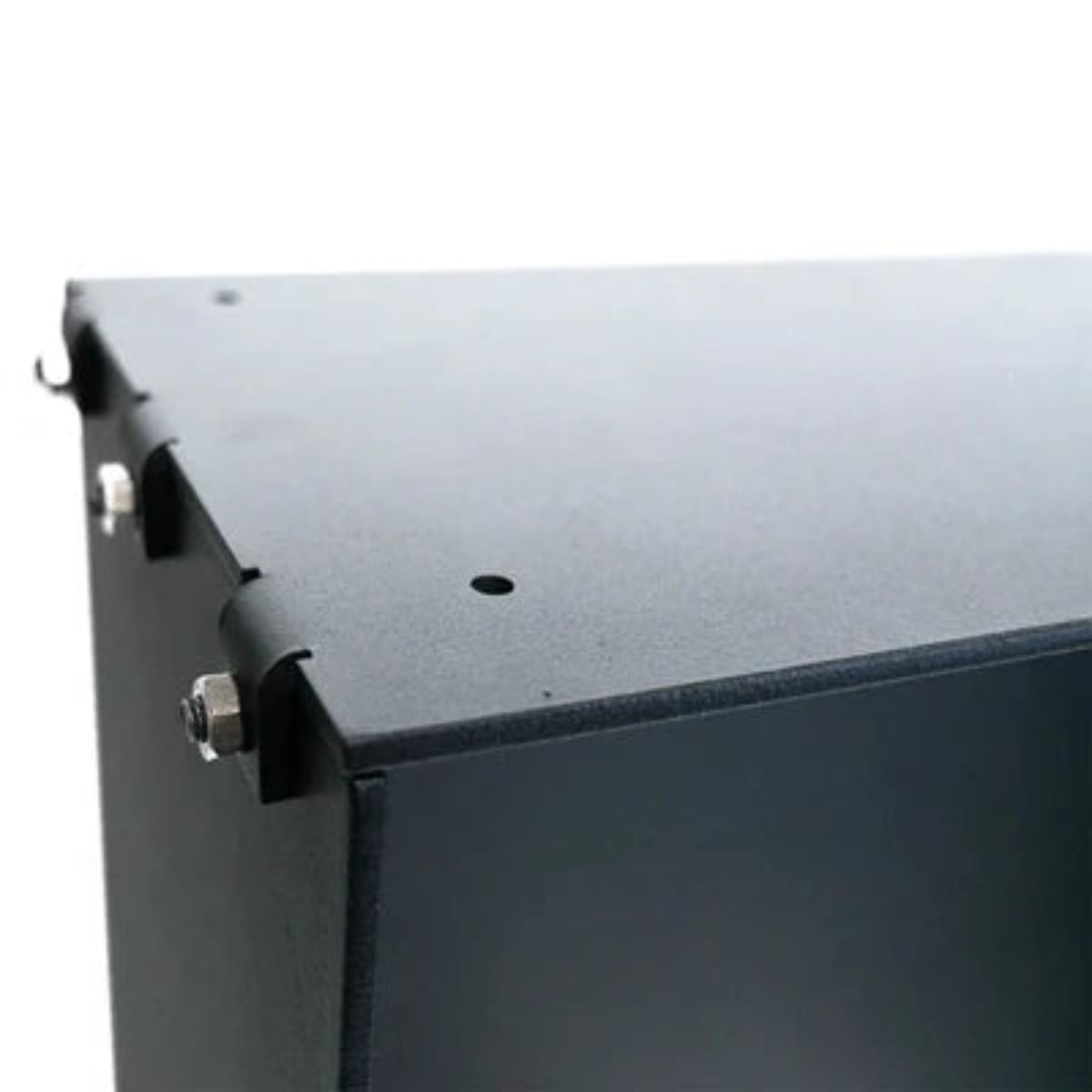

Made from 4 mm thick steel with a black powder coated finish, the frame complements modern furniture, neutral colour schemes and minimalist décor.

✨ Superior 450 Manual Bioethanol Burner

The Foco One 600 Slim comes with a Superior 450 manual bioethanol burner, allowing you to enjoy real flames with straightforward manual control.

The burner has a 2.5 litre fuel capacity and an adjustable flame, so you can tailor the appearance of the fire to suit your surroundings. With a stated burn time of up to 7.5 hours per fill, it is well suited to relaxed evenings and entertaining at home.

The burner operates without electricity, making it a practical option for those who prefer a simple fireplace setup without electrical connections or remote controls.

Key burner benefits include:

• Adjustable flames to create the atmosphere you prefer.

• Up to 7.5 hours of burning time per fill under suitable conditions.

• A compact burner design that complements the slim fireplace frame.

• No electrical connection required for manual operation.

🏡 Real Flames Without a Traditional Chimney

Enjoy the atmosphere of a real fire without the need for a conventional chimney or flue. The Foco One 600 Slim uses bioethanol fuel, providing greater flexibility when planning a built in fireplace in a suitable indoor space.

With a maximum stated heat output of 2.3 kW, it offers supplementary warmth alongside its decorative flame display. The recommended minimum room volume is 60 m³, so it is important to check your room dimensions before installation.

Its compact proportions make it particularly appealing for modern homes, apartments and interior layouts where a space saving fireplace is desirable.

Safety

🛡️ Tempered Glass and Installation Safety

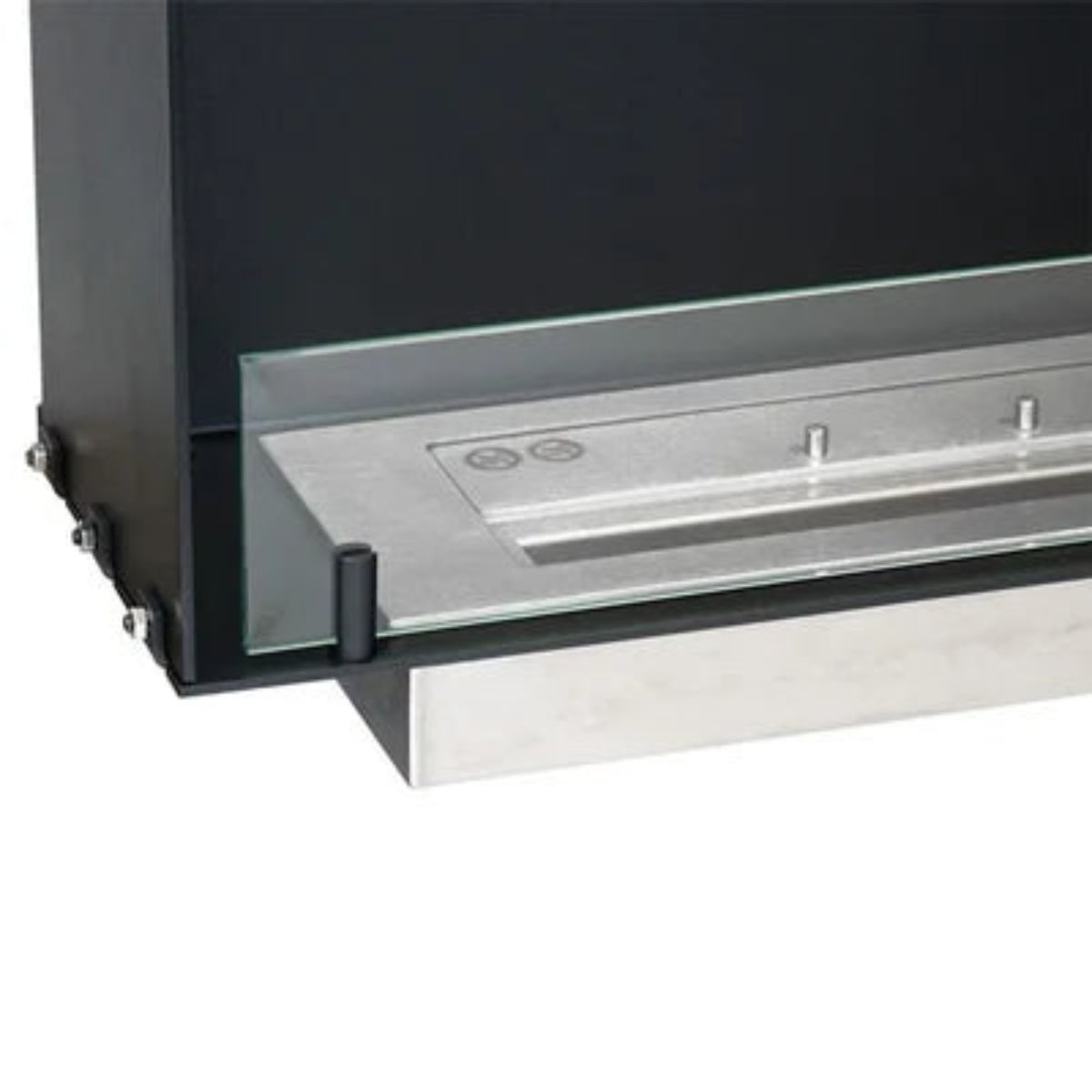

The Foco One 600 Slim includes a tempered glass panel that helps shield the flames from draughts, supporting a steadier flame display. The glass is an additional protective element and does not remove the risks associated with an open flame.

The fireplace is designed for indoor use in a suitable, well ventilated space. Although no chimney is required, proper ventilation and compliance with the manufacturer's instructions remain essential.

When installing the fireplace in a combustible wall, suitable heat insulation must be fitted between the fireplace and the surrounding wall construction. Fire resistant boards, such as Skamotec Fire Boards or an appropriate equivalent, may be suitable when specified for the installation.

Important safety guidance:

• Follow the installation instructions and maintain all required clearances.

• Ensure the room meets the recommended minimum volume of 60 m³ and the manufacturer's ventilation requirements.

• Never refill a lit or hot burner. Allow it to cool completely before adding bioethanol fuel.

• Use only the recommended bioethanol fuel and keep it away from ignition sources during refilling.

• Keep children, pets and combustible materials at a safe distance.

• Never leave the fireplace unattended while burning.

• Have the wall construction and heat insulation checked before installation if you are unsure whether the wall is suitable.

Specifications

📐 Dimensions and Technical Specifications

Product: Foco One 600 Slim built in bioethanol fireplace

Brand: Foco Fires

Fireplace type: Built in bioethanol fireplace

Viewing style: Single sided, front facing

Installation type: In wall installation

Fuel type: Bioethanol

Frame material: Steel

Finish: Black powder coated

Steel thickness: 4 mm

Height: 50 cm

Width: 60 cm

Depth: 20 cm

Weight: 20 kg

Packaged depth: 54.5 cm

Packaged weight: 21 kg

Burner model: Superior 450 manual bioethanol burner

Fuel capacity: 2.5 litres

Fuel consumption: Approximately 0.33 litres per hour

Burn time: Up to 7.5 hours

Maximum heat output: 2.3 kW

Flame width: The supplied specifications list 32 cm for the fireplace and 45 cm for the burner. Confirm the applicable measurement with the manufacturer.

Adjustable flame: Yes

Flue or chimney required: No

Minimum recommended room volume: 60 m³

Electrical requirements: None

Controls: Manual

Remote control: Not included and not applicable to the supplied manual burner

Glass panel: Included

Glass height: 10 cm

Warranty: 2 years

Please note that actual burn time and heat output depend on operating conditions and the flame setting. Confirm the manufacturer's installation requirements before purchasing.

Included

📦 What’s Included?

• Foco One 600 Slim fireplace frame supplied in five parts

• Superior 450 manual bioethanol burner supplied as standard, based on the listed product specifications

• One tempered glass panel measuring 10 cm high

• Two glass holders

• Screws and necessary assembly components

Please note: This listing includes the Superior 450 manual bioethanol burner only. The burner is operated manually and does not require an electrical connection. Automatic burners, remote controls and app control features are not included in this configuration.

Additional accessories and installation materials are available separately.

Warranty

Warranty and Support

The Foco One 600 Slim comes with a 2 year warranty for added peace of mind. Its slim profile, adjustable manual burner and elegant black frame make it a practical choice for creating a contemporary fireplace feature without taking up unnecessary space.

Follow the manufacturer's installation and operating instructions to enjoy your bioethanol fireplace safely and confidently.

FAQs

❓ Frequently Asked Questions

Is the Foco One 600 Slim suitable for narrow partition walls?

Its 20 cm depth makes it suitable for certain narrow wall installations. However, the complete wall construction must provide enough space and meet the manufacturer's requirements for clearances, insulation and ventilation.

Does the Foco One 600 Slim need electricity?

No. The supplied Superior 450 manual burner operates without an electrical connection.

How long does the burner last on one fill?

The burner has a stated operating time of up to 7.5 hours per fill. Actual burn time depends on the flame setting and operating conditions.

Does this fireplace require a chimney?

No. The Foco One 600 Slim does not require a traditional chimney or flue. Suitable ventilation is still essential.

How much heat does the fireplace produce?

The maximum stated heat output is 2.3 kW, making it suitable for supplementary warmth as well as creating an attractive flame display.

Is the glass panel included?

Yes. One tempered glass panel and two glass holders are included to help shield the flame from draughts.

Can I install it in a combustible wall?

Suitable heat insulation and compliance with the manufacturer's installation instructions are essential. Consult the manufacturer or a qualified installer to confirm the correct materials and clearances.

Is the Foco One 600 Slim suitable for outdoor use?

This model is specified for indoor use. Do not install it outdoors unless the manufacturer explicitly confirms that the product is suitable for outdoor conditions. Wood burning and gas products designed for outdoor use must be installed in a well ventilated outdoor space.
