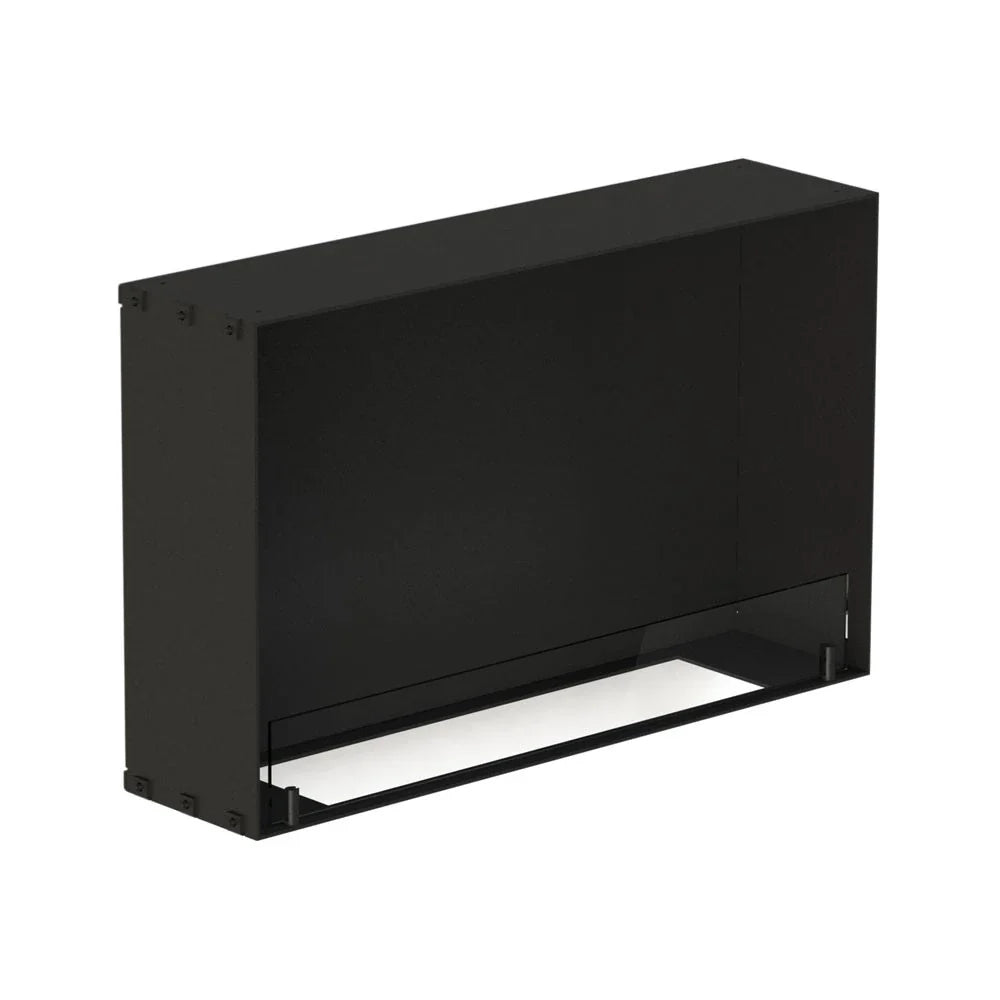

Foco One 800 Slim Built In Bioethanol Fireplace, 20 cm Deep

Description

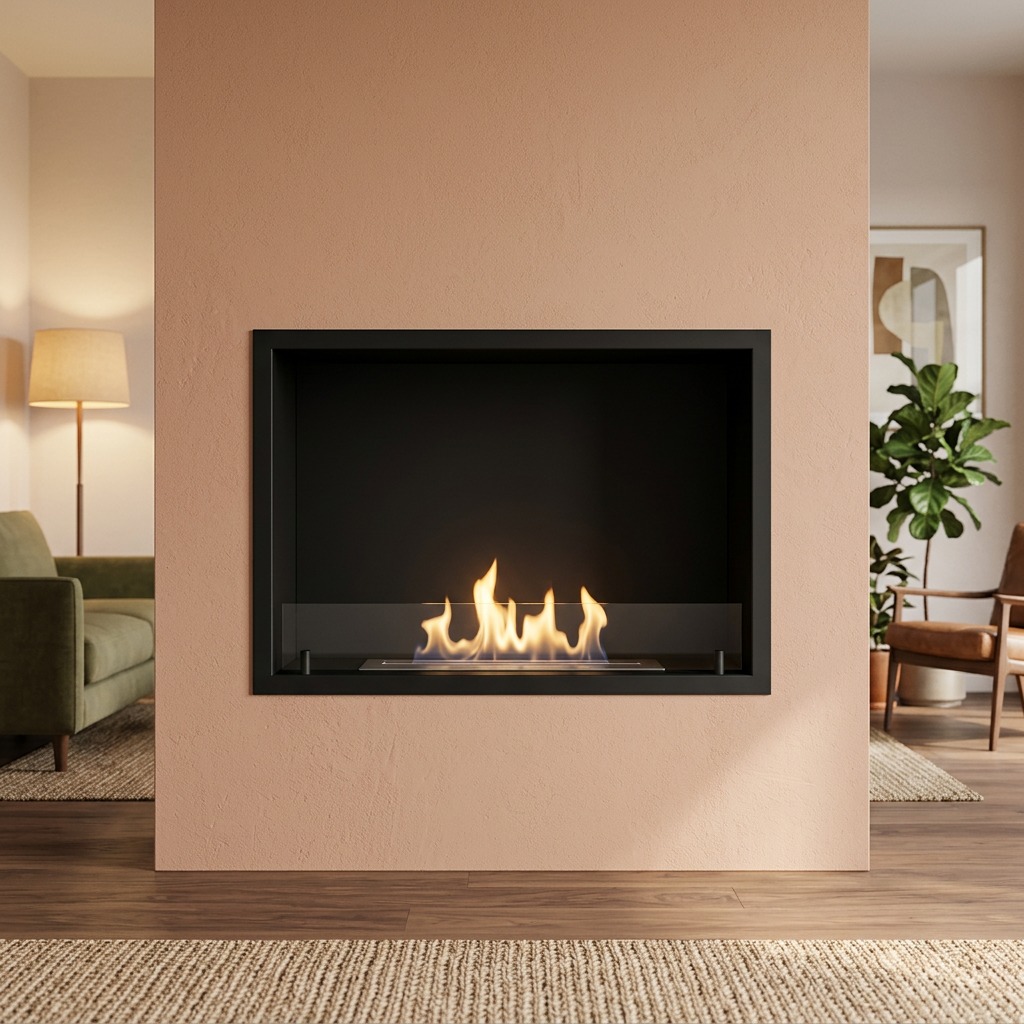

Foco One 800 Slim Built In Bioethanol Fireplace with Space Saving Design

Bring the beauty of real flames into your home with the Foco One 800 Slim built in bioethanol fireplace. Designed for contemporary interiors, this stylish fireplace combines an 80 cm wide frame with a slim depth of just 20 cm, making it ideal for narrow partition walls and space conscious designs. Its front facing flame display creates a welcoming focal point in living rooms, dining areas and modern open plan spaces, while the sleek black finish adds understated elegance. Complete with a manual bioethanol burner, the Foco One 800 Slim offers adjustable flames without the need for electricity or a traditional chimney.

Features

🔥 Slim Profile and Contemporary Design

The Foco One 800 Slim is designed for installations where space is limited but style still matters. Its 20 cm depth makes it a practical option for suitable narrow wall constructions, helping you create a built in fireplace without the bulk of a deeper model.

The single sided design showcases the flames from the front, making it an attractive feature for modern living spaces. Its 80 cm width provides a more prominent flame display while maintaining a compact overall profile.

Crafted from 4 mm thick steel with a black powder coated finish, the fireplace frame complements contemporary furniture, minimalist décor and a wide range of interior colour schemes.

A tempered glass panel is included to help shield the flames from draughts and support a steadier flame display.

✨ Manual Bioethanol Burner with Adjustable Flames

The Foco One 800 Slim comes with a manual bioethanol burner featuring a 3.5 litre fuel capacity. Its adjustable flame allows you to tailor the appearance of the fire to suit your surroundings, whether you are enjoying a quiet evening or entertaining guests.

With a stated burn time of up to 7.5 hours per fill, it provides an attractive flame display for extended periods, depending on the flame setting and operating conditions.

The manual burner requires no electrical connection and offers straightforward operation without remote controls or mobile apps.

Key benefits include:

• Adjustable flames to create your preferred atmosphere.

• Up to 7.5 hours of burning time per fill under suitable conditions.

• Manual operation without the need for electricity.

• A compact burner design that complements the slim fireplace frame.

🏡 Real Flames Without a Traditional Chimney

Enjoy the atmosphere of a real fire without requiring a conventional chimney or flue. The Foco One 800 Slim uses bioethanol fuel, offering greater flexibility when planning a built in fireplace in a suitable indoor space.

With a maximum stated heat output of 3.2 kW, it provides supplementary warmth alongside its decorative flame display. The recommended minimum room volume is 70 m³, so check your room dimensions and ventilation requirements before installation.

Its slim construction makes it particularly appealing for contemporary homes where a space saving fireplace can add character without dominating the room.

Safety

🛡️ Safety and Installation Requirements

The Foco One 800 Slim is designed for indoor use in a suitable, well ventilated space. Although it does not require a chimney, proper ventilation and compliance with the manufacturer's installation instructions remain essential.

When installing the fireplace in a combustible wall, suitable heat insulation must be fitted between the fireplace and the surrounding wall construction. Fire resistant boards, such as Skamotec Fire Boards or an appropriate equivalent, may be suitable when specified for the installation.

The tempered glass panel helps shield the flame from draughts but does not eliminate the risks associated with an open flame.

Important safety guidance:

• Follow the manufacturer's installation instructions and maintain all required clearances.

• Ensure the room meets the recommended minimum volume of 70 m³ and the required ventilation conditions.

• Never refill a lit or hot burner. Allow it to cool completely before adding bioethanol fuel.

• Use only the recommended fuel and keep it away from ignition sources during refilling.

• Keep children, pets and combustible materials at a safe distance.

• Never leave a burning fireplace unattended.

• Confirm the suitability of the wall construction and heat insulation before installation.

Specifications

📐 Dimensions and Technical Specifications

Product: Foco One 800 Slim built in bioethanol fireplace

Brand: Foco Fires

SKU: BIO 30 146

Fireplace type: Built in bioethanol fireplace

Viewing style: Single sided, front facing

Installation type: In wall installation

Fuel type: Bioethanol

Frame material: Steel

Finish: Black powder coated

Steel thickness: 4 mm

Height: 50 cm

Width: 80 cm

Depth: 20 cm

Weight: 25 kg

Packaged depth: 39.5 cm

Packaged weight: 27 kg

Burner type: Manual bioethanol burner

Fuel capacity: 3.5 litres

Fuel consumption: Approximately 0.46 litres per hour

Burn time: Up to 7.5 hours

Maximum heat output: 3.2 kW

Flame length: 45 cm

Adjustable flame: Yes

Flue or chimney required: No

Minimum recommended room volume: 70 m³

Electrical requirements: None

Controls: Manual

Remote control: Not included

Glass panel: Included

Glass height: 10 cm

Warranty: 2 years

Please note that actual heat output, fuel consumption and burn time depend on the operating conditions and flame setting. Confirm the manufacturer's installation requirements before purchasing.

Included

📦 What’s Included?

• Foco One 800 Slim fireplace frame

• Manual bioethanol burner with a 3.5 litre fuel capacity, supplied as standard according to the listed product specifications

• One tempered glass panel measuring 10 cm high

• Two glass holders

• Screws and nuts for assembly

Please note: This listing includes the manual bioethanol burner only, based on SKU BIO 30 146 and the supplied specifications. The burner is operated manually and does not require an electrical connection. Automatic burners, remote controls and mobile app controls are not included in this configuration.

Optional accessories are available separately.

Warranty

Warranty and Support

The Foco One 800 Slim comes with a 2 year warranty for added peace of mind. Its slim profile, adjustable manual burner and modern black frame make it an appealing choice for creating a stylish fireplace feature in spaces where depth is limited.

Follow the manufacturer's installation and operating instructions to enjoy your bioethanol fireplace safely and confidently.

FAQs

❓ Frequently Asked Questions

Is the Foco One 800 Slim suitable for narrow partition walls?

Its 20 cm depth makes it suitable for certain narrow wall installations. The complete wall construction must still meet the manufacturer's requirements for installation space, heat insulation and clearances.

Does the Foco One 800 Slim require electricity?

No. The supplied manual bioethanol burner operates without electricity, making it a practical choice for installations without a nearby power connection.

How long does the fireplace burn on one fill?

The 3.5 litre burner has a stated operating time of up to 7.5 hours. Actual burn time depends on the flame setting and operating conditions.

How much heat does the Foco One 800 Slim produce?

The maximum stated heat output is 3.2 kW, providing supplementary warmth as well as an attractive flame display.

Does it need a chimney or flue?

No. The fireplace uses bioethanol fuel and does not require a conventional chimney or flue. Adequate ventilation is still essential.

Is the glass panel included?

Yes. One tempered glass panel and two glass holders are included. The glass helps protect the flames from draughts and supports a steadier display.

Can it be installed in a combustible wall?

Suitable heat insulation and compliance with the manufacturer's installation instructions are essential. Consult the manufacturer or a qualified installer to confirm the correct materials and clearances.

Is the Foco One 800 Slim suitable for outdoor use?

This model is specified for indoor use. Do not install it outdoors unless the manufacturer explicitly confirms that it is suitable for outdoor conditions. Wood burning and gas products designed for outdoor use must be installed in a well ventilated outdoor space.
