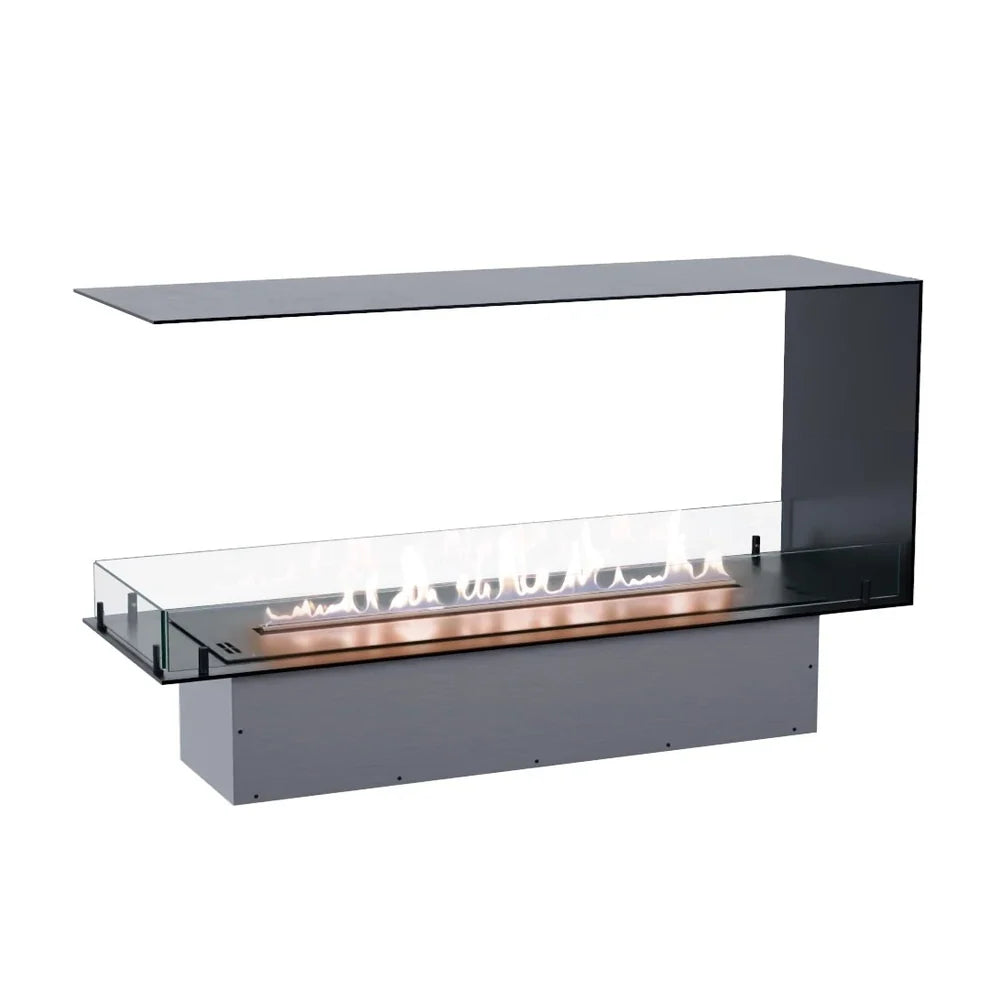

Foco Room Divider 1200 Built In Bioethanol Fireplace

Description

Foco Room Divider 1200 Built In Bioethanol Fireplace

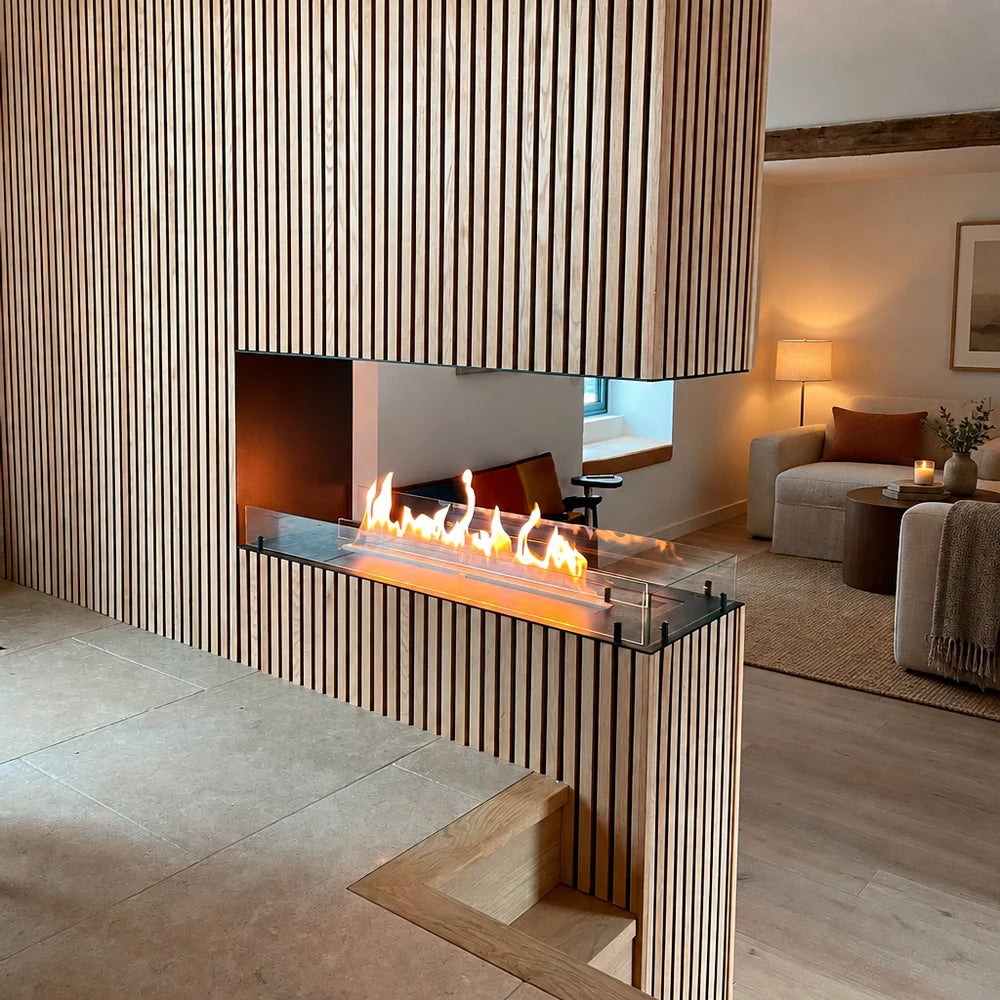

Transform your living space with the Foco Room Divider 1200 Built In Bioethanol Fireplace. Designed for installation within a partition wall, this impressive fireplace allows you to enjoy the flames from three sides, creating an eye catching focal point while maintaining an open feel between adjoining rooms.

With its generous 120 cm width, minimalist black frame and contemporary design, the Foco Room Divider 1200 brings the beauty of real flames to modern interiors. This listing features the manual bioethanol burner, which offers adjustable flames without requiring an electrical connection.

Features

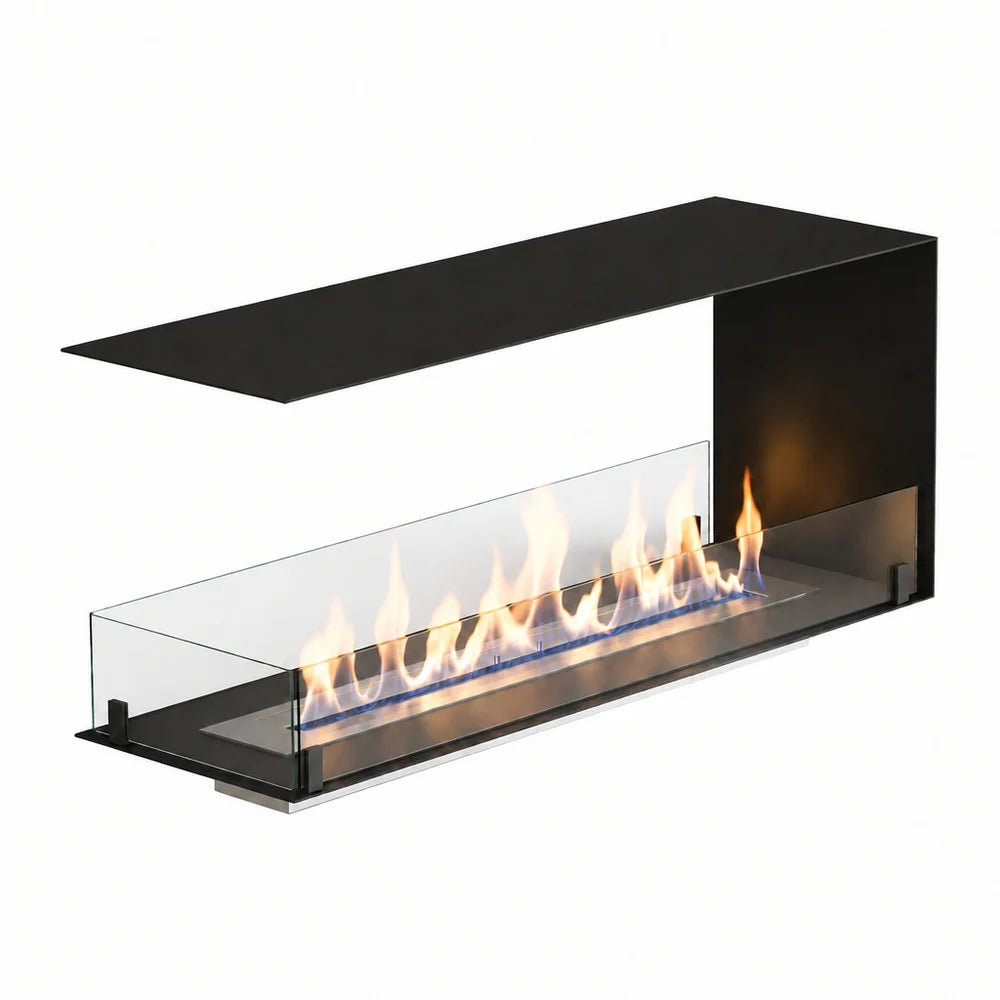

✨ Three Sided Flame View

The Foco Room Divider 1200 is designed to display the flames from the front and both sides. This makes it an attractive choice for room dividers between living rooms, dining areas and other open plan spaces.

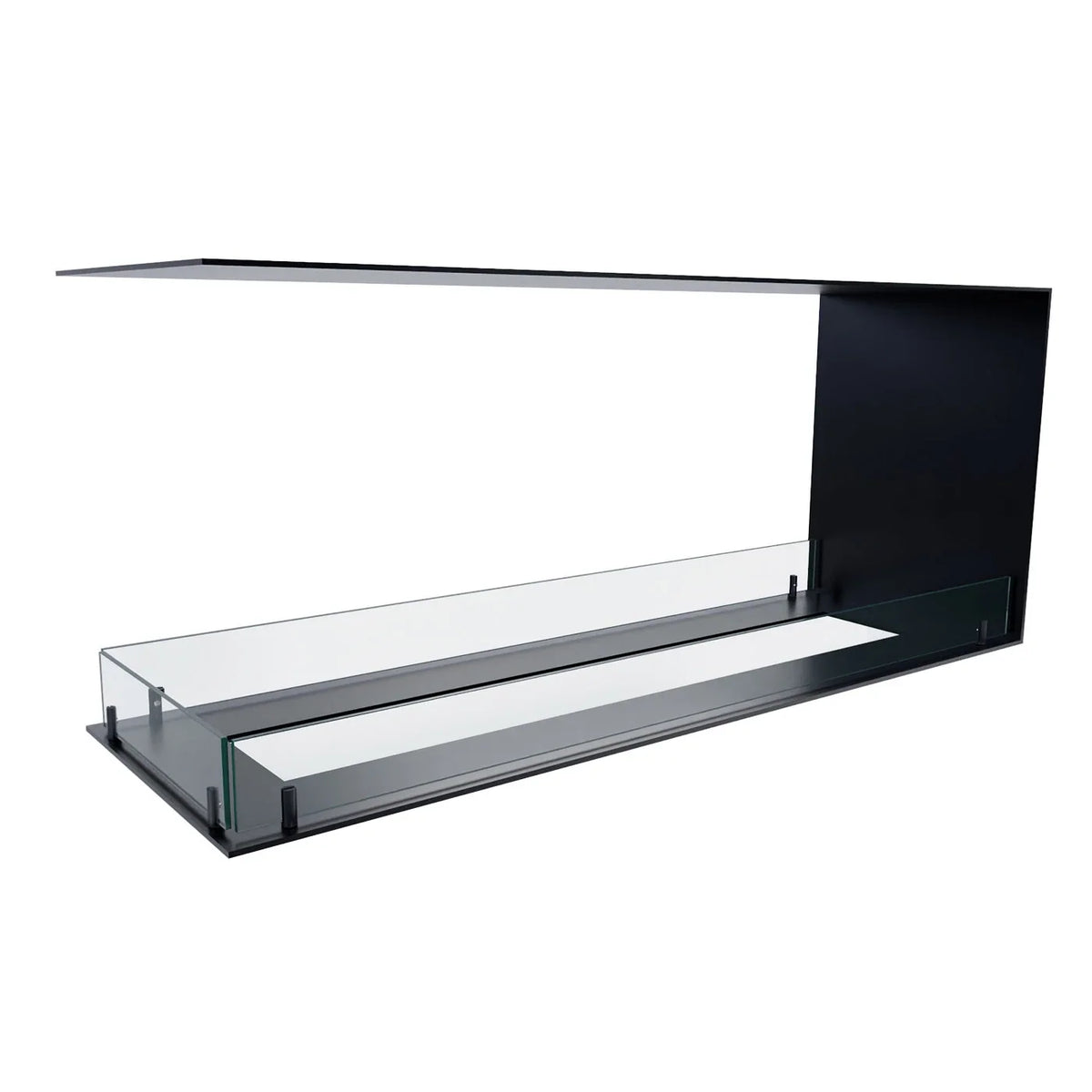

The frame is made from 4 mm thick steel with a black powder coated finish. Its clean, understated appearance allows the flames to take centre stage while complementing a wide range of interior styles.

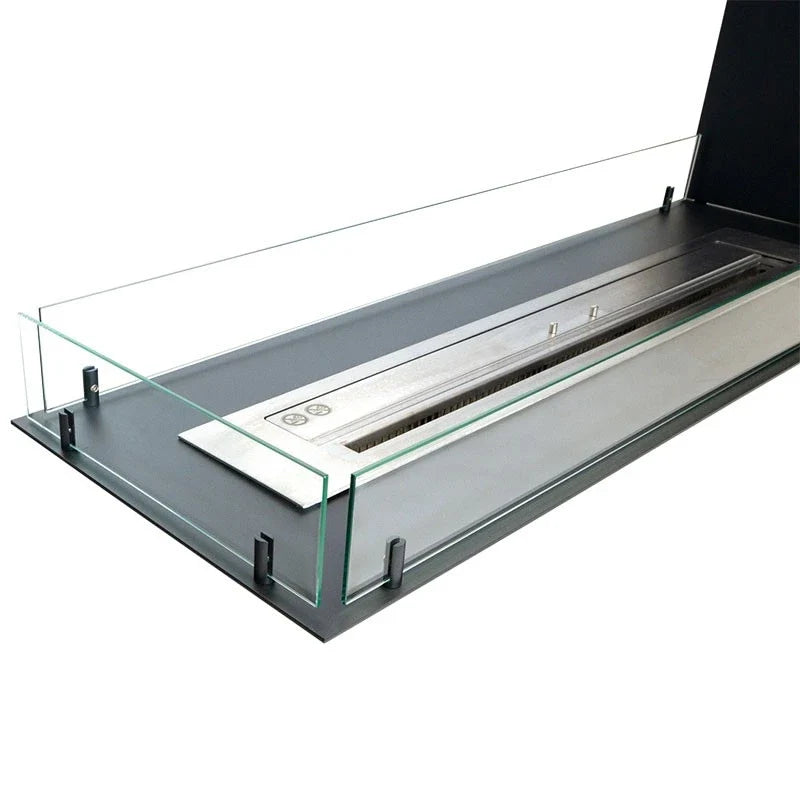

Three tempered glass panels are included to help shield the flames from draughts and support a more stable flame display. Install the glass according to the manufacturer's instructions for the selected burner.

🔥 Manual Bioethanol Burner

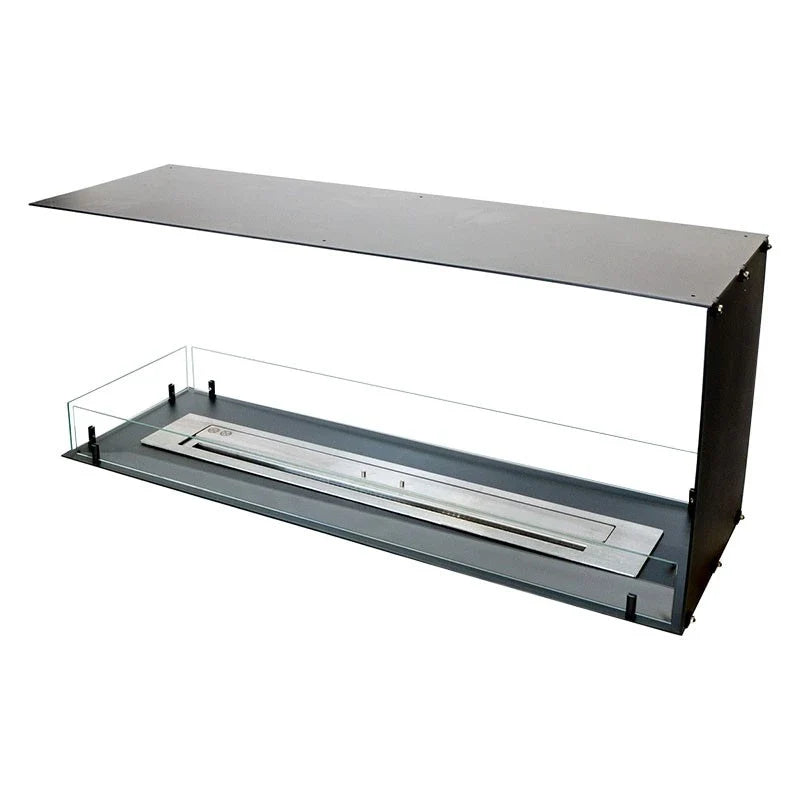

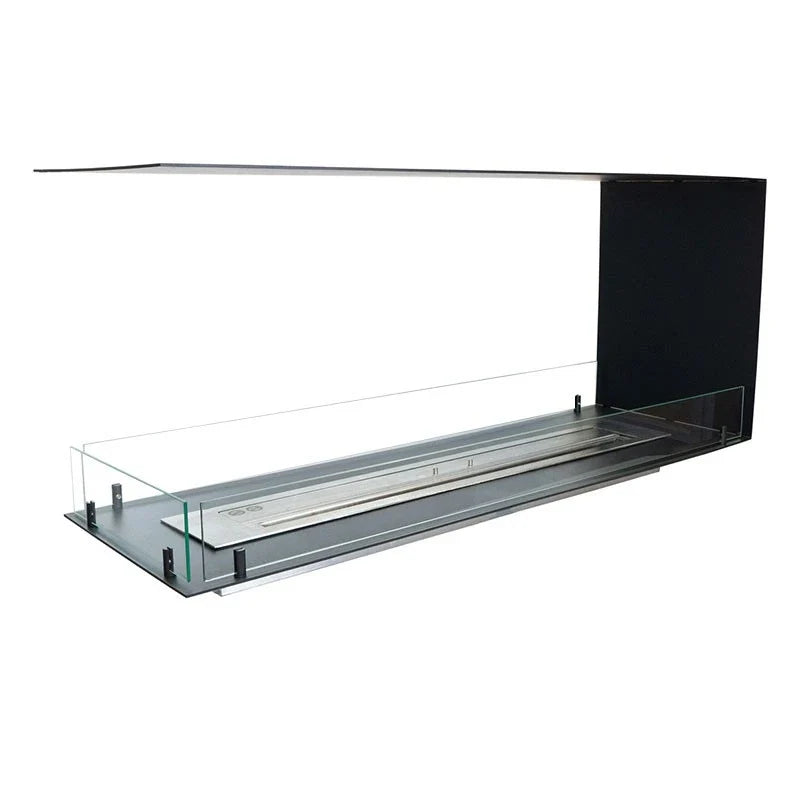

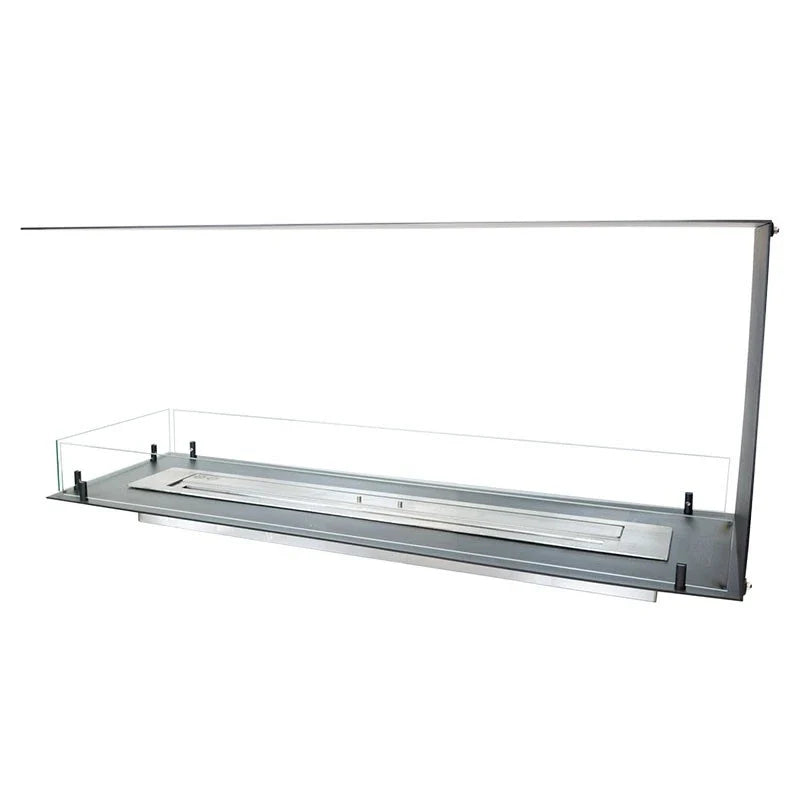

This version of the Foco Room Divider 1200 comes with a manual bioethanol burner. The flame is adjusted by hand, and the burner does not require an electrical connection.

The manual burner has a listed fuel capacity of 5 litres and a burn time of approximately 6 hours. With a flame length of around 80 cm and a heat output range of 3.3 to 6.5 kW, it provides an impressive flame display and warmth for your space.

Burn time and heat output depend on the flame setting and operating conditions. Bioethanol fuel is not included unless specified separately.

🏡 Designed for Built In Installation

Measuring 120 cm wide, 50 cm high and 40 cm deep, the Foco Room Divider 1200 is designed to be integrated into a suitably prepared partition wall.

The installation space must accommodate the fireplace's 40 cm depth and meet the manufacturer's requirements for clearances, ventilation and heat protection.

No chimney or flue is required. However, adequate room ventilation is essential, and the recommended minimum room volume for this model is 90 m³.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Room Divider 1200

• SKU: BIO-30-112

• Fireplace type: Built in bioethanol fireplace

• Flame view: Three sided

• Height: 50 cm

• Width: 120 cm

• Depth: 40 cm

• Material: Steel

• Steel thickness: 4 mm

• Finish: Black powder coated

• Burner type: Manual bioethanol burner

• Fuel type: Bioethanol

• Fuel capacity: 5 litres

• Flame length: Approximately 80 cm

• Flame adjustment: Yes, manual

• Heat output: 3.3 to 6.5 kW according to the manual burner specifications

• Maximum heat output: 6.2 kW according to the main product specifications; please confirm the correct figure with the supplier

• Fuel consumption: Approximately 0.87 litres per hour

• Burn time: Approximately 6 hours

• Chimney or flue required: No

• Electrical connection: Not required for the manual burner

• Minimum room volume: 90 m³

• Suitable for: Indoor use

• Glass panels: Included

• Warranty: 2 years

Included

📦 What's Included?

• Foco Room Divider 1200 frame, supplied in three parts

• Manual bioethanol burner with adjustable flame

• Three tempered glass panels, approximately 10 cm high

• Six glass holders

• Screws and nuts for frame assembly

Please note that this listing includes the manual bioethanol burner only. Remote control and app control features are not included. Automatic burners, including compatible Planika models, are separate configurations and must be purchased separately. Bioethanol fuel and other optional accessories are also sold separately unless specified otherwise.

🛠️ Installation and Safety

The Foco Room Divider 1200 is designed for installation within a suitably prepared partition wall. The frame is supplied in three parts and must be assembled according to the manufacturer's instructions.

Before installation, check the wall construction, clearances, ventilation and heat protection requirements. If the wall contains combustible materials, use an approved installation system that meets the manufacturer's specifications. Fire resistant boards alone do not automatically make every wall construction safe. Consult a qualified installer if you are unsure about the installation.

Although no chimney or flue is required, adequate ventilation is essential. The room must meet the recommended minimum volume of 90 m³.

For safe operation:

• Use only the recommended bioethanol fuel.

• Never refill the burner while it is lit or hot.

• Allow the burner to cool completely before refilling.

• Keep combustible materials away from the fireplace.

• Never leave a burning fireplace unattended.

• Keep the fireplace out of reach of children and pets.

• Follow the manufacturer's instructions for installation, operation and maintenance.

Warranty

🛡️ Warranty and Support

The Foco Room Divider 1200 comes with a 2 year warranty according to the supplied product specifications. Refer to the manufacturer's documentation for warranty coverage, installation guidance and maintenance requirements.

FAQs

❓ Frequently Asked Questions

What does Foco Room Divider 1200 mean?

The name refers to a room divider fireplace from the Foco range, with an approximate width of 1200 mm. Its three sided design allows the flames to be viewed from the front and both sides.

Can the flames be seen from three sides?

Yes. The fireplace is designed to provide a three sided view of the flames, making it suitable for selected partition wall installations.

Does the Foco Room Divider 1200 require a chimney?

No. The manual bioethanol burner does not require a chimney or flue. Adequate ventilation and the manufacturer's installation requirements must still be met.

Which burner is included?

This listing includes the manual bioethanol burner. Automatic burners and their remote or app control features are not included.

Does the manual burner require electricity?

No. The manual burner operates without an electrical connection.

How long does the manual burner burn for?

The manual burner has a listed fuel capacity of 5 litres and a burn time of approximately 6 hours. Actual burn time depends on the flame setting and operating conditions.

Can the flame be adjusted?

Yes. The manual burner allows you to adjust the flame by hand.

Are the glass panels included?

Yes. The package includes three tempered glass panels and six glass holders. The glass helps shield the flames from draughts.

What is the minimum room volume?

The listed minimum room volume is 90 m³. Follow the manufacturer's ventilation and installation requirements.

What warranty is included?

The supplied product specifications state a 2 year warranty. Refer to the manufacturer's warranty terms for full details.
