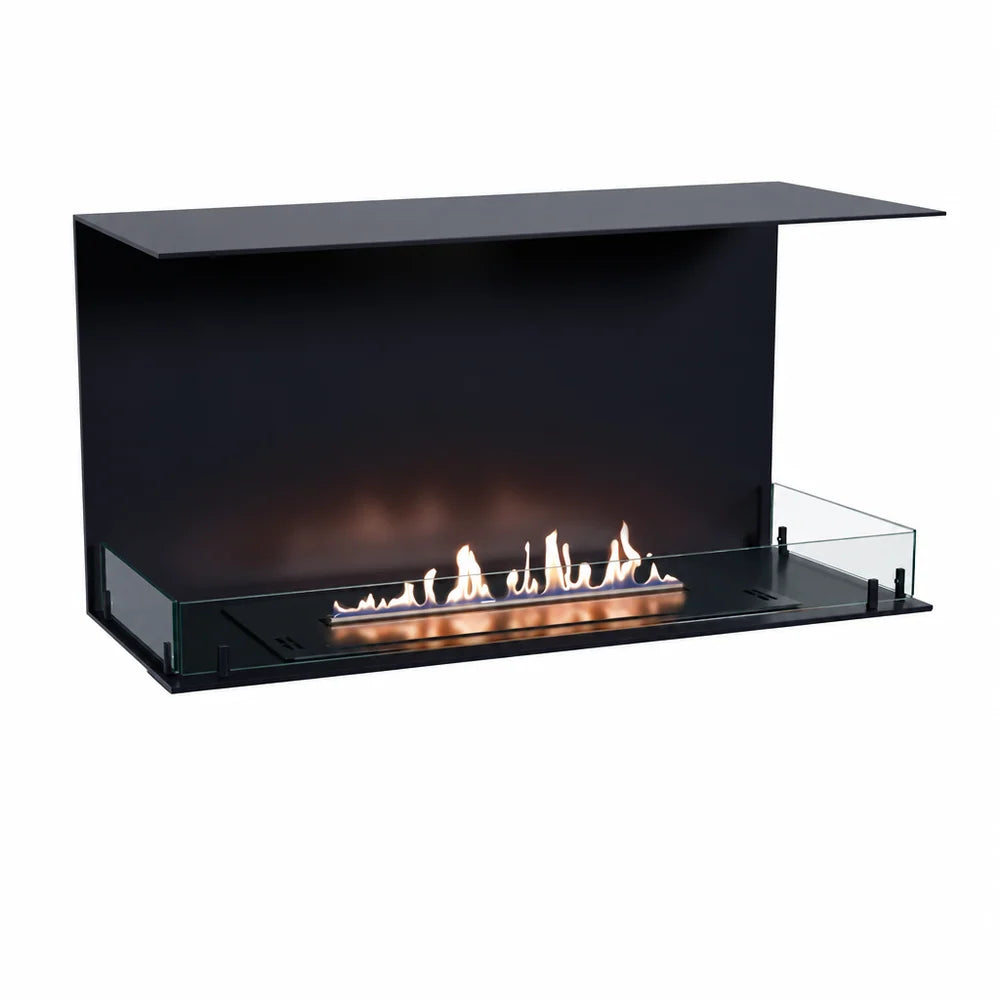

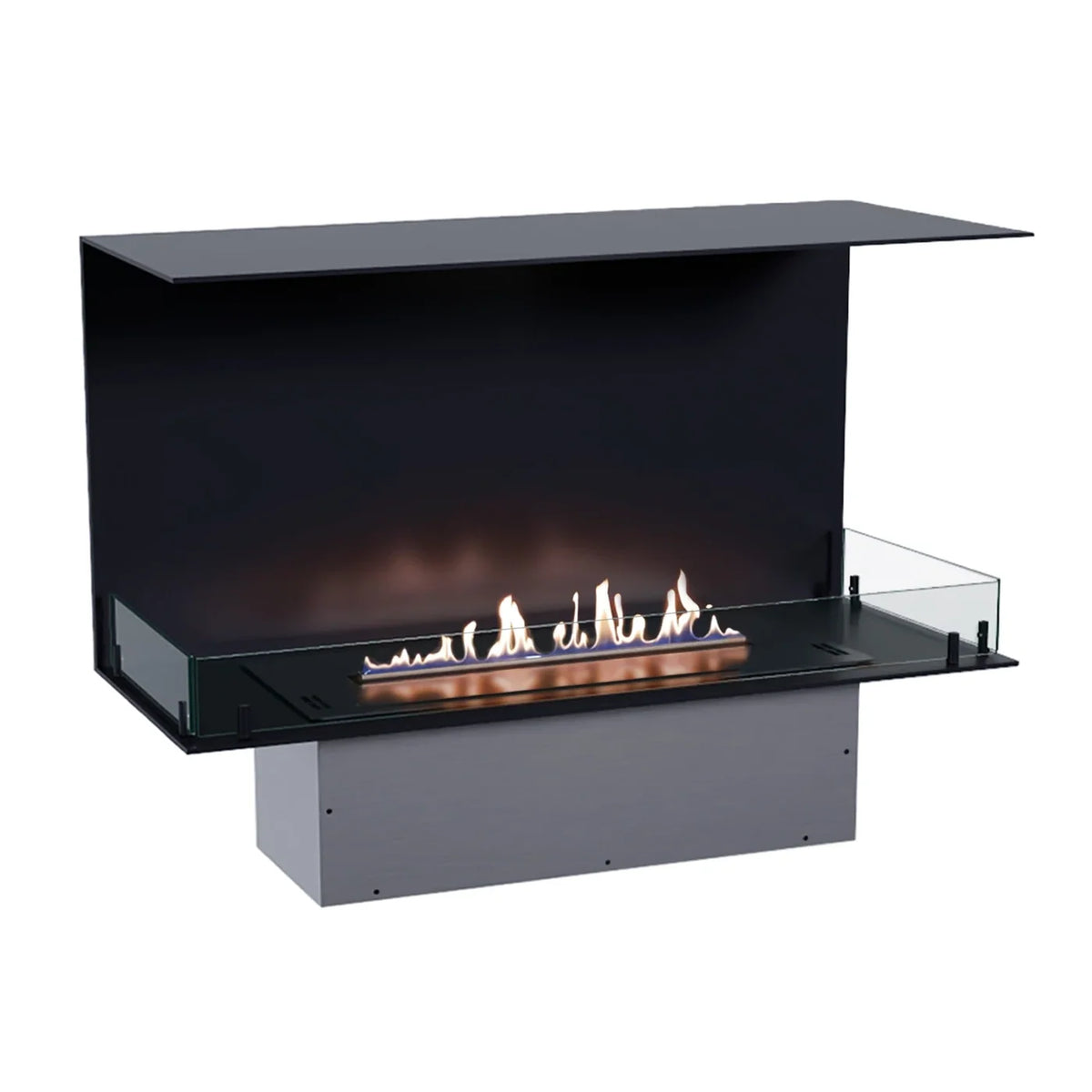

Foco Three 1000 Three Sided Built In Bioethanol Fireplace

Description

Foco Three 1000 Three Sided Built In Bioethanol Fireplace 🔥

Create a stunning focal point in your home with the Foco Three 1000 bioethanol fireplace. Designed for modern interiors, this three sided built in fireplace lets you enjoy the beauty of real flames from the front, left and right sides. Its wide viewing area makes it an excellent choice for a feature wall, media wall or open plan living space, bringing warmth and atmosphere to your surroundings.

Measuring 100 cm wide, 50 cm high and 40 cm deep, the Foco Three 1000 offers an impressive flame display in a sleek, contemporary design. Choose between a manual bioethanol burner or a compatible automatic burner to suit your preferred level of convenience and control.

Features

✨ Modern Design and Quality Materials

The Foco Three 1000 combines minimalist styling with durable construction. Its frame is made from 4 mm thick steel with a black powder coated finish, creating a refined look that complements a wide range of interior styles.

Three tempered glass panels are included to help protect the flames from draughts and minor air movements, supporting a steadier flame display. Six glass holders secure the panels in place as part of the fireplace assembly.

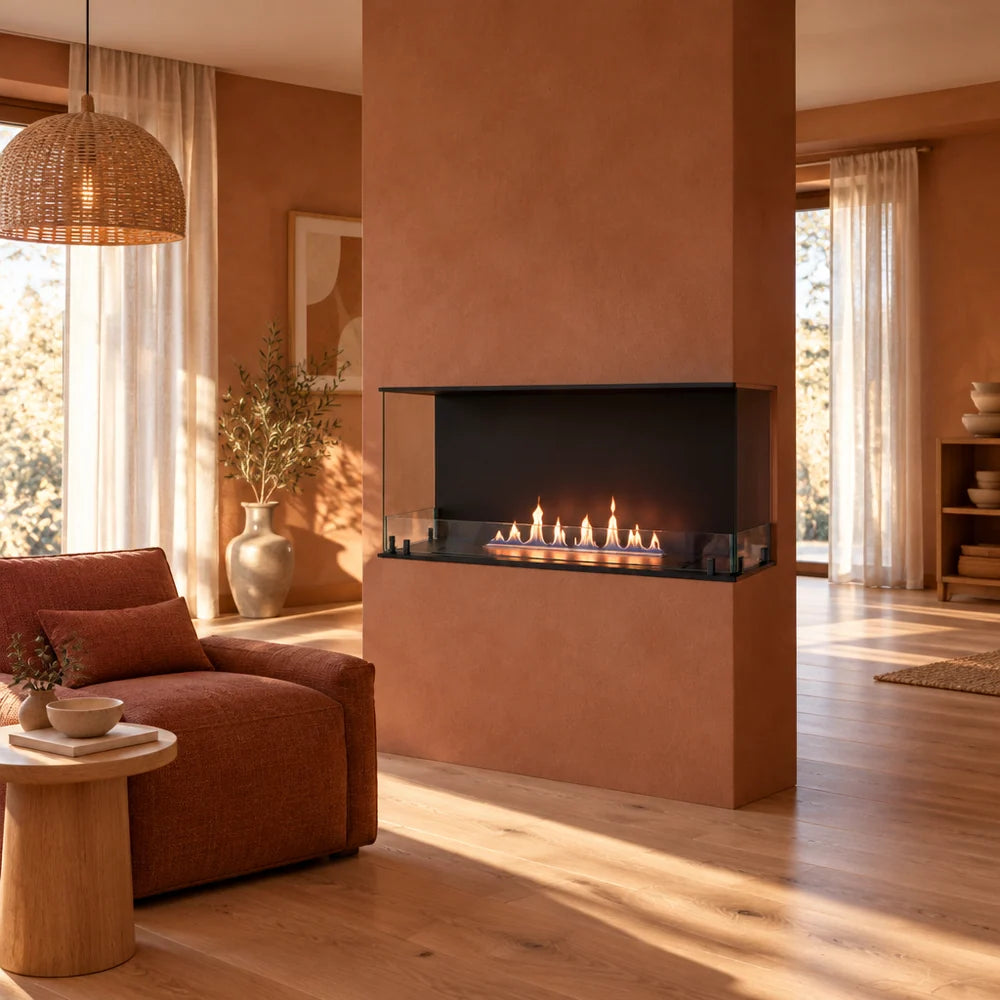

With its three sided design, the Foco Three 1000 is particularly suited to built in feature walls where the flames can be enjoyed from different parts of the room. It can also be incorporated into a media wall, subject to the manufacturer's clearance and heat protection requirements. If installing beneath a television, check whether additional heat protection is required.

🔥 Choose Your Bioethanol Burner

The Foco Three 1000 can be configured with a manual burner or one of several compatible automatic Planika burners.

Manual Bioethanol Burner

The manual burner is ideal if you prefer simple, hands on operation without an electrical connection. It has a 4 litre fuel capacity, a 60 cm flame length and a maximum heat output of 4.4 kW. Fuel consumption is approximately 0.62 litres per hour, with a burn time of up to 6.5 hours under the stated operating conditions.

Lighting, flame adjustment and extinguishing are carried out manually in accordance with the burner's instructions.

Automatic Bioethanol Burners

For added convenience, you can choose from compatible automatic burners, including the Planika Prime Fire 2.0 790, Planika FLA4 790 and Planika FLA4+ 790.

These models offer electronic operation and can provide remote control, mobile app control and adjustable flame levels, depending on the model. The Prime Fire 2.0 offers three flame levels, while the FLA4 and FLA4+ offer six. The FLA4+ has a larger 13.4 litre fuel capacity and a stated burn time of up to 25 hours.

Automatic burners require electricity. Smart Home integration requires an additional Planika Smart Home module. Remote control availability and included accessories depend on the selected burner package.

Safety

🏡 Built In Installation and Safety

The Foco Three 1000 is designed for indoor installation and does not require a traditional flue or chimney. It offers flexibility when planning a built in fireplace, but the installation must still meet the manufacturer's requirements for room volume, ventilation, clearances and heat protection.

The recommended minimum room volume is 80 m³. When installing the fireplace in or near a combustible wall, use suitable non combustible construction and heat insulation in accordance with the installation instructions. Fire resistant boards or other approved materials may be required.

Always follow the instructions supplied with your selected burner. Never refill a burning or hot burner. Allow it to cool completely before refuelling, use only suitable bioethanol fireplace fuel, and never leave the flames unattended.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Product name: Foco Three 1000

• Product type: Three sided built in bioethanol fireplace

• Flame view: Front, left and right

• Installation: Indoor, built in feature wall or media wall

• Fuel type: Bioethanol

• Burner options: Manual or compatible automatic burner

• Maximum heat output: Up to 4.4 kW, depending on the selected burner

• Manual burner capacity: 4 litres

• Manual burner consumption: 0.62 litres per hour

• Manual burner burn time: Up to 6.5 hours

• Manual burner flame length: 60 cm

• Automatic burner options: Planika Prime Fire 2.0 790, Planika FLA4 790 or Planika FLA4+ 790

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Height: 50 cm

• Width: 100 cm

• Depth: 40 cm

• Minimum room volume: 80 m³

• Flue or chimney required: No

• Electrical connection: Not required for manual burner; required for automatic burners

• Remote control: Depends on selected burner; may require an additional purchase

• Mobile app control: Available with compatible automatic burners

• Smart Home control: Requires an additional module for compatible Planika burners

• Glass: Three tempered glass panels included

• Packaged depth: 54.5 cm

• Packaged weight: 46 kg

• Warranty: 2 years

Included

📦 What’s Included?

• Foco Three 1000 fireplace frame supplied in three parts

• Selected bioethanol burner, according to the configuration purchased

• Three tempered glass panels, each 10 cm high

• Six glass holders

• Screws and nuts for assembly

Important: If you select the manual configuration, a MANUAL bioethanol burner is included. Lighting, flame adjustment and extinguishing are operated manually. An automatic burner, remote control and Smart Home controls are not included with the manual version. Automatic burner features and accessories depend on the model selected and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Three 1000 comes with a 2 year warranty for added peace of mind. Before installation, review the manufacturer's instructions for your chosen burner and the surrounding enclosure. If you are unsure about clearances, heat insulation or electrical requirements, consult a qualified installer.

Choose the Foco Three 1000 for a contemporary built in fireplace with panoramic flames, premium styling and a choice of manual or automatic operation.

FAQs

❓ Frequently Asked Questions

Can I see the flames from three sides?

Yes. The Foco Three 1000 provides a view of the flames from the front, left and right, making it suitable for feature walls and open plan interiors.

Does this fireplace need a chimney?

No. The Foco Three 1000 does not require a traditional flue or chimney. You must still meet the manufacturer's ventilation and minimum room volume requirements.

What is the minimum room size?

The stated minimum room volume is 80 m³. Check that your room meets this requirement before installation and use.

Is the burner manual or automatic?

You can select a manual burner or a compatible automatic Planika model. The available controls, fuel capacity, burn time and flame settings depend on the burner you choose.

Does the manual burner need electricity?

No. The manual burner does not require electricity. Automatic burners require an electrical connection.

Can I control the fireplace with my phone?

Compatible automatic burners support mobile app control. Smart Home integration requires an additional Planika Smart Home module. Features vary by model.

Can I install it beneath a television?

This may be possible if the installation meets the manufacturer's clearance and heat protection requirements. Check the recommended distance and whether a heat deflector is needed before positioning a television above the fireplace.
