Foco Three 1200 Three Sided Built In Bioethanol Fireplace

Description

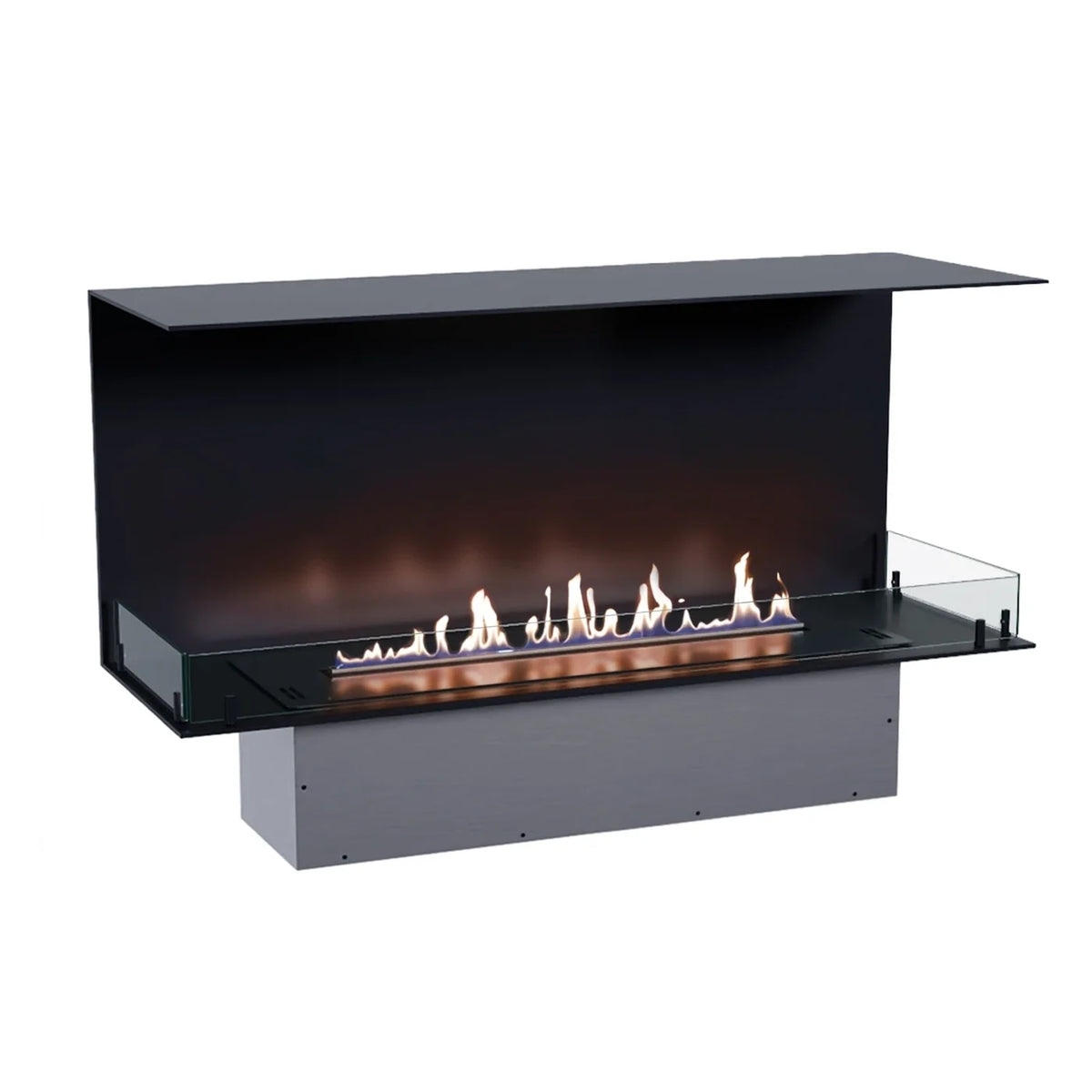

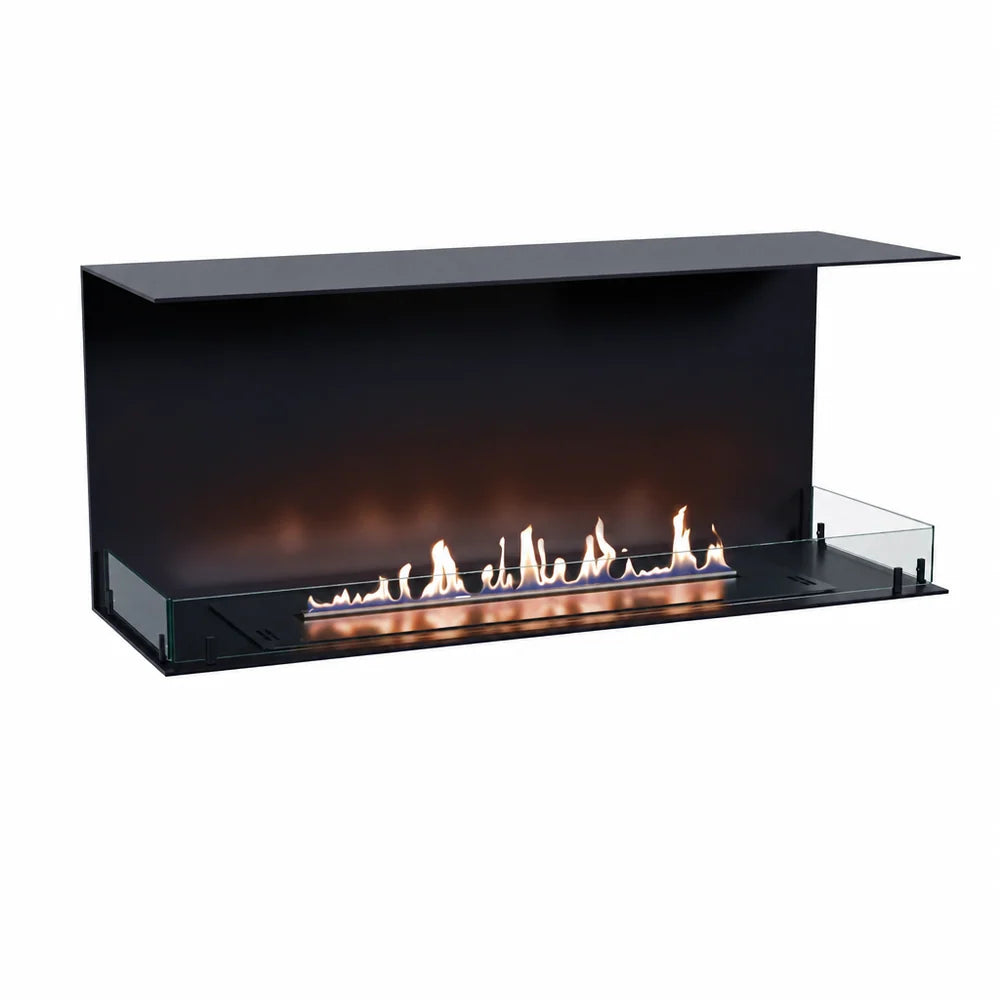

Foco Three 1200 Three Sided Built In Bioethanol Fireplace 🔥

Bring contemporary style and captivating flames into your home with the Foco Three 1200 bioethanol fireplace. Designed to be built into a feature wall or partition wall, this impressive three sided fireplace lets you enjoy the flames from the front, left and right. Its generous 120 cm width makes it a striking centrepiece for modern living rooms, open plan spaces and media walls.

With a choice of manual and automatic bioethanol burners, the Foco Three 1200 gives you flexibility when choosing how to enjoy your fireplace. Its clean black finish and minimalist frame complement modern interiors while allowing the flames to take centre stage.

Features

✨ Contemporary Design and Quality Materials

The Foco Three 1200 features a sturdy 4 mm thick steel frame finished in black powder coating. This understated design works beautifully with a variety of interior styles, from minimalist living spaces to sophisticated media walls.

Three tempered glass panels are included to help shield the flames from draughts and support a steadier flame display. The panels can be installed according to the manufacturer's instructions, and six glass holders are supplied to secure them in place.

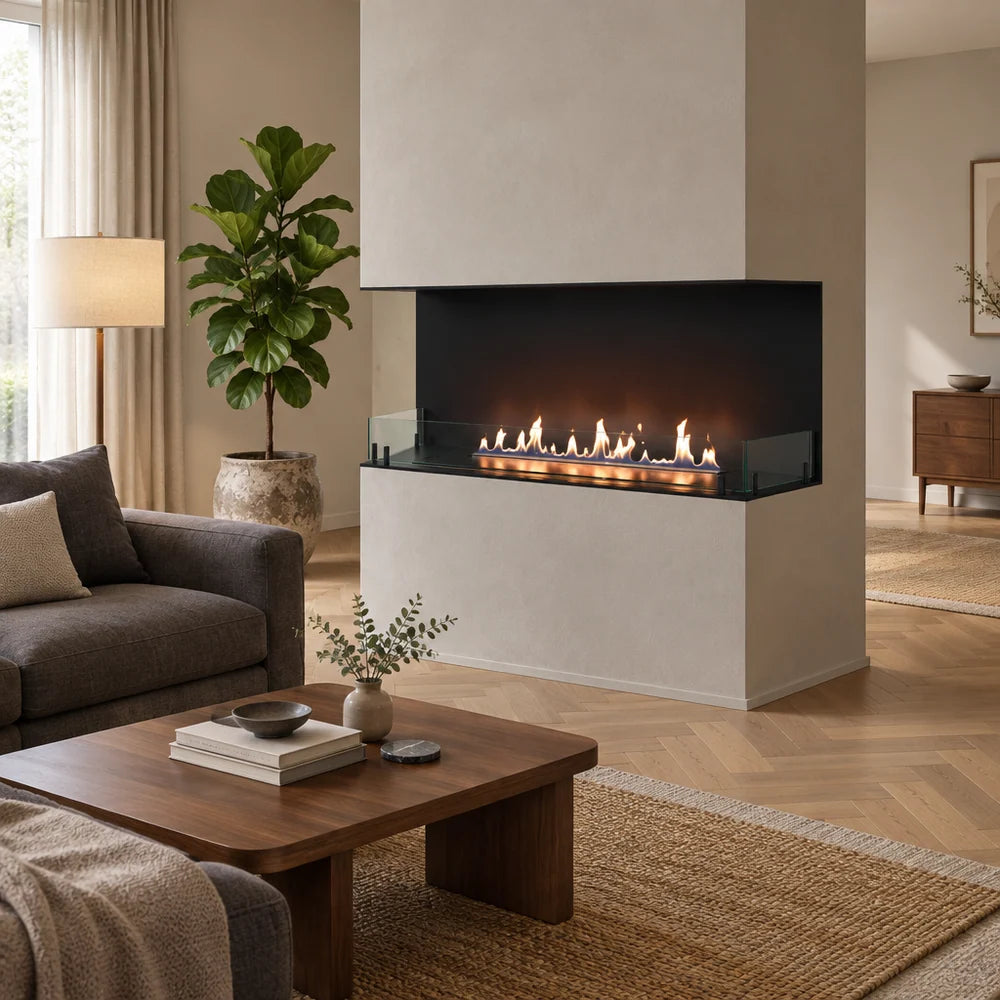

Measuring 120 cm wide, 50 cm high and 40 cm deep, this fireplace creates a wide panoramic view without the need for a traditional chimney or flue. Its three sided design is particularly effective in partition walls, allowing the fire to be enjoyed from different areas of the room.

If you plan to position a television above the fireplace, check the manufacturer's installation instructions for required clearances and heat protection before completing your media wall.

🔥 Choose Your Bioethanol Burner

The Foco Three 1200 is available with a manual burner or compatible automatic Planika burners. Each option offers different levels of control, fuel capacity and operating time.

Manual Bioethanol Burner

The manual burner is a practical choice if you prefer straightforward, hands on operation without electricity. It has a 5 litre fuel capacity and an approximately 80 cm flame length. Its stated heat output ranges from 3.3 kW to 6.5 kW, with a burn time of up to 6 hours under the specified operating conditions.

The flame is adjusted manually, and the burner must be lit and extinguished according to its operating instructions.

Automatic Bioethanol Burners

For added convenience, choose from compatible automatic models such as the Planika Prime Fire 2.0 990, Planika FLA4 990 and Planika FLA4+ 990.

These burners require an electrical connection and offer electronic flame control. Depending on the model, features include remote control, mobile app operation and multiple flame levels. The Prime Fire 2.0 offers three flame levels, while the FLA4 and FLA4+ offer six.

The FLA4+ has a larger 17.2 litre fuel capacity and a stated burn time of up to 26 hours. Other models have different fuel capacities and operating times, so check the specifications for your selected burner before ordering.

Smart Home control requires an additional Planika Smart Home module. Remote control and other included accessories depend on the selected configuration.

Safety

🏡 Built In Installation and Safety

The Foco Three 1200 is designed for indoor use and does not require a traditional flue or chimney. It is suitable for built in installation when the enclosure is constructed according to the manufacturer's instructions.

The recommended minimum room volume is 90 m³. Appropriate ventilation, installation clearances and heat protection are essential. If the fireplace is installed in a combustible wall, use suitable non combustible construction materials and insulation in line with the installation guide. Consult a qualified installer if you are unsure about the wall construction or required clearances.

Never leave a burning fireplace unattended. Do not refill a lit or hot burner. Allow the burner to cool completely before refuelling, use only compatible bioethanol fireplace fuel and follow all manufacturer instructions for lighting, operation and extinguishing.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Product name: Foco Three 1200

• Product type: Three sided built in bioethanol fireplace

• Flame view: Front, left and right

• Installation: Indoor, built in feature wall or partition wall

• Fuel type: Bioethanol

• Burner options: Manual or compatible automatic Planika burner

• Manual burner heat output: 3.3 kW to 6.5 kW

• Automatic burner heat output: 4.6 kW to 7.0 kW, depending on model

• Manual burner capacity: 5 litres

• Manual burner consumption: 0.87 litres per hour as listed in the general product specifications

• Manual burner burn time: Up to 6 hours

• Manual burner flame length: Approximately 80 cm

• Automatic burner options: Planika Prime Fire 2.0 990, Planika FLA4 990 or Planika FLA4+ 990

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Height: 50 cm

• Width: 120 cm

• Depth: 40 cm

• Minimum room volume: 90 m³

• Flue or chimney required: No

• Electrical connection: Not required for manual burner; required for automatic burners

• Remote control: Depends on selected burner and package

• Mobile app control: Available with compatible automatic burners

• Smart Home control: Requires an additional Planika Smart Home module

• Glass: Three tempered glass panels included

• Packaged depth: 54.5 cm

• Packaged weight: 51 kg

• Warranty: 2 years

Please note: The supplied specifications list a maximum heat output of 6.2 kW for the general product, while the burner comparison lists outputs of up to 6.5 kW for the manual burner and 7.0 kW for automatic models. Confirm the exact performance figures for the selected burner configuration before publishing final technical claims.

Included

📦 What’s Included?

• Foco Three 1200 fireplace frame supplied in three parts

• Selected bioethanol burner, according to the configuration purchased

• Three tempered glass panels, each 10 cm high

• Six glass holders

• Screws and nuts for assembly

Important: If you select the manual configuration, a MANUAL bioethanol burner is included. Lighting, flame adjustment and extinguishing are carried out manually. An automatic burner, remote control and Smart Home controls are not included with the manual version. Automatic burner features, remote controls and app or Smart Home functionality depend on the selected model and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Three 1200 comes with a 2 year warranty. Before installation, review the manufacturer's instructions for the selected burner and enclosure. For help with room clearances, heat protection or electrical requirements, consult a qualified installer.

Choose the Foco Three 1200 for a wide panoramic flame display, a sleek black frame and flexible burner options designed for contemporary interiors.

FAQs

❓ Frequently Asked Questions

Can I view the flames from three sides?

Yes. The Foco Three 1200 provides a flame view from the front, left and right, making it ideal for feature walls and partition walls.

Does the Foco Three 1200 need a chimney?

No. It does not require a traditional chimney or flue. The room must still meet the manufacturer's minimum volume, ventilation and installation requirements.

What is the minimum room size?

The recommended minimum room volume is 90 m³. Confirm that your room meets this requirement before installation and use.

What is the difference between manual and automatic burners?

The manual burner is operated by hand and does not require electricity. Compatible automatic burners require electricity and offer electronic controls, with features such as remote operation, app control and adjustable flame levels depending on the model.

Can I control the automatic burner with my phone?

Compatible Planika burners support mobile app control. Smart Home integration requires an additional Planika Smart Home module.

Can I install this fireplace beneath a television?

It may be possible, provided the installation follows the manufacturer's required clearances and heat protection instructions. Check whether a heat deflector is needed to protect the television and surrounding equipment.

Is the glass included?

Yes. Three tempered glass panels and six glass holders are included. Install the glass according to the manufacturer's instructions for your selected burner.
