Foco Three 1800 Three Sided Built In Bioethanol Fireplace

Description

Foco Three 1800 Three Sided Built In Bioethanol Fireplace 🔥

Make a bold statement in your home with the Foco Three 1800 bioethanol fireplace. Designed for contemporary interiors, this impressive 180 cm wide fireplace offers a three sided view of real flames from the front, left and right. Its generous size makes it an excellent centrepiece for a modern living room, open plan space or media wall.

With a sleek black finish and minimalist design, the Foco Three 1800 combines striking aesthetics with flexible burner options. Choose the standard configuration with two manual bioethanol burners or upgrade to a compatible automatic Planika burner for additional convenience and control.

Features

✨ Contemporary Design and Quality Materials

The Foco Three 1800 features a frame made from 4 mm thick steel with a black powder coated finish. Its clean lines allow the flames to take centre stage, complementing a range of modern interior styles.

Three tempered glass panels are included to help shield the flames from draughts and minor air movements. The panels are held in place by six glass holders and can be removed if preferred, following the manufacturer's instructions.

Measuring 180 cm wide, 50 cm high and 40 cm deep, this fireplace is designed for built in installation. Its three sided layout creates a panoramic flame display that can be enjoyed from different areas of the room.

🔥 Choose Your Bioethanol Burner

The Foco Three 1800 is available with manual or compatible automatic burners, allowing you to choose the operation and features that suit your home.

Manual Bioethanol Burners

The manual configuration includes two manual bioethanol burners, each with a stated fuel capacity of 4 litres and a maximum heat output of 4.4 kW. The listed flame length is approximately 60 cm per burner, with a burn time of up to 6.5 hours per filling under the stated operating conditions.

Manual burners do not require electricity. Lighting, flame adjustment and extinguishing are performed manually in accordance with the manufacturer's instructions.

Automatic Planika Burners

For added convenience, you can choose a compatible Planika FLA4 1490 or Planika FLA4+ 1490 burner. These automatic models offer remote control, mobile app control and six flame levels.

Both listed automatic options have a maximum heat output of up to 13 kW and a stated flame length of 130 cm. The FLA4 has an 11.4 litre fuel capacity and a burn time of up to 9 hours, while the FLA4+ has a larger 26.8 litre capacity and a stated burn time of up to 30 hours.

Automatic burners require electricity. Smart Home integration is available with compatible models but requires a separately purchased Planika Smart Home module. Features and accessories depend on the selected configuration.

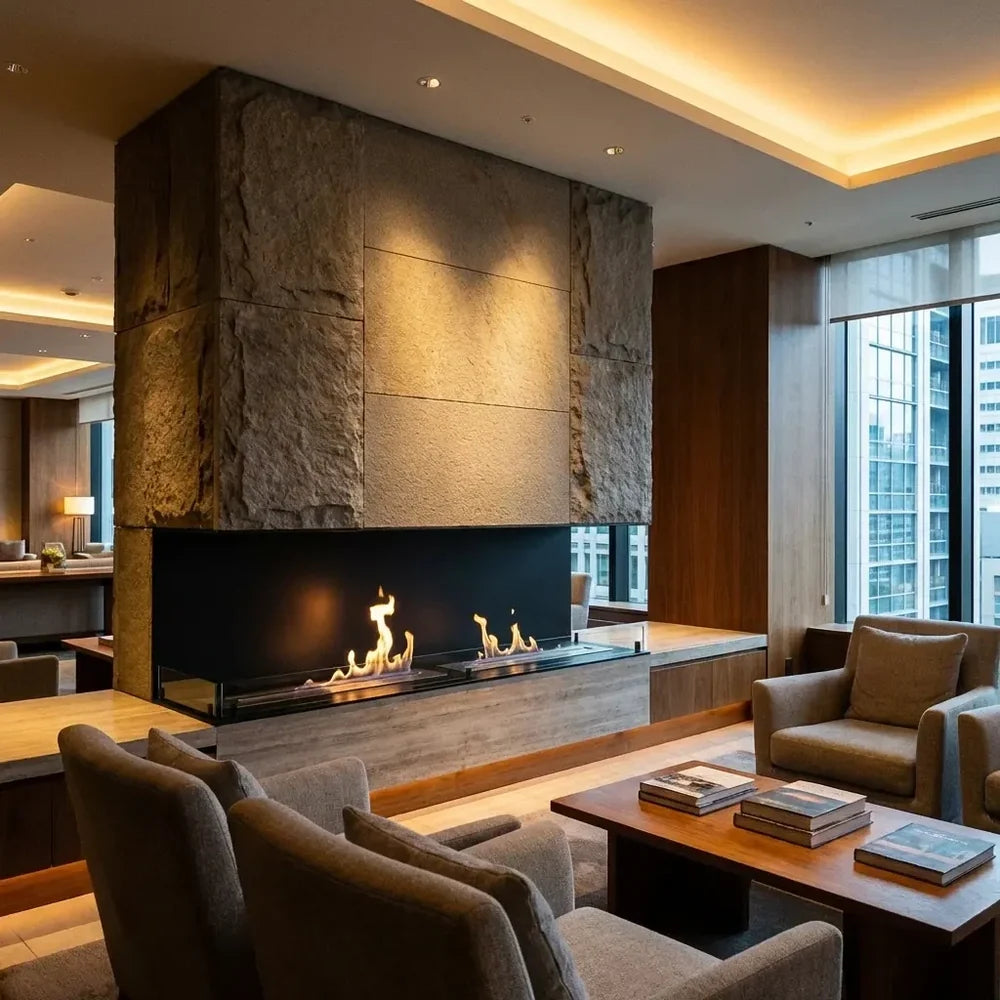

🏡 Built In Installation and Media Wall Design

The Foco Three 1800 does not require a traditional flue or chimney, giving you greater flexibility when planning a built in fireplace feature. It is intended for indoor use and has a stated minimum room volume requirement of 130 m³.

If incorporating the fireplace into a media wall, carefully check the manufacturer's installation instructions, required clearances and heat protection measures, especially when positioning a television above it. Combustible wall materials must be protected using suitable non combustible materials and insulation in accordance with the installation requirements.

Always follow the instructions for your selected burner. Use only suitable bioethanol fuel, never refill a burning or hot burner, and allow it to cool completely before refuelling. Never leave a lit fireplace unattended.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Three 1800

• Fireplace type: Three sided built in bioethanol fireplace

• Flame view: Front, left and right

• Installation: Indoor, built in

• Fuel type: Bioethanol

• Burner options: Two manual burners or compatible automatic Planika burner

• Manual burner capacity: 2 × 4 litres

• Manual burner flame length: Listed as 2 × 60 cm

• Manual burner maximum heat output: Listed as 2 × 4.4 kW

• Manual burner burn time: Up to 6.5 hours per filling

• Automatic burner options: Planika FLA4 1490 or FLA4+ 1490

• Automatic burner maximum heat output: Up to 13 kW

• Automatic burner flame length: 130 cm

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Height: 50 cm

• Width: 180 cm

• Depth: 40 cm

• Minimum room volume: 130 m³

• Flue or chimney required: No

• Electrical connection: Not required for manual burners; required for automatic burners

• Controls: Manual or automatic, depending on configuration

• Glass: Three tempered glass panels included

• Packaged depth: 54.5 cm

• Packaged weight: 80 kg

• Warranty: 2 years

Please confirm the burner specifications with the supplier before publishing, as the supplied information describes the manual configuration as two 80 cm burners in one heading but lists a flame length of 60 cm per burner in the table.

Included

📦 What’s Included?

• Foco Three 1800 fireplace frame

• Two manual bioethanol burners with the manual configuration, or the selected compatible automatic burner configuration

• Three tempered glass panels, each 10 cm high

• Six glass holders

• Screws and nuts for assembly

Important: The manual configuration includes two MANUAL bioethanol burners. These are operated manually and do not include automatic burner controls, remote controls or Smart Home controls. Automatic burner features and accessories depend on the configuration purchased and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Three 1800 comes with a 2 year warranty. Before installation, review the instructions for the selected burner and the surrounding enclosure. If you are unsure about clearances, ventilation, heat insulation or electrical requirements, consult a qualified installer.

Create an impressive focal point with the Foco Three 1800, a wide built in bioethanol fireplace combining panoramic flames, contemporary styling and a choice of manual or automatic operation.

FAQs

❓ Frequently Asked Questions

Can I view the flames from three sides?

Yes. The Foco Three 1800 is designed to display the flames from the front, left and right, making it suitable for feature walls and open plan interiors.

Does it require a chimney?

No. A traditional flue or chimney is not required. The fireplace must still be installed and operated according to the manufacturer's ventilation and room volume requirements.

What is the minimum room size?

The stated minimum room volume is 130 m³. Check that your room meets this requirement before installation and use.

Can I control the flames remotely?

Remote control and mobile app operation are available with the compatible automatic Planika burners. The manual configuration is operated by hand.

Can I install it beneath a television?

It may be possible, provided the installation meets the manufacturer's clearance and heat protection requirements. Check the required distance between the fireplace and television before building your media wall.

Does it come with a warranty?

Yes. The Foco Three 1800 comes with a stated 2 year warranty. Refer to the applicable warranty terms for details.
