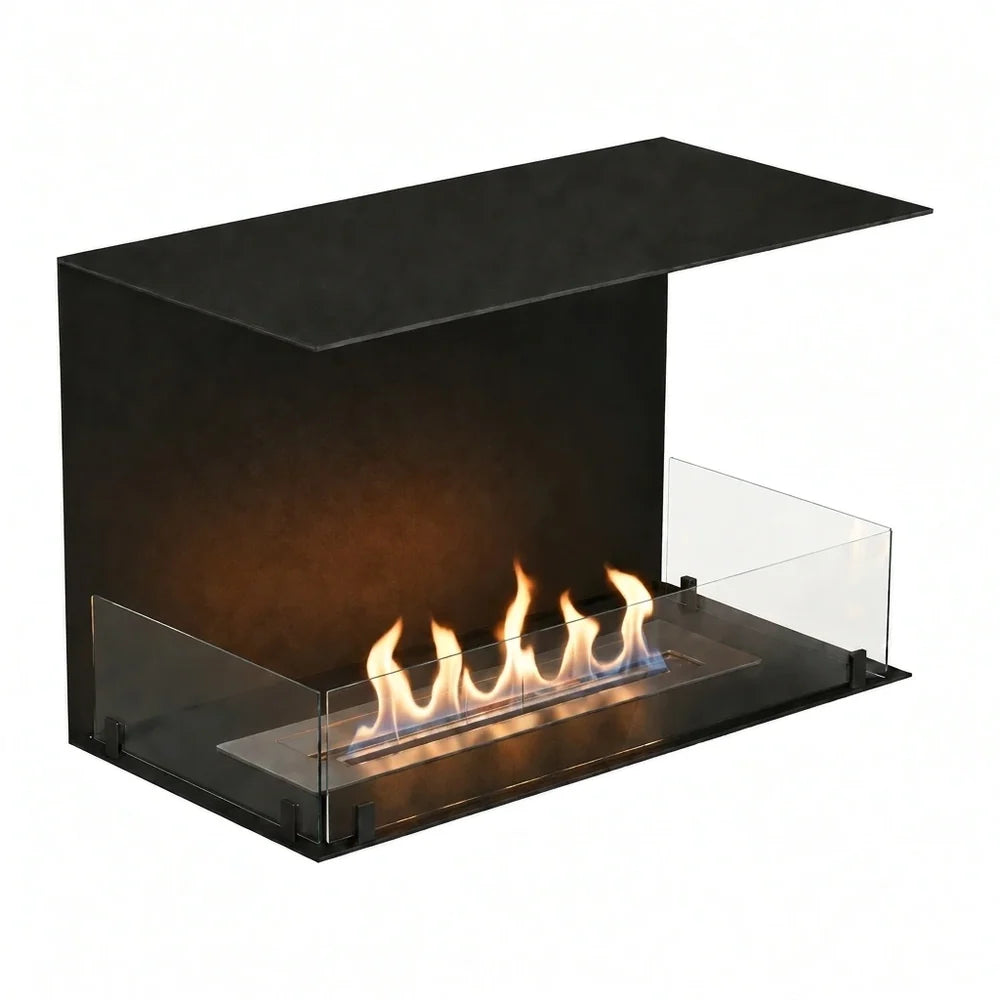

Foco Three 800 Three Sided Built In Bioethanol Fireplace

Description

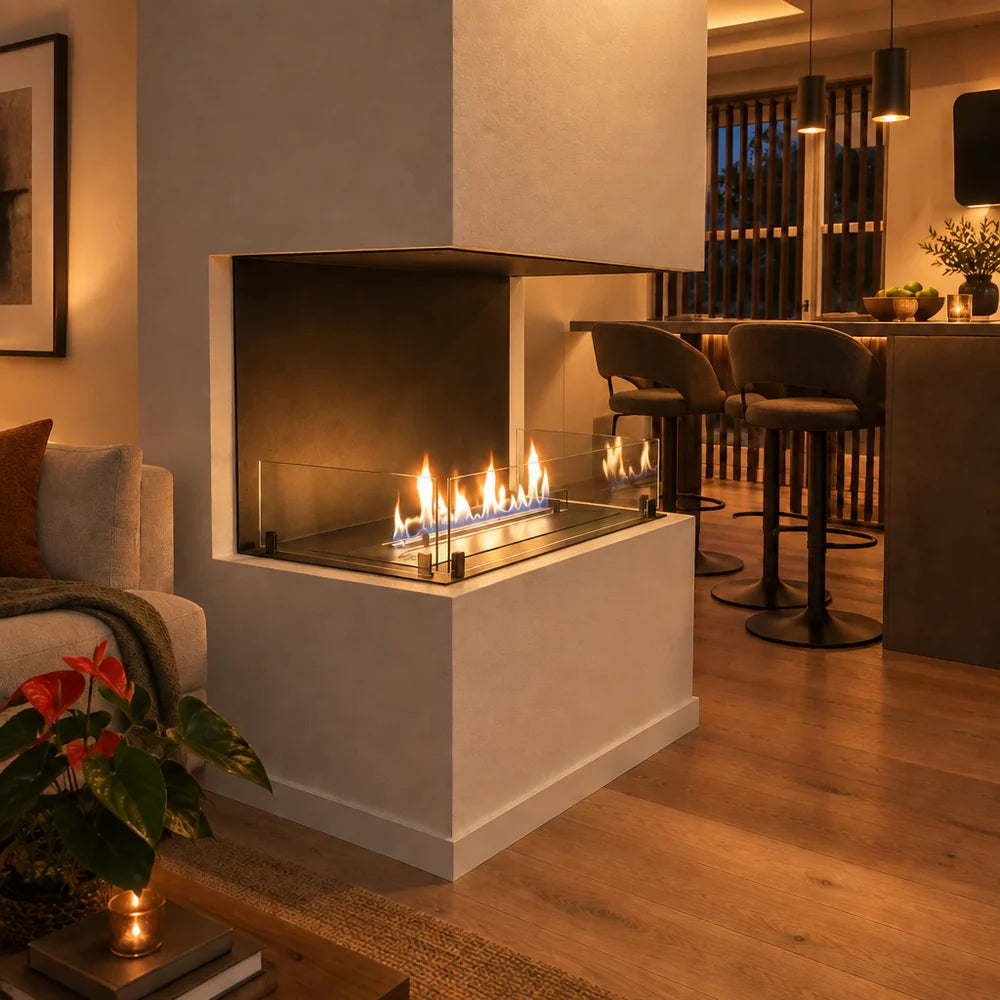

Foco Three 800 Three Sided Built In Bioethanol Fireplace 🔥

Create a striking centrepiece in your home with the Foco Three 800 bioethanol fireplace. Designed to integrate seamlessly into a media wall or modern interior, this three sided built in fireplace allows you to enjoy real flames from the front, left and right sides. Its panoramic design brings warmth and atmosphere to living rooms, open plan spaces and contemporary interiors, making it an ideal feature for relaxing evenings or entertaining guests.

Measuring 80 cm wide, 50 cm high and 40 cm deep, the Foco Three 800 offers an impressive flame display without an oversized frame. With a choice of manual and automatic bioethanol burners, you can select the control system and features that best suit your home.

Features

✨ Contemporary Design and Premium Materials

The Foco Three 800 combines minimalist styling with a durable steel frame, creating a refined finish that complements modern interiors. The frame is made from 4 mm thick steel with a black powder coated finish, allowing the flames to remain the main attraction.

Three tempered glass panels are included to help protect the flames from draughts and minor air movements, supporting a steadier flame display. The glass can be omitted where permitted by the manufacturer's instructions and the selected installation configuration.

Designed for built in installation, this fireplace is particularly suited to media walls and feature walls where a three sided flame view can connect adjoining areas visually. If you plan to install it beneath a television, check the manufacturer's heat clearance requirements and whether a suitable heat deflector is needed to protect the equipment above.

🔥 Choose Your Bioethanol Burner

The Foco Three 800 can be configured with different manual or automatic bioethanol burners, allowing you to choose the experience that suits your lifestyle.

Manual Bioethanol Burner

The manual burner is a straightforward option for those who prefer hands on control. It is lit manually using a suitable lighter, and the flame is adjusted through the burner's opening mechanism. It does not require electricity and offers up to 7.5 hours of burn time per refill.

Automatic Bioethanol Burners

Automatic burner options provide additional convenience, depending on the model selected. Compatible options include remote control, mobile app operation and multiple flame settings. Certain Planika models can also support Smart Home integration with an additional module.

Automatic burners require an electrical connection, and their fuel capacity, heat output, flame settings and operating time vary by model. Check the specifications for your chosen burner before ordering.

The fireplace frame is supplied separately from the selected burner configuration, so make sure you select the correct burner option for your installation and preferred controls.

Safety

🏡 Built In Installation and Safety

The Foco Three 800 is designed for indoor use and does not require a traditional flue or chimney. This offers flexibility when planning a built in fireplace feature, although suitable ventilation and the manufacturer's installation requirements must still be followed.

The recommended minimum room volume is 70 m³. The enclosure must be constructed using appropriate materials, with the specified clearances and heat protection observed. If the fireplace is installed near combustible materials, suitable non combustible insulation and protective boards must be used according to the installation guide.

Never leave a burning fireplace unattended. Do not refill a lit or hot burner, and allow it to cool completely before refuelling. Use only compatible bioethanol fireplace fuel and follow all instructions for lighting, operation and extinguishing.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Product name: Foco Three 800

• Product type: Built in bioethanol fireplace

• Installation type: Three sided fireplace for a media wall or feature wall

• Flame view: Front, left and right

• Fuel type: Bioethanol

• Burner options: Manual or automatic, depending on selection

• Maximum heat output of frame and manual configuration: Refer to selected burner specifications; manual burner listed at 3.3 kW maximum

• Manual burner fuel capacity: 3.5 litres

• Manual burner fuel consumption: 0.46 litres per hour

• Manual burner burn time: Up to 7.5 hours

• Manual burner flame width: 45 cm

• Automatic burner options: BEV Burner 700, Planika Prime Fire 2.0 590, Planika FLA4 590 or Planika FLA4+ 590, subject to availability and compatibility

• Frame material: Steel

• Finish: Black powder coated

• Steel thickness: 4 mm

• Height: 50 cm

• Width: 80 cm

• Depth: 40 cm

• Minimum room volume: 70 m³

• Flue or chimney required: No

• Electrical connection: Not required for manual burner; required for automatic burners

• Remote control: Depends on the selected burner; may require an additional purchase

• Mobile app control: Available with compatible automatic burners

• Glass panels: Three tempered glass panels included

• Intended use: Indoor

• Packaged depth: 54.5 cm

• Packaged weight: 35.4 kg

• Warranty: 2 years

Included

📦 What’s Included?

• Foco Three 800 fireplace frame

• Selected manual or automatic bioethanol burner, according to the option purchased

• Three tempered glass panels, each 10 cm high

• Six glass holders

• Screws and nuts for assembly

Important: The burner type depends on your selected configuration. If you choose the manual version, it includes a MANUAL bioethanol burner only. Lighting, flame adjustment and extinguishing must be carried out manually. An automatic burner, remote control and Smart Home controls are not included with the manual version. Automatic burners, remote controls, app functionality and Smart Home integration depend on the selected model and may require additional purchases. Bioethanol fuel is not included.

Warranty

🛡️ Warranty and Support

The Foco Three 800 comes with a 2 year warranty for added peace of mind. Before installation, consult the manufacturer's user manual and installation guide to confirm the requirements for your chosen burner and enclosure. If you are unsure about clearances, heat protection or electrical requirements, seek advice from a qualified installer.

Choose the Foco Three 800 to bring panoramic flames, contemporary design and flexible burner options to your home.

FAQs

❓ Frequently Asked Questions

Can I view the flames from three sides?

Yes. The Foco Three 800 is designed to display flames from the front, left and right sides, making it ideal for a media wall or built in feature wall.

Does the Foco Three 800 need a chimney?

No. It does not require a traditional flue or chimney. Adequate ventilation and compliance with the manufacturer's room size and installation requirements are still essential.

Can I choose between manual and automatic burners?

Yes. Several burner configurations are available. Manual burners offer straightforward hand operated control, while compatible automatic burners can provide remote control, app operation and additional flame settings.

Does the manual version require electricity?

No. The manual burner does not require an electrical connection. Automatic burner options do require electricity.

Can I control the fireplace using my phone?

Mobile app control is available with compatible automatic burner options. Smart Home integration may require an additional module and is not included with every configuration.

Can I install the fireplace beneath a television?

It may be possible, but the installation must follow the manufacturer's clearance and heat protection requirements. A suitable heat deflector may be necessary to protect the television and surrounding equipment.

What is the minimum room size?

The recommended minimum room volume is 70 m³. Ensure that the room meets this requirement and has adequate ventilation before using the fireplace.
