Foco Two 1100 Medium Built In Bioethanol Fireplace

Description

Foco Two 1100 Medium Built In Bioethanol Fireplace

Bring warmth and contemporary style to your home with the Foco Two 1100 Medium Built In Bioethanol Fireplace. Designed for installation within a wall or partition, this elegant fireplace creates a striking focal point while allowing the flames to be enjoyed from two sides.

With its generous 110 cm width, minimalist black steel frame and clean lines, the Foco Two 1100 Medium is ideal for modern interiors where you want to create a visual connection between adjoining spaces. The manual bioethanol burner produces real flames without the need for a chimney, flue or electrical connection.

Features

✨ Contemporary Design for Modern Interiors

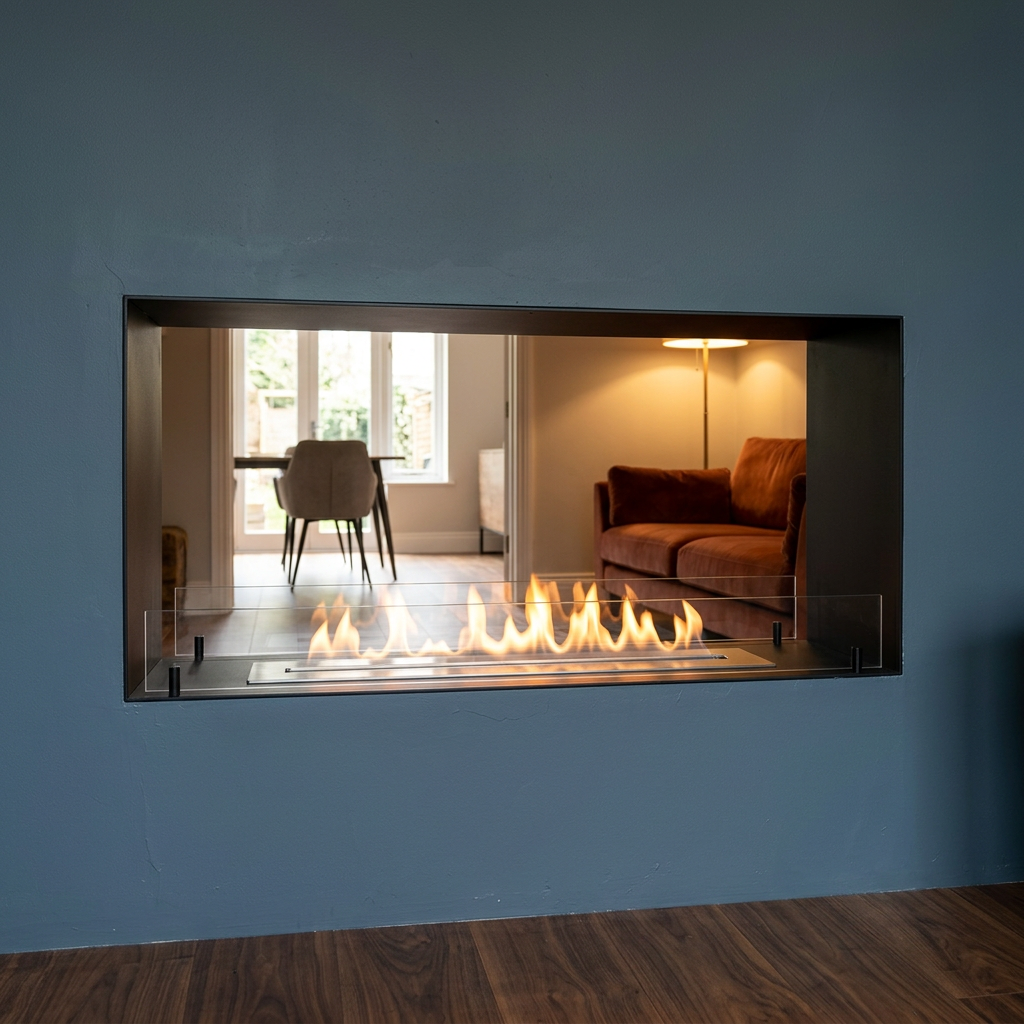

Part of the Foco range of built in bioethanol fireplaces, the Foco Two 1100 Medium combines understated design with an impressive flame display. Its two sided configuration makes it suitable for selected partition wall installations, such as between a living room and dining area.

The fireplace frame is made from 4 mm thick steel with a black powder coated finish. This durable, timeless design keeps the focus on the flames while complementing a variety of interior styles.

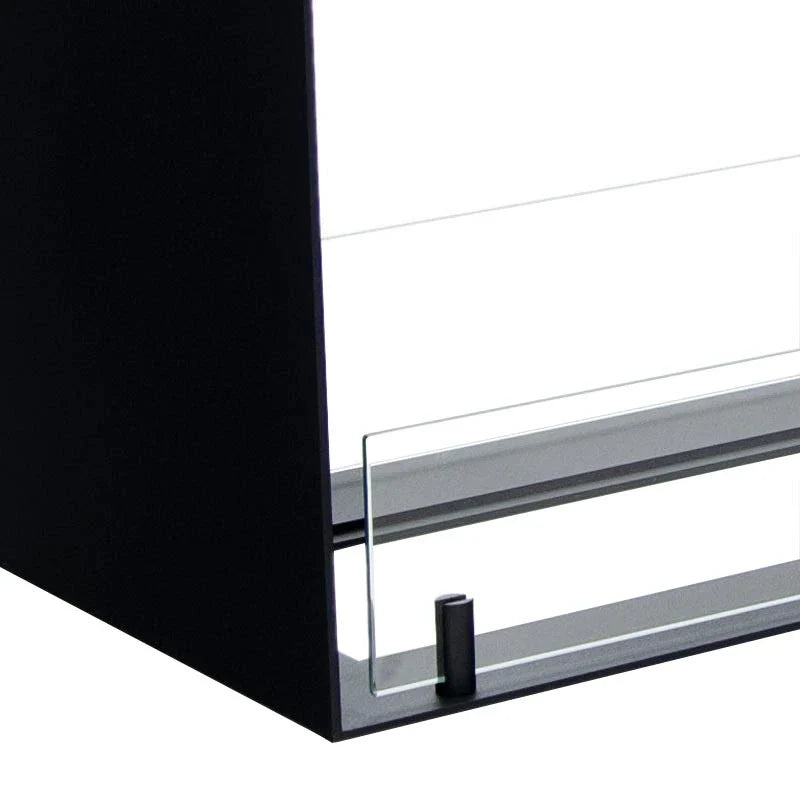

The fireplace also includes two tempered glass panels, one for each viewing side. These help shield the flames from draughts and support a more stable flame display while maintaining a clear view of the fire.

🔥 Manual Bioethanol Burner

The Foco Two 1100 Medium comes with a manual bioethanol burner that provides real flames without requiring a chimney or flue. The flame can be adjusted manually to suit your preferred atmosphere.

With a 5 litre fuel capacity, the burner offers up to 6 hours of burn time per fill, depending on the flame setting and operating conditions. The burner has a flame length of approximately 85 cm and a listed heat output of 6.5 kW.

As this is the manual burner version, no electrical connection is required for operation. Bioethanol fuel is not included unless specified separately.

🏡 Designed for Built In Installation

Measuring 110 cm wide, 50 cm high and 30 cm deep, the Foco Two 1100 Medium is designed to be integrated into a suitably prepared wall or partition.

The Medium model has a depth of 30 cm, so the installation space must accommodate the fireplace while meeting the manufacturer's requirements for clearances, ventilation and heat protection.

Although no chimney or flue is required, adequate room ventilation is essential. This model has a recommended minimum room volume of 90 m³.

Specifications

📐 Technical Specifications

• Brand: Foco Fires

• Model: Foco Two 1100 Medium

• SKU: BIO-30-140

• Fireplace type: Built in bioethanol fireplace

• Flame view: Two sided, room divider design

• Height: 50 cm

• Width: 110 cm

• Depth: 30 cm

• Material: Steel

• Steel thickness: 4 mm

• Finish: Black powder coated

• Burner type: Manual bioethanol burner

• Fuel type: Bioethanol

• Fuel capacity: 5 litres

• Flame length: 85 cm

• Flame adjustment: Yes, manual

• Heat output: 6.5 kW according to the burner specifications

• Maximum heat output: 6.2 kW according to the main product specifications; please confirm the correct figure with the supplier

• Fuel consumption: Approximately 0.87 litres per hour

• Burn time: Up to 6 hours

• Chimney or flue required: No

• Electrical connection: Not required for the manual burner

• Minimum room volume: 90 m³

• Suitable for: Indoor use

• Glass panels: Included

• Warranty: 2 years

Included

📦 What's Included

• Foco Two 1100 Medium black steel frame, assembled

• Manual bioethanol burner

• 2 tempered glass panels, approximately 10 cm high

• 4 glass holders

Bioethanol fuel and optional accessories are not included unless specified separately.

🛠️ Installation and Safety

The Foco Two 1100 Medium is designed for built in installation in a suitably prepared wall or partition. The frame is supplied assembled, but the surrounding structure must still meet the manufacturer's installation requirements.

Before installation, check the required clearances, wall construction, ventilation and heat protection. If the wall contains combustible materials, use a suitable approved installation system that meets the manufacturer's requirements. Fire resistant boards alone do not automatically make every wall construction safe. Consult a qualified installer if you are unsure about the installation.

The fireplace does not require a chimney or flue, but adequate ventilation is essential. The room must meet the recommended minimum volume of 90 m³.

For safe operation:

• Use only the recommended bioethanol fuel.

• Never refill the burner while it is lit or hot.

• Allow the burner to cool completely before refilling.

• Keep combustible materials away from the fireplace.

• Never leave a burning fireplace unattended.

• Keep the fireplace out of reach of children and pets.

• Follow the manufacturer's instructions for installation, operation and maintenance.

Warranty

🛡️ Warranty and Support

The Foco Two 1100 Medium comes with a 2 year warranty according to the supplied product specifications. Please refer to the manufacturer's documentation for warranty coverage, installation guidance and maintenance requirements.

FAQs

❓ Frequently Asked Questions

What does Foco Two 1100 Medium mean?

“Two” refers to the two sided flame view, “1100” refers to the fireplace's approximate width of 1100 mm, and “Medium” refers to its 30 cm depth.

Can the flames be seen from both sides?

Yes. The fireplace is designed to provide a two sided view of the flames, making it suitable for selected room divider and partition wall installations.

Does the Foco Two 1100 Medium need a chimney?

No. The bioethanol burner does not require a chimney or flue. However, the room must have adequate ventilation and meet the minimum recommended room volume of 90 m³.

How long does the burner burn for?

The manual burner has a 5 litre fuel capacity and offers up to approximately 6 hours of burn time per fill. Actual burn time depends on the flame setting and operating conditions.

Can the flame be adjusted?

Yes. The manual burner allows you to adjust the flame manually.

Does the fireplace need electricity?

No. The manual burner operates without an electrical connection.

Are the glass panels included?

Yes. The package includes two tempered glass panels and four glass holders. The glass helps shield the flames from draughts.

What is the minimum room volume?

The listed minimum room volume is 90 m³. Always follow the manufacturer's ventilation and installation requirements.

What warranty is included?

The supplied product specifications state a 2 year warranty. Refer to the manufacturer's warranty terms for full details.
