Rytons 4 Inch Direct Ventilation Kit with 6 x 6 Louvre Grille

Descriptions

Rytons 4 Inch Direct Ventilation Kit with 6 x 6 Louvre Grille 🌬️

Give your stove the combustion air it needs with the Rytons 4 Inch Direct Ventilation Kit with 6 x 6 Louvre Grille. Designed for stoves with a 100mm diameter direct ventilation outlet, this complete kit allows combustion air to be drawn directly from outside rather than relying on air from inside the room. The system helps support effective stove operation whilst reducing unwanted draughts and preventing outside light from entering through the ventilation route.

Direct External Air for Your Stove 🔥

The Rytons Direct Ventilation Kit connects to the back of a compatible stove through the manufacturer's dedicated ventilation outlet. The ducting then provides a direct route for combustion air from outside the property to the appliance.

This can be particularly useful in modern homes where improved insulation and airtight construction can reduce natural air movement. By providing a dedicated external air supply, the kit helps your stove receive the air it needs for combustion without unnecessarily drawing air from the living space.

Benefits

Key Benefits ✨

• Provides a dedicated external air supply for compatible stoves
• Helps reduce unwanted draughts and cold air entering the room
• Prevents external light from passing through the ventilation route
• Non combustible aluminium ducting offers dependable performance
• UV stabilised external grille helps resist sunlight damage
• Complete kit includes the essential ventilation components

Design & Materials

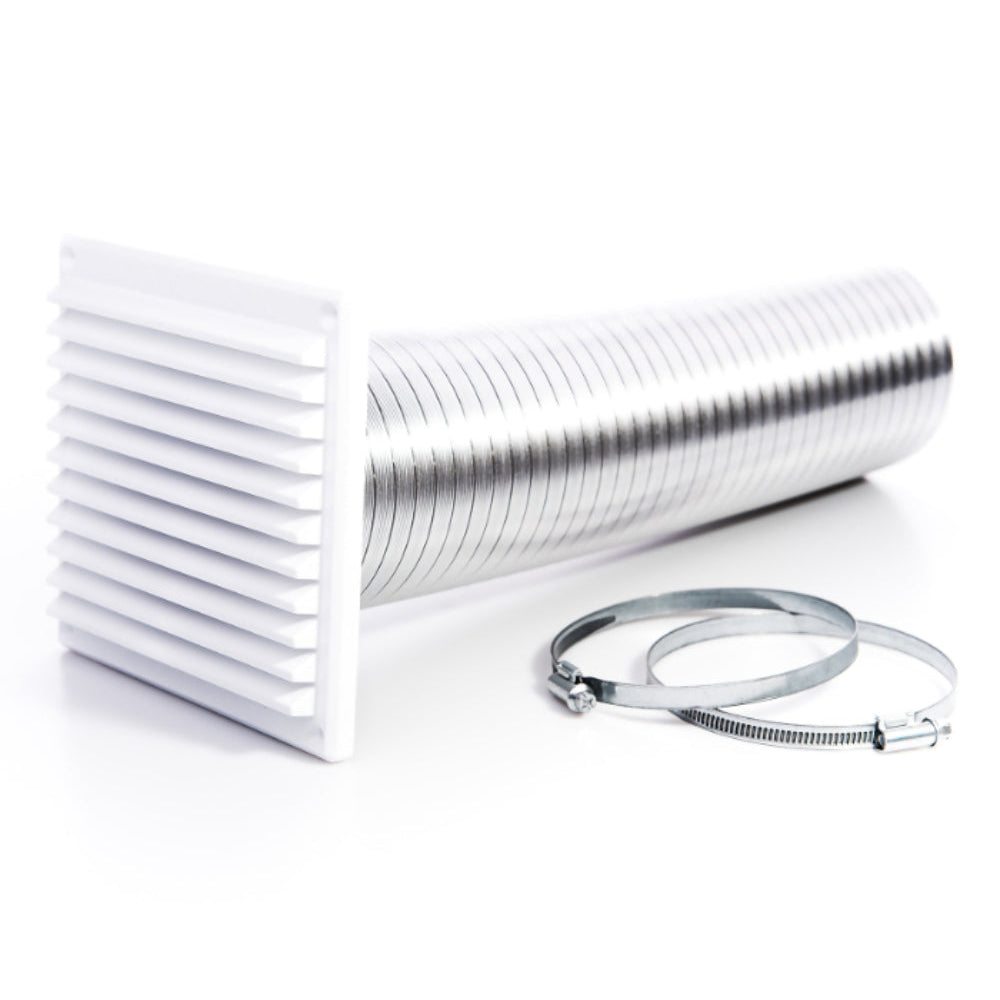

The kit includes a Rytons 6 x 6 Louvre Ventilator, matching louvre backplate with a 97mm diameter spigot, semi rigid aluminium ducting and two Jubilee Clips.

The aluminium RytHose ducting has a 102mm diameter and is 1.5m long, providing a suitable connection between the external ventilation grille and compatible stove outlet.

The aluminium duct is manufactured from non combustible material to DIN 4102 Class A1 and is suitable for temperatures up to 250°C. This provides a robust ventilation route for combustion air.

The external louvre grille is UV stabilised, helping slow the effects of prolonged sunlight exposure and providing a practical finish on the outside of the property.

Features

Performance & Features

The Rytons 4 Inch Direct Ventilation Kit is designed specifically for stoves with 100mm diameter ventilation outlets. The ducting attaches to the rear of the stove using the manufacturer's dedicated outlet, allowing combustion air to travel directly from outside.

Because the ventilation route is designed to draw air directly from outside, it does not introduce unnecessary light into the room. The design also helps reduce draughts that can occur with more open forms of room ventilation.

The complete kit makes it easier to source the main components needed for a direct external air connection in one package.

Safety

Safety & Installation Information 🛠️

This ventilation kit should only be connected to a stove with a compatible 100mm diameter external air outlet. Always check the stove manufacturer's installation requirements before purchasing or fitting the kit.

The aluminium duct is non combustible and rated to DIN 4102 Class A1, with a stated temperature suitability of up to 250°C. Always install the ducting in accordance with the relevant installation instructions and ensure it is positioned appropriately in relation to the appliance and other building components.

Important Building Regulation Note

Please note that the external louvre component is made from plastic. It is therefore not suitable for use within:

• External walls of buildings more than 11m high where people sleep on the premises, including residential, institutional or hospitality buildings
• External wall surfaces within 1m of the boundary where the building is 11m high or less, in England

Always check the current building regulations and seek professional advice where required.

Specifications

Technical Specifications 📋

• Brand: Rytons
• Product Type: Direct Ventilation Kit
• Application: Stove combustion air ventilation
• Compatible Stove Outlet: 100mm diameter
• Louvre Grille: 6 x 6
• Louvre Grille Dimensions: 166mm L x 160mm H
• Ducting Material: Aluminium
• Ducting Diameter: 102mm
• Ducting Length: 1.5m
• Ducting Temperature Suitability: Up to 250°C
• Ducting Fire Classification: DIN 4102 Class A1
• External Grille: UV stabilised
• Backplate Spigot Diameter: 97mm
• External Air Supply: Yes
• Non Combustible Ducting: Yes
• Guarantee: Not specified
• More Colours Available: Not specified

Included

What’s Included

• 1 x Rytons 6 x 6 Louvre Ventilator LV103
• 1 x Rytons 6 x 6 Louvre Backplate with 97mm diameter Spigot LV4BACKWH
• 1 x Rytons Semi Rigid Aluminium RytHose FSRA41.5M
• 2 x Jubilee Clips

Warranty

Warranty & Support

The Rytons 4 Inch Direct Ventilation Kit provides a convenient solution for supplying combustion air directly to a compatible stove from outside.

Before purchasing, check the stove manufacturer's requirements, outlet diameter and proposed installation location. For installations involving building regulations or external wall restrictions, professional advice should be obtained to ensure the ventilation system is suitable.

FAQs

Frequently Asked Questions

What is the Rytons Direct Ventilation Kit used for?

The kit provides a direct route for combustion air from outside to a compatible stove. It connects to the stove through the manufacturer's dedicated external air outlet.

What size stove outlet does it fit?

The kit is designed for stoves with a 100mm diameter direct ventilation outlet.

What size is the ducting?

The supplied aluminium ducting has a 102mm diameter and is 1.5m long.

Is the ducting non combustible?

Yes. The aluminium duct is made from a non combustible material classified as DIN 4102 Class A1 and is suitable for temperatures up to 250°C.

Does the ventilation kit cause draughts?

The system is designed to provide combustion air directly from outside rather than introducing air through an open vent into the room. This helps reduce unwanted draughts and cold air entering the living space.

Does it allow light into the room?

The ventilation design does not introduce light into the room through the direct air route.

Is the external grille UV resistant?

The external grille is UV stabilised to help slow the effects of sunlight exposure.

Is the external grille suitable for every building?

No. The external grille is a plastic component and has specific restrictions for certain buildings and locations in England. Always check the current building regulations and the installation requirements before fitting.

Does the kit include Jubilee Clips?

Yes. Two Jubilee Clips are included.

Can I use this kit with any stove?

No. It is designed for stoves with a compatible 100mm direct ventilation outlet. Always check the appliance manufacturer's requirements before purchasing.
