Woodford Carrington 5 Multifuel EcoDesign Stove 5kW

Description

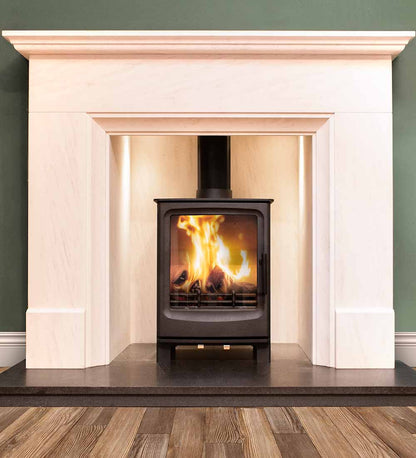

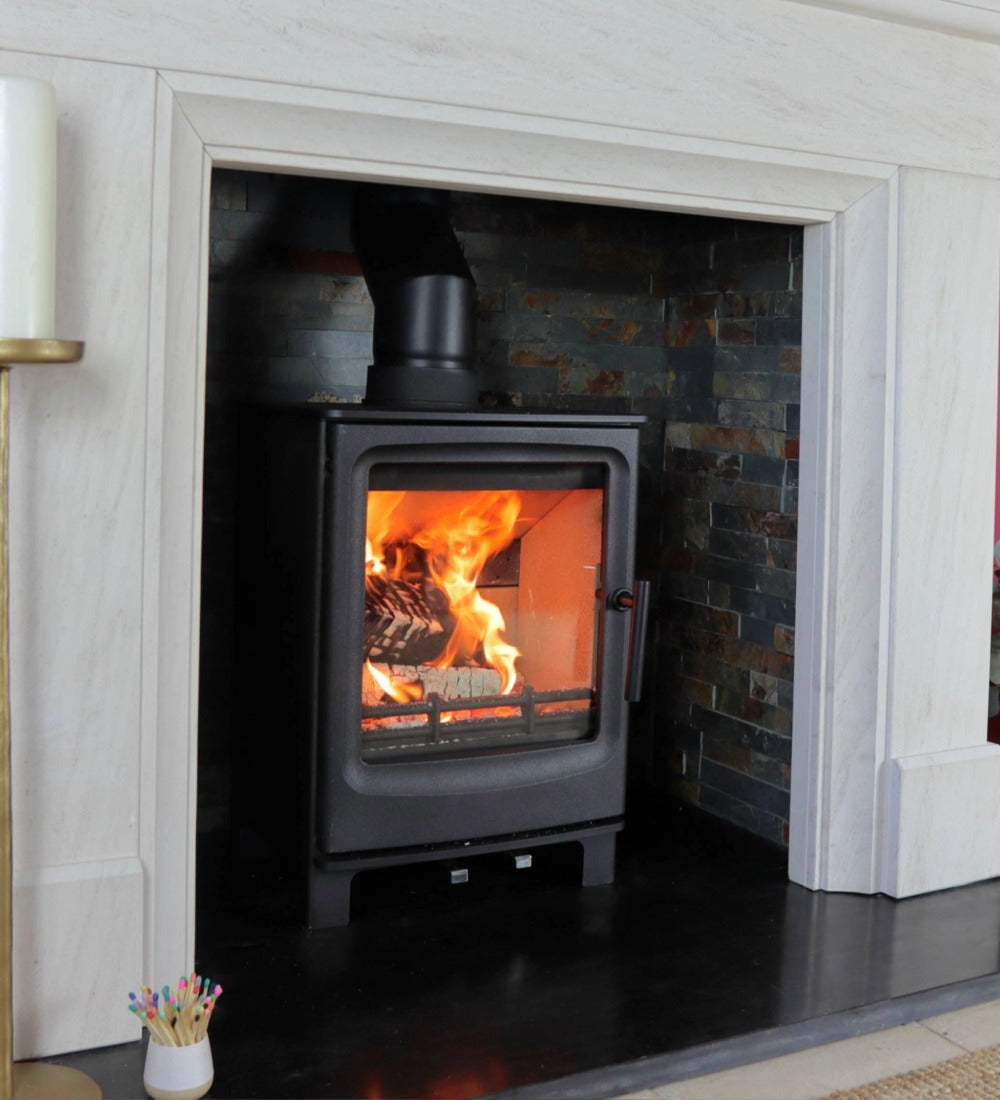

Woodford Carrington 5 Multifuel EcoDesign Stove 🔥

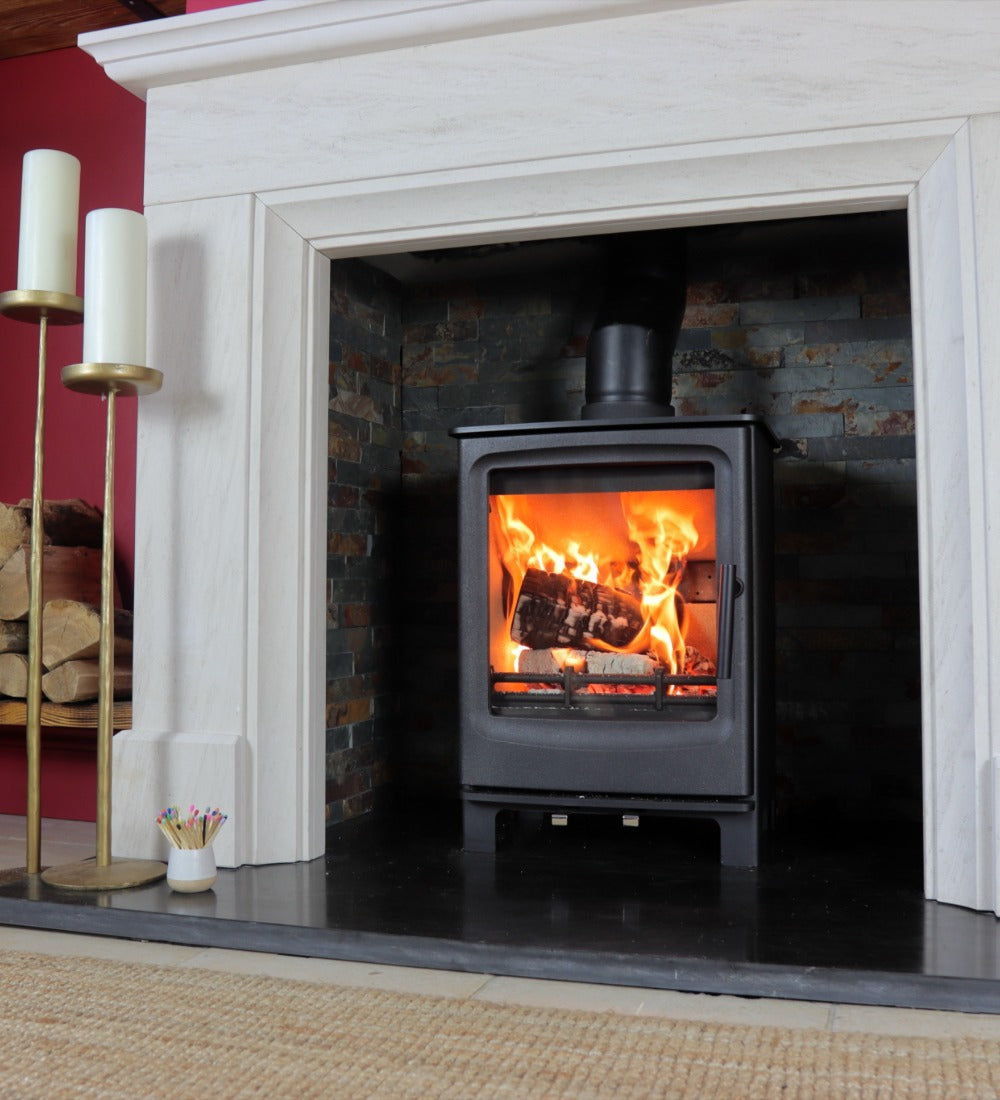

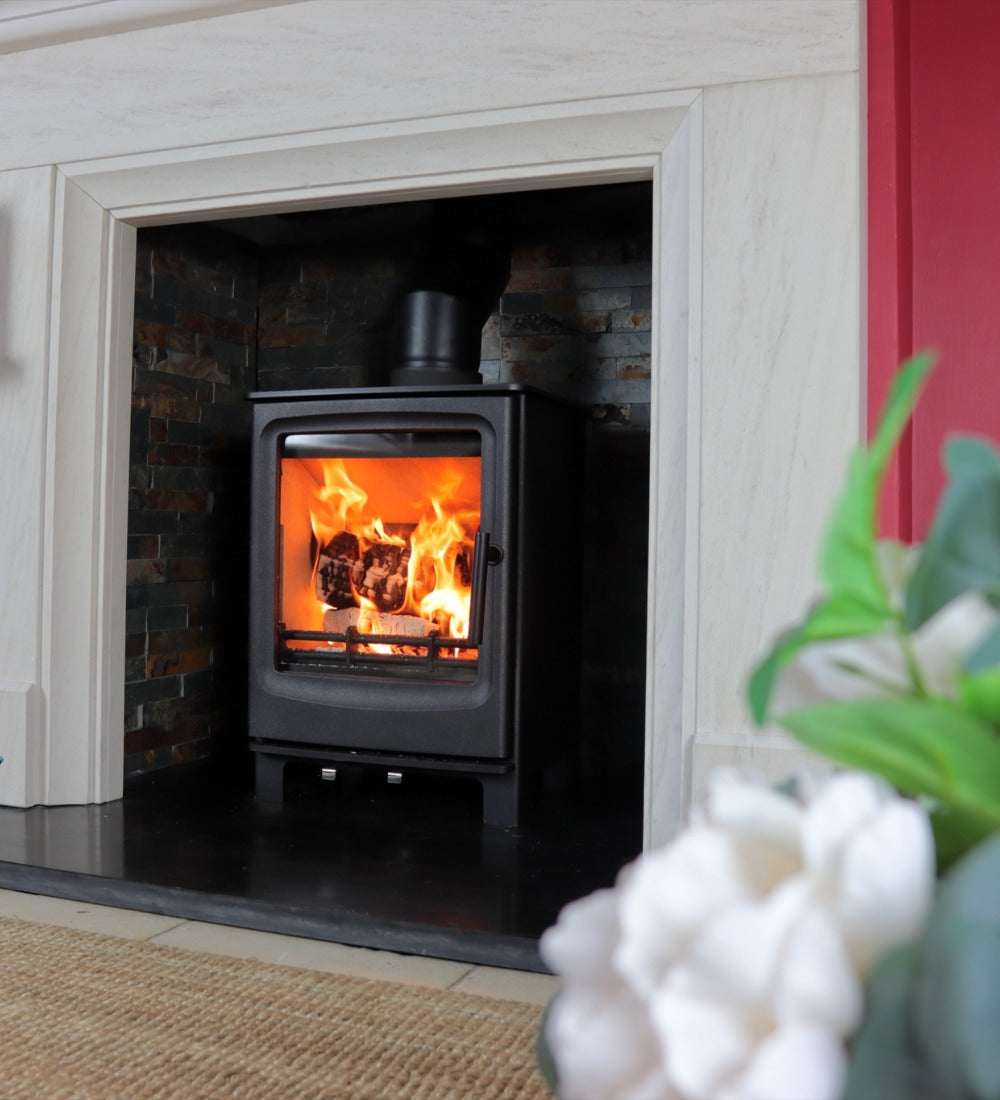

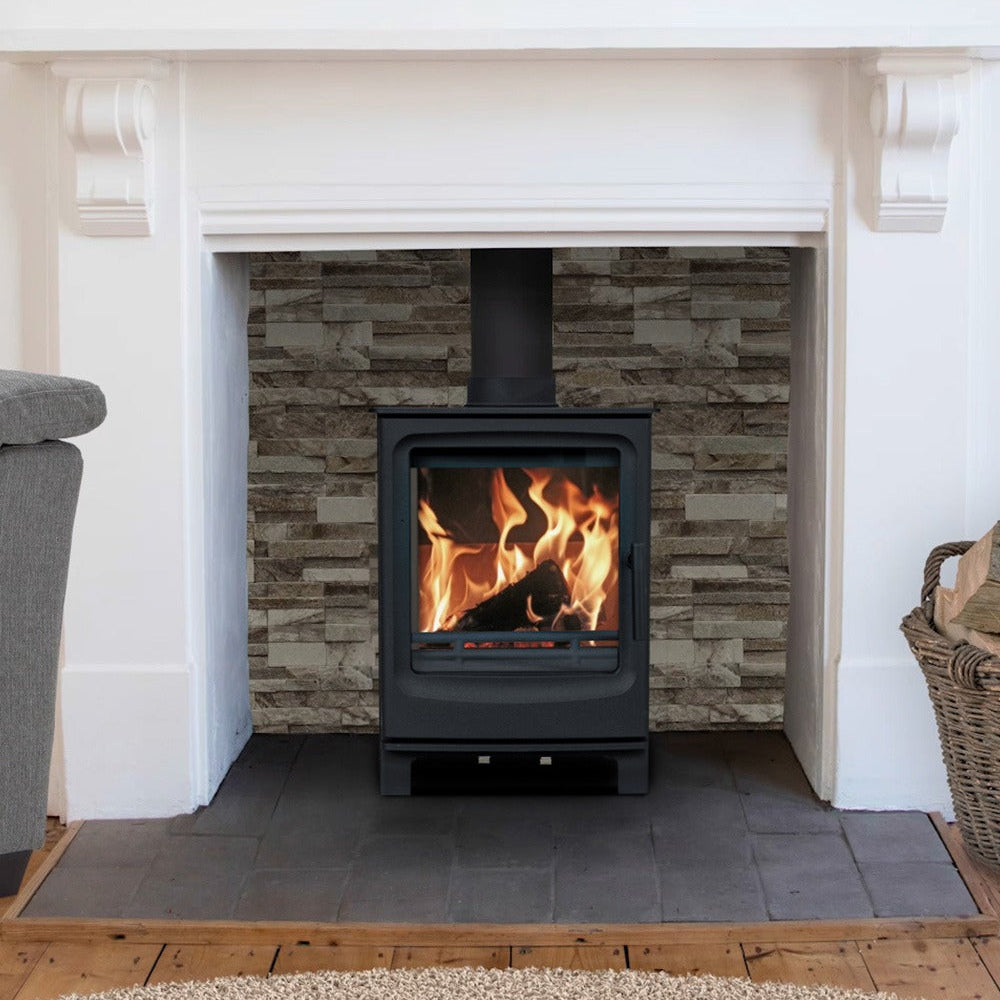

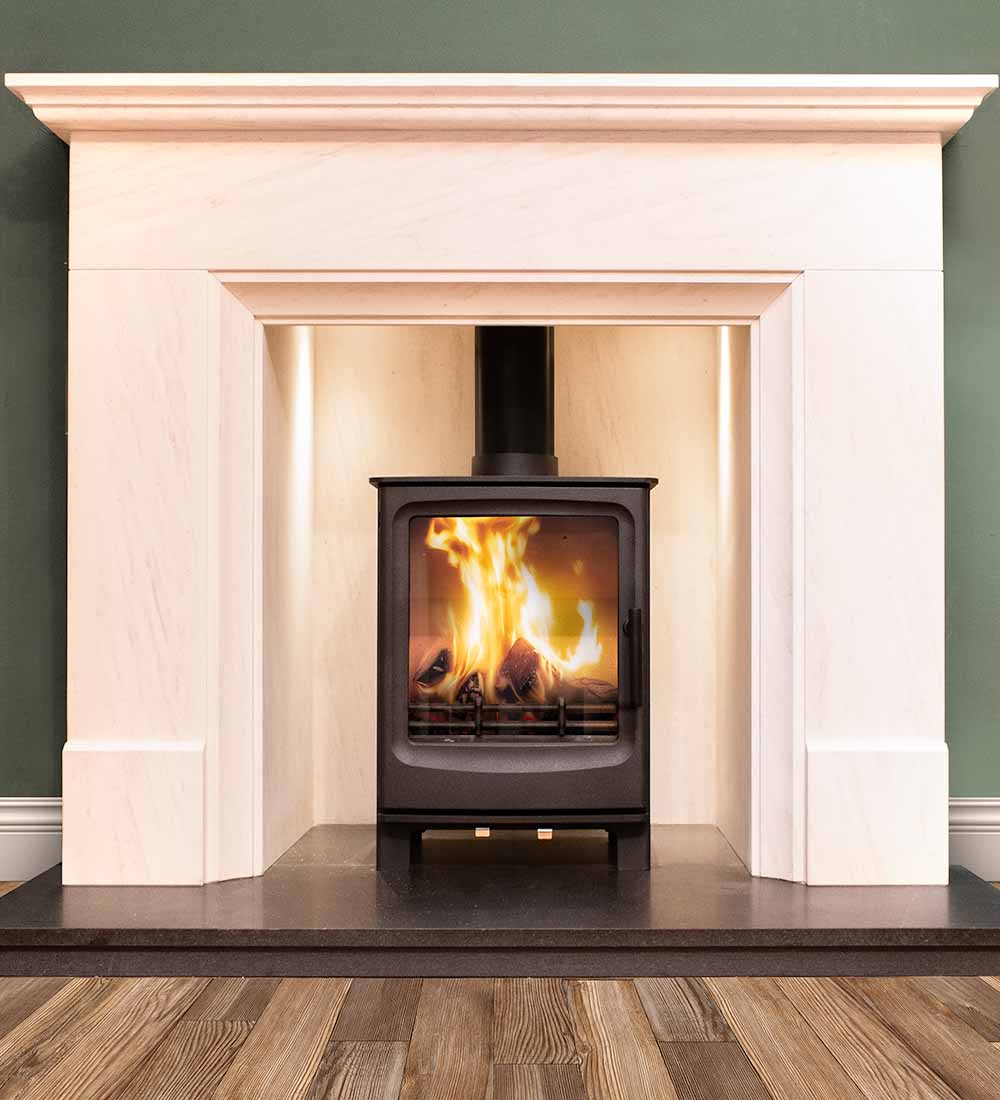

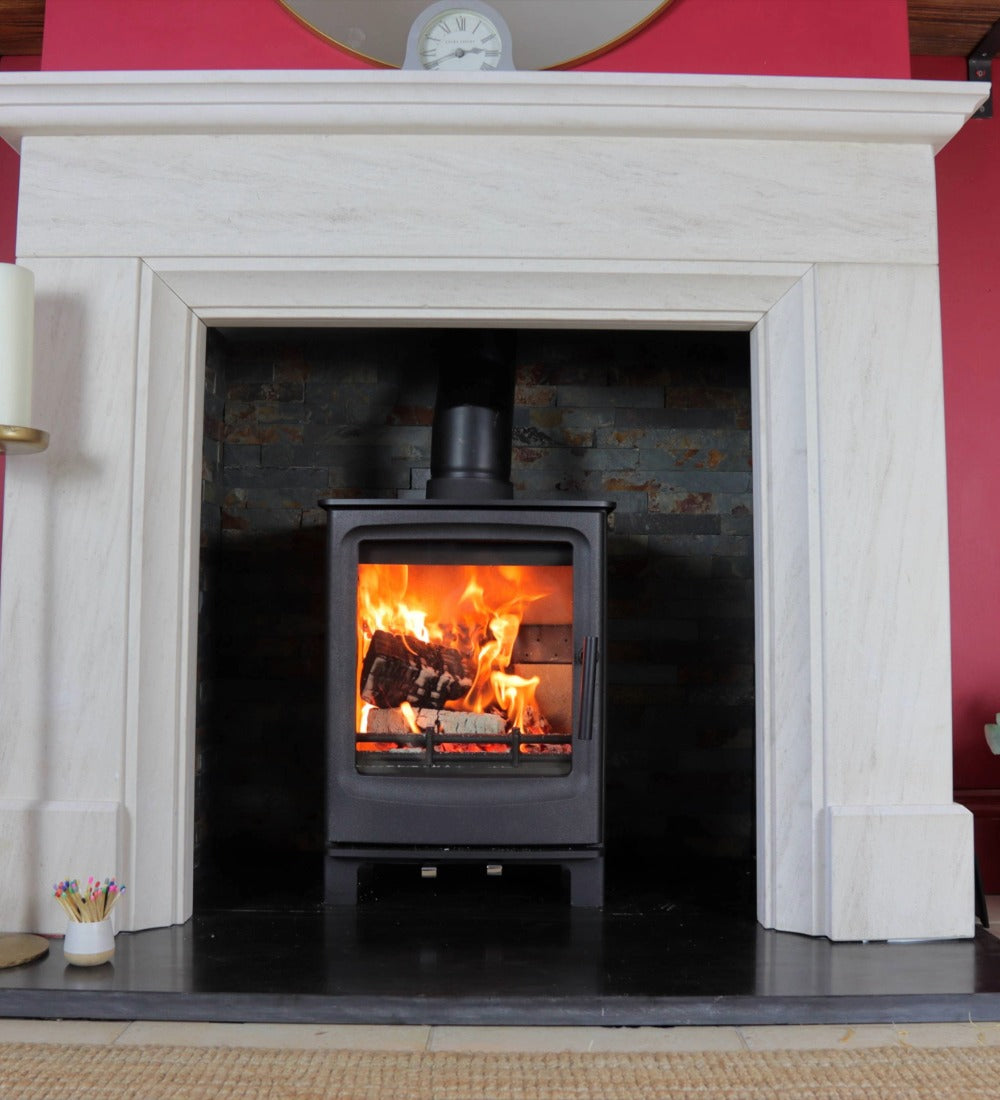

Bring dependable warmth and timeless style into your home with the Woodford Carrington 5 Multifuel EcoDesign Stove. With a 5.0kW heat output and 82.5% efficiency, this compact stove combines practical heating performance with an attractive flame display, making it a welcoming focal point for your living space.

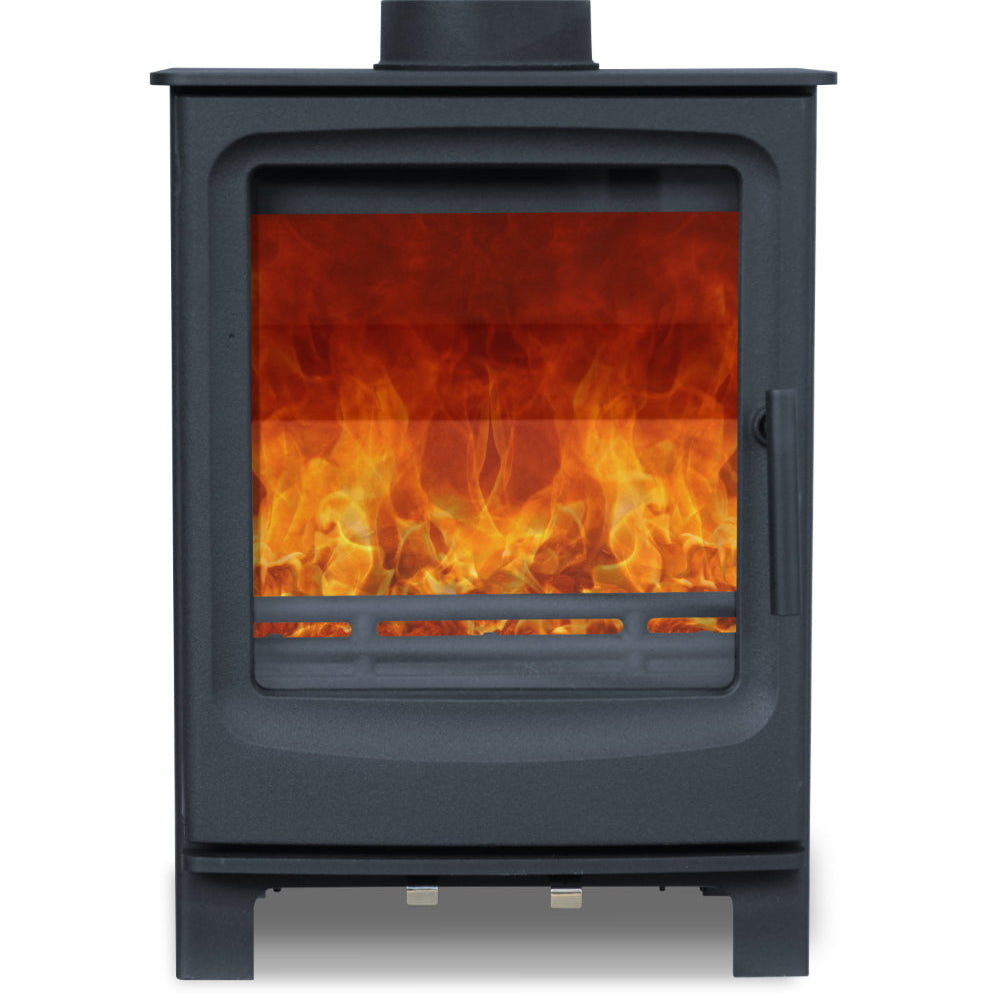

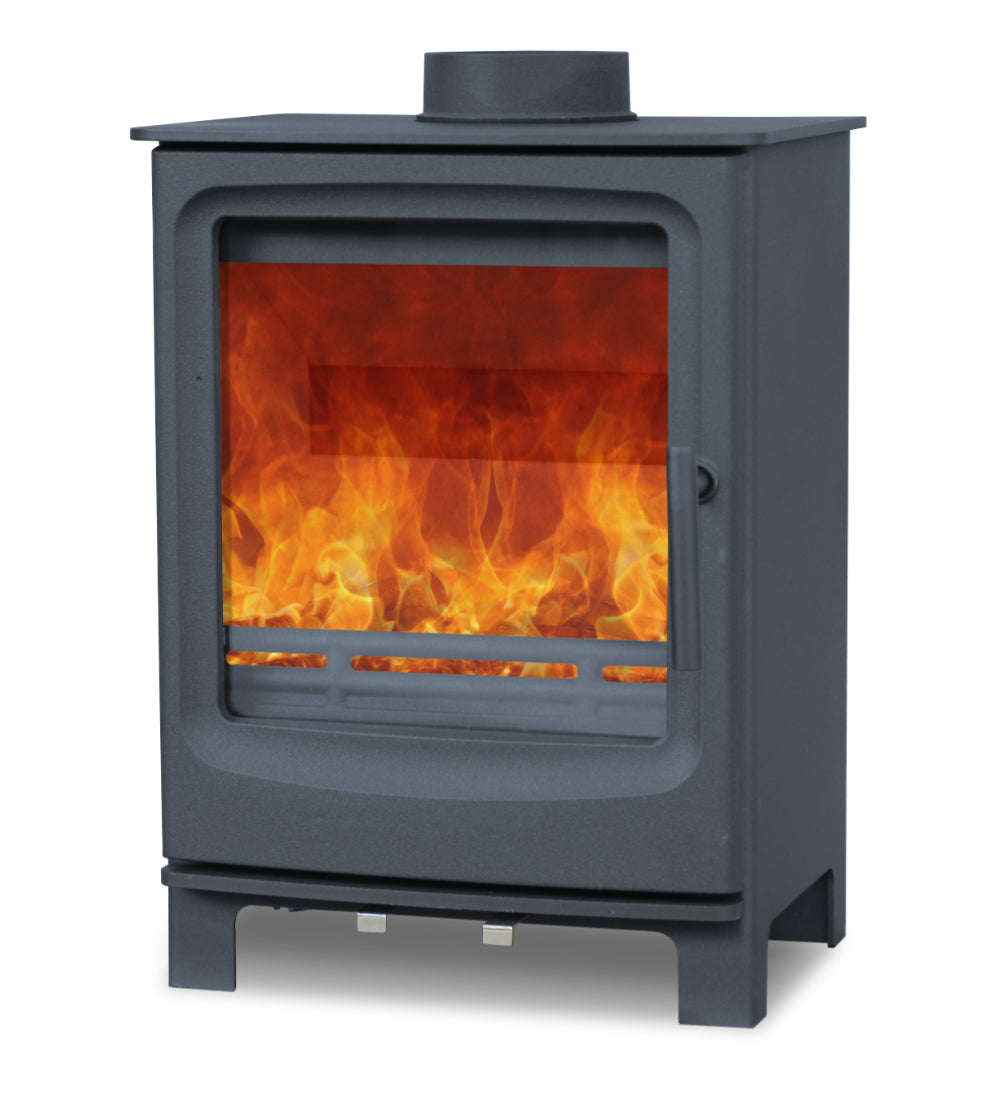

Featuring a robust steel body, cast iron door and large viewing window, the Carrington 5 blends contemporary styling with classic stove character. Its multifuel capability offers flexibility when choosing suitable fuels, while its compact dimensions make it a practical option for a variety of interiors.

Design & Materials 🏡

The Woodford Carrington 5 features a thick gauge steel body paired with a cast iron door, creating a durable construction with a clean, understated appearance. Its large glass viewing window provides an inviting view of the flames, helping create a cosy atmosphere on colder evenings.

The integrated airwash system helps keep the glass clearer during operation, while clean burn technology supports the combustion process. Together, these features help you enjoy the fire while making the stove a practical addition to your home.

Measuring 430mm wide, 580mm high and 332mm deep, the Carrington 5 offers a compact design that can suit a range of room layouts, subject to the required installation clearances.

Features

Performance & Features 🔥

5.0kW Heat Output

With a rated heat output of 5.0kW, the Carrington 5 is designed to provide comfortable warmth in a suitably sized room. The actual heating performance will depend on factors such as room size, insulation and ventilation.

Multifuel Capability

The built in multifuel grate and ash pan allow the stove to burn wood and suitable smokeless fuels in accordance with the manufacturer's instructions. The riddling grate helps make ash management more convenient during regular use.

Airwash System

The integrated airwash system directs air across the viewing glass to help reduce the build up of deposits, giving you a clearer view of the flames during operation.

EcoDesign and DEFRA Approval

The Carrington 5 is listed as EcoDesign compliant and DEFRA approved. When used with permitted fuels and operated according to the relevant requirements, it can be suitable for use in applicable smoke control areas.

Flexible Flue Options

The interchangeable top and rear flue outlets offer flexibility when planning the installation. The stove is also compatible with an external air supply, where suitable for the property and installation.

Benefits

Key Benefits ✨

• Enjoy a 5.0kW heat output for comfortable indoor warmth

• View the flames through the large glass window

• Make effective use of fuel with 82.5% efficiency

• Choose between wood and suitable smokeless fuels

• Help maintain clearer glass with the integrated airwash system

• Benefit from interchangeable top and rear flue outlet options

Safety

Safety & Installation ⚠️

The Woodford Carrington 5 must be installed in accordance with the manufacturer's instructions and applicable UK building regulations. Installation by a suitably qualified stove installer is recommended.

Hearth Requirements

The stove is listed as suitable for a 12mm hearth, subject to the applicable installation requirements. The supplied guidance states that where the hearth temperature does not exceed 100°C during normal operation, the hearth should extend at least 300mm in front of the stove and 150mm to either side. The full hearth area should be at least 840mm x 840mm and the hearth should be at least 12mm thick.

Confirm the correct hearth specifications and dimensions for your installation before purchasing.

Clearances to Combustible Materials

The supplied specifications list the following minimum clearances:

• Above the stove: 500mm

• To the sides: 600mm

• To the rear: 500mm

These clearances must be checked against the manufacturer's installation instructions and the materials surrounding your specific installation. Do not assume that the listed distances apply to every installation or material.

Ventilation and Carbon Monoxide Protection

Adequate ventilation must be provided as required for the appliance and property. The stove is compatible with an external air supply, but the need for and suitability of this arrangement should be assessed for your installation.

A suitable carbon monoxide alarm must be installed in accordance with current requirements and the relevant guidance. The stove is intended for suitable indoor installations and is not designed for outdoor use unless specifically approved by the manufacturer.

Specifications

Dimensions & Technical Specifications 📏

Specification	Details
Brand	Woodford
Model	Carrington 5
Product Type	Multifuel EcoDesign Stove
Fuel Type	Wood and suitable smokeless fuels
Heat Output	5.0kW
Efficiency	82.5%
DEFRA Approved	Yes, as listed
EcoDesign	Yes, as listed
Construction	Steel body with cast iron door
Fuel Grate	Multifuel grate
Airwash System	Yes
Flue Outlet	Interchangeable top or rear
Flue Size	5 inch / 125mm
External Air Compatible	Yes
Suitable for 12mm Hearth	Listed as suitable, subject to installation requirements
Overall Width	430mm
Overall Height	580mm
Overall Depth	332mm
Rear to Centre of Top Flue	104.5mm
Width to Centre of Top Flue	215mm
Height to Centre of Rear Flue	382.5mm
Clearance Above	500mm, as listed
Clearance to Sides	600mm, as listed
Clearance to Rear	500mm, as listed
Sweep Flue Through Stove	Yes, as listed
Guarantee	10 years, subject to terms
Other Colours Available	No, as listed

Please confirm all dimensions, clearances and installation requirements against the manufacturer's current instructions before ordering.

Build Your Stove & Flue Bundle 🛠️

Plan your installation with the available stove and flue bundle options. Depending on your requirements, you can select the Woodford Carrington 5, choose a compatible flue liner with the specified MADF adapter, and add suitable accessories.

Available options may include a pot hanger in your preferred colour, a qualifying free flue pipe, a closure plate and a carbon monoxide alarm. The exact options and eligibility will depend on the bundle selected.

Purchasing compatible components together can help simplify the planning process. Check the bundle contents carefully to confirm which items are included and which must be purchased separately.

Included

What’s Included 📦

Your Woodford Carrington 5 package includes:

• One Woodford Carrington 5 Multifuel EcoDesign Stove

• Built in multifuel grate

• Built in ash pan

• Integrated airwash system

• Interchangeable top and rear flue outlet options

Additional Items Not Included

The following accessories are available separately and should be purchased where required for your installation:

• Closure plates in various sizes and configurations

• Dura Flue Carbon Monoxide Alarm with 10 Year Battery and Guarantee

• Rytons 4 Inch Direct Ventilation Kit with 6 x 6 Louvre Grille

Additional flue components and other installation accessories may also be available through the stove and flue bundle options.

Please note: Closure plates, the Dura Flue Carbon Monoxide Alarm and the Rytons Direct Ventilation Kit are not included in the Woodford Carrington 5 stove price and must be purchased separately where required. Please check your installation requirements before ordering.

Warranty

Warranty & Support 🛡️

The Woodford Carrington 5 is supplied with a 10 year guarantee, subject to the manufacturer's terms and conditions.

Before purchasing, check the stove dimensions, flue requirements, hearth specifications and clearances against your planned installation. If you are unsure whether the stove is suitable for your property, seek advice from a suitably qualified stove installer or chimney professional.

FAQs

Frequently Asked Questions ❓

What fuel can the Woodford Carrington 5 burn?

The Carrington 5 is a multifuel stove designed to burn wood and suitable smokeless fuels in accordance with the manufacturer's instructions. Always use permitted fuels and follow the operating guidance.

What is the heat output?

The stove has a rated heat output of 5.0kW. Its effectiveness will depend on the room size, insulation and other conditions.

How efficient is the Carrington 5?

The listed efficiency is 82.5%, indicating how effectively the stove converts fuel energy into useful heat.

Is the Woodford Carrington 5 DEFRA approved?

Yes, it is listed as DEFRA approved. For use in a smoke control area, check the applicable rules and burn only permitted fuels in accordance with the relevant requirements.

Does it have an airwash system?

Yes. The integrated airwash system helps reduce deposits on the viewing glass during operation.

Can the flue outlet be fitted at the top or rear?

Yes. The stove has interchangeable top and rear flue outlets, offering flexibility when planning your installation.

What size flue does the stove require?

The listed flue size is 5 inch / 125mm. Confirm the complete flue requirements with your installer before purchasing additional components.

Is the Carrington 5 suitable for a 12mm hearth?

It is listed as suitable for a 12mm hearth, subject to the manufacturer's instructions and the requirements of your installation. Confirm the necessary hearth dimensions and specifications before fitting.

Does the stove need an external air supply?

The Carrington 5 is compatible with an external air supply. Whether one is required or appropriate will depend on your property and installation.

Are the closure plate and ventilation kit included?

No. Closure plates and the Rytons Direct Ventilation Kit are sold separately and should be purchased where required for your installation.

Does the stove come with a guarantee?

Yes. The stove is listed with a 10 year guarantee, subject to the manufacturer's terms and conditions.

Manual

Woodford Carrington Stove User Guide
